Filter Knowledge Base Retrieval Results with SearchFilters - Model Studio

The Retrieve API returns text segments from a knowledge base based on semantic similarity. When semantic search returns too many irrelevant results, use SearchFilters to apply metadata-based filtering on top of semantic results. This is effective for structured data such as data tables with well-defined fields.

How SearchFilters works

Without SearchFilters, the Retrieve API returns all semantically similar text segments, which may include irrelevant matches. SearchFilters first performs semantic search and then filters results by field conditions.

Without SearchFilters:

{
  "indexId": "o73yjlxxxx",
  "query": "Employees in the company named San Zhang"
}

Semantic retrieval returns text segments that are not highly relevant to "San Zhang".

With SearchFilters:

{
  "indexId": "o73yjlxxxx",
  "query": "Employees in the company named San Zhang",
  "searchFilters": [
    {
      "Name": "San Zhang"
    }
  ]
}

SearchFilters removes text segments that do not match Name: "San Zhang" from the semantic results.

Syntax

SearchFilters is an array of subgroups. Each subgroup is a JSON object with one or more field: value pairs. Subgroups are always combined with AND logic.

{
  "searchFilters": [
    {
      "Name": "San Zhang",
      "Sex": "Male"
    },
    {
      "Position": "Engineer"
    }
  ]
}

In this example, results must match Name = "San Zhang" AND Sex = "Male" (within subgroup 1) AND Position = "Engineer" (subgroup 2).

Supported query types

Operator reference

Query type	Operator	Supported field types	Description
Single-value	(direct value)	string, numeric (long, double)	Match a single exact value. Example: `{"Name": "San Zhang"}`
Multi-value	(JSON array)	string array, numeric array	Match any value in the array (similar to SQL `IN`). Example: `{"Name": "[\"San Zhang\",\"Si Li\"]"}`
Equality	`eq`	string, numeric	Equal to. Example: `{"Name": {"eq": "San Zhang"}}`
Equality	`neq`	string, numeric	Not equal to. Example: `{"Name": {"neq": "San Zhang"}}`
Interval	`gt`	numeric	Greater than. Example: `{"Age": {"gt": 20}}`
Interval	`gte`	numeric	Greater than or equal to. Example: `{"Age": {"gte": 20}}`
Interval	`lt`	numeric	Less than. Example: `{"Age": {"lt": 30}}`
Interval	`lte`	numeric	Less than or equal to. Example: `{"Age": {"lte": 30}}`
Fuzzy	`like`	string	Wildcard pattern match. Example: `{"Position": {"like": "E%r"}}`
Tag	`tags`	string array	Filter by document tags (document search knowledge bases only). Example: `{"tags": "[\"tag1\",\"tag2\"]"}`

Equality and interval queries are range query subtypes. Equality queries are case-insensitive and accept only single values per field.

Wildcard characters for fuzzy queries

Character	Description	Example
`%`	Matches zero or more characters	`E%r` matches `Engineer`
`_`	Matches exactly one character	`E_gineer` matches `Engineer`

Tag query logic

Multiple tags in one subgroup use OR logic: files matching any tag are returned.
For AND logic between tags, place each tag in a separate subgroup.

Prerequisites

You need:

(RAM users only) The AliyunBailianDataFullAccess policy and workspace membership. Not required for an Alibaba Cloud account.
A workspace ID
The Model Studio SDK installed and configured
AccessKey and AccessKey secret configured as environment variables

RAM users can manage knowledge bases only in workspaces they've joined. Alibaba Cloud accounts can manage all workspaces.

Sample data setup

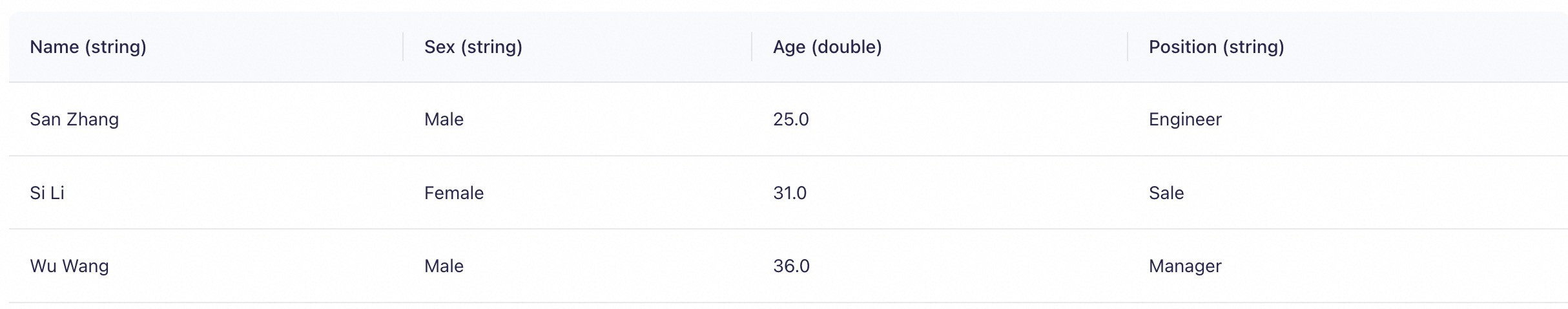

Examples use EmployeeInformation.xlsx (3 records). Create a knowledge base with:

Setting	Value
Knowledge base type	Data Query
Data source	Upload Data Table
Fields	Name (string), Sex (string), Position (string), Age (double)
Index settings	All fields used for retrieval and model responses

Complete code examples

The following Python and Java examples cover all query types.

Before running the sample code, configure your AccessKey and AccessKey secret as environment variables.

Python

SearchFiltersFullExample.py

# The sample code is for reference only. Do not use it in a production environment.
import json
import os
import sys
from typing import List

from alibabacloud_bailian20231229 import models as bailian_20231229_models
from alibabacloud_bailian20231229.client import Client as bailian20231229Client
from alibabacloud_tea_openapi import models as open_api_models
from alibabacloud_tea_util.client import Client as UtilClient


class SearchFiltersFullExample:
    class QueryObject:
        def __init__(self, prefix):
            self.like = prefix

        def to_dict(self):
            return {
                "like": self.like
            }

    class Range:
        def __init__(self, gte, lte):
            self.gte = gte
            self.lte = lte

        def to_dict(self):
            return {
                "gte": self.gte,
                "lte": self.lte
            }

    def __init__(self):
        pass

    @staticmethod
    def create_client() -> bailian20231229Client:
        """
        Initializes a client using an AccessKey pair.
        @return: Client
        @throws Exception
        """
        # For production, use STS or other secure credential management. See https://www.alibabacloud.com/help/sdk/developer-reference/v2-manage-access-credentials
        config = open_api_models.Config(
            # Required. Make sure that the ALIBABA_CLOUD_ACCESS_KEY_ID environment variable is set.
            access_key_id=os.environ['ALIBABA_CLOUD_ACCESS_KEY_ID'],
            # Required. Make sure that the ALIBABA_CLOUD_ACCESS_KEY_SECRET environment variable is set.
            access_key_secret=os.environ['ALIBABA_CLOUD_ACCESS_KEY_SECRET']
        )
        # For more information about endpoints, see https://www.alibabacloud.com/help/model-studio/api-bailian-2023-12-29-endpoint
        config.endpoint = f'bailian.ap-southeast-1.aliyuncs.com'
        return bailian20231229Client(config)

    @staticmethod
    def sub_group_query() -> None:
        try:
            client = SearchFiltersFullExample.create_client()
            # Create a retrieve_request object.
            retrieve_request = bailian_20231229_models.RetrieveRequest()
            # Required. You can enter the actual prompt.
            retrieve_request.query = 'Employees in the company named San Zhang'
            # Required. Enter the actual knowledge base ID.
            retrieve_request.index_id = 'Enter the actual knowledge base ID'
            # Group 1: Name = "San Zhang", Group 2: Sex = "Female"
            retrieve_request.search_filters = [
                {"Name": "San Zhang"},
                {"Sex": "Female"}
            ]
            # Perform a retrieval. Enter the workspace ID and the retrieve_request object.
            resp = client.retrieve('Enter the actual workspace ID', retrieve_request)
            print(UtilClient.to_jsonstring(resp))
        except Exception as error:
            # Handle exceptions appropriately in production
            print(error.message)

    @staticmethod
    def single_query() -> None:
        try:
            client = SearchFiltersFullExample.create_client()
            # Create a retrieve_request object.
            retrieve_request = bailian_20231229_models.RetrieveRequest()
            # Required. You can enter the actual prompt.
            retrieve_request.query = 'Employees in the company named San Zhang'
            # Required. Enter the actual knowledge base ID.
            retrieve_request.index_id = 'Enter the actual knowledge base ID'
            # Single-value filter: Name = "San Zhang"
            retrieve_request.search_filters = [
                {"Name": "San Zhang"}
            ]
            # Perform a retrieval. Enter the workspace ID and the retrieve_request object.
            resp = client.retrieve('Enter the actual workspace ID', retrieve_request)
            print(UtilClient.to_jsonstring(resp.body))
        except Exception as error:
            # Handle exceptions appropriately in production
            print(error.message)

    @staticmethod
    def multi_query() -> None:
        try:
            client = SearchFiltersFullExample.create_client()
            # Create a retrieve_request object.
            retrieve_request = bailian_20231229_models.RetrieveRequest()
            # Required. You can enter the actual prompt.
            retrieve_request.query = 'All employees in the company'
            # Required. Enter the actual knowledge base ID.
            retrieve_request.index_id = 'Enter the actual knowledge base ID'
            # Create a list to store multiple values.
            names = ["San Zhang", "Si Li"]
            # Multi-value filter: Name IN ["San Zhang", "Si Li"]
            retrieve_request.search_filters = [{"Name": json.dumps(names)}]
            # Perform a retrieval. Enter the workspace ID and the retrieve_request object.
            resp = client.retrieve('Enter the actual workspace ID', retrieve_request)
            print(UtilClient.to_jsonstring(resp.body))
        except Exception as error:
            # Handle exceptions appropriately in production
            print(error.message)

    @staticmethod
    def range_query() -> None:
        try:
            client = SearchFiltersFullExample.create_client()
            # Create a retrieve_request object.
            retrieve_request = bailian_20231229_models.RetrieveRequest()
            # Required. You can enter the actual prompt.
            retrieve_request.query = 'All employees in the company'
            # Required. Enter the actual knowledge base ID.
            retrieve_request.index_id = 'Enter the actual knowledge base ID'
            # Range filter: Age
            age_range = SearchFiltersFullExample.Range(20, 27)
            retrieve_request.search_filters = [
                {"Position": "Engineer"},  # Group 1: Position filter condition
                {"Age": json.dumps(age_range.to_dict())}  # Group 2: Age range filter condition
            ]
            # Perform a retrieval. Enter the workspace ID and the retrieve_request object.
            resp = client.retrieve('Enter the actual workspace ID', retrieve_request)
            print(UtilClient.to_jsonstring(resp.body))
        except Exception as error:
            # Handle exceptions appropriately in production
            print(error.message)

    @staticmethod
    def wildcard_query() -> None:
        try:
            client = SearchFiltersFullExample.create_client()
            # Create a retrieve_request object.
            retrieve_request = bailian_20231229_models.RetrieveRequest()
            # Required. You can enter the actual prompt.
            retrieve_request.query = 'Male employees in the company'
            # Required. Enter the actual knowledge base ID.
            retrieve_request.index_id = 'Enter the actual knowledge base ID'
            # Fuzzy filter: Position LIKE "E%r" (% = zero or more chars)
            position = SearchFiltersFullExample.QueryObject('E%r')
            retrieve_request.search_filters = [
                {"Name": "San Zhang"},  # Name filter condition. You can replace it with the actual property and value.
                {"Position": json.dumps(position.to_dict())}  # Position (fuzzy query) filter condition. You can replace it with the actual property and value.
            ]
            # Perform a retrieval. Enter the workspace ID and the retrieve_request object.
            resp = client.retrieve('Enter the actual workspace ID', retrieve_request)
            print(UtilClient.to_jsonstring(resp.body))
        except Exception as error:
            # Handle exceptions appropriately in production
            print(error.message)

    @staticmethod
    def tag_query() -> None:
        try:
            client = SearchFiltersFullExample.create_client()
            # Create a retrieve_request object.
            retrieve_request = bailian_20231229_models.RetrieveRequest()
            # Required. You can enter the actual prompt.
            retrieve_request.query = 'Provide some candidates'
            # Required. Enter the actual knowledge base ID.
            retrieve_request.index_id = 'Enter the actual knowledge base ID'
            # Tag filter (OR logic within array)
            tags = ["University A", "Student Union President"]
            retrieve_request.search_filters = [
                {"tags": json.dumps(tags)}
            ]
            # Perform a retrieval. Enter the workspace ID and the retrieve_request object.
            resp = client.retrieve('Enter the actual workspace ID', retrieve_request)
            print(UtilClient.to_jsonstring(resp.body))
        except Exception as error:
            # Handle exceptions appropriately in production
            print(error.message)

    @staticmethod
    def tag_query2() -> None:
        try:
            client = SearchFiltersFullExample.create_client()
            # Create a retrieve_request object.
            retrieve_request = bailian_20231229_models.RetrieveRequest()
            # Required. You can enter the actual prompt.
            retrieve_request.query = 'Provide some candidates'
            # Required. Enter the actual knowledge base ID.
            retrieve_request.index_id = 'Enter the actual knowledge base ID'
            # Tag filters (AND logic between groups)
            tag1 = ["University A"]
            tag2 = ["Sports Specialist Student"]
            retrieve_request.search_filters = [
                {"tags": json.dumps(tag1)},
                {"tags": json.dumps(tag2)}
            ]
            # Perform a retrieval. Enter the workspace ID and the retrieve_request object.
            resp = client.retrieve('Enter the actual workspace ID', retrieve_request)
            print(UtilClient.to_jsonstring(resp.body))
        except Exception as error:
            # Handle exceptions appropriately in production
            print(error.message)

    @staticmethod
    def main(args: List[str]) -> None:
        SearchFiltersFullExample.sub_group_query()
        SearchFiltersFullExample.single_query()
        SearchFiltersFullExample.multi_query()
        SearchFiltersFullExample.range_query()
        SearchFiltersFullExample.wildcard_query()
        SearchFiltersFullExample.tag_query()
        SearchFiltersFullExample.tag_query2()


if __name__ == '__main__':
    SearchFiltersFullExample.main(sys.argv[1:])

Java

SearchFiltersFullExample.java

// The sample code is for reference only. Do not use it in a production environment.
import com.aliyun.bailian20231229.models.RetrieveRequest;
import com.aliyun.bailian20231229.models.RetrieveResponse;
import com.google.gson.Gson;
import com.google.gson.JsonArray;

import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;

public class SearchFiltersFullExample {
    /**
     * description

Query type examples

Each query type includes JSON syntax and sample request/response.

Replace these placeholders with your actual values:

Placeholder	Description	Example
`<knowledge-base-id>`	Knowledge base index ID	`27ubwxxxxx`
`<workspace-id>`	Workspace ID	`llm-4u5xpd1xdjxxxxxx`

Subgroup query

Each element in the searchFilters array is a subgroup combining filter conditions. All subgroups must match (AND logic).

Filter for records where Name is "San Zhang" AND Sex is "Female":

{
  "searchFilters": [
    {
      "Name": "San Zhang"
    },
    {
      "Sex": "Female"
    }
  ]
}

No records match both conditions, so nodes is empty.

Python

SubGroupQueryExample.py

# The sample code is for reference only. Do not use it in a production environment.
import os
import sys
from typing import List

from alibabacloud_bailian20231229 import models as bailian_20231229_models
from alibabacloud_bailian20231229.client import Client as bailian20231229Client
from alibabacloud_tea_openapi import models as open_api_models
from alibabacloud_tea_util.client import Client as UtilClient


class SubGroupQueryExample:
    def __init__(self):
        pass

    @staticmethod
    def create_client() -> bailian20231229Client:
        """
        Initializes a client using an AccessKey pair.
        @return: Client
        @throws Exception
        """
        # For production, use STS or other secure credential management. See https://www.alibabacloud.com/help/sdk/developer-reference/v2-manage-access-credentials
        config = open_api_models.Config(
            # Required. Make sure that the ALIBABA_CLOUD_ACCESS_KEY_ID environment variable is set.
            access_key_id=os.environ['ALIBABA_CLOUD_ACCESS_KEY_ID'],
            # Required. Make sure that the ALIBABA_CLOUD_ACCESS_KEY_SECRET environment variable is set.
            access_key_secret=os.environ['ALIBABA_CLOUD_ACCESS_KEY_SECRET']
        )
        # For more information about endpoints, see https://www.alibabacloud.com/help/model-studio/api-bailian-2023-12-29-endpoint
        config.endpoint = f'bailian.ap-southeast-1.aliyuncs.com'
        return bailian20231229Client(config)

    @staticmethod
    def main(
            args: List[str],
    ) -> None:
        try:
            client = SubGroupQueryExample.create_client()
            # Create a retrieve_request object.
            retrieve_request = bailian_20231229_models.RetrieveRequest()
            # Required. You can enter the actual prompt.
            retrieve_request.query = 'Employees in the company named San Zhang'
            # Required. Enter the actual knowledge base ID.
            retrieve_request.index_id = 'Enter the actual knowledge base ID'
            # Group 1: Name = "San Zhang", Group 2: Sex = "Female"
            retrieve_request.search_filters = [
                {"Name": "San Zhang"},
                {"Sex": "Female"}
            ]
            # Perform a retrieval. Enter the workspace ID and the retrieve_request object.
            resp = client.retrieve('Enter the actual workspace ID', retrieve_request)
            print(UtilClient.to_jsonstring(resp))
        except Exception as error:
            # Handle exceptions appropriately in production
            print(error.message)


if __name__ == '__main__':
    SubGroupQueryExample.main(sys.argv[1:])

Java

SubGroupQueryExample.java

// The sample code is for reference only. Do not use it in a production environment.
import com.aliyun.bailian20231229.models.RetrieveRequest;
import com.aliyun.bailian20231229.models.RetrieveResponse;
import com.google.gson.Gson;

import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;

public class SubGroupQueryExample {
    /**
     * description

Sample request

Request parameters

{
  "indexId": "27ubwxxxxx",
  "WorkspaceId":"llm-4u5xpd1xdjxxxxxx",
  "query": "Employees in the company named San Zhang",
  "searchFilters": [
    {
      "Name": "San Zhang"
    },
    {
      "Sex": "Female"
    }
  ]
}

Sample response

Response parameters

{
  "code": "Success",
  "data": {
    "nodes": []
  },
  "message": "success",
  "requestId": "5BA30772-xxxx-560C-B1F7-C1DA737A9D80",
  "status": "200",
  "success": true
}

Single-value query

Pass a single value for a field to match records with that exact value.

Filter for records where Name is "San Zhang":

{
  "searchFilters": [
    {
      "Name": "San Zhang"
    }
  ]
}

Python

SingleQueryExample.py

# The sample code is for reference only. Do not use it in a production environment.
import os
import sys
from typing import List

from alibabacloud_bailian20231229 import models as bailian_20231229_models
from alibabacloud_bailian20231229.client import Client as bailian20231229Client
from alibabacloud_tea_openapi import models as open_api_models
from alibabacloud_tea_util.client import Client as UtilClient


class SingleQueryExample:
    def __init__(self):
        pass

    @staticmethod
    def create_client() -> bailian20231229Client:
        """
        Initializes a client using an AccessKey pair.
        @return: Client
        @throws Exception
        """
        # For production, use STS or other secure credential management. See https://www.alibabacloud.com/help/sdk/developer-reference/v2-manage-access-credentials
        config = open_api_models.Config(
            # Required. Make sure that the ALIBABA_CLOUD_ACCESS_KEY_ID environment variable is set.
            access_key_id=os.environ['ALIBABA_CLOUD_ACCESS_KEY_ID'],
            # Required. Make sure that the ALIBABA_CLOUD_ACCESS_KEY_SECRET environment variable is set.
            access_key_secret=os.environ['ALIBABA_CLOUD_ACCESS_KEY_SECRET']
        )
        # For more information about endpoints, see https://www.alibabacloud.com/help/model-studio/api-bailian-2023-12-29-endpoint
        config.endpoint = f'bailian.ap-southeast-1.aliyuncs.com'
        return bailian20231229Client(config)

    @staticmethod
    def main(
            args: List[str],
    ) -> None:
        client = SingleQueryExample.create_client()
        # Create a retrieve_request object.
        retrieve_request = bailian_20231229_models.RetrieveRequest()
        # Required. You can enter the actual prompt.
        retrieve_request.query = 'Employees in the company named San Zhang'
        # Required. Enter the actual knowledge base ID.
        retrieve_request.index_id = 'Enter the actual knowledge base ID'
        # The property for the single-value query is Name and the value is San Zhang. You can replace them with the actual property and value.
        retrieve_request.search_filters = [
            {"Name": "San Zhang"}
        ]
        try:
            # Perform a retrieval. Enter the workspace ID and the retrieve_request object.
            resp = client.retrieve('Enter the actual workspace ID', retrieve_request)
            print(UtilClient.to_jsonstring(resp.body))
        except Exception as error:
            # Handle exceptions appropriately in production
            print(error.message)


if __name__ == '__main__':
    SingleQueryExample.main(sys.argv[1:])

Java

SingleQueryExample.java

// The sample code is for reference only. Do not use it in a production environment.
import com.aliyun.bailian20231229.models.RetrieveRequest;
import com.aliyun.bailian20231229.models.RetrieveResponse;
import com.google.gson.Gson;

import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;

public class SingleQueryExample {
    /**
     * description

Sample request

Request parameters

{
  "indexId": "27ubwxxxxx",
  "WorkspaceId":"llm-4u5xpd1xdjxxxxxx",
  "query": "Employees in the company named San Zhang",
  "searchFilters": [
    {
      "Name": "San Zhang"
    }
  ]
}

Sample response

Response parameters

{
  "code": "Success",
  "data": {
    "nodes": [
      {
        "metadata": {
          "_rc_v_score": 0.32581159472465515,
          "_q_score": 1,
          "source": "0",
          "_score": 0.4556944966316223,
          "doc_id": "table_xxxx75507aab4bd9a24c18d098b2e8ac_10285263_1",
          "Sex": "Male",
          "_rc_score": 0,
          "Name": "San Zhang",
          "doc_name": "Employee Sheet",
          "_id": "llm-xxxxpd1xdjqp8itj_27ubwxxxxx_table_200275507aab4bd9a24c18d098b2e8ac_10285263_1",
          "Age": "25",
          "Position": "Engineer"
        },
        "score": 0.4556944966316223,
        "text": "Name:San Zhang Age:25 Position:Engineer Sex:Male"
      }
    ]
  },
  "message": "success",
  "requestId": "2FA4113E-xxxx-59C1-BDB2-5B930D8C9B1C",
  "status": "200",
  "success": true
}

Multi-value query

Pass multiple values for a field to match records containing any of the specified values, similar to the SQL IN operator. Serialize the value array as a JSON string.

Filter for records where Name is "San Zhang" or "Si Li":

{
  "searchFilters": [
    {
      "Name": "[\"San Zhang\",\"Si Li\"]"
    }
  ]
}

Python

MultiQueryExample.py

# The sample code is for reference only. Do not use it in a production environment.
import json
import os
import sys
from typing import List

from alibabacloud_bailian20231229 import models as bailian_20231229_models
from alibabacloud_bailian20231229.client import Client as bailian20231229Client
from alibabacloud_tea_openapi import models as open_api_models
from alibabacloud_tea_util.client import Client as UtilClient


class MultiQueryExample:
    def __init__(self):
        pass

    @staticmethod
    def create_client() -> bailian20231229Client:
        """
        Initializes a client using an AccessKey pair.
        @return: Client
        @throws Exception
        """
        # For production, use STS or other secure credential management. See https://www.alibabacloud.com/help/sdk/developer-reference/v2-manage-access-credentials
        config = open_api_models.Config(
            # Required. Make sure that the ALIBABA_CLOUD_ACCESS_KEY_ID environment variable is set.
            access_key_id=os.environ['ALIBABA_CLOUD_ACCESS_KEY_ID'],
            # Required. Make sure that the ALIBABA_CLOUD_ACCESS_KEY_SECRET environment variable is set.
            access_key_secret=os.environ['ALIBABA_CLOUD_ACCESS_KEY_SECRET']
        )
        # For more information about endpoints, see https://www.alibabacloud.com/help/model-studio/api-bailian-2023-12-29-endpoint
        config.endpoint = f'bailian.ap-southeast-1.aliyuncs.com'
        return bailian20231229Client(config)

    @staticmethod
    def main(
            args: List[str],
    ) -> None:
        try:
            client = MultiQueryExample.create_client()
            # Create a retrieve_request object.
            retrieve_request = bailian_20231229_models.RetrieveRequest()
            # Required. You can enter the actual prompt.
            retrieve_request.query = 'All employees in the company'
            # Required. Enter the actual knowledge base ID.
            retrieve_request.index_id = 'Enter the actual knowledge base ID'
            # Create a list to store multiple values.
            names = ["San Zhang", "Si Li"]
            # Multi-value filter: Name IN ["San Zhang", "Si Li"]
            retrieve_request.search_filters = [{"Name": json.dumps(names)}]
            # Perform a retrieval. Enter the workspace ID and the retrieve_request object.
            resp = client.retrieve('Enter the actual workspace ID', retrieve_request)
            print(UtilClient.to_jsonstring(resp.body))
        except Exception as error:
            # Handle exceptions appropriately in production
            print(error.message)


if __name__ == '__main__':
    MultiQueryExample.main(sys.argv[1:])

Java

MultiQueryExample.java

// The sample code is for reference only. Do not use it in a production environment.
import com.aliyun.bailian20231229.models.RetrieveRequest;
import com.aliyun.bailian20231229.models.RetrieveResponse;
import com.google.gson.Gson;
import com.google.gson.JsonArray;

import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;

public class MultiQueryExample {
    /**
     * description

Sample request

Request parameters

{
  "indexId": "27ubwxxxxx",
  "WorkspaceId":"llm-4u5xpd1xdjxxxxxx",
  "query": "All employees in the company",
  "searchFilters": [
    {
      "Name": "[\"San Zhang\",\"Si Li\"]"
    }
  ]
}

Sample response

Response parameters

{
  "code": "Success",
  "data": {
    "nodes": [
      {
        "metadata": {
          "_rc_v_score": 0.3016361088048254,
          "_q_score": 1,
          "source": "0",
          "_score": 0.3322954773902893,
          "doc_id": "table_xxxxad1c331c424780a8023376a73fac_10285263_1",
          "Sex": "Male",
          "_rc_score": 0,
          "Name": "San Zhang",
          "doc_name": "Employee Sheet",
          "_id": "llm-xxxxpd1xdjqp8itj_27ubwxxxxx_table_xxxxad1c331c424780a8023376a73fac_10285263_1",
          "Age": "25.0",
          "Position": "Engineer"
        },
        "score": 0.3322954773902893,
        "text": "Name:San Zhang Age:25.0 Position:Engineer Sex:Male"
      },
      {
        "metadata": {
          "_rc_v_score": 0.2531493306159973,
          "_q_score": 0.8392540654998252,
          "source": "0",
          "_score": 0.25632044672966003,
          "doc_id": "table_xxxxad1c331c424780a8023376a73fac_10285263_2",
          "Sex": "Female",
          "_rc_score": 0,
          "Name": "Si Li",
          "doc_name": "Employee Sheet",
          "_id": "llm-xxxxpd1xdjqp8itj_27ubwxxxxx_table_xxxxad1c331c424780a8023376a73fac_10285263_2",
          "Age": "31.0",
          "Position": "Sales"
        },
        "score": 0.25632044672966003,
        "text": "Name:Si Li Age:31.0 Position:Sales Sex:Female"
      }
    ]
  },
  "message": "success",
  "requestId": "1DFE5E9E-xxxx-5C37-8011-8FA2E2875309",
  "status": "200",
  "success": true
}

Range query

Use range queries to find records where a numeric field falls within a specified interval. Combine range queries with other query types by placing them in separate subgroups.

Filter for records where Position is "Engineer" (single-value) AND Age is between 20 and 25 (range):

{
  "searchFilters": [
    {
      "Position": "Engineer"
    },
    {
      "Age": {
        "gte": 20,
        "lte": 25
      }
    }
  ]
}

Python

RangeQueryExample.py

# The sample code is for reference only. Do not use it in a production environment.
import json
import os
import sys
from typing import List

from alibabacloud_bailian20231229 import models as bailian_20231229_models
from alibabacloud_bailian20231229.client import Client as bailian20231229Client
from alibabacloud_tea_openapi import models as open_api_models
from alibabacloud_tea_util.client import Client as UtilClient


class RangeQueryExample:
    class Range:
        def __init__(self, gte, lte):
            self.gte = gte
            self.lte = lte

        def to_dict(self):
            return {
                "gte": self.gte,
                "lte": self.lte
            }

    def __init__(self):
        pass

    @staticmethod
    def create_client() -> bailian20231229Client:
        """
        Initializes a client using an AccessKey pair.
        @return: Client
        @throws Exception
        """
        # For production, use STS or other secure credential management. See https://www.alibabacloud.com/help/sdk/developer-reference/v2-manage-access-credentials
        config = open_api_models.Config(
            # Required. Make sure that the ALIBABA_CLOUD_ACCESS_KEY_ID environment variable is set.
            access_key_id=os.environ['ALIBABA_CLOUD_ACCESS_KEY_ID'],
            # Required. Make sure that the ALIBABA_CLOUD_ACCESS_KEY_SECRET environment variable is set.
            access_key_secret=os.environ['ALIBABA_CLOUD_ACCESS_KEY_SECRET']
        )
        # For more information about endpoints, see https://www.alibabacloud.com/help/model-studio/api-bailian-2023-12-29-endpoint
        config.endpoint = f'bailian.ap-southeast-1.aliyuncs.com'
        return bailian20231229Client(config)

    @staticmethod
    def main(
            args: List[str],
    ) -> None:
        try:
            client = RangeQueryExample.create_client()
            # Create a retrieve_request object.
            retrieve_request = bailian_20231229_models.RetrieveRequest()
            # Required. You can enter the actual prompt.
            retrieve_request.query = 'All employees in the company'
            # Required. Enter the actual knowledge base ID.
            retrieve_request.index_id = 'Enter the actual knowledge base ID'
            # Range filter: Age
            age_range = RangeQueryExample.Range(20, 27)
            retrieve_request.search_filters = [
                {"Position": "Engineer"},  # Group 1: Position filter condition
                {"Age": json.dumps(age_range.to_dict())}  # Group 2: Age range filter condition
            ]
            # Perform a retrieval. Enter the workspace ID and the retrieve_request object.
            resp = client.retrieve('Enter the actual workspace ID', retrieve_request)
            print(UtilClient.to_jsonstring(resp.body))
        except Exception as error:
            # Handle exceptions appropriately in production
            print(error.message)


if __name__ == '__main__':
    RangeQueryExample.main(sys.argv[1:])

Java

RangeQueryExample.java

// The sample code is for reference only. Do not use it in a production environment.
import com.aliyun.bailian20231229.models.RetrieveRequest;
import com.aliyun.bailian20231229.models.RetrieveResponse;
import com.google.gson.Gson;

import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;

public class RangeQueryExample {
    /**
     * description

Sample request

Request parameters

{
  "indexId": "27ubwxxxxx",
  "WorkspaceId":"llm-4u5xpd1xdjxxxxxx",
  "query": "All employees in the company",
  "searchFilters": [
    {
      "Sex": "Male"
    },
    {
      "Age": "{\"gte\":20.0,\"lte\":27.0}"
    }
  ]
}

Sample response

Response parameters

{
  "code": "Success",
  "data": {
    "nodes": [
      {
        "metadata": {
          "_rc_v_score": 0.3016361088048254,
          "_q_score": 1,
          "source": "0",
          "_score": 0.3322954773902893,
          "doc_id": "table_xxxxad1c331c424780a8023376a73fac_10285263_1",
          "Sex": "Male",
          "_rc_score": 0,
          "Name": "San Zhang",
          "doc_name": "Employee Sheet",
          "_id": "llm-xxxxpd1xdjqp8itj_27ubwxxxxx_table_xxxxad1c331c424780a8023376a73fac_10285263_1",
          "Age": "25.0",
          "Position": "Engineer"
        },
        "score": 0.3322954773902893,
        "text": "Name:San Zhang Age:25.0 Position:Engineer Sex:Male"
      }
    ]
  },
  "message": "success",
  "requestId": "AE0B5ABC-xxxx-54A1-9ED4-91865B859DF6",
  "status": "200",
  "success": true
}

Fuzzy query

Use wildcard patterns to match string fields partially, similar to the SQL LIKE operator. Wrap the pattern in a {"like": "<pattern>"} object and serialize it as a JSON string.

Filter for records where Name is "San Zhang" AND Position starts with "E" and ends with "r":

{
  "searchFilters": [
    {
      "Name": "San Zhang"
    },
    {
      "Position": {
        "like": "E%r"
      }
    }
  ]
}

Python

WildcardQueryExample.py

# The sample code is for reference only. Do not use it in a production environment.
import json
import os
import sys
from typing import List

from alibabacloud_bailian20231229 import models as bailian_20231229_models
from alibabacloud_bailian20231229.client import Client as bailian20231229Client
from alibabacloud_tea_openapi import models as open_api_models
from alibabacloud_tea_util.client import Client as UtilClient


class WildcardQueryExample:
    class QueryObject:
        def __init__(self, prefix):
            self.like = prefix

        def to_dict(self):
            return {
                "like": self.like
            }

    def __init__(self):
        pass

    @staticmethod
    def create_client() -> bailian20231229Client:
        """
        Initializes a client using an AccessKey pair.
        @return: Client
        @throws Exception
        """
        # For production, use STS or other secure credential management. See https://www.alibabacloud.com/help/sdk/developer-reference/v2-manage-access-credentials
        config = open_api_models.Config(
            # Required. Make sure that the ALIBABA_CLOUD_ACCESS_KEY_ID environment variable is set.
            access_key_id=os.environ['ALIBABA_CLOUD_ACCESS_KEY_ID'],
            # Required. Make sure that the ALIBABA_CLOUD_ACCESS_KEY_SECRET environment variable is set.
            access_key_secret=os.environ['ALIBABA_CLOUD_ACCESS_KEY_SECRET']
        )
        # For more information about endpoints, see https://www.alibabacloud.com/help/model-studio/api-bailian-2023-12-29-endpoint
        config.endpoint = f'bailian.ap-southeast-1.aliyuncs.com'
        return bailian20231229Client(config)

    @staticmethod
    def main(
            args: List[str],
    ) -> None:
        try:
            client = WildcardQueryExample.create_client()
            # Create a retrieve_request object.
            retrieve_request = bailian_20231229_models.RetrieveRequest()
            # Required. You can enter the actual prompt.
            retrieve_request.query = 'Male employees in the company'
            # Required. Enter the actual knowledge base ID.
            retrieve_request.index_id = 'Enter the actual knowledge base ID'
            # Fuzzy filter: Position LIKE "E%r" (% = zero or more chars)
            position = WildcardQueryExample.QueryObject('E%r')
            retrieve_request.search_filters = [
                {"Name": "San Zhang"},  # Name filter condition. You can replace it with the actual property and value.
                {"Position": json.dumps(position.to_dict())}  # Position (fuzzy query) filter condition. You can replace it with the actual property and value.
            ]
            # Perform a retrieval. Enter the workspace ID and the retrieve_request object.
            resp = client.retrieve('Enter the actual workspace ID', retrieve_request)
            print(UtilClient.to_jsonstring(resp.body))
        except Exception as error:
            # Handle exceptions appropriately in production
            print(error.message)


if __name__ == '__main__':
    WildcardQueryExample.main(sys.argv[1:])

Java

WildcardQueryExample.java

// The sample code is for reference only. Do not use it in a production environment.
import com.aliyun.bailian20231229.models.RetrieveRequest;
import com.aliyun.bailian20231229.models.RetrieveResponse;
import com.google.gson.Gson;

import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;

public class WildcardQueryExample {
    /**
     * description

Sample request

Request parameters

{
  "indexId": "27ubwxxxxx",
  "WorkspaceId":"llm-4u5xpd1xdjxxxxxx",
  "query": "Male employees in the company",
  "searchFilters": [
    {
      "Name": "San Zhang"
    },
    {
      "Position": "{\"like\":\"E%r\"}"
    }
  ]
}

Sample response

Response parameters

{
  "code": "Success",
  "data": {
    "nodes": [
      {
        "metadata": {
          "_rc_v_score": 0.41137335930387275,
          "_q_score": 1,
          "source": "0",
          "_score": 0.46098726987838745,
          "doc_id": "table_xxxxad1c331c424780a8023376a73fac_10285263_1",
          "Sex": "Male",
          "_rc_score": 0,
          "Name": "San Zhang",
          "doc_name": "Employee Sheet",
          "_id": "llm-xxxxpd1xdjqp8itj_27ubwxxxxx_table_xxxxad1c331c424780a8023376a73fac_10285263_1",
          "Age": "25.0",
          "Position": "Engineer"
        },
        "score": 0.46098726987838745,
        "text": "Name:San Zhang Age:25.0 Position:Engineer Sex:Male"
      }
    ]
  },
  "message": "success",
  "requestId": "FA759FEC-xxxx-50B7-A64D-BE49A7DF56B8",
  "status": "200",
  "success": true
}

Tag query

Filter by document tags in a document search knowledge base. Tags narrow retrieval to text segments from files that match specific tag values.

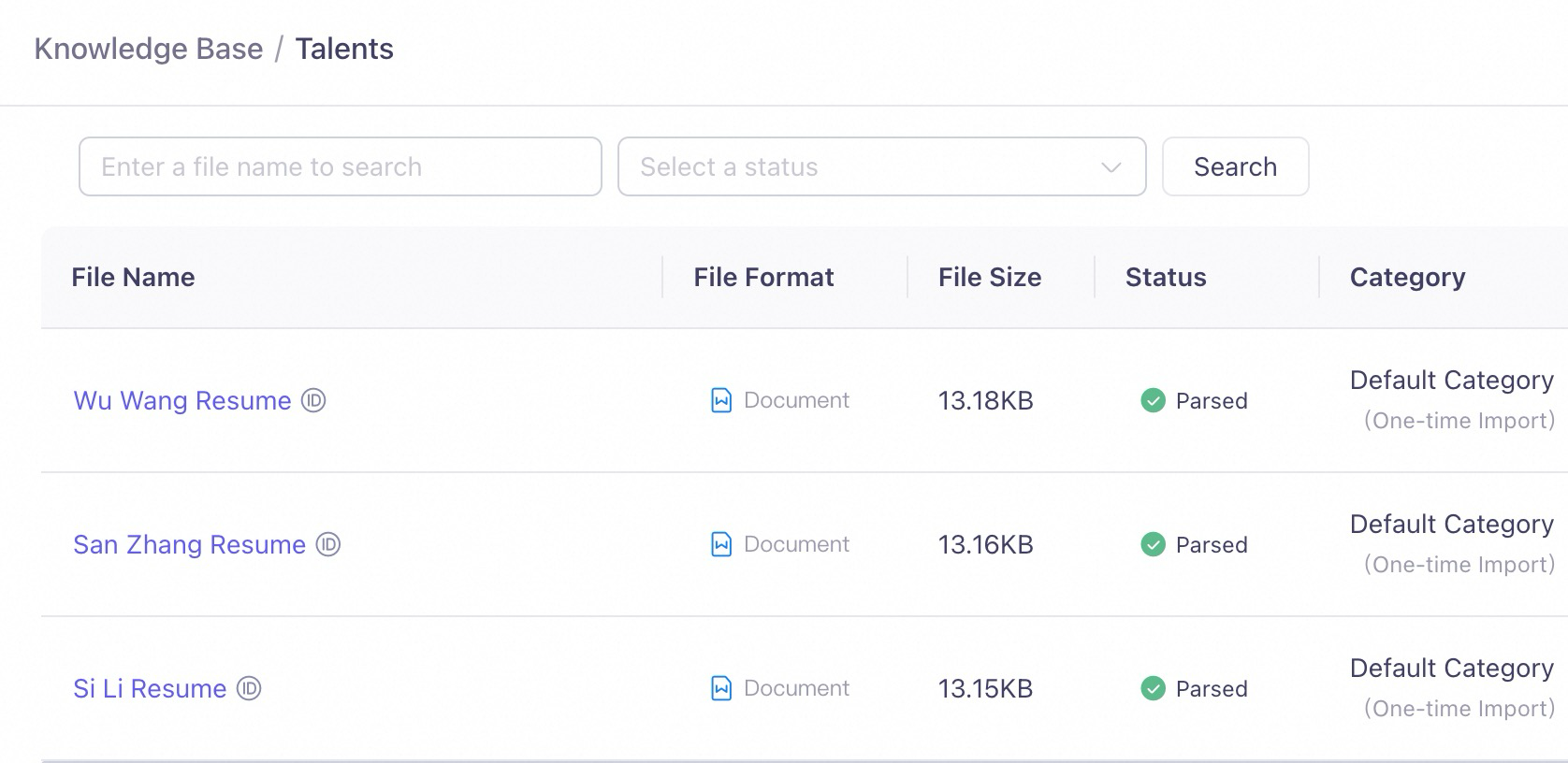

Sample setup: A document search knowledge base contains three resume files with the following tags:

File	Tags
San Zhang's Resume	`University A`, `Sports Specialist Student`
Si Li's Resume	`University B`
Wu Wang's Resume	`University B`, `Student Union President`

Example 1: OR logic (multiple tags in one subgroup)

Return text segments from files tagged with University A OR Student Union President:

Multiple tags within a single subgroup use OR logic. To apply AND logic, place each tag in a separate subgroup (see Example 2).

{
  "searchFilters": [
    {
      "tags": "[\"University A\",\"Student Union President\"]"
    }
  ]
}

Python -- TagQueryExample.py

# The sample code is for reference only. Do not use it in a production environment.
import json
import os
import sys
from typing import List

from alibabacloud_bailian20231229 import models as bailian_20231229_models
from alibabacloud_bailian20231229.client import Client as bailian20231229Client
from alibabacloud_tea_openapi import models as open_api_models
from alibabacloud_tea_util.client import Client as UtilClient


class TagQueryExample:
    def __init__(self):
        pass

    @staticmethod
    def create_client() -> bailian20231229Client:
        """
        Initializes a client using an AccessKey pair.
        @return: Client
        @throws Exception
        """
        # Leaking code that contains an AccessKey pair threatens the security of all resources in your account. The following sample code is for reference only.
        # We recommend that you use a more secure method, such as Security Token Service (STS), to manage access credentials. For more information, see https://www.alibabacloud.com/help/zh/sdk/developer-reference/v2-manage-python-access-credentials.
        config = open_api_models.Config(
            # Required. Make sure that the ALIBABA_CLOUD_ACCESS_KEY_ID environment variable is set.
            access_key_id=os.environ['ALIBABA_CLOUD_ACCESS_KEY_ID'],
            # Required. Make sure that the ALIBABA_CLOUD_ACCESS_KEY_SECRET environment variable is set.
            access_key_secret=os.environ['ALIBABA_CLOUD_ACCESS_KEY_SECRET']
        )
        # For more information about endpoints, see https://www.alibabacloud.com/help/model-studio/api-bailian-2023-12-29-endpoint
        config.endpoint = f'bailian.ap-southeast-1.aliyuncs.com'
        return bailian20231229Client(config)

    @staticmethod
    def main(
            args: List[str],
    ) -> None:
        client = TagQueryExample.create_client()
        # Create a retrieve_request object.
        retrieve_request = bailian_20231229_models.RetrieveRequest()
        # Required. You can enter the actual prompt.
        retrieve_request.query = 'Provide some candidates'
        # Required. Enter the actual knowledge base ID.
        retrieve_request.index_id = 'Enter the actual knowledge base ID'
        # Create a list to store tags. The logical relationship between multiple tags is OR, not AND.
        tags = ["University A", "Student Union President"]
        retrieve_request.search_filters = [
            {"tags": json.dumps(tags)}
        ]
        try:
            # Perform a retrieval. Enter the workspace ID and the retrieve_request object.
            resp = client.retrieve('Enter the actual workspace ID', retrieve_request)
            print(UtilClient.to_jsonstring(resp.body))
        except Exception as error:
            # Handle exceptions appropriately in production
            print(error.message)


if __name__ == '__main__':
    TagQueryExample.main(sys.argv[1:])

Java -- TagQueryExample.java

// The sample code is for reference only. Do not use it in a production environment.
import com.aliyun.bailian20231229.models.RetrieveRequest;
import com.aliyun.bailian20231229.models.RetrieveResponse;
import com.google.gson.Gson;
import com.google.gson.JsonArray;

import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;

public class TagQueryExample {
    /**
     * description

Sample request

Request parameters

{
  "IndexId": "8mbtdxxxxx",
  "WorkspaceId": "llm-4u5xpd1xdjxxxxxx",
  "Query": "Provide some candidates",
  "SearchFilters": "[{\"tags\":\"[\\\"University A\\\", \\\"Student Union President\\\"]\"}]"
}

Sample response

Response parameters

{
  "Code": "Success",
  "Data": {
    "Nodes": [
      {
        "Metadata": {
          "file_path": "https://bailian-datahub-data-prod.oss-cn-beijing.aliyuncs.com/10285263/multimodal/docJson/Zhang_San_Resume_1746760910599.json?Expires=1747020348&OSSAccessKeyId=LTAI************&Signature=roY%2Falbh6smkLdPuA6wjnZRVMa4%3D",
          "is_displayed_chunk_content": "true",
          "_rc_v_score": 0.1422617520249937,
          "image_url": [],
          "nid": "ba8a14099f43308734538c29271cc7cd|b99e98835c3c6d8f6496df5a43de0ba5|aa3ed8fc4aae8bbb78872994b01e0fda",
          "_q_score": 0.8935035934804278,
          "source": "0",
          "_score": 0.1736905574798584,
          "title": "",
          "doc_id": "file_e787926158704f95aad6bc967619f176_10285263",
          "content": "Name: San Zhang Sex: Male Age: 23",
          "_rc_score": 0,
          "workspace_id": "llm-4u5xpd1xdjxxxxxx",
          "hier_title": "",
          "page_number": [
            0
          ],
          "doc_name": "San Zhang's Resume",
          "pipeline_id": "8mbtdxxxxx",
          "_id": "llm-4u5xpd1xdjxxxxxx_8mbtdxxxxx_file_e787926158704f95aad6bc967619f176_10285263_0_0"
        },
        "Score": 0.1736905574798584,
        "Text": "Name: San Zhang Sex: Male Age: 23"
      },
      {
        "Metadata": {
          "file_path": "https://bailian-datahub-data-prod.oss-cn-beijing.aliyuncs.com/10285263/multimodal/docJson/Wang_Wu_Resume_1746760946844.json?Expires=1747020348&OSSAccessKeyId=LTAI************&Signature=gTGPTce5xUu9mtcMcmyMEeb5azk%3D",
          "is_displayed_chunk_content": "true",
          "_rc_v_score": 0.1592178845871759,
          "image_url": [],
          "nid": "ba8a14099f43308734538c29271cc7cd|d4a048b6799ce07e08430f018af091a0|fe90f8248ea64f70ea37c0df7afcfc12",
          "_q_score": 1,
          "source": "0",
          "_score": 0.15737050771713257,
          "title": "",
          "doc_id": "file_63563df5df66488cb8e28bfff11e40eb_10285263",
          "content": "Name: Wu Wang Sex: Male Age: 23",
          "_rc_score": 0,
          "workspace_id": "llm-4u5xpd1xdjxxxxxx",
          "hier_title": "",
          "page_number": [
            0
          ],
          "doc_name": "Wu Wang's Resume",
          "pipeline_id": "8mbtdxxxxx",
          "_id": "llm-4u5xpd1xdjxxxxxx_8mbtdxxxxx_file_63563df5df66488cb8e28bfff11e40eb_10285263_0_0"
        },
        "Score": 0.15737050771713257,
        "Text": "Name: Wu Wang Sex: Male Age: 23"
      }
    ]
  },
  "Message": "success",
  "RequestId": "12A5F9C6-xxxx-5593-8955-86D52585EE27",
  "Status": 200,
  "Success": true
}

This returns results from both San Zhang's Resume (tagged University A) and Wu Wang's Resume (tagged Student Union President).

Example 2: AND logic (tags in separate subgroups)

Return text segments from files tagged with both University A AND Sports Specialist Student:

{
  "searchFilters": [
    {
      "tags": "[\"University A\"]"
    },
    {
      "tags": "[\"Sports Specialist Student\"]"
    }
  ]
}

Python -- TagQueryExample2.py

import json
import os
import sys
from typing import List

from alibabacloud_bailian20231229 import models as bailian_20231229_models
from alibabacloud_bailian20231229.client import Client as bailian20231229Client
from alibabacloud_tea_openapi import models as open_api_models
from alibabacloud_tea_util.client import Client as UtilClient


class TagQueryExample2:
    def __init__(self):
        pass

    @staticmethod
    def create_client() -> bailian20231229Client:
        """
        Initializes a client using an AccessKey pair.
        @return: Client
        @throws Exception
        """
        # Leaking code that contains an AccessKey pair threatens the security of all resources in your account. The following sample code is for reference only.
        # We recommend that you use a more secure method, such as Security Token Service (STS), to manage access credentials. For more information, see https://www.alibabacloud.com/help/zh/sdk/developer-reference/v2-manage-python-access-credentials.
        config = open_api_models.Config(
            # Required. Make sure that the ALIBABA_CLOUD_ACCESS_KEY_ID environment variable is set.
            access_key_id=os.environ['ALIBABA_CLOUD_ACCESS_KEY_ID'],
            # Required. Make sure that the ALIBABA_CLOUD_ACCESS_KEY_SECRET environment variable is set.
            access_key_secret=os.environ['ALIBABA_CLOUD_ACCESS_KEY_SECRET']
        )
        # For more information about endpoints, see https://www.alibabacloud.com/help/model-studio/api-bailian-2023-12-29-endpoint
        config.endpoint = f'bailian.ap-southeast-1.aliyuncs.com'
        return bailian20231229Client(config)

    @staticmethod
    def main(
            args: List[str],
    ) -> None:
        client = TagQueryExample.create_client()
        # Create a retrieve_request object.
        retrieve_request = bailian_20231229_models.RetrieveRequest()
        # Required. You can enter the actual prompt.
        retrieve_request.query = 'Provide some candidates'
        # Required. Enter the actual knowledge base ID.
        retrieve_request.index_id = 'Enter the actual knowledge base ID'
        # Create two lists to store tags.
        tag1 = ["University A"]
        tag2 = ["Sports Specialist Student"]
        retrieve_request.search_filters = [
            {"tags": json.dumps(tag1)},
            {"tags": json.dumps(tag2)}
        ]
        try:
            # Perform a retrieval. Enter the workspace ID and the retrieve_request object.
            resp = client.retrieve('Enter the actual workspace ID', retrieve_request)
            print(UtilClient.to_jsonstring(resp.body))
        except Exception as error:
            # Handle exceptions appropriately in production
            print(error.message)


if __name__ == '__main__':
    TagQueryExample2.main(sys.argv[1:])

Java -- TagQueryExample2.java

import com.aliyun.bailian20231229.models.RetrieveRequest;
import com.aliyun.bailian20231229.models.RetrieveResponse;
import com.google.gson.Gson;
import com.google.gson.JsonArray;

import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;

public class TagQueryExample2 {
    /**
     * description

Sample request

Request parameters

{
  "IndexId": "8mbtdxxxxx",
  "WorkspaceId": "llm-4u5xpd1xdjxxxxxx",
  "Query": "Provide some candidates",
  "SearchFilters": "[{\"tags\":\"[\\\"University A\\\"]\"},{\"tags\":\"[\\\"Sports Specialist Student\\\"]\"}]"
}

Sample response

Response parameters

{
  "Code": "Success",
  "Data": {
    "Nodes": [
      {
        "Metadata": {
          "file_path": "https://bailian-datahub-data-prod.oss-cn-beijing.aliyuncs.com/10285263/multimodal/docJson/Zhang_San_Resume_1746760910599.json?Expires=1747020348&OSSAccessKeyId=LTAI************&Signature=roY%2Falbh6smkLdPuA6wjnZRVMa4%3D",
          "is_displayed_chunk_content": "true",
          "_rc_v_score": 0.1422617520249937,
          "image_url": [],
          "nid": "ba8a14099f43308734538c29271cc7cd|b99e98835c3c6d8f6496df5a43de0ba5|aa3ed8fc4aae8bbb78872994b01e0fda",
          "_q_score": 1,
          "source": "0",
          "_score": 0.1736905574798584,
          "title": "",
          "doc_id": "file_e787926158704f95aad6bc967619f176_10285263",
          "content": "Name: San Zhang Sex: Male Age: 23",
          "_rc_score": 0,
          "workspace_id": "llm-4u5xpd1xdjxxxxxx",
          "hier_title": "",
          "page_number": [
            0
          ],
          "doc_name": "San Zhang's Resume",
          "pipeline_id": "8mbtdxxxxx",
          "_id": "llm-4u5xpd1xdjxxxxxx_8mbtdxxxxx_file_e787926158704f95aad6bc967619f176_10285263_0_0"
        },
        "Score": 0.1736905574798584,
        "Text": "Name: San Zhang Sex: Male Age: 23"
      }
    ]
  },
  "Message": "success",
  "RequestId": "1ED6CECE-xxxx-5B21-91DB-410E0219412A",
  "Status": 200,
  "Success": true
}

Only San Zhang's Resume is returned because it is the only file with both tags.

References

Resource	Description
Create and use a knowledge base	Knowledge base user guide
Retrieve API	Retrieve text segments from a knowledge base
Grant API permissions to a RAM user	Set up RAM user access for the Retrieve API
Error codes	Troubleshoot API call failures
