Mobile Testing:View a test report

Prerequisites

A remote device is available for performance testing. The test data is saved to the specified test case. For more information, see Submit a test.

Go to a test case page

1. In the left-side navigation pane, choose Mobile Testing > Performance Testing.

2. Select a tested app and click a test case in the Test Case hierarchy tree. The information page of the test case appears on the right side.

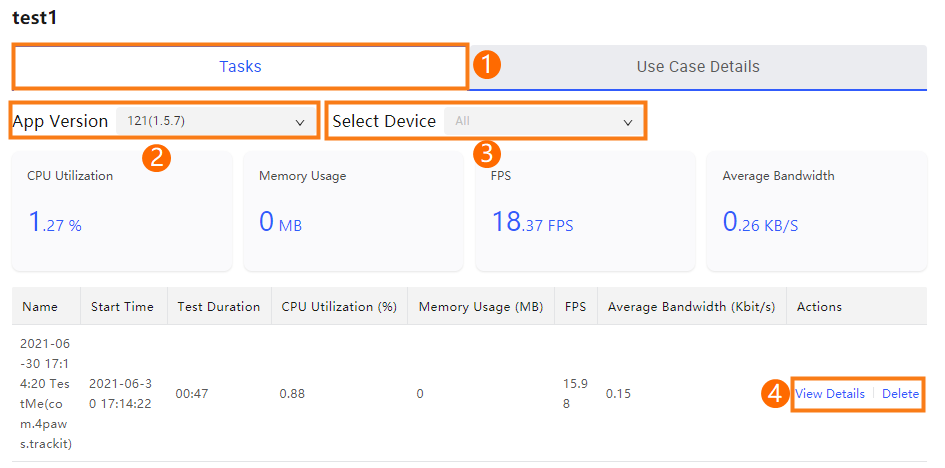

3. On the information page of the test case, click the Tasks tab.

4. Specify filter conditions to query test tasks and the corresponding statistical information.

5. In the task list, click View Details in the Actions column corresponding to a task to go to the details page of the task.

6. Click Delete in the Actions column to delete the task. Filter conditions

   Parameter	Description
   App Version	The version of the app.
   Select Device	The brand and model of the test device. By default, All is displayed in the Select Device field.

   Statistics

   Parameter	Description
   CPU Utilization	The average CPU utilization of the app version on the test device.
   Memory Usage	The average memory usage of the app version on the test device.
   FPS	The average frames per second (FPS) of the app version on the test device.
   Average Bandwidth	The average bandwidth of the app version on the test device.

View test case details

1. On the information page of the specified test case, click the Test Case Details tab.

2. Specify filter conditions to query test cases and the corresponding details.

   Parameter	Description
   App Version	The version of the app. You can select one or more app versions to compare different versions.
   Device Class	The test device category. Valid values: High-end Models, Mid-end Models, and Low-end Models. By default, All is displayed in the Device Class field.
   Sort	The sorting method. Valid values: By Version and By Creation Time. Default value: By Version.
