Mobile Testing:View a test report

Last Updated:Mar 15, 2022

Prerequisites

  • A remote device is available for performance testing. The test data is saved to the specified use case. For more information, see Submit a test.

  • The Mobile Testing console page is displayed. For more information, see Go to the Mobile Testing console page.

Go to a use case page

Step 1: In the left-side navigation pane of the Mobile Testing console, choose Testing Products > Performance Testing.

Step 2: Select a tested app and click a use case in the Use Cases list. The information page of the specified use case appears on the right side.

View a test report

View tasks

Procedure

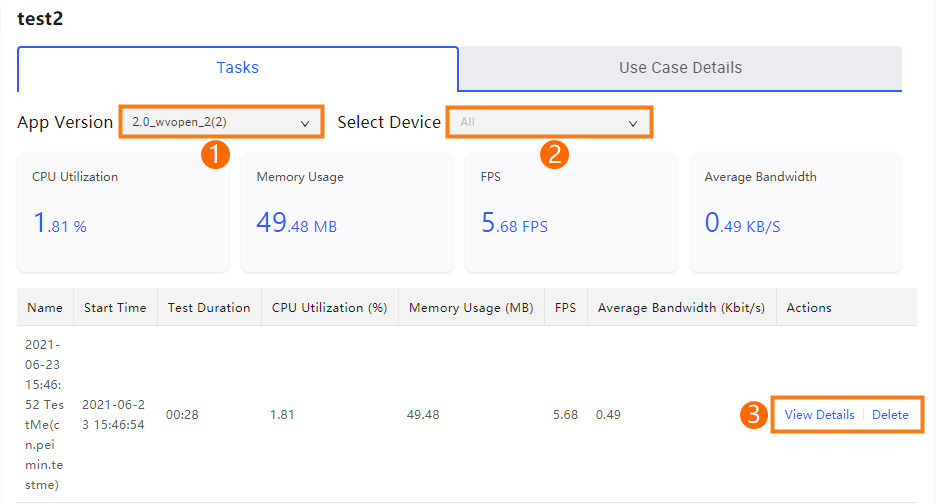

Step 1: On the information page of the specified use case, click the Tasks tab.

Step 2: Set the filter conditions to query test tasks and their statistics information.

Step 3: In the task list, click View Details in the Actions column to go to the details page of the specified task.

Step 4: Click Delete in the Actions column to delete the specified task.

Tasks

Filter conditions

Parameter

Description

App Version

The version of the app.

Select Device

The brand and model of the test device. Default value: All.

Statistical Data

Parameter

Description

CPU Utilization

The average CPU utilization of the app version on the specified test device.

Memory Usage

The average memory usage of the app version on the specified test device.

FPS

The average frames per second (FPS) of the app version on the specified test device.

Average Bandwidth

The average bandwidth of the app version on the specified test device.

View use case details

Procedure

Step 1: On the information page of the specified use case, click the Use Case Details tab.

Step 2: Set filter conditions to query use cases and their details.

Use Case Details

Filter conditions

Parameter

Description

App Version

The version of the app. You can select one or more app versions to compare different versions.

Select Device

The test device category. Valid values: High-end Models, Mid-end Models, and Low-end Models. Default value: All.

Sort

The sorting method. Valid values: By Version and By Creation Time. Default value: By Version.
