MaxCompute:Examples of using the SDK for Python: DataFrame

In this example, the following tables exist: pyodps_ml_100k_movies that contains movie-related data, pyodps_ml_100k_users that contains user-related data, and pyodps_ml_100k_ratings that contains rating-related data.

1. Create an entry object of MaxCompute.

   import os
   from odps import ODPS
   # Set the environment variable ALIBABA_CLOUD_ACCESS_KEY_ID to your AccessKey ID.
   # Set the environment variable ALIBABA_CLOUD_ACCESS_KEY_SECRET to your AccessKey secret.
   # We recommend that you do not directly use your AccessKey ID or AccessKey secret.
   o = ODPS(
       os.getenv('ALIBABA_CLOUD_ACCESS_KEY_ID'),
       os.getenv('ALIBABA_CLOUD_ACCESS_KEY_SECRET'),
       project='your-default-project',
       endpoint='your-end-point',
   )

2. Call a table object and create the DataFrame object named users.

   from odps.df import DataFrame
   users = DataFrame(o.get_table('pyodps_ml_100k_users'))

3. Perform the following operations on the DataFrame object:

   • View the fields of DataFrame and the types of these fields based on the dtypes attribute.

     users.dtypes

   • Use the head method to obtain the first N data records for a quick data preview.

     users.head(10)

     The following result is returned:

     -	user_id	age	sex	occupation	zip_code
     0	1	24	M	technician	85711
     1	2	53	F	other	94043
     2	3	23	M	writer	32067
     3	4	24	M	technician	43537
     4	5	33	F	other	15213
     5	6	42	M	executive	98101
     6	7	57	M	administrator	91344
     7	8	36	M	administrator	05201
     8	9	29	M	student	01002
     9	10	53	M	lawyer	90703

   • Filter fields.

     • Filter some fields.

       users[['user_id', 'age']].head(5)

       The following result is returned:

       -	user_id	age
       0	1	24
       1	2	53
       2	3	23
       3	4	24
       4	5	33

     • Exclude some fields. Example:

       >>> users.exclude('zip_code', 'age').head(5)

       The following result is returned:

       -	user_id	sex	occupation
       0	1	M	technician
       1	2	F	other
       2	3	M	writer
       3	4	M	technician
       4	5	F	other

     • When you exclude some fields, you may want to obtain new columns based on computation. For example, add the sex_bool attribute and set it to True if sex is M. Otherwise, set the sex_bool attribute to False. Sample code:

       >>> users.select(users.exclude('zip_code', 'sex'), sex_bool=users.sex == 'M').head(5)

       The following result is returned:

       -	user_id	age	occupation	sex_bool
       0	1	24	technician	True
       1	2	53	other	False
       2	3	23	writer	True
       3	4	24	technician	True
       4	5	33	other	False

   • Obtain the number of users at the age of 20 to 25.

     >>> users.age.between(20, 25).count().rename('count')
     943

   • Obtain the numbers of male and female users.

     >>> users.groupby(users.sex).count()

     The following result is returned:

     -	sex	count
     0	F	273
     1	M	670

   • To divide users by occupation, obtain the top 10 occupations with the most population, and sort the occupations in descending order of population.

     >>> df = users.groupby('occupation').agg(count=users['occupation'].count())
     >>> df.sort(df['count'], ascending=False)[:10]

     The following result is returned:

     -	occupation	count
     0	student	196
     1	other	105
     2	educator	95
     3	administrator	79
     4	engineer	67
     5	programmer	66
     6	librarian	51
     7	writer	45
     8	executive	32
     9	scientist	31

     The DataFrame API provides the value_counts method to quickly achieve the same result.

     >>> users.occupation.value_counts()[:10]

     The following result is returned:

     -	occupation	count
     0	student	196
     1	other	105
     2	educator	95
     3	administrator	79
     4	engineer	67
     5	programmer	66
     6	librarian	51
     7	writer	45
     8	executive	32
     9	scientist	31

   • Show data in a more intuitive graph.

      %matplotlib inline

   • Visualize data on a horizontal bar chart.

     users['occupation'].value_counts().plot(kind='barh', x='occupation', ylabel='prefession')

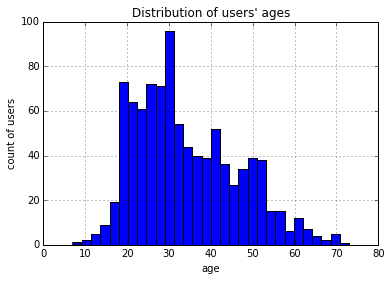

   • Visualize data on a histogram. Divide users into 30 groups by age and view the histogram of age distribution. Example:

     >>> users.age.hist(bins=30, title="Distribution of users' ages", xlabel='age', ylabel='count of users')



   • Join three tables to obtain a new table and save it.

     movies = DataFrame(o.get_table('pyodps_ml_100k_movies'))
     ratings = DataFrame(o.get_table('pyodps_ml_100k_ratings'))
     o.delete_table('pyodps_ml_100k_lens', if_exists=True)
     lens = movies.join(ratings).join(users).persist('pyodps_ml_100k_lens')
     lens.dtypes

     The following result is returned:

     odps.Schema {
       movie_id                            int64
       title                               string
       release_date                        string
       video_release_date                  string
       imdb_url                            string
       user_id                             int64
       rating                              int64
       unix_timestamp                      int64
       age                                 int64
       sex                                 string
       occupation                          string
       zip_code                            string
     }

   • Divide ages from 0 to 79 into eight age groups.

     labels = ['0-9', '10-19', '20-29', '30-39', '40-49', '50-59', '60-69', '70-79']
     cut_lens = lens[lens, lens.age.cut(range(0, 80, 10), right=False, labels=labels).rename('age_group')]

   • View the first 10 data records of a single age in a group.

     cut_lens['age_group', 'age'].distinct()[:10]

     The following result is returned:

     -	age_group	age
     0	0-9	7
     1	10-19	10
     2	10-19	11
     3	10-19	13
     4	10-19	14
     5	10-19	15
     6	10-19	16
     7	10-19	17
     8	10-19	18
     9	10-19	19

   • View the total rating and average rating of users in each age group. Example:

     cut_lens.groupby ('age_group').agg(cut_lens.rating.count().rename ('total_rating'), cut_lens.rating.mean().rename ('average_rating'))

     The following result is returned:

     -	age_group	average_rating	total_rating
     0	0-9	3.767442	43
     1	10-19	3.486126	8181
     2	20-29	3.467333	39535
     3	30-39	3.554444	25696
     4	40-49	3.591772	15021
     5	50-59	3.635800	8704
     6	60-69	3.648875	2623
     7	70-79	3.649746	197
