Hologres:ANALYZE and auto-analyze

Analyze

Statistics are crucial for generating an optimal execution plan. Hologres collects sample statistics about data, such as data distribution, table and column characteristics, number of rows, number of columns, field width, cardinality, frequency, maximum and minimum values, high-frequency values, and bucketing distribution features. This information helps the optimizer update cost estimates for operator execution, prune the search space, determine the optimal join order, and estimate memory overhead and the degree of parallelism. This process helps generate a more efficient execution plan.

Auto-analyze

To reduce repetitive manual ANALYZE operations, Hologres V0.10 and later support the auto-analyze feature. When auto-analyze is enabled, the system automatically determines whether to run ANALYZE on relevant tables in the background based on table creation, data writes, and modifications. This eliminates the need to manually run ANALYZE on tables, which reduces operational complexity and prevents missing statistics from forgotten ANALYZE operations.

• Syntax

  • Check whether auto-analyze is enabled

    SHOW hg_enable_start_auto_analyze_worker;  -- Syntax for V1.1 and later to check the current enabling status

    SHOW hg_experimental_enable_start_auto_analyze_worker;  -- Syntax for V0.10 to check the current enabling status

  • A superuser can use the following syntax to enable or disable the feature.

    -- DB-level. Takes effect for the entire DB after execution. Syntax for enabling/disabling in V1.1 and later.
    ALTER DATABASE dbname SET hg_enable_start_auto_analyze_worker = ON;  -- Enable (default)
    ALTER DATABASE dbname SET hg_enable_start_auto_analyze_worker = OFF; -- Disable

    -- DB-level. Takes effect for the entire DB after execution. Syntax for enabling/disabling in V0.10.
    ALTER DATABASE dbname SET hg_experimental_enable_start_auto_analyze_worker = ON;  -- Enable (default)
    ALTER DATABASE dbname SET hg_experimental_enable_start_auto_analyze_worker = OFF; -- Disable

    -- DB-level. Enable auto-analyze for an external database.
    ALTER EXTERNAL DATABASE dbname WITH enable_auto_analyze 'true';

• Limits

  The auto-analyze feature in Hologres has the following limits:

  • The auto-analyze feature is supported only in Hologres V0.10 and later. You can view your Hologres instance version on the instance details page in the Hologres console. If your instance version is earlier than V0.10, you must upgrade it. For information about how to resolve common upgrade preparation failures, see Common upgrade preparation failures. You can also join the Hologres DingTalk group for feedback. For more information, see How do I get more online support?.

  • Only a superuser can enable or disable the auto-analyze feature.

  • Auto-analyze has the following limits on partitioned tables.

    • If a child partition table changes and triggers auto-analyze, its parent table is analyzed.

    • Partitioned tables have a row scan limit. During data sampling, the default maximum number of records scanned is 2²⁴ (16,777,216). If the total number of records across all child partition tables exceeds this limit, partition pruning is performed. In this case, only some partitions are sampled, and the total number of records in the sampled partitions does not exceed 16,777,216.

      Note

      Statistics for partition key columns are always complete and are not affected by pruning. However, this may affect the statistics of columns that have a data distribution similar to the partition key column, such as a column containing the same data as the partition key column. This means some values may not be sampled, and the row count estimate may be inaccurate. If needed, you can search for the DingTalk group ID 32314975 to join the Real-time Data Warehouse Hologres group and contact technical support. The technical support team can evaluate your instance and adjust the maximum number of scanned records.

  • By default, auto-analyze collects statistics for a maximum of 256 columns. If a table has more than 256 columns, the first 256 columns are selected. You can adjust this value by changing the hg_experimental_auto_analyze_max_columns_count parameter.

  • By default, a single worker is limited to 4 GB of memory. If ultra-wide columns exist, sampling may exceed this memory limit and cause ANALYZE to fail. You can adjust the auto_analyze_work_memory_mb parameter to change this limit, but be aware of the impact on system memory. Higher instance types have more workers and a larger available memory limit for auto-analyze.

  • Starting from Hologres V3.1.0, you can use ANALYZE and auto-analyze to collect statistics for foreign tables within an external database.

  • ANALYZE and auto-analyze are not supported for HMS foreign tables.

• How auto-analyze works

  After you enable auto-analyze, the system background periodically checks whether any tables need to be analyzed.

  • Standard tables (internal tables, including non-partitioned and partitioned tables)

    • Every minute, the system checks for recent actions on tables. These actions are primarily DML operations, such as INSERT, UPDATE, and DELETE, that can change the data volume. If any of the following conditions are met, the system triggers an ANALYZE operation for the table to collect statistics.

      • A DML operation has completed on the table, and the number of changed rows exceeds 10% of the total rows in the table. If the table is a child partition table, this threshold applies to the number of rows in that specific partition.

      • The table is cleared using the `TRUNCATE TABLE` command.

      • The table's Data Definition Language (DDL) changes. Examples include creating a table with `CREATE TABLE` or modifying the table schema with `ALTER TABLE`. This trigger does not include modifying table properties with `CALL SET_TABLE_PROPERTY`.

    • Every 10 minutes, the system checks for data changes in all internal tables. If the number of changed rows exceeds 10% since the last check, an ANALYZE operation is triggered for the table in the background.

      Note

      This step detects data updated by non-explicit DML operations, such as real-time writes from Flink, Data Integration, or HoloClient.

  • Foreign tables

    Every 4 hours, the system periodically checks for metadata or data changes in foreign tables. If the following condition is met, the system triggers an ANALYZE operation for the table to collect statistics.

    The corresponding table in the external system, such as a MaxCompute foreign table or a DLF foreign table, has changed within the inspection interval (for example, the last 4 hours). A change is detected if the last_modify_time of the corresponding MaxCompute table falls within this interval.

  Note

  The inspection and execution are part of the same scheduling task. Therefore, the start of the next inspection depends on the completion of the ANALYZE execution. The next inspection can begin as long as the scheduling epoch has passed since the previous inspection started.

• Configuration parameters

  After you enable auto-analyze, the system, by default, automatically performs periodic checks to determine which tables need to be analyzed. It then performs sampling calculations to collect statistics, which consumes some system resources.

  In some scenarios, the default mechanism may not be suitable. For example, in scenarios where data is not written or updated frequently, you can reduce the frequency of auto-analyze by modifying the default parameters. You can change the default parameters as needed to optimize performance.

  Note

  Only a superuser can adjust the default behavior of auto-analyze. All parameters must be set at the database level and take effect within one minute.

  • Syntax

    -- A superuser modifies the default value of an auto-analyze parameter.
    ALTER DATABASE <dbname> SET <GUC>=<values>;

    dbname specifies the database name. GUC specifies the parameter name. values specifies the parameter value.

  • Parameter list

    Parameter	Description	Supported versions	Default value	Example
    autovacuum_naptime	The interval at which the system checks for the latest actions on tables. Unit: seconds (s).	V1.1.0 and later Note This parameter must be adjusted by the backend. To make adjustments, search for the DingTalk group ID 32314975 to join the Real-time Data Warehouse Hologres group and submit a request.	60s	ALTER DATABASE <dbname> SET autovacuum_naptime = 60; ALTER DATABASE <dbname> SET autovacuum_naptime = '60s'; ALTER DATABASE <dbname> SET autovacuum_naptime = '10min';
    hg_auto_check_table_changes_interval	The interval at which the system checks for data changes in all internal tables. Unit: seconds (s).	V1.1.0 and later	600s (10 min)	-- Command syntax for V1.1 and later ALTER DATABASE <dbname> SET hg_auto_check_table_changes_interval = '600s'; -- Command syntax for V0.10 ALTER DATABASE <dbname> SET hg_experimental_auto_check_table_changes_interval = '600s';
    hg_auto_check_foreign_table_changes_interval	The interval at which the system checks for data changes in all foreign tables. Unit: seconds (s).	V1.1.0 and later	14400s (4 hours)	-- Command syntax for V1.1 and later ALTER DATABASE <dbname> SET hg_auto_check_foreign_table_changes_interval = '14400s'; -- Command syntax for V0.10 ALTER DATABASE <dbname> SET hg_experimental_auto_check_foreign_table_changes_interval = '14400s';
    hg_experimental_auto_analyze_max_columns_count	The number of columns for which statistics are automatically collected.	V1.1.0 and later	256	ALTER DATABASE <dbname> SET hg_experimental_auto_analyze_max_columns_count =300;
    auto_analyze_work_memory_mb	The memory limit for auto-analyze on a single table. Unit: MB.	V1.1.54 and later	The default is 4,096 MB (4 GB) for a single worker. The higher the instance type, the more workers are available, and the larger the actual memory limit.	Change the memory limit for auto-analyze on a single table to 9 GB. ALTER DATABASE <dbname> SETauto_analyze_work_memory_mb =9216;
    hg_experimental_auto_analyze_start_time	The start time for auto-analyze to run each day. Note The time zone must be the same as end_time, and the start time must be earlier than or equal to the end_time.	V1.1.54 and later	00:00 +0800	Change the settings so that auto-analyze runs only from 00:00 to 06:00. This is suitable for scenarios where data in internal and foreign tables does not change during the day and does not require analysis. ALTER DATABASE <dbname> SET hg_experimental_auto_analyze_start_time = '00:00 +0800'; ALTER DATABASE <dbname> SET hg_experimental_auto_analyze_end_time = '06:00 +0800';
    hg_experimental_auto_analyze_end_time	The end time for auto-analyze to run each day.	V1.1.54 and later	23:59 +0800
    autovacuum_enabled	The enabling status of auto-analyze for a table.	V1.1.54 and later	true, which means it is enabled for all tables by default.	Disable auto-analyze for a specific table. Future ANALYZE operations will skip this table. Note You can use only the following command to disable auto-analyze for a Hologres internal table. ALTER TABLE <tablename> SET (autovacuum_enabled = false);

Other optimizations

Hologres V3.1 introduces the Fast Rows feature. If Hologres finds that a table in a query lacks statistics, it directly retrieves the number of rows for that table from the storage engine. The cost of retrieving the row count is about 10 ms. The commands are as follows.

-- DB-level. Takes effect for the entire DB after execution. Syntax for enabling.
ALTER DATABASE dbname SET hg_experimental_get_fast_num_of_rows = ON;  -- Enable (disabled by default)

-- DB-level. Takes effect for the entire DB after execution. Syntax for disabling.
ALTER DATABASE dbname SET hg_experimental_get_fast_num_of_rows = OFF;  -- Disable (disabled by default)

• If the Fast Rows feature is disabled, you can reduce the likelihood of an incorrect plan in the following two cases.

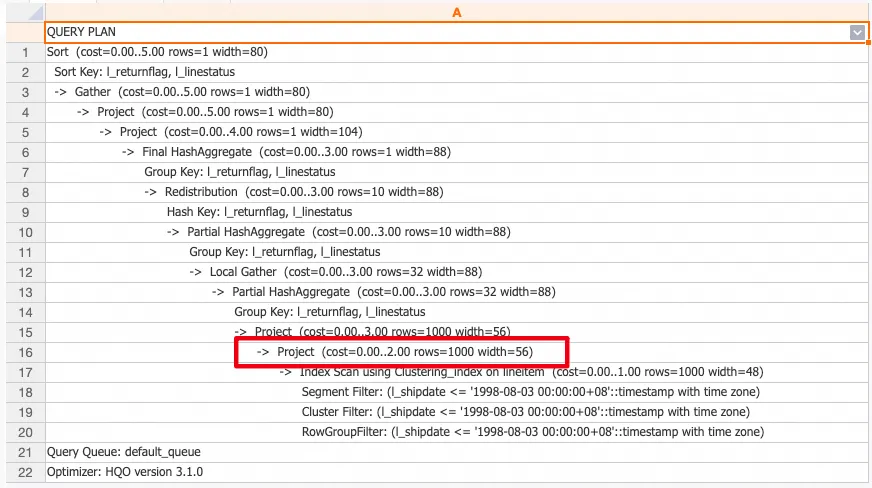

  • If a table has no statistics, the query plan shows `rows=1000`. This indicates that statistics are missing, and the plan is generated based on an estimate of 1,000 rows.

  • If the system considers the table to be empty, the query plan shows `rows=1`. This indicates that statistics are missing, and the plan is generated based on an estimate of one row.

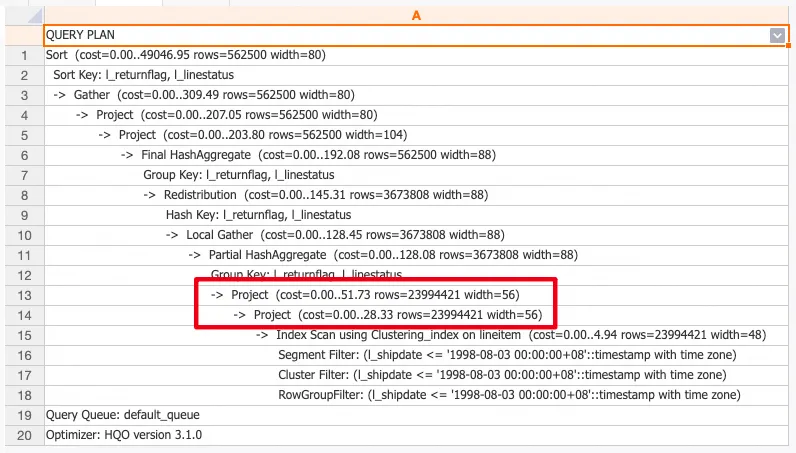

• When the Fast Rows feature is enabled and a table has no statistics, the query plan shows a row count other than 1,000. This is because the system has called the storage engine to retrieve the actual number of rows for the table.



Query statistics

SELECT schema_name,                -- Table schema
       table_name,                 -- Table name
       schema_version,             -- Table version
       statistic_version,          -- Statistics version from the last ANALYZE
       total_rows,                 -- Number of rows from the last ANALYZE
       analyze_timestamp           -- End time of the last ANALYZE
FROM   hologres_statistic.hg_table_statistic
WHERE  table_name = '<tablename>'
ORDER BY analyze_timestamp DESC;

View tables with missing statistics

You can use the HG_STATS_MISSING view to identify which tables in the current database are missing statistics. For more information, see HG_STATS_MISSING View.
