E-MapReduce:Materialized view query rewrite

Query Delta Join rewrite​

Query Delta Join refers to a situation where the tables joined in the query are a superset of the tables joined in the materialized view. For example, the following query joins the tables lineorder, customer, and part. If the materialized view join_mv1 only contains the join of lineorder and customer, StarRocks can use join_mv1 to rewrite the query.

Example:

SELECT lo_orderkey, lo_linenumber, lo_revenue, c_name, c_address, p_name
FROM
    lineorder INNER JOIN customer ON lo_custkey = c_custkey
    INNER JOIN part ON lo_partkey = p_partkey;

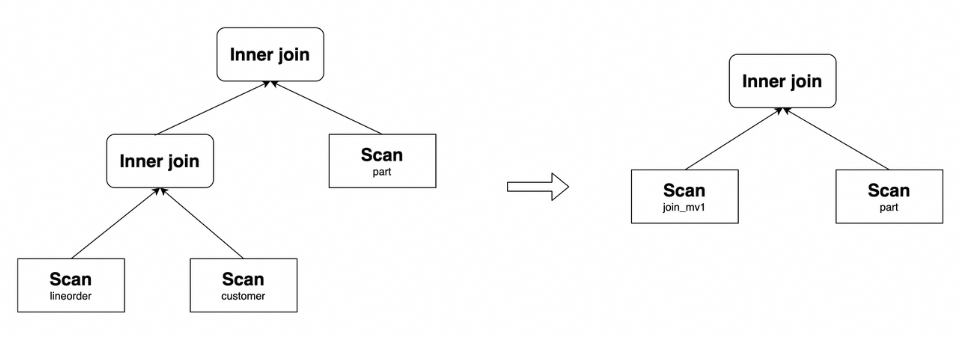

The original query plan and the rewritten plan are as follows:

View Delta Join rewrite​

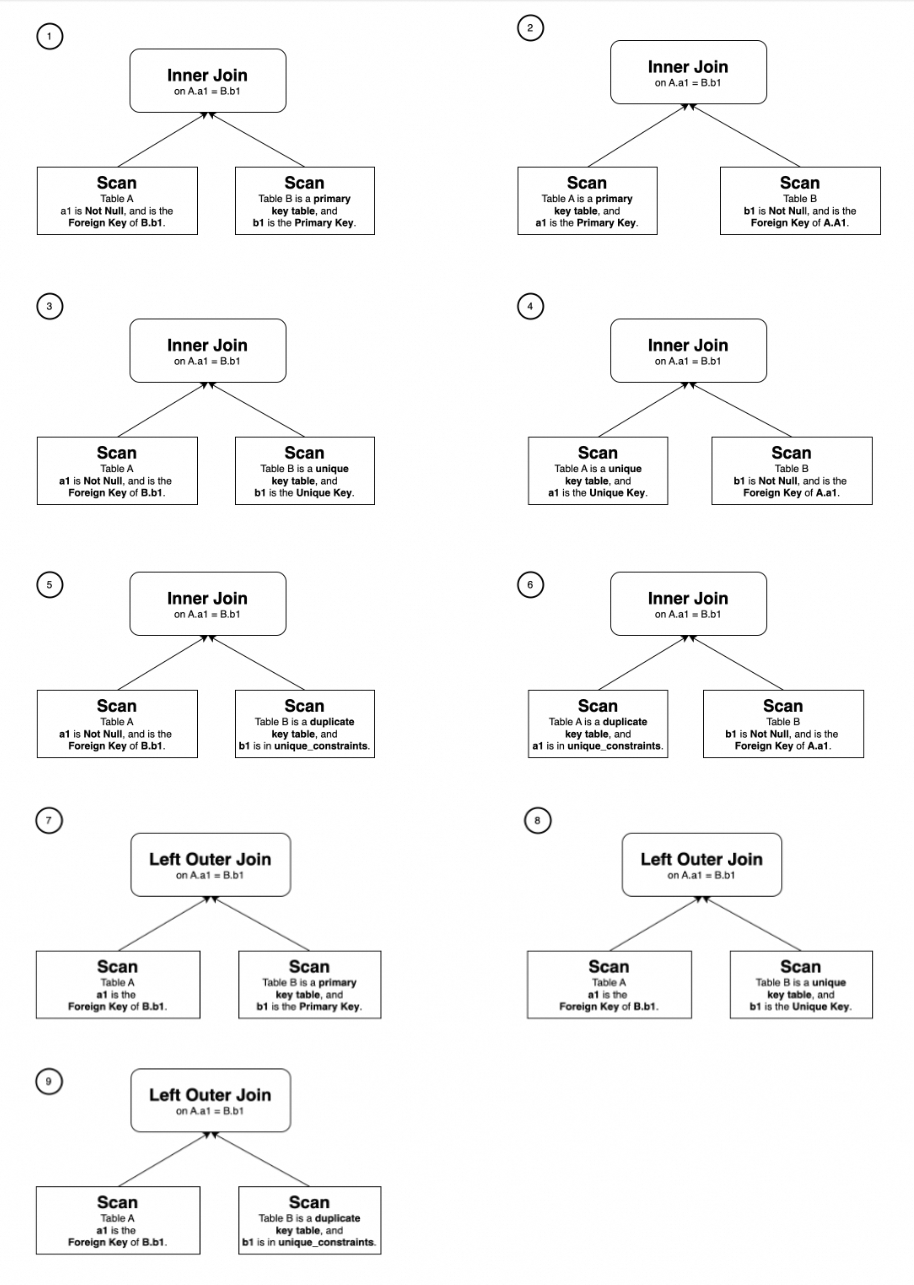

View Delta Join refers to a situation where the tables joined in the query are a subset of the tables joined in the materialized view. This feature is typically used in scenarios involving large wide tables. For example, in the context of the Star Schema Benchmark (SSB), you can create a materialized view by joining all tables to improve query performance. Tests have shown that after transparently rewriting queries through materialized views, the performance of multi-table join queries can reach the same level as querying the corresponding large wide table.

To enable View Delta Join rewrite, you must ensure that the materialized view includes 1:1 Cardinality Preservation Joins with all relevant tables in the query. The following nine types of joins that meet the constraint conditions are considered Cardinality Preservation Joins and can be used to enable View Delta Join rewrite.

Using the SSB test as an example, create the following database and base tables.

CREATE DATABASE IF NOT EXISTS test_db;
USE test_db;
CREATE TABLE customer (
  c_custkey         INT(11)       NOT NULL,
  c_name            VARCHAR(26)   NOT NULL,
  c_address         VARCHAR(41)   NOT NULL,
  c_city            VARCHAR(11)   NOT NULL,
  c_nation          VARCHAR(16)   NOT NULL,
  c_region          VARCHAR(13)   NOT NULL,
  c_phone           VARCHAR(16)   NOT NULL,
  c_mktsegment      VARCHAR(11)   NOT NULL
) ENGINE=OLAP
DUPLICATE KEY(c_custkey)
DISTRIBUTED BY HASH(c_custkey) BUCKETS 12
PROPERTIES (
"unique_constraints" = "c_custkey"   -- Specify the unique key.
);

CREATE TABLE dates (
  d_datekey          DATE          NOT NULL,
  d_date             VARCHAR(20)   NOT NULL,
  d_dayofweek        VARCHAR(10)   NOT NULL,
  d_month            VARCHAR(11)   NOT NULL,
  d_year             INT(11)       NOT NULL,
  d_yearmonthnum     INT(11)       NOT NULL,
  d_yearmonth        VARCHAR(9)    NOT NULL,
  d_daynuminweek     INT(11)       NOT NULL,
  d_daynuminmonth    INT(11)       NOT NULL,
  d_daynuminyear     INT(11)       NOT NULL,
  d_monthnuminyear   INT(11)       NOT NULL,
  d_weeknuminyear    INT(11)       NOT NULL,
  d_sellingseason    VARCHAR(14)   NOT NULL,
  d_lastdayinweekfl  INT(11)       NOT NULL,
  d_lastdayinmonthfl INT(11)       NOT NULL,
  d_holidayfl        INT(11)       NOT NULL,
  d_weekdayfl        INT(11)       NOT NULL
) ENGINE=OLAP
DUPLICATE KEY(d_datekey)
DISTRIBUTED BY HASH(d_datekey) BUCKETS 1
PROPERTIES (
"unique_constraints" = "d_datekey"   -- Specify the unique key.
);

CREATE TABLE supplier (
  s_suppkey          INT(11)       NOT NULL,
  s_name             VARCHAR(26)   NOT NULL,
  s_address          VARCHAR(26)   NOT NULL,
  s_city             VARCHAR(11)   NOT NULL,
  s_nation           VARCHAR(16)   NOT NULL,
  s_region           VARCHAR(13)   NOT NULL,
  s_phone            VARCHAR(16)   NOT NULL
) ENGINE=OLAP
DUPLICATE KEY(s_suppkey)
DISTRIBUTED BY HASH(s_suppkey) BUCKETS 12
PROPERTIES (
"unique_constraints" = "s_suppkey"   -- Specify the unique key.
);

CREATE TABLE part (
  p_partkey          INT(11)       NOT NULL,
  p_name             VARCHAR(23)   NOT NULL,
  p_mfgr             VARCHAR(7)    NOT NULL,
  p_category         VARCHAR(8)    NOT NULL,
  p_brand            VARCHAR(10)   NOT NULL,
  p_color            VARCHAR(12)   NOT NULL,
  p_type             VARCHAR(26)   NOT NULL,
  p_size             TINYINT(11)   NOT NULL,
  p_container        VARCHAR(11)   NOT NULL
) ENGINE=OLAP
DUPLICATE KEY(p_partkey)
DISTRIBUTED BY HASH(p_partkey) BUCKETS 12
PROPERTIES (
"unique_constraints" = "p_partkey"   -- Specify the unique key.
);

CREATE TABLE lineorder (
  lo_orderdate       DATE          NOT NULL, -- Specify as NOT NULL.
  lo_orderkey        INT(11)       NOT NULL,
  lo_linenumber      TINYINT       NOT NULL,
  lo_custkey         INT(11)       NOT NULL, -- Specify as NOT NULL.
  lo_partkey         INT(11)       NOT NULL, -- Specify as NOT NULL.
  lo_suppkey         INT(11)       NOT NULL, -- Specify as NOT NULL.
  lo_orderpriority   VARCHAR(100)  NOT NULL,
  lo_shippriority    TINYINT       NOT NULL,
  lo_quantity        TINYINT       NOT NULL,
  lo_extendedprice   INT(11)       NOT NULL,
  lo_ordtotalprice   INT(11)       NOT NULL,
  lo_discount        TINYINT       NOT NULL,
  lo_revenue         INT(11)       NOT NULL,
  lo_supplycost      INT(11)       NOT NULL,
  lo_tax             TINYINT       NOT NULL,
  lo_commitdate      DATE          NOT NULL,
  lo_shipmode        VARCHAR(100)  NOT NULL
) ENGINE=OLAP
DUPLICATE KEY(lo_orderdate,lo_orderkey)
PARTITION BY RANGE(lo_orderdate)
(PARTITION p1 VALUES [("0000-01-01"), ("1993-01-01")),
PARTITION p2 VALUES [("1993-01-01"), ("1994-01-01")),
PARTITION p3 VALUES [("1994-01-01"), ("1995-01-01")),
PARTITION p4 VALUES [("1995-01-01"), ("1996-01-01")),
PARTITION p5 VALUES [("1996-01-01"), ("1997-01-01")),
PARTITION p6 VALUES [("1997-01-01"), ("1998-01-01")),
PARTITION p7 VALUES [("1998-01-01"), ("1999-01-01")))
DISTRIBUTED BY HASH(lo_orderkey) BUCKETS 48
PROPERTIES (
"foreign_key_constraints" = "(
    (lo_custkey) REFERENCES customer(c_custkey),
    (lo_partkey) REFERENCES part(p_partkey),
    (lo_suppkey) REFERENCES supplier(s_suppkey)
    )"  -- Specify foreign key constraints.
);

Create the materialized view lineorder_flat_mv that joins the tables lineorder, customer, supplier, part, and dates.

USE test_db;
CREATE MATERIALIZED VIEW lineorder_flat_mv
DISTRIBUTED BY HASH(LO_ORDERDATE, LO_ORDERKEY) BUCKETS 48
PARTITION BY LO_ORDERDATE
REFRESH MANUAL
PROPERTIES (
    "partition_refresh_number"="1"
)
AS SELECT /*+ SET_VAR(query_timeout = 7200) */     -- Set the refresh timeout.
       l.LO_ORDERDATE        AS LO_ORDERDATE,
       l.LO_ORDERKEY         AS LO_ORDERKEY,
       l.LO_LINENUMBER       AS LO_LINENUMBER,
       l.LO_CUSTKEY          AS LO_CUSTKEY,
       l.LO_PARTKEY          AS LO_PARTKEY,
       l.LO_SUPPKEY          AS LO_SUPPKEY,
       l.LO_ORDERPRIORITY    AS LO_ORDERPRIORITY,
       l.LO_SHIPPRIORITY     AS LO_SHIPPRIORITY,
       l.LO_QUANTITY         AS LO_QUANTITY,
       l.LO_EXTENDEDPRICE    AS LO_EXTENDEDPRICE,
       l.LO_ORDTOTALPRICE    AS LO_ORDTOTALPRICE,
       l.LO_DISCOUNT         AS LO_DISCOUNT,
       l.LO_REVENUE          AS LO_REVENUE,
       l.LO_SUPPLYCOST       AS LO_SUPPLYCOST,
       l.LO_TAX              AS LO_TAX,
       l.LO_COMMITDATE       AS LO_COMMITDATE,
       l.LO_SHIPMODE         AS LO_SHIPMODE,
       c.C_NAME              AS C_NAME,
       c.C_ADDRESS           AS C_ADDRESS,
       c.C_CITY              AS C_CITY,
       c.C_NATION            AS C_NATION,
       c.C_REGION            AS C_REGION,
       c.C_PHONE             AS C_PHONE,
       c.C_MKTSEGMENT        AS C_MKTSEGMENT,
       s.S_NAME              AS S_NAME,
       s.S_ADDRESS           AS S_ADDRESS,
       s.S_CITY              AS S_CITY,
       s.S_NATION            AS S_NATION,
       s.S_REGION            AS S_REGION,
       s.S_PHONE             AS S_PHONE,
       p.P_NAME              AS P_NAME,
       p.P_MFGR              AS P_MFGR,
       p.P_CATEGORY          AS P_CATEGORY,
       p.P_BRAND             AS P_BRAND,
       p.P_COLOR             AS P_COLOR,
       p.P_TYPE              AS P_TYPE,
       p.P_SIZE              AS P_SIZE,
       p.P_CONTAINER         AS P_CONTAINER,
       d.D_DATE              AS D_DATE,
       d.D_DAYOFWEEK         AS D_DAYOFWEEK,
       d.D_MONTH             AS D_MONTH,
       d.D_YEAR              AS D_YEAR,
       d.D_YEARMONTHNUM      AS D_YEARMONTHNUM,
       d.D_YEARMONTH         AS D_YEARMONTH,
       d.D_DAYNUMINWEEK      AS D_DAYNUMINWEEK,
       d.D_DAYNUMINMONTH     AS D_DAYNUMINMONTH,
       d.D_DAYNUMINYEAR      AS D_DAYNUMINYEAR,
       d.D_MONTHNUMINYEAR    AS D_MONTHNUMINYEAR,
       d.D_WEEKNUMINYEAR     AS D_WEEKNUMINYEAR,
       d.D_SELLINGSEASON     AS D_SELLINGSEASON,
       d.D_LASTDAYINWEEKFL   AS D_LASTDAYINWEEKFL,
       d.D_LASTDAYINMONTHFL  AS D_LASTDAYINMONTHFL,
       d.D_HOLIDAYFL         AS D_HOLIDAYFL,
       d.D_WEEKDAYFL         AS D_WEEKDAYFL
   FROM lineorder            AS l
       INNER JOIN customer   AS c ON c.C_CUSTKEY = l.LO_CUSTKEY
       INNER JOIN supplier   AS s ON s.S_SUPPKEY = l.LO_SUPPKEY
       INNER JOIN part       AS p ON p.P_PARTKEY = l.LO_PARTKEY
       INNER JOIN dates      AS d ON l.LO_ORDERDATE = d.D_DATEKEY;

SSB Q2.1 example is as follows.

USE test_db;
SELECT
    SUM(lo_revenue) AS lo_revenue,
    d_year,
    p_brand
FROM lineorder
    JOIN dates ON lo_orderdate = d_datekey
    JOIN part ON lo_partkey = p_partkey
    JOIN supplier ON lo_suppkey = s_suppkey
WHERE p_category = 'MFGR#12' AND s_region = 'AMERICA'
GROUP BY d_year, p_brand
ORDER BY d_year, p_brand;

SSB Q2.1 involves joining four tables, but compared to the materialized view lineorder_flat_mv, it is missing the customer table. In lineorder_flat_mv, lineorder INNER JOIN customer is essentially a Cardinality Preservation Join. Therefore, logically, this join can be eliminated without affecting the query results. As a result, Q2.1 can be rewritten using lineorder_flat_mv.

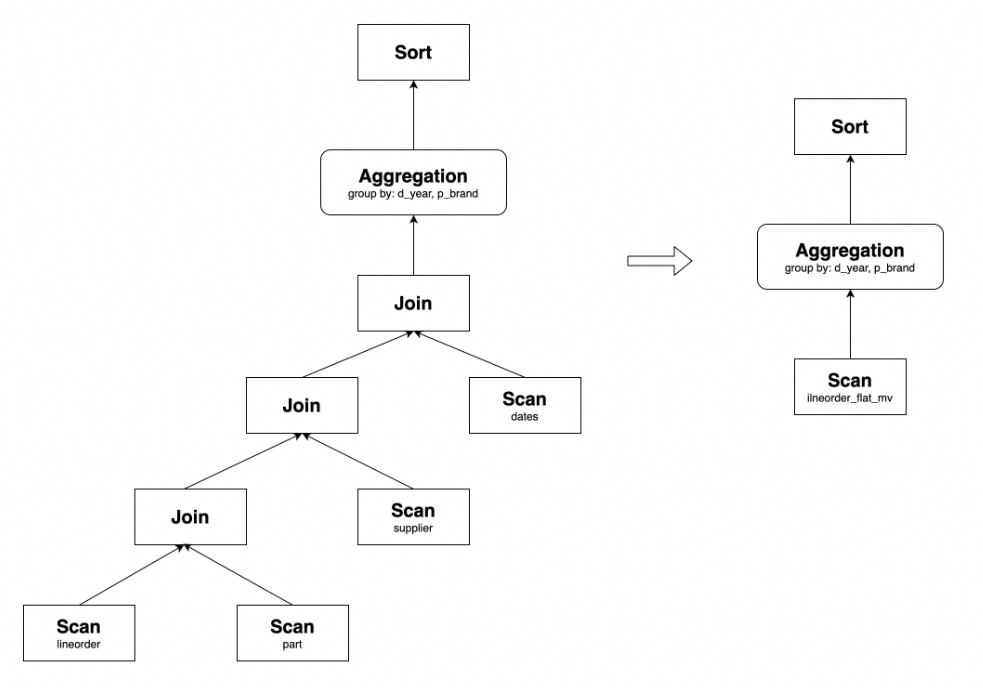

The original query plan and the rewritten plan are as follows.

Similarly, other queries in SSB can also be transparently rewritten using lineorder_flat_mv, thereby optimizing query performance.

Join derivation rewrite

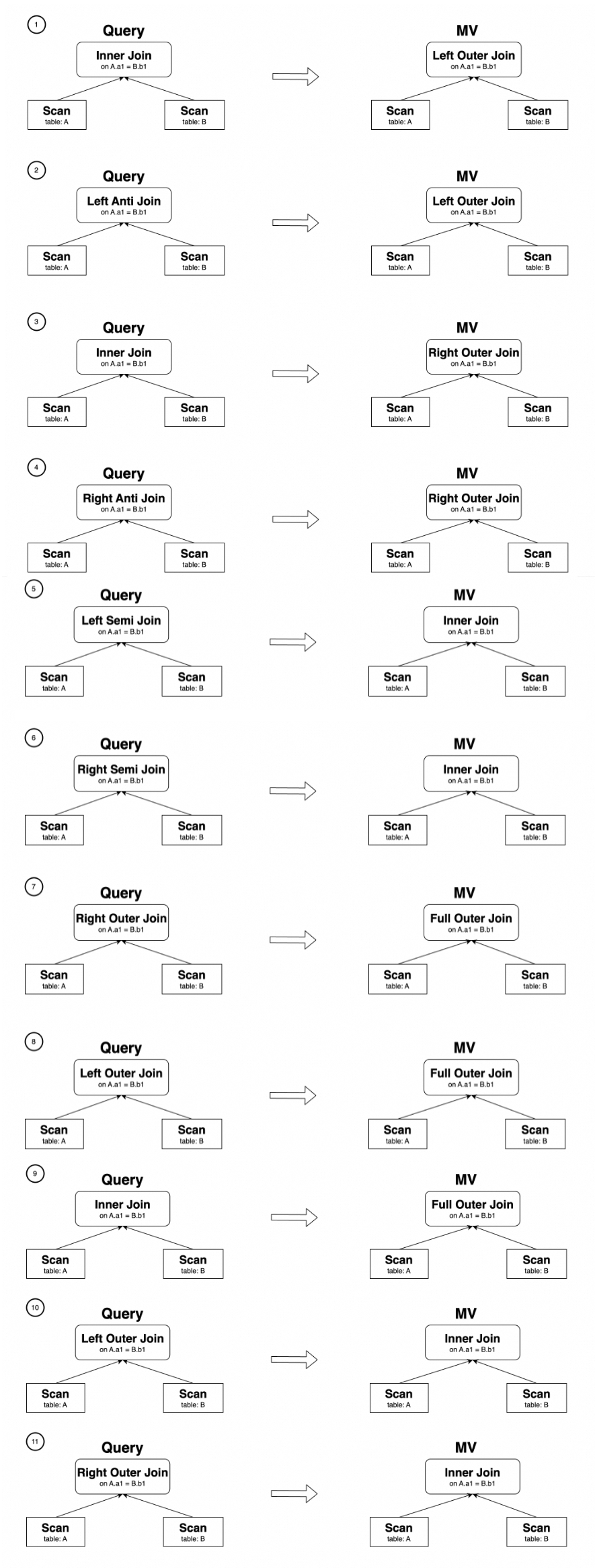

Join derivation refers to a situation where the join types in the materialized view and the query are inconsistent, but the join result of the materialized view includes the join result of the query.

Currently, the following two scenarios are supported:

• Three or more table joins

• Two-table joins

USE test_db;
CREATE MATERIALIZED VIEW join_mv5
PARTITION BY lo_orderdate
DISTRIBUTED BY hash(lo_orderkey)
PROPERTIES (
  "partition_refresh_number" = "1"
)
AS
SELECT lo_orderkey, lo_orderdate, lo_linenumber, lo_revenue, c_custkey, c_address, p_name
FROM customer LEFT OUTER JOIN lineorder
ON c_custkey = lo_custkey
INNER JOIN part
ON p_partkey = lo_partkey;

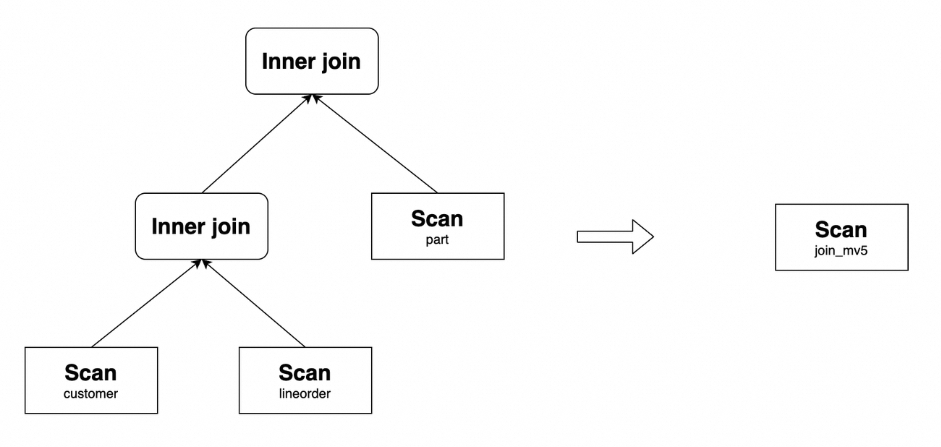

USE test_db;
SELECT lo_orderkey, lo_orderdate, lo_linenumber, lo_revenue, c_custkey, c_address, p_name
FROM customer INNER JOIN lineorder
ON c_custkey = lo_custkey
INNER JOIN part
ON p_partkey = lo_partkey;

USE test_db;
CREATE MATERIALIZED VIEW join_mv3
DISTRIBUTED BY hash(lo_orderkey)
AS
SELECT lo_orderkey, lo_linenumber, lo_revenue, c_custkey, c_address
FROM lineorder LEFT OUTER JOIN customer
ON lo_custkey = c_custkey;

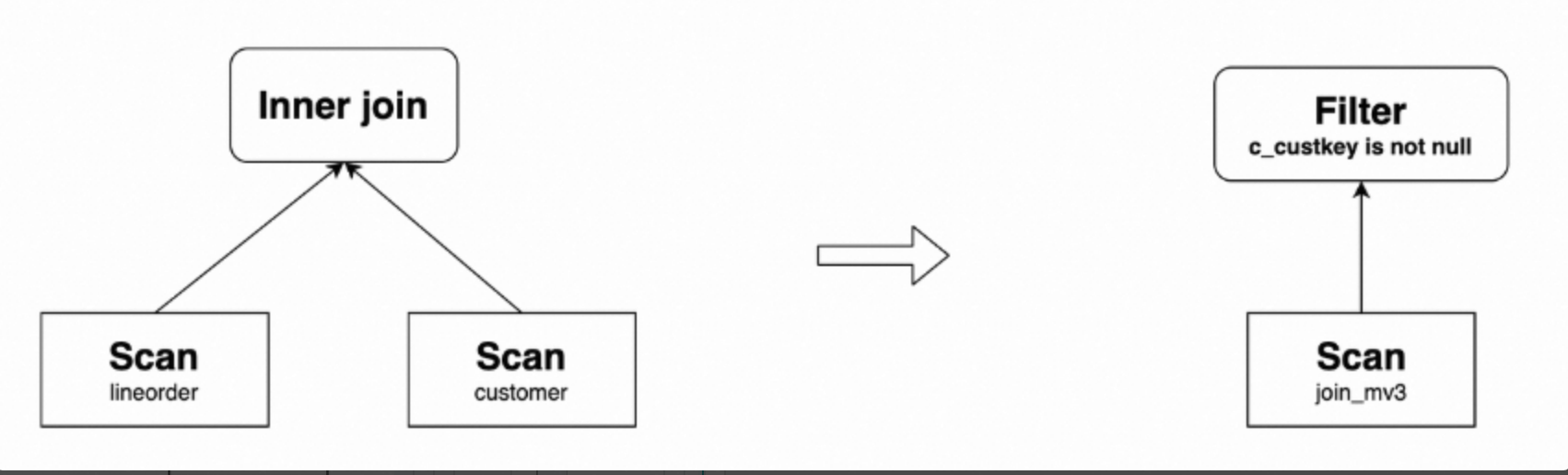

USE test_db;
SELECT lo_orderkey, lo_linenumber, lo_revenue, c_custkey, c_address
FROM lineorder INNER JOIN customer
ON lo_custkey = c_custkey;

USE test_db;
CREATE MATERIALIZED VIEW join_mv4
DISTRIBUTED BY hash(lo_orderkey)
AS
SELECT lo_orderkey, lo_linenumber, lo_revenue, c_custkey, c_address
FROM lineorder INNER JOIN customer
ON lo_custkey = c_custkey;

USE test_db;
SELECT lo_orderkey, lo_linenumber, lo_revenue, c_custkey, c_address
FROM lineorder LEFT OUTER JOIN customer
ON lo_custkey = c_custkey
WHERE customer.c_address = "Sb4gxKs7";

Aggregate rollup rewrite

StarRocks supports rewriting queries through aggregate rollup, meaning StarRocks can use an asynchronous materialized view created with a GROUP BY a,b clause to rewrite an aggregation query with a GROUP BY a clause. For example, agg_mv1 can rewrite the following query.

USE test_db;
SELECT
  lo_orderkey,
  c_name,
  sum(lo_revenue) AS total_revenue,
  max(lo_discount) AS max_discount
FROM lineorder INNER JOIN customer
ON lo_custkey = c_custkey
GROUP BY lo_orderkey, c_name;

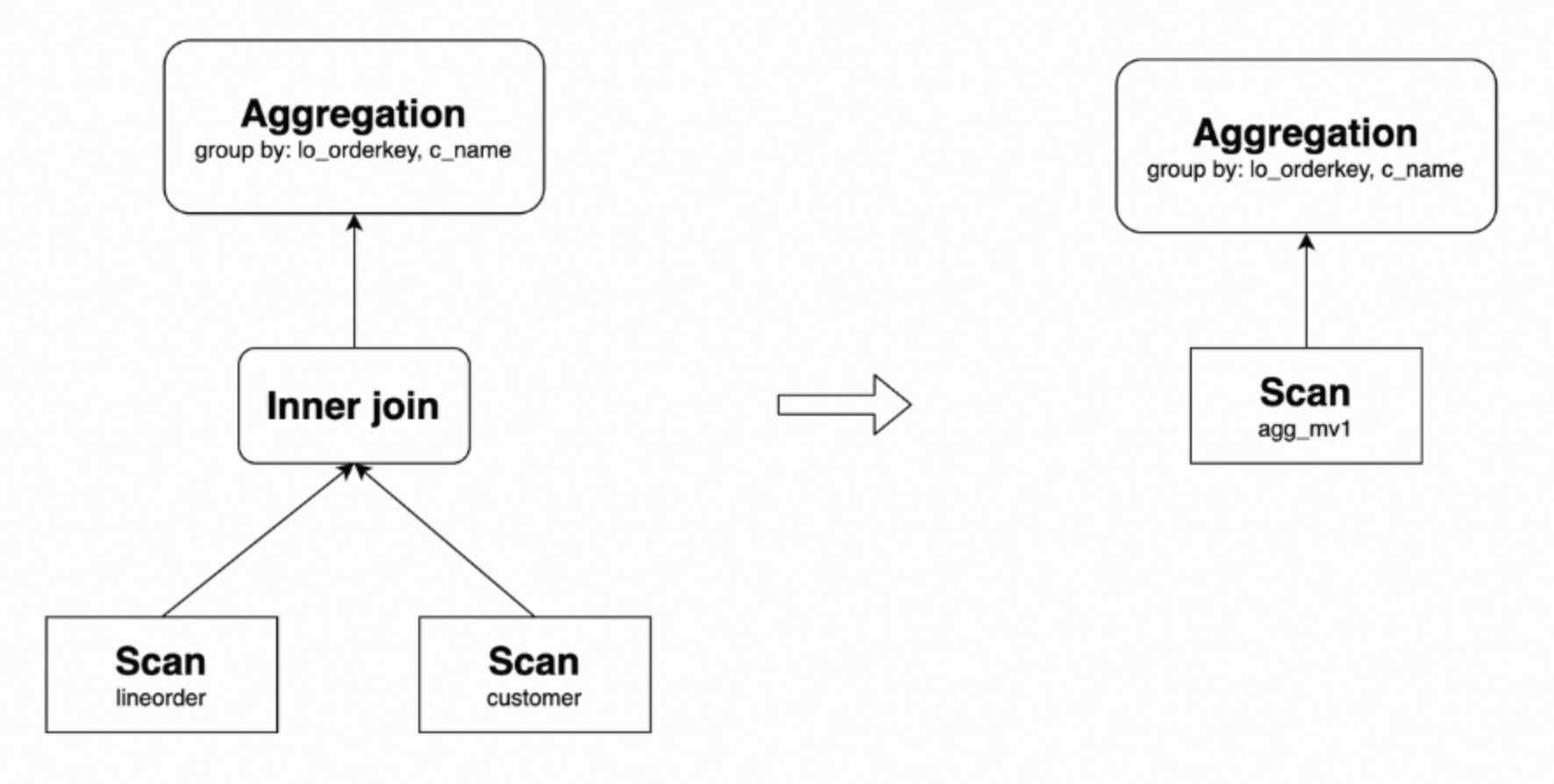

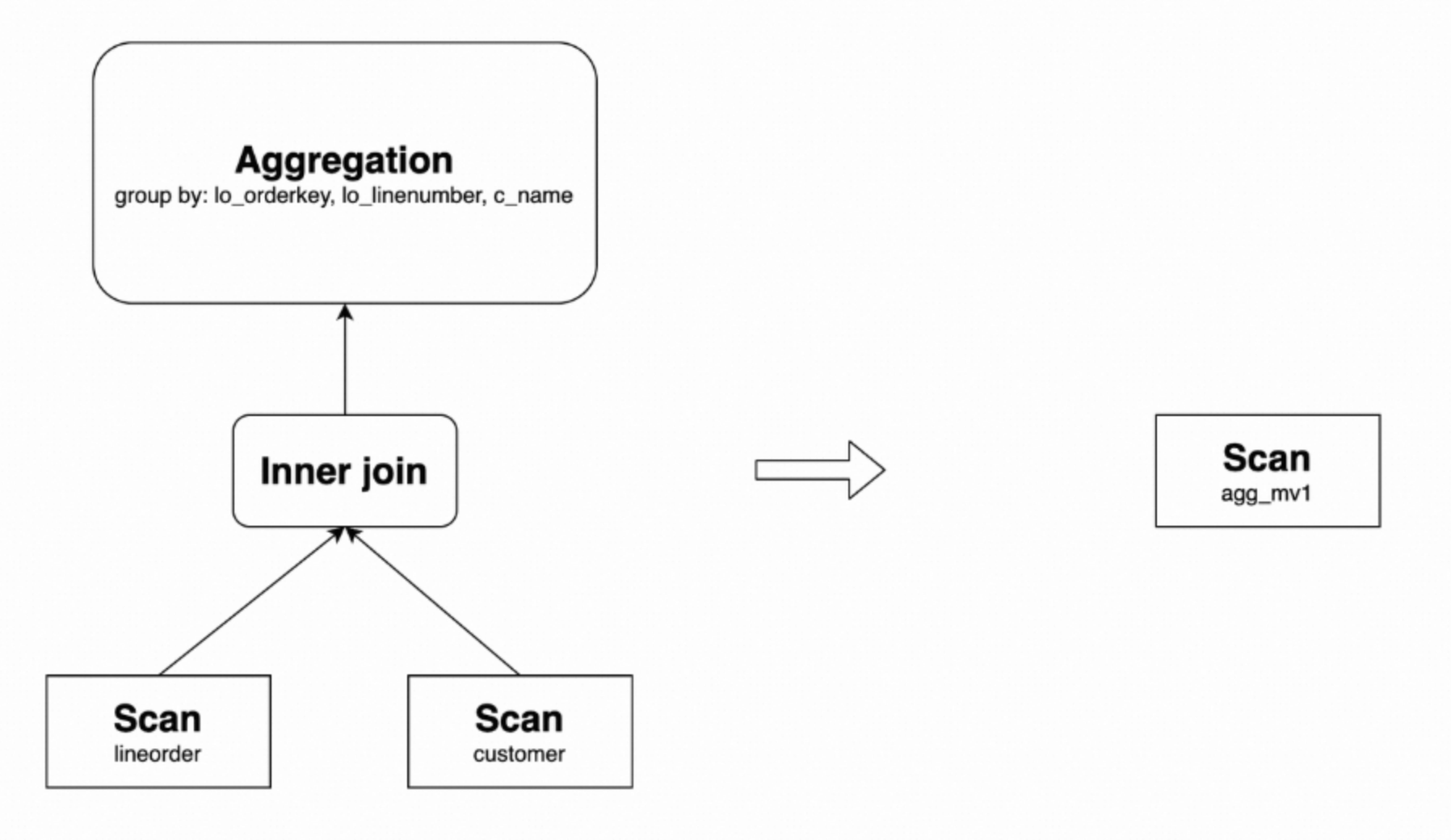

The original query plan and the rewritten plan are as follows.

Only some aggregation functions support aggregate rollup query rewrite. The following table shows the correspondence between aggregation functions in the original query and aggregation functions used to build materialized views. You can choose the appropriate aggregation functions to build materialized views based on your business scenarios.

DISTINCT aggregations without corresponding GROUP BY columns cannot use aggregate rollup query rewrite. However, starting from StarRocks v3.1, if a query with DISTINCT aggregation functions has no GROUP BY columns but has equivalent predicates, the query can also be rewritten by relevant materialized views because StarRocks can convert equivalent predicates to GROUP BY constant expressions.

In the following example, StarRocks can use the materialized view order_agg_mv1 to rewrite the corresponding Query.

USE test_db;
CREATE MATERIALIZED VIEW order_agg_mv1
DISTRIBUTED BY HASH(`order_id`) BUCKETS 12
REFRESH ASYNC START('2022-09-01 10:00:00') EVERY (interval 1 day)
AS
SELECT
    order_date,
    count(distinct client_id)
FROM order_list
GROUP BY order_date;


-- Query
USE test_db;
SELECT
    order_date,
    count(distinct client_id)
FROM order_list WHERE order_date='2023-07-03';

Aggregation pushdown

Starting from v3.3.0, StarRocks supports the aggregation pushdown feature for materialized view query rewrite. When this feature is enabled, aggregation functions are pushed down to the Scan Operator during query execution and are rewritten by materialized views before the Join Operator is executed. This alleviates data expansion caused by join operations, thereby improving query performance.

This feature is disabled by default. To enable it, you must set the system variable enable_materialized_view_agg_pushdown_rewrite to true.

Suppose you need to accelerate the following SSB-based query SQL1.

-- SQL1
USE test_db;
SELECT
    LO_ORDERDATE, sum(LO_REVENUE), max(LO_REVENUE), count(distinct LO_REVENUE)
FROM lineorder l JOIN dates d
ON l.LO_ORDERDATE = d.d_date
GROUP BY LO_ORDERDATE
ORDER BY LO_ORDERDATE;

SQL1 includes aggregation within the lineorder table and a join between lineorder and dates tables. The aggregation occurs within lineorder, and the join with dates is only used for data filtering. So SQL1 is logically equivalent to the following SQL2.

-- SQL2
USE test_db;
SELECT
    LO_ORDERDATE, sum(sum1), max(max1), bitmap_union_count(bitmap1)
FROM
 (SELECT
  LO_ORDERDATE,  sum(LO_REVENUE) AS sum1, max(LO_REVENUE) AS max1, bitmap_union(to_bitmap(LO_REVENUE)) AS bitmap1
  FROM lineorder
  GROUP BY LO_ORDERDATE) l JOIN dates d
ON l.LO_ORDERDATE = d.d_date
GROUP BY LO_ORDERDATE
ORDER BY LO_ORDERDATE;

SQL2 brings the aggregation forward, greatly reducing the amount of data for the join. You can create a materialized view based on the subquery in SQL2 and enable aggregation pushdown to rewrite and accelerate aggregation.

-- Create materialized view mv0
USE test_db;
CREATE MATERIALIZED VIEW mv0 REFRESH MANUAL AS
SELECT
  LO_ORDERDATE,
  sum(LO_REVENUE) AS sum1,
  max(LO_REVENUE) AS max1,
  bitmap_union(to_bitmap(LO_REVENUE)) AS bitmap1
FROM lineorder
GROUP BY LO_ORDERDATE;

-- Enable aggregation pushdown
SET enable_materialized_view_agg_pushdown_rewrite=true;

At this point, SQL1 will be rewritten and accelerated through the materialized view. The rewritten query is as follows.

USE test_db;
SELECT
    LO_ORDERDATE, sum(sum1), max(max1), bitmap_union_count(bitmap1)
FROM
 (SELECT LO_ORDERDATE, sum1, max1, bitmap1 FROM mv0) l JOIN dates d
ON l.LO_ORDERDATE = d.d_date
GROUP BY LO_ORDERDATE
ORDER BY LO_ORDERDATE;

Note that only some aggregation functions that support aggregate rollup rewrite can be pushed down. Currently, the following aggregation functions support pushdown:

• MIN

• MAX

• COUNT

• COUNT DISTINCT

• SUM

• BITMAP_UNION

• HLL_UNION

• PERCENTILE_UNION

• BITMAP_AGG

• ARRAY_AGG_DISTINCT

COUNT DISTINCT rewrite

StarRocks supports rewriting COUNT DISTINCT calculations as BITMAP type calculations, enabling high-performance, accurate deduplication using materialized views. For example, create the following materialized view.

USE test_db;
CREATE MATERIALIZED VIEW distinct_mv
DISTRIBUTED BY hash(lo_orderkey)
AS
SELECT lo_orderkey, bitmap_union(to_bitmap(lo_custkey)) AS distinct_customer
FROM lineorder
GROUP BY lo_orderkey;

This materialized view can rewrite the following query.

USE test_db;
SELECT lo_orderkey, count(distinct lo_custkey)
FROM lineorder
GROUP BY lo_orderkey;

Predicate Union rewrite

When the predicate range of a materialized view is a subset of the predicate range of a query, the query can be rewritten using a UNION operation.

For example, create the following materialized view.

USE test_db;
CREATE MATERIALIZED VIEW agg_mv4
DISTRIBUTED BY hash(lo_orderkey)
AS
SELECT
  lo_orderkey,
  SUM(lo_revenue) AS total_revenue,
  MAX(lo_discount) AS max_discount
FROM lineorder
WHERE lo_orderkey < 300000000
GROUP BY lo_orderkey;

This materialized view can rewrite the following query.

USE test_db;
SELECT
  lo_orderkey,
  SUM(lo_revenue) AS total_revenue,
  MAX(lo_discount) AS max_discount
FROM lineorder
GROUP BY lo_orderkey;

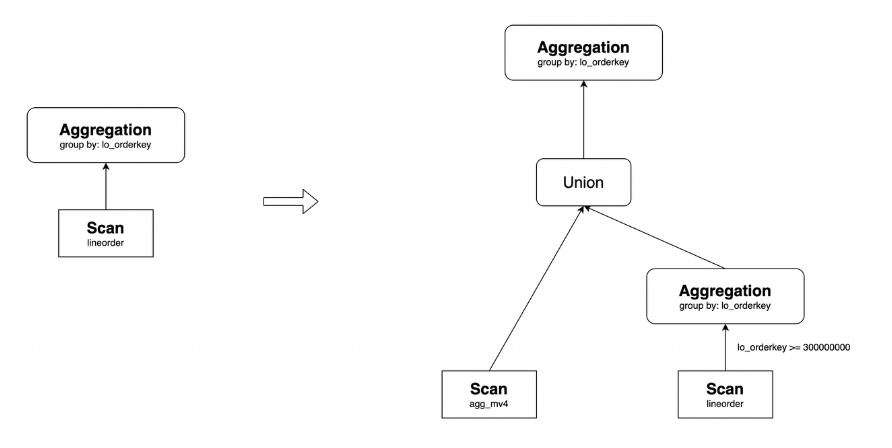

The original query plan and the rewritten plan are as follows.

Here, agg_mv4 contains data where lo_orderkey < 300000000, while data where lo_orderkey >= 300000000 is obtained by directly querying the lineorder table. Finally, the results are aggregated after a Union operation to obtain the final result.

Partition Union rewrite

Suppose a partitioned materialized view is created based on a partitioned table. When the partition range scanned by the query is a superset of the latest partition range of the materialized view, the query can be rewritten using a UNION operation.

For example, consider the following materialized view agg_mv5. The base table lineorder currently contains partitions p1 to p7, and the materialized view also contains partitions p1 to p7.

USE test_db;
CREATE MATERIALIZED VIEW agg_mv5
DISTRIBUTED BY hash(lo_orderkey)
PARTITION BY RANGE(lo_orderdate)(
  START ("1993-01-01") END ("1999-01-01") EVERY (INTERVAL 1 YEAR)
)
REFRESH MANUAL
AS
SELECT
  lo_orderdate,
  lo_orderkey,
  sum(lo_revenue) AS total_revenue,
  max(lo_discount) AS max_discount
FROM lineorder
GROUP BY lo_orderdate,lo_orderkey;

If lineorder adds a new partition p8 with the range [("19990101"), ("20000101")), then the following query can be rewritten using a UNION operation.

USE test_db;
SELECT
  lo_orderdate,
  lo_orderkey,
  sum(lo_revenue) AS total_revenue,
  max(lo_discount) AS max_discount
FROM lineorder
GROUP BY lo_orderdate,lo_orderkey;

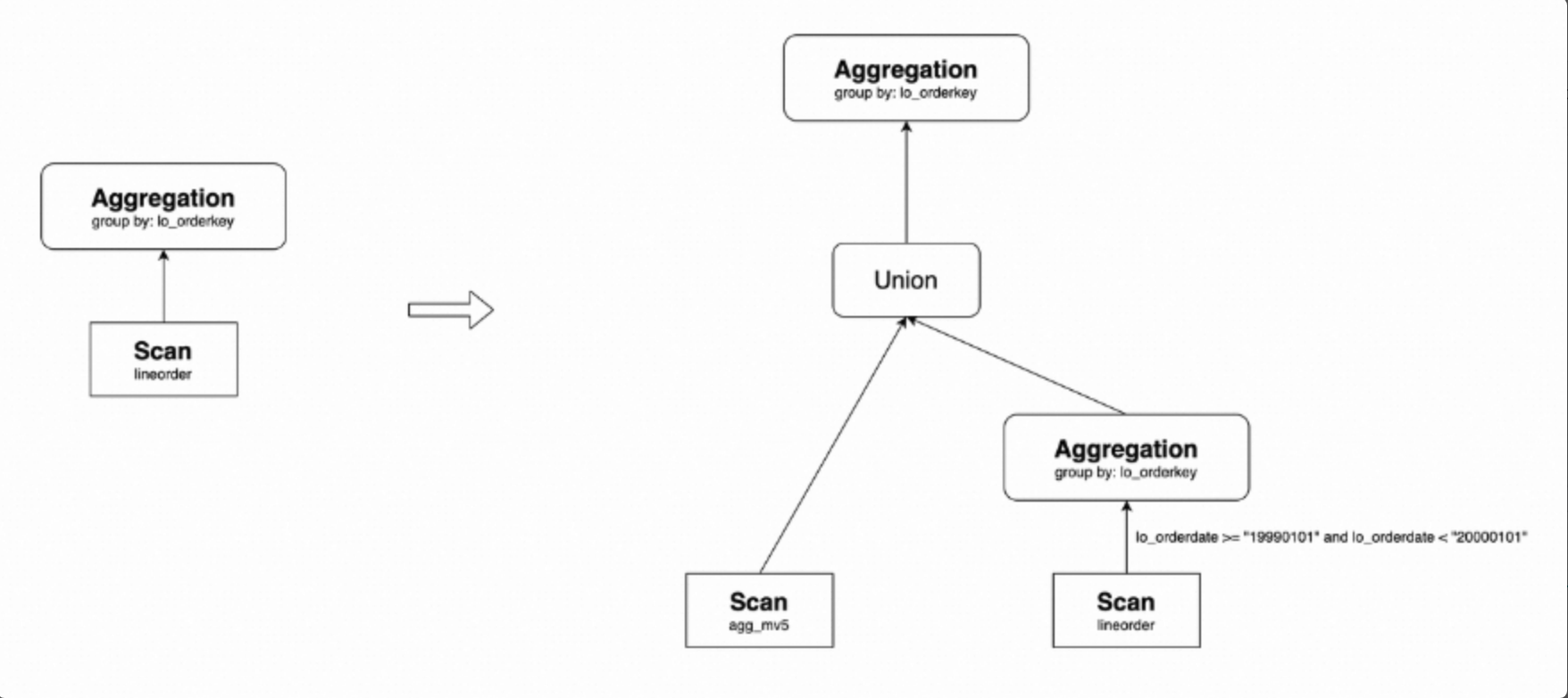

The original query plan and the rewritten plan are as follows.

As shown above, agg_mv5 contains data from partitions p1 to p7, while data from partition p8 comes from lineorder. Finally, these two sets of data are combined using a UNION operation.

Basic principles​

In the previous query rewrite logic, StarRocks would expand queries based on views into queries targeting the base tables of the view. If the execution plan of the expanded query did not match the SPJG pattern, the materialized view could not rewrite the query.

To address this issue, StarRocks introduced a new operator, LogicalViewScanOperator, which simplifies the structure of the execution plan tree and does not require expanding the query. This makes the query execution plan tree more likely to satisfy the SPJG pattern, thereby optimizing query rewrite.

The following example shows a query containing an aggregation subquery, a view built on the subquery, a query expanded based on the view, and a materialized view built on the view.

-- Original query.
SELECT
  v1.a,
  t2.b,
  v1.total
FROM(
  SELECT
    a,
    sum(c) AS total
  FROM t1
  GROUP BY a
) v1
INNER JOIN t2 ON v1.a = t2.a;

-- View built on the subquery.
CREATE VIEW view_1 AS
SELECT
  t1.a,
  sum(t1.c) AS total
FROM t1
GROUP BY t1.a;

-- Query based on the view.
SELECT
  v1.a,
  t2.b,
  v1.total
FROM view_1 v1
JOIN t2 ON v1.a = t2.a;

-- Materialized view based on the view.
CREATE MATERIALIZED VIEW mv1
DISTRIBUTED BY hash(a)
REFRESH MANUAL
AS
SELECT
  v1.a,
  t2.b,
  v1.total
FROM view_1 v1
JOIN t2 ON v1.a = t2.a;

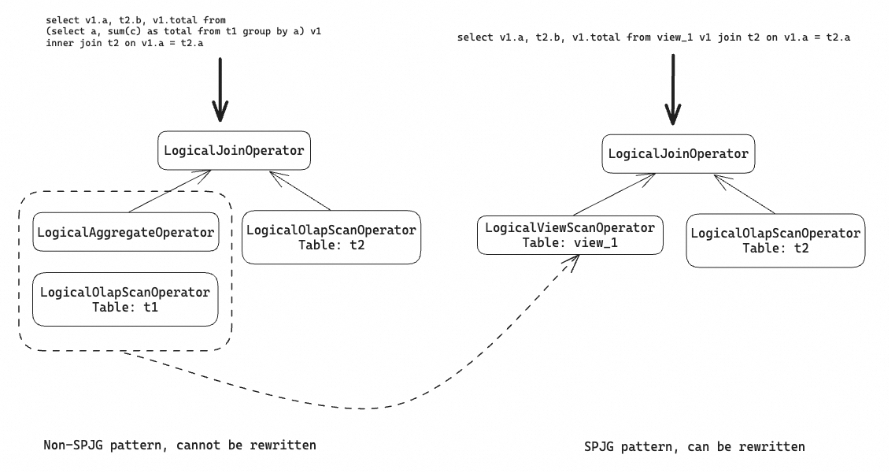

The execution plan of the original query is shown on the left side of the figure below. Because the LogicalAggregateOperator inside the JOIN does not match the SPJG pattern, StarRocks does not support query rewrite in this case. However, if the subquery is defined as a view, the original query can be expanded into a query targeting that view. Using LogicalViewScanOperator, StarRocks can convert the non-matching part into the SPJG pattern, thus allowing the query to be rewritten.

Configuration items

StarRocks disables query rewrite for materialized views based on views by default.

To enable this feature, you must set the following variable.

SET enable_view_based_mv_rewrite = true;

Usage scenarios​

USE test_db;
CREATE VIEW q18_view
AS
SELECT
  c_name,
  c_custkey,
  o_orderkey,
  o_orderdate,
  o_totalprice,
  sum(l_quantity)
FROM
  customer,
  orders,
  lineitem
WHERE
  o_orderkey IN (
    SELECT
      l_orderkey
    FROM
      lineitem
    GROUP BY
      l_orderkey having
        sum(l_quantity) > 315
  )
  AND c_custkey = o_custkey
  AND o_orderkey = l_orderkey
GROUP BY
    c_name,
    c_custkey,
    o_orderkey,
    o_orderdate,
    o_totalprice;

CREATE MATERIALIZED VIEW q18_mv
DISTRIBUTED BY hash(c_custkey, o_orderkey)
REFRESH MANUAL
AS
SELECT * FROM q18_view;

USE test_db;
-- SQL1
EXPLAIN LOGICAL SELECT * FROM q18_view;
+-------------------------------------------------------------------------------------------------------+
| Explain String                                                                                        |
+-------------------------------------------------------------------------------------------------------+
| - Output => [2:c_name, 1:c_custkey, 9:o_orderkey, 10:o_orderdate, 13:o_totalprice, 52:sum]            |
|     - SCAN [q18_mv] => [1:c_custkey, 2:c_name, 52:sum, 9:o_orderkey, 10:o_orderdate, 13:o_totalprice] |
|             MaterializedView: true                                                                    |
|             Estimates: {row: 9, cpu: 486.00, memory: 0.00, network: 0.00, cost: 243.00}               |
|             partitionRatio: 1/1, tabletRatio: 96/96                                                   |
|             1:c_custkey := 60:c_custkey                                                               |
|             2:c_name := 59:c_name                                                                     |
|             52:sum := 64:sum(l_quantity)                                                              |
|             9:o_orderkey := 61:o_orderkey                                                             |
|             10:o_orderdate := 62:o_orderdate                                                          |
|             13:o_totalprice := 63:o_totalprice                                                        |
+-------------------------------------------------------------------------------------------------------+

-- SQL2
EXPLAIN LOGICAL SELECT c_name, sum(`sum(l_quantity)`) FROM q18_view GROUP BY c_name;
+-----------------------------------------------------------------------------------------------------+
| Explain String                                                                                      |
+-----------------------------------------------------------------------------------------------------+
| - Output => [2:c_name, 59:sum]                                                                      |
|     - AGGREGATE(GLOBAL) [2:c_name]                                                                  |
|             Estimates: {row: 9, cpu: 306.00, memory: 306.00, network: 0.00, cost: 1071.00}          |
|             59:sum := sum(59:sum)                                                                   |
|         - EXCHANGE(SHUFFLE) [2]                                                                     |
|                 Estimates: {row: 9, cpu: 30.60, memory: 0.00, network: 30.60, cost: 306.00}         |
|             - AGGREGATE(LOCAL) [2:c_name]                                                           |
|                     Estimates: {row: 9, cpu: 61.20, memory: 30.60, network: 0.00, cost: 244.80}     |
|                     59:sum := sum(52:sum)                                                           |
|                 - SCAN [q18_mv] => [2:c_name, 52:sum]                                               |
|                         MaterializedView: true                                                      |
|                         Estimates: {row: 9, cpu: 306.00, memory: 0.00, network: 0.00, cost: 153.00} |
|                         partitionRatio: 1/1, tabletRatio: 96/96                                     |
|                         2:c_name := 60:c_name                                                       |
|                         52:sum := 65:sum(l_quantity)                                                |
+-----------------------------------------------------------------------------------------------------+

USE test_db;
CREATE VIEW view_1
AS
SELECT
  c_custkey,
  c_name,
  c_address,
  c_city,
  c_nation,
  c_region
FROM customer;

CREATE VIEW view_2
AS
SELECT
  lo_orderkey,
  lo_linenumber,
  lo_custkey,
  lo_partkey,
  lo_revenue,
  lo_supplycost
FROM lineorder;

CREATE MATERIALIZED VIEW join_mv
DISTRIBUTED BY hash(lo_orderkey)
REFRESH MANUAL
AS
SELECT
  v1.c_custkey,
  v1.c_name,
  v1.c_address,
  v2.lo_orderkey,
  v2.lo_linenumber,
  v2.lo_revenue
FROM view_1 v1
JOIN view_2 v2
ON v1.c_custkey = v2.lo_custkey;

USE test_db;
SELECT
  v1.c_custkey,
  v1.c_name,
  v1.c_address,
  v2.lo_orderkey,
  v2.lo_linenumber,
  v2.lo_revenue
FROM view_1 v1
JOIN view_2 v2
ON v1.c_custkey = v2.lo_custkey;

Basic principles​

To implement text-based materialized view rewrite, StarRocks compares the abstract syntax tree of the query (or its subquery) with the abstract syntax tree of the materialized view definition. When both match, StarRocks can rewrite the query based on the materialized view. Text-based materialized view rewrite is simple and efficient, with fewer limitations compared to conventional SPJG-type materialized view query rewrites. Proper use of this feature can significantly enhance query performance.

Text-based materialized view rewrite supports not only SPJG-type operators but also operators such as Union, Window, Order, Limit, and CTE.

Configuration items

Scenarios​

Queries that meet the following conditions can be rewritten:

• The original query is consistent with the definition of the materialized view.

• The subquery of the original query is consistent with the definition of the materialized view.

Compared with conventional SPJG-type materialized view query rewrites, text-based materialized view rewrite supports more complex queries, such as multilayer aggregation.

For example, you can build the following materialized view.

USE test_db;
CREATE MATERIALIZED VIEW mv1 REFRESH MANUAL AS
SELECT
  user_id,
  count(1)
FROM (
  SELECT
    user_id,
    time,
    bitmap_union(to_bitmap(tag_id)) AS a
  FROM user_tags
  GROUP BY
    user_id,
    time) t
GROUP BY user_id;

This materialized view can rewrite the following two queries.

USE test_db;
-- SQL1
SELECT
  user_id,
  count(1)
FROM (
  SELECT
    user_id,
    time,
    bitmap_union(to_bitmap(tag_id)) AS a
  FROM user_tags
  GROUP BY
    user_id,
    time) t
GROUP BY user_id;

-- SQL2
SELECT count(1)
FROM
（
    SELECT
      user_id,
      count(1)
    FROM (
      SELECT
        user_id,
        time,
        bitmap_union(to_bitmap(tag_id)) AS a
      FROM user_tags
      GROUP BY
        user_id,
        time) t
    GROUP BY user_id
）m;

However, this materialized view cannot rewrite the following query that contains an ORDER BY clause.

USE test_db;
SELECT
  user_id,
  count(1)
FROM (
  SELECT
    user_id,
    time,
    bitmap_union(to_bitmap(tag_id)) AS a
  FROM user_tags
  GROUP BY
    user_id,
    time) t
GROUP BY user_id
ORDER BY user_id;
