A query profile records the execution information of all nodes involved in a query. You can use query profiles to perform visualized analysis and quickly identify bottlenecks that affect the query performance of a StarRocks instance.
Enable the query profile feature
To enable the query profile feature for a StarRocks instance, run the following command to set the enable_profile parameter to true.
SET enable_profile = true;To prevent the query performance from being affected, you can globally enable the query profile feature for a StarRocks instance only if the kernel version of the StarRocks instance is 2.5.13 or later or 3.1.5 or later.
If the kernel version of a StarRocks instance is earlier than the preceding versions, we recommend that you upgrade the kernel to the required version before you enable the query profile feature. Otherwise, the query performance may be affected.
Query profile structure
A query profile consists of the following parts:
Fragment: A query consists of one or more fragments.
Fragment instance: A fragment can contain multiple fragment instances. If a fragment contains multiple fragment instances, the fragment instances are executed by different compute nodes.
Pipeline: A pipeline consists of a group of operators. A fragment instance is split into multiple pipelines.
Pipeline driver: A pipeline can contain multiple pipeline drivers. Each pipeline driver runs on different cores to improve the utilization of cores.
Operator: A pipeline driver consists of multiple operators.
Visualized query profiles

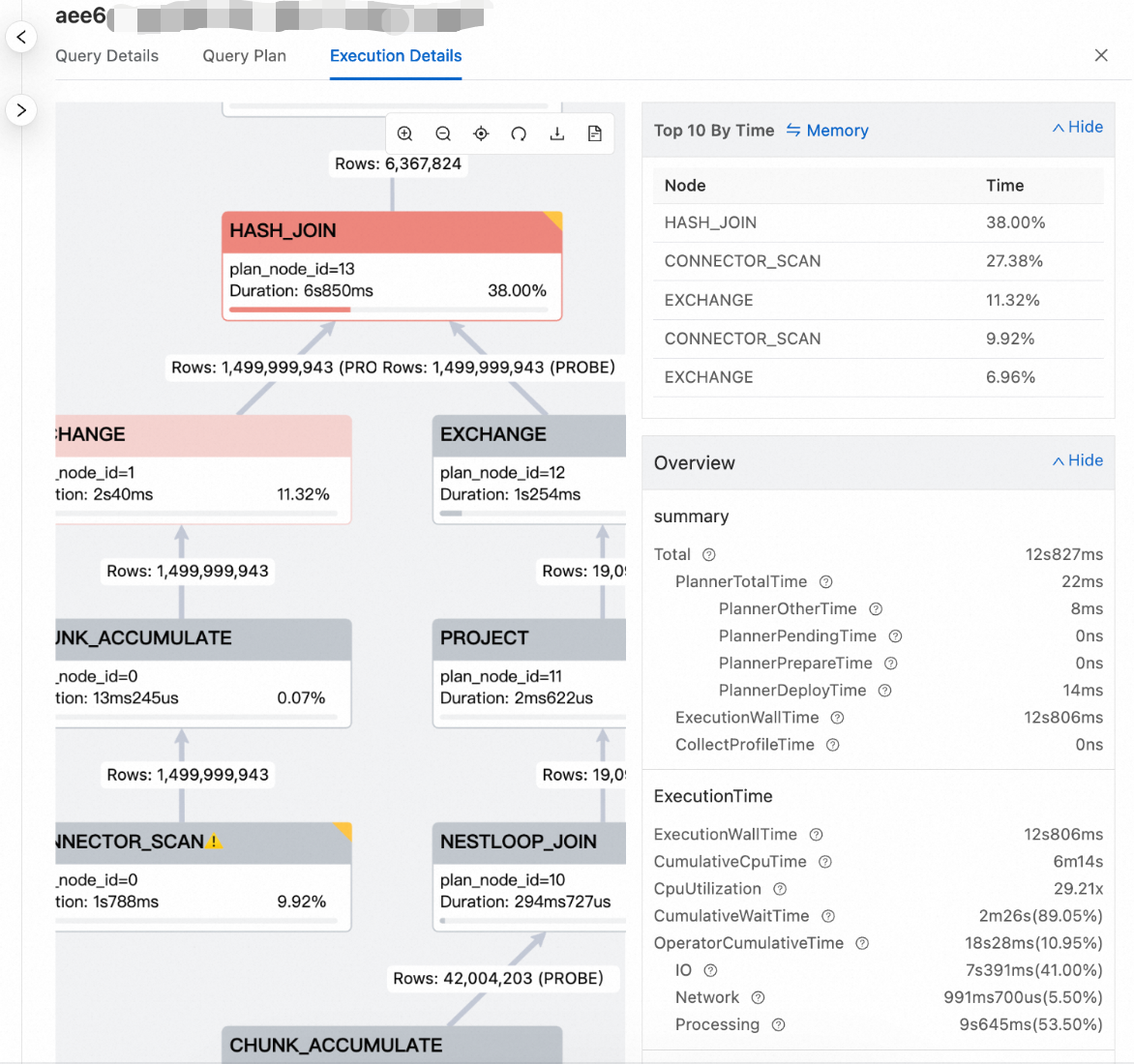

E-MapReduce (EMR) StarRocks Manager provides visualized query profiles. A query profile is presented as a tree structure. Tree nodes represent aggregated operators. On the Execution Details tab of a query, you can click a tree node to view the details of the corresponding operator in the right-side area of the tab. If you do not click a node, the overview information of the query is displayed in the Overview section of the Execution Details tab.
Execution overview
In the Overview section, you can view the metrics related to execution time, I/O performance, and amount of transmitted data.
Execution time
Metric
Description
I/O
The total I/O time consumed by all SCAN nodes.
LocalDiskReadIOTime
The I/O time consumed to read data from the local cache. This metric is available only for StarRocks shared-data instances.
RemoteReadIOTime
The I/O time consumed to read data from Object Storage Service (OSS). This metric is available only for StarRocks shared-data instances.
IoSeekTime
The total I/O seek time. This metric is available only for StarRocks shared-data instances.
Processing
The time consumed by an operator to perform computing operations.
ExecutionWallTime
The time consumed in the query execution phase.
I/O
Metric
Description
RawRowsRead
The total number of rows that are scanned by all SCAN nodes.
DiskReadBytes
The total amount of compressed data that is read by all SCAN nodes.
LocalDiskReadBytes
The total amount of compressed data that is read from the local cache by all CONNECTOR_SCAN nodes. This metric is available only for StarRocks shared-data instances.
RemoteReadBytes
The total amount of compressed data that is read from OSS by all CONNECTOR_SCAN nodes. This metric is available only for StarRocks shared-data instances.
ResultRows
The total number of output records of all SCAN nodes.
ResultBytes
The total amount of data that is read by all SCAN nodes.
Network
Metric
Description
Bytes sent over network
The total number of bytes transmitted by all Exchange nodes. This metric corresponds to the BytesSent metric.
Operator
You can click an operator in the query profile to view the details of the operator on the following tabs:
CoreMetrics: This tab displays the core metrics of the operator.
NodeMetrics: This tab displays all metrics of the operator.
Pipeline: This tab displays the metrics of the pipeline to which the operator belongs. The metrics on this tab are related only to scheduling. You do not need to pay much attention to such metrics.
The system highlights the top three time-consuming nodes in the profile tree by using different colors. The color of the bar for an execution time-related metric darkens as the time consumed by the operator increases. This helps you easily identify the bottlenecks in your query.
You can scroll the mouse wheel or click the Zoom In or Zoom Out icon to zoom in or zoom out the profile tree.
Important metrics
Query-related metrics
Summary metrics
Metric
Description
Total
The time consumed by a query, including the time consumed in the planning, execution, and profiling phases.
QueryCpuCost
The total time during which the CPU is used by all processes. The value is greater than the actual CPU running time.
QueryMemCost
The total amount of memory consumed by a query.
Variables
The queried variables.
Pipeline-related metrics
Metric
Description
ActiveTime
The time when a driver is executed.
DriverTotalTime
The total time consumed by a driver.
PendingTime
The period of time that a driver waits when the input or prerequisite is not met.
Operator-related metrics
General-purpose operator metrics and chunk-related metrics
Metric
Description
OperatorTotalTime
The total time consumed by an operator.
PushRowNum
The total number of output rows generated by an operator.
PullRowNum
The total number of input rows generated by an operator.
PullChunkNum
The total number of input chunks generated by an operator.
PushChunkNum
The total number of output chunks generated by an operator.
PeakMemoryUsage
The maximum amount of memory used by a query.
Metrics of OLAP scan operators
Metric
Description
Table
The name of the table.
ScanTime
The total scan time. Scan operations are performed in an asynchronous I/O thread pool.
TabletCount
The number of tablets.
PushdownPredicates
The number of predicates that are pushed down.
BytesRead
The number of bytes read by the query.
CompressedBytesRead
The size of compressed data that is read.
IOTime
The total I/O time.
BitmapIndexFilterRows
The number of data rows that are filtered by using a bitmap index.
BloomFilterFilterRows
The number of data rows that are filtered by using a bloom filter.
SegmentRuntimeZoneMapFilterRows
The number of data rows that are filtered by using a runtime zone map.
SegmentZoneMapFilterRows
The number of data rows that are filtered by using a zone map.
ShortKeyFilterRows
The number of data rows that are filtered by using a short key.
ZoneMapIndexFilterRows
The number of data rows that are filtered by using a zone map index.
Metrics of connector scan operators
The following table describes the metrics of connector scan operators. The metrics are available only for StarRocks shared-data instances.
Metric
Description
CompressedBytesReadLocalDisk
The amount of compressed data that is read from the local cache of a compute node.
CompressedBytesReadRemote
The total amount of compressed data that is read from OSS.
IOTimeLocalDisk
The I/O time consumed to read data from the local cache.
IOTimeRemote
The I/O time consumed to read data from OSS.
Metrics of exchange operators
Sink
Metric
Description
PartType
The distribution mode of data. Valid values: UNPARTITIONED, RANDOM, HASH_PARTITIONED, and BUCKET_SHUFFLE_HASH_PARTITIONED.
BytesSent
The size of data that is sent.
OverallThroughput
The throughput.
NetworkTime
The time consumed to transmit a data packet. The processing time for the data packet is not included.
WaitTime
The waiting time due to a full queue of the sender.
NetworkBandwidth
The network bandwidth.
Source
Metric
Description
SenderWaitLockTime
The time consumed to wait for a lock.
BytesReceived
The size of received data.
DecompressChunkTime
The time consumed to decompress data.
DeserializeChunkTime
The time consumed to deserialize data.
SenderTotalTime
The total time consumed to send data.
Metrics of aggregate operators
Metric
Description
GroupingKeys
The GROUP BY columns.
AggregateFunctions
The aggregate function.
AggComputeTime
The time consumed by the calculation performed based on an aggregate function.
ExprComputeTime
The time consumed by the calculation performed based on an expression.
HashTableSize
The size of a hash table.
Metrics of join operators
Probe
Metric
Description
DistributionMode
The data distribution mode.
JoinType
The join type.
OtherJoinConjunctEvaluateTime
The time consumed by the JoinConjunct operation.
ProbeConjunctEvaluateTime
The time consumed by conjunct evaluation in the probe phase.
SearchHashTableTime
The time consumed to query a hash table.
WhereConjunctEvaluateTime
The time consumed by the Where Conjunct operation.
Build
Metric
Description
JoinPredicates
The join predicate.
JoinType
The join type.
BuildBuckets
The number of buckets in a hash table.
BuildHashTableTime
The time consumed to create a hash table.
RuntimeFilterBuildTime
The time consumed to create a runtime filter.
RuntimeFilterNum
The number of runtime filters.
DistributionMode
The data distribution mode.
Metrics of window function operators
Metric
Description
ComputeTime
The time consumed by the calculation performed based on a window function.
PartitionKeys
The partition key column.
AggregateFunctions
The aggregate function.
Metrics of sort operators
Metric
Description
SortKeys
The sort key.
SortType
The sorting order of the query results. You can sort the Top N query results or all query results.
MergingTime
The time consumed to merge data.
SortingTime
The time consumed to sort data.
Metrics of TableFunction operators
Metric
Description
TableFunctionExecTime
The time consumed by the calculation performed based on a table function.
TableFunctionExecCount
The number of times that a table function is executed.
Metrics of project operators
Metric
Description
ExprComputeTime
The time consumed by the calculation performed based on an expression.
CommonSubExprComputeTime
The time consumed for by calculation performed based on a common sub-expression.
Metrics of Local Exchange operators
Metric
Description
Type
The type of Local Exchange. Valid values: Passthrough, Partition, and Broadcast.
ShuffleNum
The amount of data that is shuffled. This metric is valid only if the value of the Type metric is Partition.
