The IDV NFC authentication service provides an iOS client software development kit (SDK). This SDK helps you add NFC authentication to your app. This topic describes the iOS client integration process and provides sample code.

Limits

The SDK is compatible with mobile devices (iPhone or iPad) that run iOS 13 or later.
The following privacy permissions are required: Camera (to use Optical Character Recognition (OCR) to obtain the three key elements of a passport), Network, and NFC.

Download and configure the SDK

Download the SDK

Download the iOS SDK, unzip the package, and then copy all frameworks to your project folder.

Add required permissions

Add the following permissions to the Info.plist file. The permission descriptions are for reference only.
Add the Privacy - NFC Scan Usage Description permission and its description.
Add the ISO7816 application identifiers for NFC Tag Reader Session configuration. Set item0 to A0000002471001 for travel documents.

Add frameworks in Xcode

In your project settings, go to Build Settings > Build Phases > Link Binary With Libraries and add the frameworks.

Add all frameworks from the SDK:

AliyunIdentityFace.framework
AliyunIdentityPlatform.framework
AliyunIdentityUtils.framework
AliyunIdentityOcr.framework
AliyunIdentityNFC.framework
ToygerService.framework
AliyunOSSiOS.framework
faceguard.framework
DTFUtility.framework
ToygerNative.framework
MNN.framework
OpenSSL.framework

Add system dependency libraries:

AudioToolbox.framework
CoreMedia.framework
CoreML.framework
AVFoundation.framework
SystemConfiguration.framework
UIKit.framework
CoreTelephony.framework
CoreMotion.framework
Accelerate.framework
libresolv.tbd
libsqlite3.tbd
libc++.tbd
libz.tbd

CryptoKit.framework
CryptoTokenKit.framework
CoreNFC.framework
libswiftCoreNFC.tbd

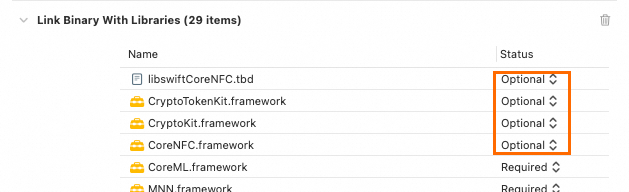

Set the NFC-related system libraries to Optional. This prevents the app from crashing on devices that do not support NFC.

Copy resource files

In your project settings, go to Build Settings > Build Phases > Copy Bundle Resources and copy the resource files.

AliyunIdentityPlatform.bundle: This resource is in AliyunIdentityPlatform.framework.
AliyunIdentityFace.bundle: This resource is in AliyunIdentityFace.framework.
AliyunIdentityOCR.bundle: This resource is in AliyunIdentityOcr.framework.
ToygerService.bundle: This resource is in ToygerService.framework.
AliyunIdentityNFC.bundle: This resource is in AliyunIdentityNFC.framework.

Configure Linker flags

In your project settings, go to Build Settings > Other Linker Flags and add the -ObjC flag.

For a pure Objective-C project, you must also add the -L$(DEVELOPER_DIR)/Toolchains/XcodeDefault.xctoolchain/usr/lib/swift/$(PLATFORM_NAME) flag.

Add a capability

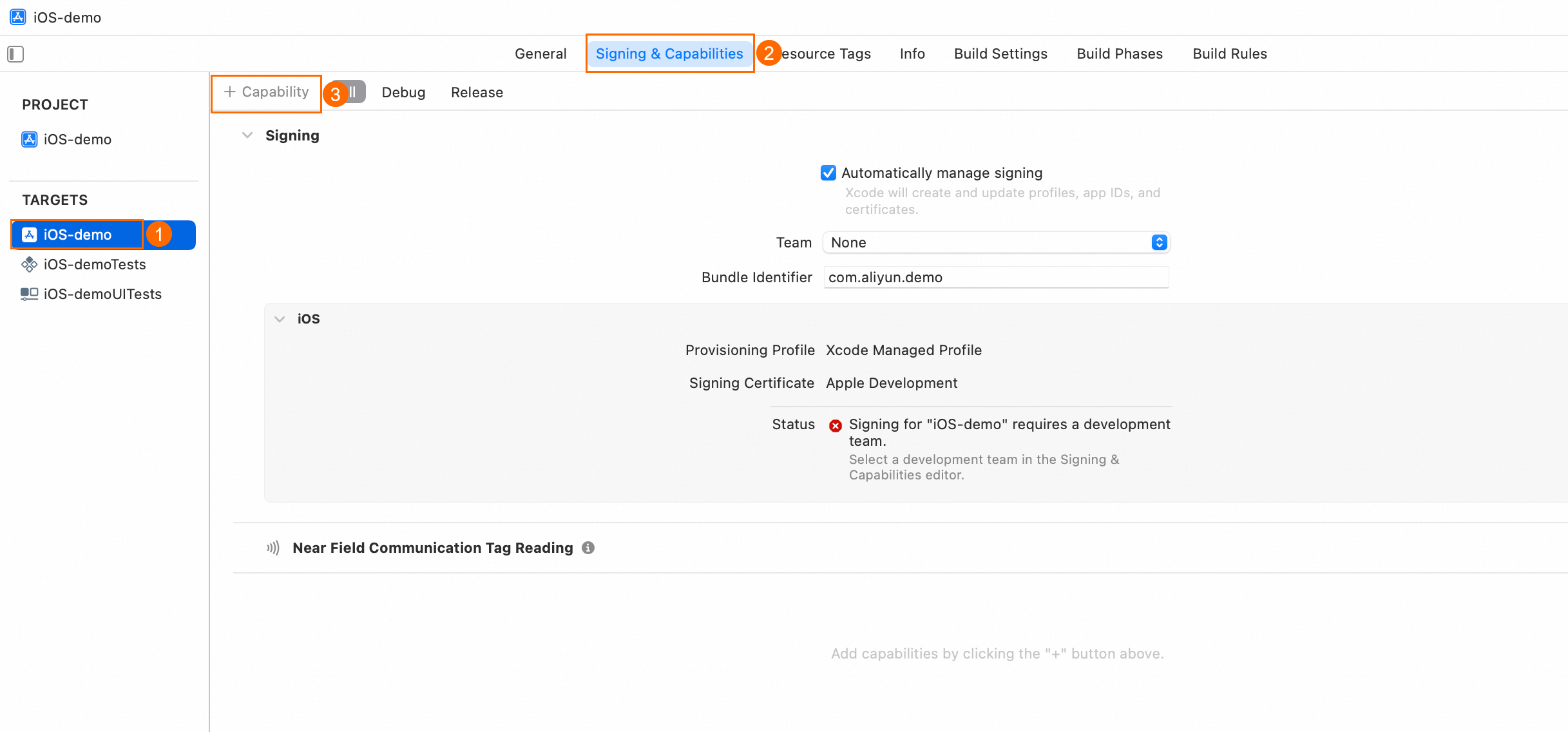

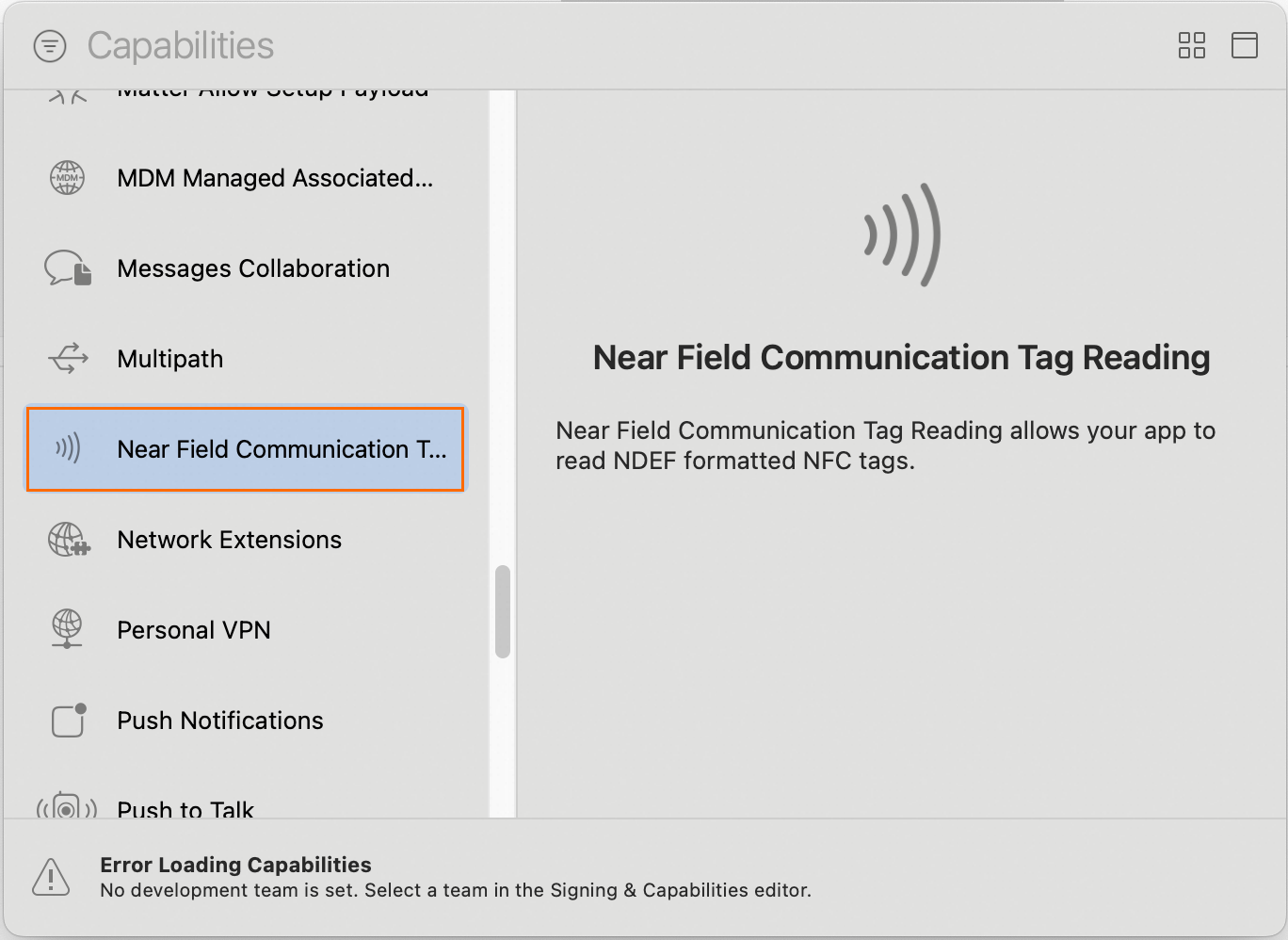

In your project, select TARGETS, go to Signing & Capabilities, add a new capability, and then select NFC.

Call the SDK

Import the header file

#import <AliyunIdentityPlatform/AliyunIdentityPlatform.h>

Initialize the SDK

- (void)install;

Get metaInfo data

- (NSString *)getMetaInfo;

Call the SDK to start authentication

Important

Before you call the SDK to start authentication, make sure that you have passed the MetaInfo to the server and obtained the transactionId by calling the Initialize operation.
The transactionId returned by the server corresponds to the certifyId input parameter for this method.

- (void)verifyWithCertifyId:(NSString *)certifyId
  withCurrentViewController:(UIViewController *)viewController
              withExtParams:(NSDictionary *)extParams
                   complete:(AliyunIdentityVerifyBlock)completeBlock;

Parameters:

Name	Type	Description
certifyId	NSString	Obtained by calling the server-side Initialize operation. Pass the returned transactionId to this parameter.
viewController	UIViewController	The current ViewController of the client app.
extParams	NSDictionary	Custom user parameters. In most cases, you can pass null. For a list of supported parameter fields, see extParams configuration.
completeBlock	AliyunIdentityVerifyBlock	The callback after authentication is complete. It contains the authentication result. For more information about return codes, see the Return code table.

extParams configuration:

Key	Description	Example (String)
kIdentityParamKeyNextButtonColor	The color of the button at the bottom of the OCR recognition result page.	#FF0000
kIdentityParamKeyRoundProgressColor	The color of the circle during the face scan.	#FF0000
kIdentityParamKeyOcrSelectPhoto	Specifies whether to display the album upload entry during document OCR recognition: 1 (default): Display 0: Do not display	1
kIdentityParamKeyMaxRetryCount	The maximum number of retries. The value can be from 3 to 10. The default value is 10.	10
kIdentityParamKeyCardOcrTimeOutPeriod	The timeout period for the OCR recognition step. The value can be from 20 to 60 seconds. The default value is 20 seconds.	20
kIdentityParamKeyFaceVerifyTimeOutPeriod	The timeout period for the liveness collection and detection step. The value can be from 20 to 60 seconds. The default value is 20 seconds.	20
kIdentityParamKeyCardOcrEditTimeOutPeriod	The duration for which the OCR recognition result page is editable. You can set a custom value from 60 to 180 seconds. By default, there is no limit.	180
kIdentityParamKeyLanguage	You can customize the SDK language settings. By default, the SDK uses the mobile device's system language. Note For a list of languages supported by the SDK, see Custom languages for Android and iOS SDKs.	zh-Hans
kIdentityParamKeyDefaultLanguage	The default language setting for the SDK. For possible values, see the kIdentityParamKeyLanguage field. The default value is en (English).	en
kIdentityParamKeyCloseButtonPosition	The position of the SDK's Close button: left (default): Left right: Right	left
kIdentityParamKeyWatermark	The watermark text after successful OCR recognition.	Test watermark text
kIdentutyParamKeyProtocol	The SDK protocol. Note Obtain the protocol by calling the server-side Initialize operation and pass it in the extension parameters. This reduces internal SDK API interactions and improves network performance.	968412EB*******...

Return code table:

Error code	Billed	Description
1000	Yes	The user completed the face scan process, and the recommended authentication result is "pass". This result is for reference only. You can call the server-side CheckResult operation to get the final authentication result for further processing.
1001	Yes	The user completed the face scan process, and the recommended authentication result is "fail". This result is for reference only. You can call the server-side CheckResult operation to get the final authentication result and the detailed reason for the failure for further processing.
1002	No	A system error occurred.
1003	No	The SDK failed to initialize. Check if the client's system time is correct.
1004	No	A camera error occurred. Try the following steps to resolve the issue: Make sure the app has been granted camera permission before authentication. If the permission error persists after granting permission, try clearing the app cache and retry.
1005	No	A network error occurred.
1006	No	The user exited the process.
1007	No	The TransactionId is invalid.
1009	No	The client timestamp is incorrect.
1011	No	The submitted document type is incorrect.
1012	No	Key information from the recognized document is missing or failed format validation.
1013	No	The image quality is poor.
1014	No	The number of errors exceeded the upper limit.

Sample code

#import "ViewController.h"
#import <AliyunIdentityPlatform/AliyunIdentityPlatform.h>

@interface ViewController ()
@end

@implementation ViewController

- (void)viewDidLoad {
    [super viewDidLoad];

    // Initialize the sdk
    [[AliyunIdentityPlatform sharedInstance] install];

    [self initUI];
}

// This function needs to be implemented by the user
- (NSString *)sentMetaInfoAndGetTransactionId:(NSString*) metaInfo {
    return @"Get TransactionId from your server."; // replace it.
}

- (void)onClickStart:(id) sender {
    NSString *metaInfo = [[AliyunIdentityPlatform sharedInstance] getMetaInfo];
    NSString *transactionId = [self sentMetaInfoAndGetTransactionId:metaInfo];

    // Set the sdk language
    NSDictionary *extParams = @{
        kIdentityParamKeyLanguage:@"en",
        kIdentutyParamKeyProtocol:@"968412EB......................."// Configure this protocol to optimize network latency.
    };
    // start Verify
    [[AliyunIdentityPlatform sharedInstance] verifyWithCertifyId:transactionId
                                       withCurrentViewController:self
                                                   withExtParams:extParams
                                                        complete:^(AliyunIdentityVerifyRes *response) {
        NSString *resContent = [NSString stringWithFormat:@"Code=%d Message=%@", response.code, response.message];
    }];
}

- (void)initUI {
    // ......
}

@end

Demo code package

You can download the iOS-NFCDemo for a demonstration.
