Elastic GPU Service:FAQ for GPU-accelerated instances

Do GPU-accelerated instances support Android emulators?

Android emulators can be installed on only some GPU-accelerated instances.

Android emulators are supported only on the following GPU-accelerated compute-optimized ECS Bare Metal Instance families: ebmgn7e, ebmgn7i, ebmgn7, ebmgn6ia, ebmgn6e, ebmgn6v, ebmgn6i.

Can the configuration of a GPU-accelerated instance be changed?

Some GPU-accelerated instances support configuration changes.

Supported instance types are listed in Instance type change restrictions and checks.

Can a standard ECS instance family be upgraded or changed to a GPU-accelerated instance family?

No. Standard ECS instance families cannot be changed to GPU-accelerated instance families.

Supported instance types are listed in Instance type change restrictions and checks.

How do I transfer data between a GPU-accelerated instance and a standard ECS instance?

No special settings are required to transfer data.

GPU-accelerated instances behave like standard ECS instances. Instances in the same security group communicate over the internal network by default. No special configuration is required.

What is the difference between a GPU and a CPU?

The following table compares GPUs and CPUs.

After I purchase a GPU-accelerated instance, why can't the nvidia-smi command find the GPU card?

How do I view the details of a GPU card?

The method varies by operating system:

• On Linux, you can run the nvidia-smi command to view the GPU card details.

• On Windows, you can view the GPU card details in Device Manager > Display Adapters.

A GPU initialization failure (such as RmInitAdapter failed!) occurs when I use a GPU on Linux

• Symptoms: The GPU device goes offline and the system cannot recognize the GPU card. For example, on a Linux system, a GPU initialization failure error occurs. After you run the sh nvidia-bug-report.sh command, the RmInitAdapter failed error message appears in the generated log, as shown in the following example:

  NVRM: _kgspBootGspRm: unexpected WPR2 already up, cannot proceed with booting GSP
  NVRM: _kgspBootGspRm: (the GPU is likely in a bad state and may need to be reset)
  NVRM: crashcatWayfinderGetReportQueue_V1: insufficiently-sized L1 wayfinder scratch location 0
  NVRM: RmInitAdapter: Cannot initialize GSP firmware RM
  NVRM: GPU 0000:00:09.0: RmInitAdapter failed! (0x62:0x40:2015)
  NVRM: GPU 0000:00:09.0: rm_init_adapter failed, device minor number 0

• Cause: The GPU System Processor (GSP) component may be in an abnormal state. This causes the device to go offline and the system to be unable to detect the GPU card.

• Solution: Restart the instance from the console. This action performs a complete GPU reset and usually resolves the issue. If the issue persists, see GPU device loss due to XID 119/XID 120 errors when using a GPU for further troubleshooting. We recommend that you disable the GSP feature.

Why does an instance with 48 GB of GPU memory show about 3 GB less in nvidia-smi?

ECC (Error-Correcting Code) is enabled and uses approximately 2-3 GB of GPU memory on a 48 GB instance. Run nvidia-smi to check ECC status (OFF = disabled, ON = enabled).

How do I disable the ECC feature to free up GPU memory?

1. Command line: Stop all processes that use the GPU. Run nvidia-smi -e 0 to disable ECC. Then, run nvidia-smi -r to reset the GPU.

2. Startup script: Add nvidia-smi -e 0 and nvidia-smi -r to the first line of the /etc/rc.local startup script. For some systems, the path is /etc/rc.d/rc.local. Then, restart the instance.

What do I do if an error indicating a GPU is in use by another client occurs when I disable ECC?

This error indicates that a component or process is still using the GPU. Make sure no GPU processes are running on the machine. If you cannot stop them manually, create a snapshot backup. Then, add the nvidia-smi -e 0 and nvidia-smi -r commands to the /etc/rc.local startup script. For some systems, the path is /etc/rc.d/rc.local. Restart the instance for the changes to take effect.

What driver do I need to install for a vGPU-accelerated instance?

vGPU-accelerated instances require a GRID driver.

For general-purpose computing or graphics acceleration scenarios, you can load the GRID driver during instance creation or install it with Cloud Assistant afterward:

• Load the GRID driver during instance creation. Load a GRID driver from an image with a pre-installed driver.

• Install the GRID driver with Cloud Assistant after creation:

  • Install a GRID driver on a vGPU-accelerated instance (Linux)

  • Install a GRID driver on a GPU-accelerated compute-optimized or vGPU-accelerated Windows instance

Can I upgrade CUDA to 12.4 or the NVIDIA driver to 550 or later on a vGPU-accelerated instance?

No.

vGPU-accelerated instances use the platform-provided GRID driver with a fixed version. You cannot install drivers from the NVIDIA website. To upgrade CUDA or the driver, use a gn or ebm series instance instead.

What driver do I need to install to use tools such as OpenGL and Direct3D for graphics acceleration on a GPU-accelerated compute-optimized instance?

Install the driver based on your operating system:

• Linux GPU-accelerated compute-optimized instances require a Tesla driver:

  • Automatically install or load a Tesla driver when you create a GPU-accelerated instance

  • Manually install a Tesla driver on a GPU-accelerated compute-optimized instance (Linux)

• Windows GPU-accelerated compute-optimized instances require a GRID driver:

  • Load a GRID driver from an image with a pre-installed driver

  • Install a GRID driver on a GPU-accelerated compute-optimized or vGPU-accelerated Windows instance

Why is the CUDA version I see after installation different from the one I selected when creating the GPU-accelerated instance?

The nvidia-smi command shows the highest CUDA version that your GPU-accelerated instance supports, not the version you selected during instance creation.

After I install a GRID driver on a Windows GPU-accelerated instance, what do I do if a black screen appears when I use a VNC connection from the console?

• Cause: The GRID driver takes over display output. VNC can no longer render from the integrated graphics, causing a black screen. This is expected behavior.

• Solution: Connect to the GPU-accelerated instance using Workbench. For more information, see Connect to a Windows instance by using Workbench.

How do I get a GRID License?

The method depends on your operating system:

• On Windows, use a pre-installed driver image or install the driver manually.

  • Load a GRID driver from an image with a pre-installed driver

  • Install a GRID driver on a GPU-accelerated compute-optimized or vGPU-accelerated Windows instance

• On Linux, use a pre-installed driver image or Cloud Assistant.

  • Load a GRID driver from an image with a pre-installed driver

  • Install a GRID driver on a vGPU-accelerated instance (Linux)

How do I upgrade a GPU driver (Tesla or GRID)?

You cannot directly upgrade a GPU driver. Uninstall the old version, restart, and then install the new version. Upgrade a Tesla or GRID driver.

A system crash and a kernel NULL pointer dereference error occur after you install NVIDIA driver version 570.124.xx (Linux) or 572.61 (Windows)

• Symptoms: On some instance types, the system reports a kernel NULL pointer dereference error either during the installation of NVIDIA driver version 570.124.xx (Linux) or 572.61 (Windows), or when running the nvidia-smi command after the installation. The following log shows the error:

  Error log

  [  305.164082] BUG: kernel NULL pointer dereference, address: 00000000000000c4
  [  305.164303] #PF: supervisor read access in kernel mode
  [  305.164447] #PF: error_code(0x0000) - not-present page
  [  305.164626] PGD 0 P4D 0
  [  305.164724] Oops: 0000 [#1] SMP NOPTI
  [  305.164852] CPU: 29 PID: 23659 Comm: nv_open_q Kdump: loaded Tainted: G           OE     5.10.134-19.1.al8.x86_64 #1
  [  305.165241] Hardware name: Alibaba Cloud Alibaba Cloud ECS, BIOS 2.0.0 04/23/2024
  [  305.165450] RIP: 0010:pci_read_config_dword+0x5/0x40
  [  305.165630] Code: 44 89 c6 e9 5d fc ff ff b8 ff ff ff ff 66 89 02 b8 86 00 00 00 c3 cc cc cc cc 66 66 2e 0f 1f 84 00 00 00 00 00 0f 1f 44 00 00 <83> bf c4 00 00 00 03 48 89 d1 74 12 44 8b 47 38 48 8b 7f 10 89 f2
  [  305.166323] RSP: 0018:ffffbc6ac0f1b9f0 EFLAGS: 00010293
  [  305.166469] RAX: 0000000000000000 RBX: ffff9e9ba33e0020 RCX: 0000000000000002
  [  305.166724] RDX: ffffbc6ac0f1ba0c RSI: 0000000000000000 RDI: 0000000000000000
  [  305.166977] RBP: ffffbc6ac0f1ba10 R08: 0000000000000000 R09: 0000000000000000
  [  305.167243] R10: 00000000000922f8 R11: ffffffffac163048 R12: 0000000000000000
  [  305.167506] R13: 0000000000000001 R14: 0000000000000004 R15: 0000000000000000
  [  305.167766] FS:  0000000000000000(0000) GS:ffff9ef785480000(0000) knlGS:0000000000000000
  [  305.168060] CS:  0010 DS: 0000 ES: 0000 CR0: 0000000080050033
  [  305.168270] CR2: 00000000000000c4 CR3: 0000004130a12003 CR4: 0000000002770ee0
  [  305.168531] DR0: 0000000000000000 DR1: 0000000000000000 DR2: 0000000000000000
  [  305.168793] DR3: 0000000000000000 DR6: 00000000fffe07f0 DR7: 0000000000000400
  [  305.169052] PKRU: 55555554
  [  305.169157] Call Trace:
  [  305.169252]  ? __die+0x20/0x70
  [  305.169372]  ? no_context+0x5f/0x260
  [  305.169504]  ? exc_page_fault+0x68/0x130
  [  305.169651]  ? asm_exc_page_fault+0x1e/0x30
  [  305.169815]  ? pci_read_config_dword+0x5/0x40
  [  305.170080]  os_pci_read_dword+0x12/0x30 [nvidia]
  [  305.170357]  ? osPciReadDword+0x15/0x20 [nvidia]
  [  305.170637]  gpuReadPcieConfigCycle_GB202+0x66/0xd0 [nvidia]
  [  305.170962]  kbifSavePcieConfigRegistersFn1_GB202+0x65/0xc0 [nvidia]
  [  305.171297]  kbifSavePcieConfigRegisters_GH100+0xd2/0x1e0 [nvidia]
  [  305.171619]  kbifStateLoad_IMPL+0xa1/0xe0 [nvidia]
  [  305.171893]  gpuStateLoad_IMPL+0x267/0xd60 [nvidia]
  [  305.172129]  ? _rmGpuLocksAcquire.constprop.0+0x352/0xbf0 [nvidia]
  [  305.172375]  ? portSyncSpinlockAcquire+0x1d/0x50 [nvidia]
  [  305.172585]  ? _tlsThreadEntryGet+0x82/0x90 [nvidia]
  [  305.172780]  ? tlsEntryGet+0x31/0x80 [nvidia]
  [  305.172979]  gpumgrStateLoadGpu+0x5b/0x70 [nvidia]
  [  305.173209]  RmInitAdapter+0xf08/0x1c00 [nvidia]
  [  305.173433]  ? os_get_current_tick+0x28/0x70 [nvidia]
  [  305.173671]  rm_init_adapter+0xad/0xc0 [nvidia]
  [  305.173845]  nv_start_device+0x2a9/0x6f0 [nvidia]
  [  305.174328]  ? nv_open_device+0x9b/0x220 [nvidia]
  [  305.174791]  ? nvidia_open_deferred+0x3c/0x100 [nvidia]
  [  305.175248]  ? nvidia_modeset_resume+0x20/0x20 [nvidia]
  [  305.175705]  ? _main_loop+0x9e/0x160 [nvidia]
  [  305.176128]  ? nvidia_modeset_resume+0x20/0x20 [nvidia]
  [  305.176527]  ? kthread+0x118/0x140
  [  305.176869]  ? __kthread_bind_mask+0x60/0x60
  [  305.177230]  ? ret_from_fork+0x1f/0x30
  [  305.177575] Modules linked in: nvidia_drm(OE) nvidia_modeset(OE) nvidia(OE) ecc rfkill intel_rapl_msr intel_rapl_common intel_uncore_frequency_common isst_if_common skx_edac_common nfit intel_powerclamp crct10dif_pclmul crc32_pclmul ghash_clmulni_intel rapl snd_intel8x0 snd_ac97_codec ac97_bus snd_pcm erdma snd_timer ib_uverbs snd soundcore ib_core virtio_balloon pcspkr i2c_piix4 sunrpc vfat fat cirrus drm_kms_helper syscopyarea sysfillrect sysimgblt fb_sys_fops drm nvme libcrc32c virtio_net crc32c_intel net_failover nvme_core serio_raw i2c_core failover virtio_console t10_pi floppy [last unloaded: ecc]
  [  305.180787] CR2: 00000000000000c4
  [  305.181132] ---[ end trace 85d65b7e0a10dcf8 ]---
  [  305.181512] RIP: 0010:pci_read_config_dword+0x5/0x40
  [  305.181903] Code: 44 89 c6 e9 5d fc ff ff b8 ff ff ff ff 66 89 02 b8 86 00 00 00 c3 cc cc cc cc 66 66 2e 0f 1f 84 00 00 00 00 00 0f 1f 44 00 00 <83> bf c4 00 00 00 03 48 89 d1 74 12 44 8b 47 38 48 8b 7f 10 89 f2
  [  305.183045] RSP: 0018:ffffbc6ac0f1b9f0 EFLAGS: 00010293
  [  305.183463] RAX: 0000000000000000 RBX: ffff9e9ba33e0020 RCX: 0000000000000002
  [  305.183955] RDX: ffffbc6ac0f1ba0c RSI: 0000000000000000 RDI: 0000000000000000
  [  305.184443] RBP: ffffbc6ac0f1ba10 R08: 0000000000000000 R09: 0000000000000000
  [  305.184931] R10: 00000000000922f8 R11: ffffffffac163048 R12: 0000000000000000
  [  305.185415] R13: 0000000000000001 R14: 0000000000000004 R15: 0000000000000000
  [  305.185913] FS:  0000000000000000(0000) GS:ffff9ef785480000(0000) knlGS:0000000000000000
  [  305.186426] CS:  0010 DS: 0000 ES: 0000 CR0: 0000000080050033
  [  305.186870] CR2: 00000000000000c4 CR3: 0000004130a12003 CR4: 0000000002770ee0
  [  305.187363] DR0: 0000000000000000 DR1: 0000000000000000 DR2: 0000000000000000
  [  305.187866] DR3: 0000000000000000 DR6: 00000000fffe07f0 DR7: 0000000000000400
  [  305.188361] PKRU: 55555554
  [  305.188719] Kernel panic - not syncing: Fatal exception
  [  305.190378] Kernel Offset: 0x29000000 from 0xffffffff81000000 (relocation range: 0xffffffff80000000-0xffffffffbfffffff)

• Solution: Avoid using driver version 570.124.xx (Linux) or 572.61 (Windows). We recommend that you use version 570.133.20 (Linux) or 572.83 (Windows) or later.

The nvidia-smi command returns a "No devices were found" error if you select NVIDIA Proprietary for the kernel module type during driver installation

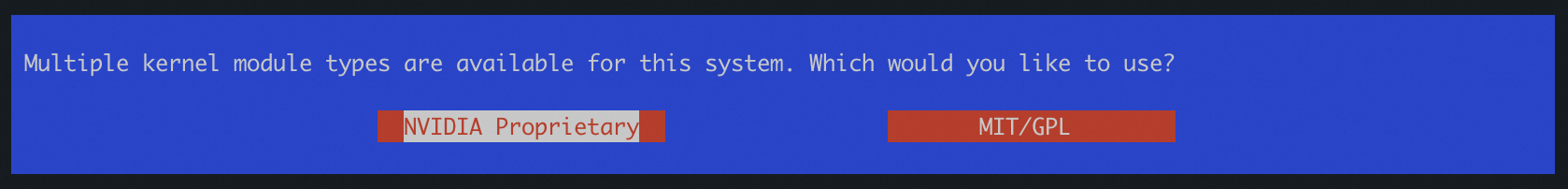

• Symptoms: On some instance types, if you select NVIDIA Proprietary for the kernel module type during driver installation, the nvidia-smi command returns a No devices were found error after the installation.

  The other available kernel module type on this screen is MIT/GPL.

• Cause: Not all GPU models are compatible with the NVIDIA Proprietary driver.

• Recommended kernel module type configuration:

  • For Blackwell architecture GPUs: You must use the open-source driver (select MIT/GPL).

  • For Turing, Ampere, Ada Lovelace, and Hopper architecture GPUs: We recommend that you use the open-source driver (select MIT/GPL).

  • For Maxwell, Pascal, and Volta architecture GPUs: You can only select NVIDIA Proprietary.

How do I view the resource usage (vCPU, network traffic, bandwidth, and disk) of a GPU-accelerated instance?

You can use one of the following methods to view monitoring data such as vCPU usage, memory, average system load, internal bandwidth, public bandwidth, network connections, disk usage and reads, GPU usage, GPU memory usage, and GPU power.

• Product console

  • ECS console: Provides vCPU usage, network traffic, disk I/O, and GPU metrics. View monitoring information in the ECS console.

  • CloudMonitor console: Provides fine-grained infrastructure, OS, GPU, network, process, and disk monitoring. For more information, see Host monitoring.

• Expenses and Costs center

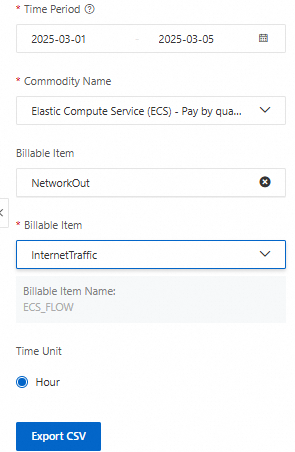

  On the View Usage Details page, filter by Time Period, Commodity Name, Billable Item, Billable Item, and Time Unit. Click Export CSV to export usage data. Billing details.

  For example, to view the traffic usage of an ECS instance, select ECS - Pay-As-You-Go for Product name, Outbound traffic for Billable item, Public traffic for Metering specification (the specification name is ECS_FLOW), and Hour for Metering granularity.

  Note

  Usage details show raw resource consumption, which differs from billable usage in billing details. These results are for reference only and cannot be used for reconciliation.

How do I install the cGPU service?

Install the cGPU service through the Docker runtime in ACK. This is the recommended method for both enterprise users and individual users who have completed identity verification. Manage the shared GPU scheduling component.

The nvidia-smi -r command hangs after you install the cGPU service

• Symptoms: When the cGPU service is loaded (verify with lsmod | grep cgpu), the nvidia-smi -r command hangs when resetting the GPU. An error also appears in the dmesg log.

  [527717.881425] NVRM: Attempting to remove device 0000:08:00.0 with non-zero usage count!

• Cause: The cGPU component is still using the GPU device. This blocks the hardware reset operation.

• Solution:

  1. Uninstall cGPU: Uninstall the cGPU component. After the uninstallation, the nvidia-smi -r command resumes and returns a result.

  2. Restart the instance: If the issue persists after the uninstallation, restart the instance from the console. Running the reboot command inside the instance is not effective.

  Important

  Do not reset the GPU by running commands such as nvidia-smi -r, detaching the device, or reinstalling the driver when the cGPU service is loaded. Always uninstall the cGPU service first to prevent failures.
