Edge Security Acceleration:Forward and redirect requests

Step 1: Add a website

1. In the ESA console, choose Websites and click Add Website.

2. Enter your domain name, such as example.com, and click Next.

3. On the Select Location and DNS Setup page, select the region in the Region for Acceleration and Protection section. Select CNAME in the DNS Setup section, and then click Next.

4. On the Select Plan page, either purchase a plan on the New Plans tab or select an existing plan on the Purchased Plans tab. Follow the on-screen instructions to complete the purchase. #### Purchase a new plan On the New Plans tab, select a plan that suits your needs. #### Bind an existing plan If you already have a plan, select it on the Purchased Plans tab.





5. Verify domain ownership:

   1. In the ESA console, click Websites, and then click your website. On the Overview page, copy the Record Value of the TXT record.

   2. In the Alibaba Cloud DNS console, choose Public Zone in the left navigation pane. Find your domain name and click Settings.

   3. Click Add Record. Configure the following fields and click OK.

      Configuration	Example value
      Record Type	TXT
      Hostname	_esaauth
      Record Value	verify_a186***be8 (the value provided in the ESA console)
      Time to Live (TTL)	10 minutes

   4. Return to the ESA console. On the Overview page of your website, click Verify.

   5. Confirm the result:

      • Verification successful -- Proceed to the next step.

      • Verification failed -- Check the DNS record settings, correct any errors, and click Verify again.

Step 2: Create the edge routine

1. In the ESA console, choose Edge Computing > Functions & Pages in the left navigation pane.

2. On the Functions & Pages page, click Create.

3. Select Function Templates, choose a template provided by ESA, and then click Next.



4. Configure the basic information and click Submit.

   Parameter	Description
   Function Name	A name for the function. Must start with a lowercase letter and can contain lowercase letters, digits, and hyphens (-). Cannot end with a hyphen. Length: 2-41 characters. Example: function-name. The name cannot be changed after creation.
   Description	(Optional) A description of the function.
   Code Preview	A preview of the function code.



Step 3: Configure the trigger

A trigger defines how an edge routine is invoked. Binding a domain name to the routine routes all requests to that domain through the edge routine.

For example, if you added the site example.com in ESA and bind function.example.com to the edge routine, requests to function.example.com, function.example.com/user, and function.example.com/login are all handled by the edge routine.

1. In the left navigation pane, choose Edge Computing > Functions & Pages. On the Functions & Pages list page, find the target function and click Details in the Actions column.

2. On the function details page, switch to the Domains tab and click Add Domain Name. Enter function.example.com and click OK.

3. In the domain name binding area, find the domain name you just created. In the Actions column, click View DNS Records. Copy the CNAME value for the edge routine domain name.



4. In the Alibaba Cloud DNS console, choose Public Zone in the left navigation pane. Find your domain name and click Settings.

5. Click Add Record. Configure the following fields and click OK.

   Configuration	Description	Example value
   Record Type	The type of DNS record.	CNAME
   Hostname	The subdomain prefix.	function
   Record Value	The CNAME value from the ESA console.	function.example.com.a1.initmm.com
   TTL	The DNS update interval. Keep the default value.	10 minutes

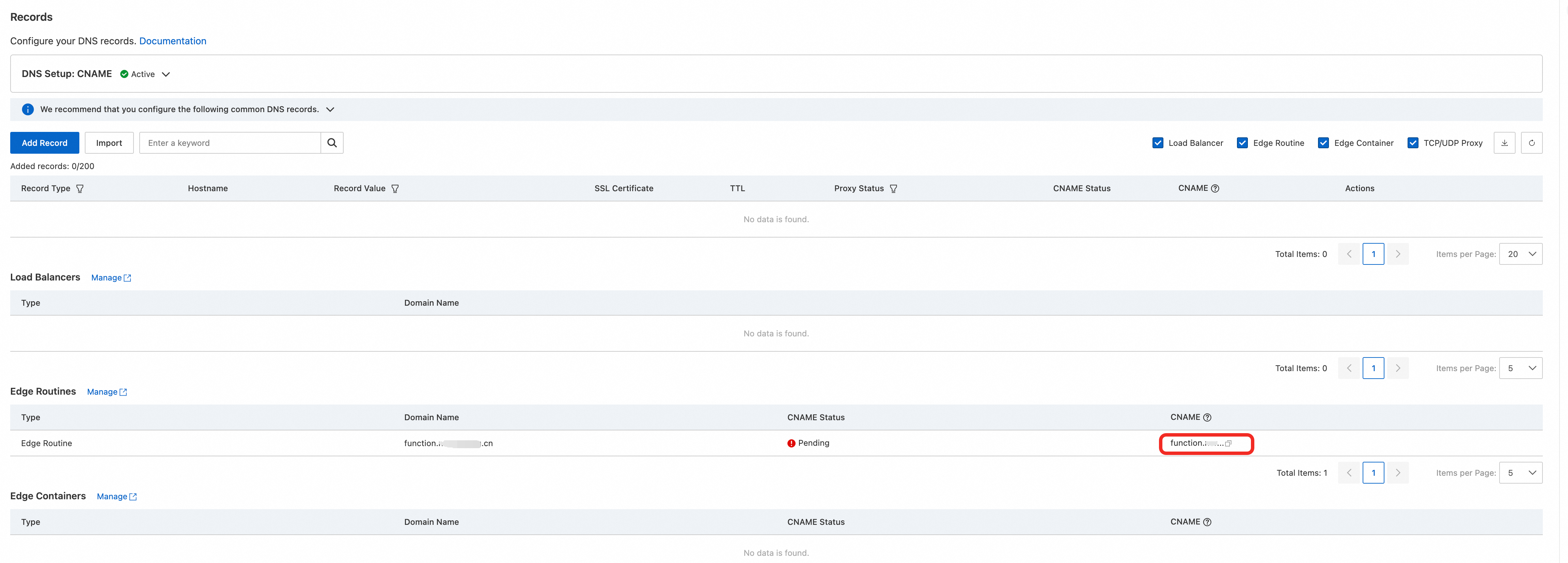

6. Refresh the DNS record page and verify that the CNAME status for the edge routine domain name changes from To Be Configured to Configured.

   Note

   The CNAME record may take several minutes to propagate. If the status does not update immediately, wait and refresh again.

Step 4: Debug and publish the edge routine

1. In the ESA console, choose Edge Computing > Functions & Pages in the left navigation pane.

2. On the Functions & Pages page, click the function and select the Code tab.

3. Paste the following code into the editor:

      // Scenario: Implement the following features:
      // 1. If the request path starts with "/esa/" and ends with ".html", forward the request to the official ESA website.
      // 2. If the request path starts with "/product", redirect the user request to the Alibaba Cloud product page.
      // 3. If the request does not match the rules above, redirect it to the Alibaba Cloud home page.


      // Define a regular expression: The path starts with "/esa/" and ends with ".html".
      const productPageRegex = /^\/esa\/.*\.html$/;

      function handleRequest(request) {
        const url = new URL(request.url);
        const pathName = url.pathname;

         // If the path starts with "/esa/" and ends with ".html", forward the request to the ESA product page.
        if(productPageRegex.test(pathName)) {
          const newUrl = 'https://www.aliyun.com/product/esa';
          return fetch(new Request(newUrl, request));
        }

        // If the path starts with "/product", redirect to the Alibaba Cloud product page.
        if (pathName.startsWith('/product')) {
          const newUrl = 'https://www.aliyun.com/product/list';
          return Response.redirect(newUrl, 301);
        }

        // If the request does not match the rules above, redirect to the Alibaba Cloud home page.
        const newUrl = 'https://www.aliyun.com/';
        return Response.redirect(newUrl, 301);
      }

      export default {
        fetch(request) {
          return handleRequest(request);
        }
      }

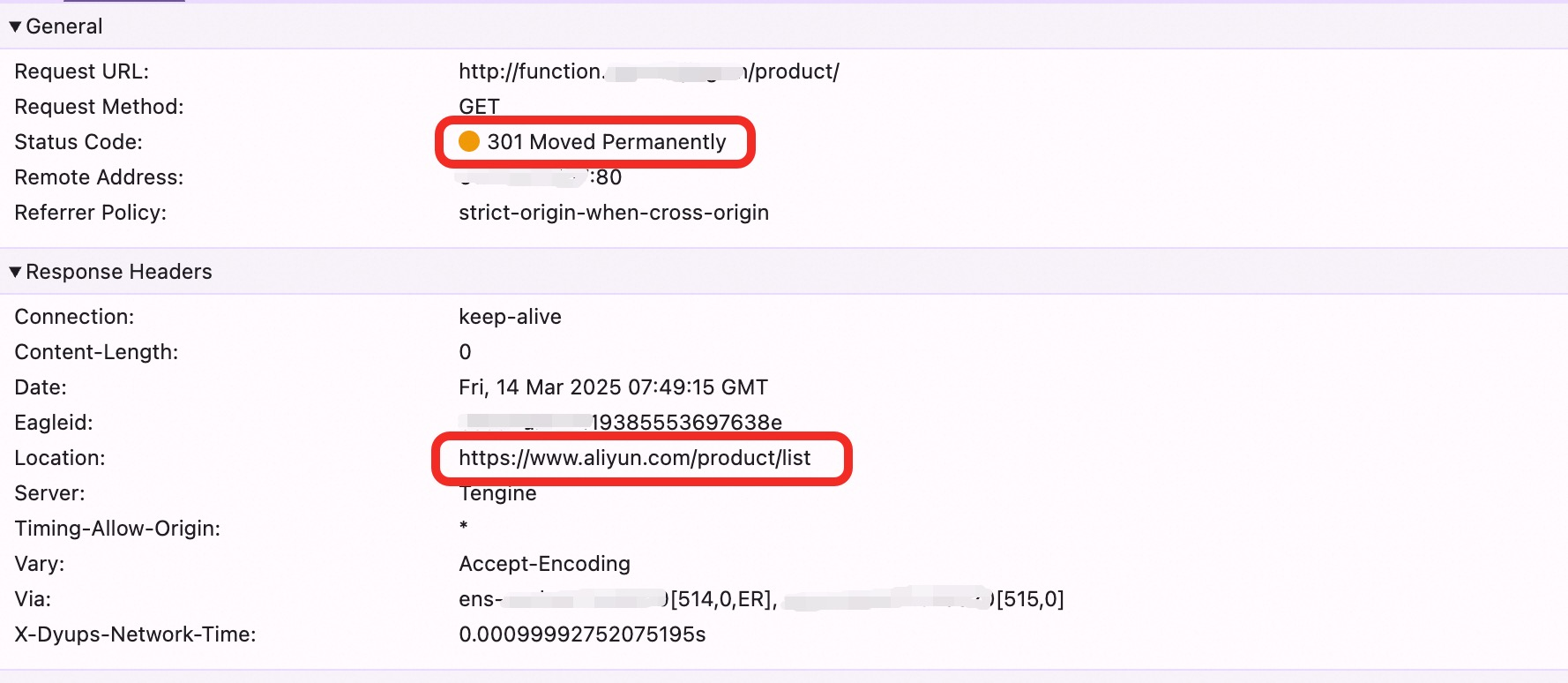

4. Click Save. In the debugging area to the right of the code editor, construct an HTTP request by specifying the method, request header, and request body. Click Request to send the request. The console returns the response after the routine processes the request.

5. After debugging, click Generate Version.

6. Click the Deploy tab and choose Release. Select the version you generated and click Release. Choose to publish to either the staging environment or the Production Environment.

   Note

   Publish to the staging environment first. After you verify that the routine works correctly, publish it to the Production Environment.
