Edge Security Acceleration:Rules FAQ

Some Internet Service Providers (ISPs) in specific regions may assign private IP addresses to clients. As a result, an ESA node might receive a client IP from a private CIDR block. This prevents rules that use parameters like country/region, province, and carrier from accurately identifying these requests. To handle requests from private CIDR blocks, follow the steps below.

Step 1: Create an IP list

1. Go to Global Settings > Lists. Click Create List and add the following three private IP Address/CIDR Block entries:

   • Class A private IP address: 10.0.0.0 to 10.255.255.255, subnet mask: 10.0.0.0/8.

   • Class B private IP address: 172.16.0.0 to 172.31.255.255, subnet mask: 172.16.0.0/12.

   • Class C private IP address: 192.168.0.0 to 192.168.255.255, subnet mask: 192.168.0.0/16.

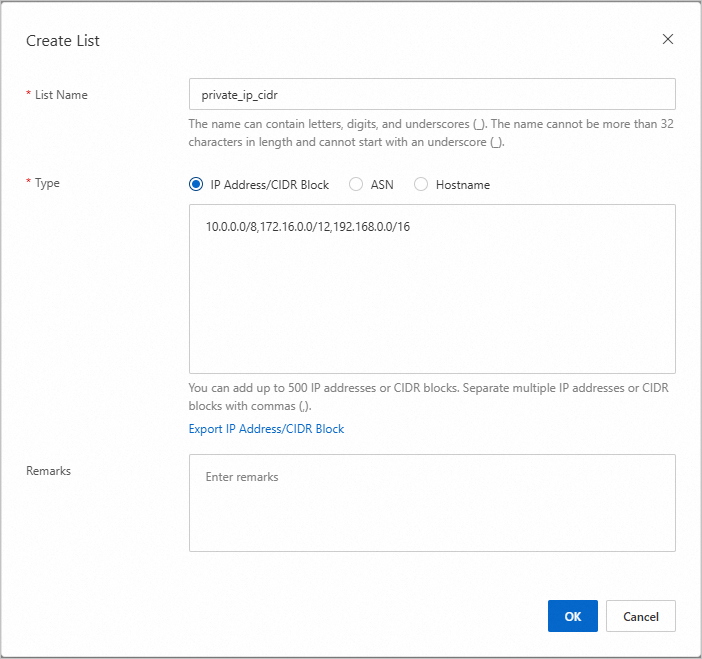

2. After you add the entries, the configuration appears as shown in the following figure. Click OK.



Step 2: Add private CIDR block rule

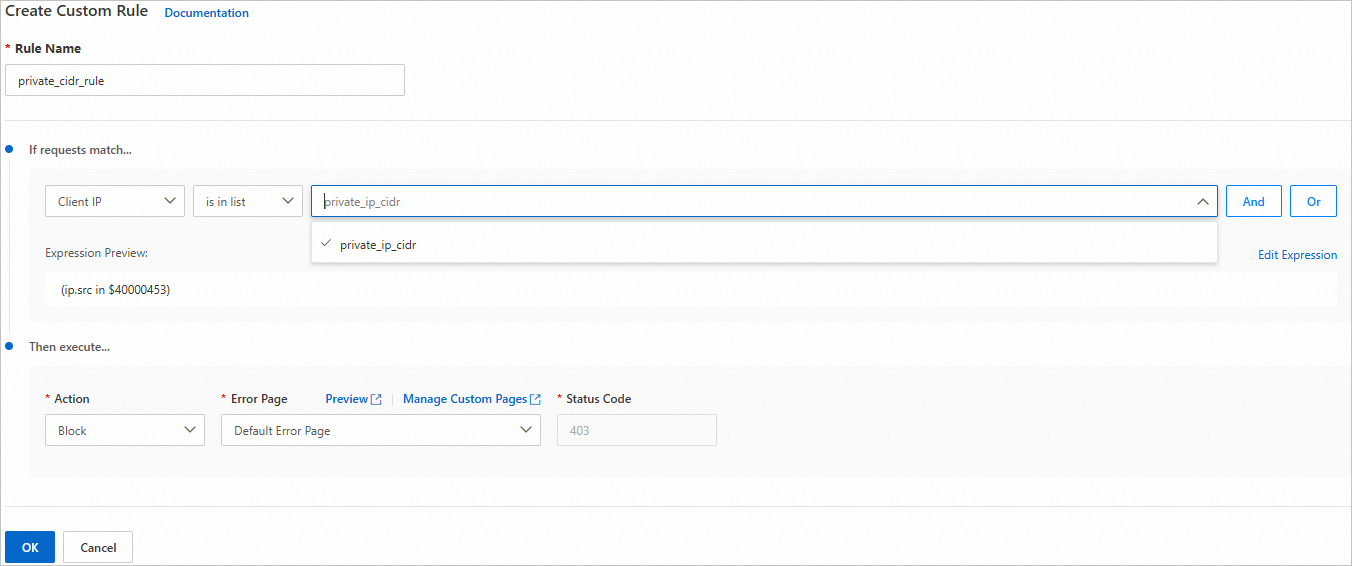

1. This example uses a custom rule. On the WAF Custom Rules page, click Create Rule and configure it as shown in the figure below.



2. After you finish, click OK.

Symptoms

After you configure a rate-based rule in ESA (for example, trigger a JS/slider challenge for 1 hour if more than 20 requests are received in 10 seconds), all images in a mini-program fail to load. Deleting the rule resolves the issue.

Cause

When a mini-program loads, it sends many concurrent requests for images. This burst of requests can easily exceed the configured frequency threshold. When the rate-based rule is triggered, it intercepts legitimate image requests and presents a JS/slider challenge. The mini-program environment cannot execute this challenge, which causes all image requests to be blocked.

Solution

To resolve this issue, use one or more of the following methods:

• Increase the frequency threshold: Set a higher threshold (for example, 100 requests per 10 seconds) to prevent the rule from being triggered during normal image loading.

• Narrow the match scope: In the rule's match condition, exclude image requests by filtering based on URL path or file extension. This ensures the rate-based rule applies only to non-static resource requests.

• Configure a whitelist: Add the mini-program's known source IPs or Referer to a whitelist to exempt them from the rate-based rule.

• Temporarily delete the rule: If you cannot immediately determine a suitable threshold, first delete the rate-based rule to restore service. Then, use the request analysis feature in the ESA console to identify abnormal IP addresses and configure a more precise rule.
