Prevent RAM users from creating unencrypted disks - Elastic Compute Service

Unencrypted disks for Elastic Computing Service (ECS) instances can pose data breach threats. To meet high security and compliance requirements, some enterprises require all Resource Access Management (RAM) users to use encryption for data protection. This topic describes how to use a custom RAM policy to prevent RAM users from creating unencrypted disks.

Background information

Data on disks can include sensitive information, such as business secrets, user data, or financial details. If unencrypted, this data can be stolen or leaked during storage or transfer. Encrypting disks helps prevent data theft from attacks on the hypervisor or physical layer. Even if someone physically obtains the disk, they cannot read the data. This protects data from being altered in storage, ensures data integrity and authenticity, and protects user privacy.

Many industries, such as finance, healthcare, and government, have strict data protection regulations that require sensitive data to be encrypted. Encrypting disks helps enterprises meet compliance auditing requirements and demonstrate that their data storage methods meet security standards.

Procedure

The following example shows how to require a RAM user named Alice to encrypt disks when creating an ECS instance or when creating a disk separately.

Create a RAM user named Alice in the RAM console.

For more information, see Create a RAM user.

In the RAM console, create a custom policy named ecs-disk-encrypt-control. In the script editor, enter the following policy content.

Note

This policy denies the creation of an ECS instance or a standalone disk if the disk is unencrypted.

{
  "Version": "1",
  "Statement": [
    {
      "Action": [
        "ecs:RunInstances",
        "ecs:CreateInstance"
      ],
      "Resource": "*",
      "Condition": {
        "StringLike": {
          "ecs:IsDiskEncrypted": "*false*"
        }
      },
      "Effect": "Deny"
    },
    {
      "Action": [
        "ecs:RunInstances",
        "ecs:CreateInstance"
      ],
      "Resource": "*",
      "Condition": {
        "StringEquals": {
          "ecs:IsSystemDiskEncrypted": "false"
        }
      },
      "Effect": "Deny"
    },
    {
      "Action": "ecs:CreateDisk",
      "Resource": "*",
      "Condition": {
        "StringLike": {
          "ecs:IsDiskEncrypted": "*false*"
        }
      },
      "Effect": "Deny"
    }
  ]
}

Extended policy: Require master keys and prohibit unencrypted disks or disks encrypted with service keys

Alibaba Cloud Key Management Service (KMS) provides free service keys. Service keys are managed by Alibaba Cloud and are shared by multiple Alibaba Cloud services or resources. If a service key is leaked, multiple resources may be affected. Also, you cannot directly control the lifecycle of service keys.

When you encrypt disks, use master keys for better security and control. Master keys provide separate encryption keys for different resources. This avoids the risks associated with sharing one key across multiple resources. You have full control over master keys and can set custom key rotation policies to rotate keys periodically as needed. However, this means you are responsible for key management, such as key storage, rotation, and backup.

If you purchased a value-added service and require RAM users to use master keys, use the following policy:

{
  "Version": "1",
  "Statement": [
    {
      "Action": [
        "ecs:RunInstances",
        "ecs:CreateInstance"
      ],
      "Resource": "*",
      "Condition": {
        "StringLike": {
          "ecs:IsDiskByokEncrypted": "*false*"
        }
      },
      "Effect": "Deny"
    },
    {
      "Action": [
        "ecs:RunInstances",
        "ecs:CreateInstance"
      ],
      "Resource": "*",
      "Condition": {
        "StringEquals": {
          "ecs:IsSystemDiskByokEncrypted": "false"
        }
      },
      "Effect": "Deny"
    },
    {
      "Action": "ecs:CreateDisk",
      "Resource": "*",
      "Condition": {
        "StringLike": {
          "ecs:IsDiskByokEncrypted": "*false*"
        }
      },
      "Effect": "Deny"
    }
  ]
}

Create another custom policy named ecs-admin. In the script editor, enter the following policy content.

Note

This policy grants permissions to manage ECS, such as purchasing, managing, and viewing ECS instances. In this example, the policy is intended for a user who acts as an ECS administrator. You can modify the policy as needed.

{
  "Version": "1",
  "Statement": [
    {
      "Effect": "Allow",
      "Action": [
        "ecs:*",
        "ecs-workbench:*",
        "vpc:CheckCanAllocateVpcPrivateIpAddress",
        "vpc:DescribeVpcs",
        "vpc:DescribeVSwitches",
        "bss:ModifyAgreementRecord",
        "bss:DescribeOrderList",
        "bss:DescribeOrderDetail",
        "bss:PayOrder",
        "bss:CancelOrder"
      ],
      "Resource": "*"
    }
  ]
}

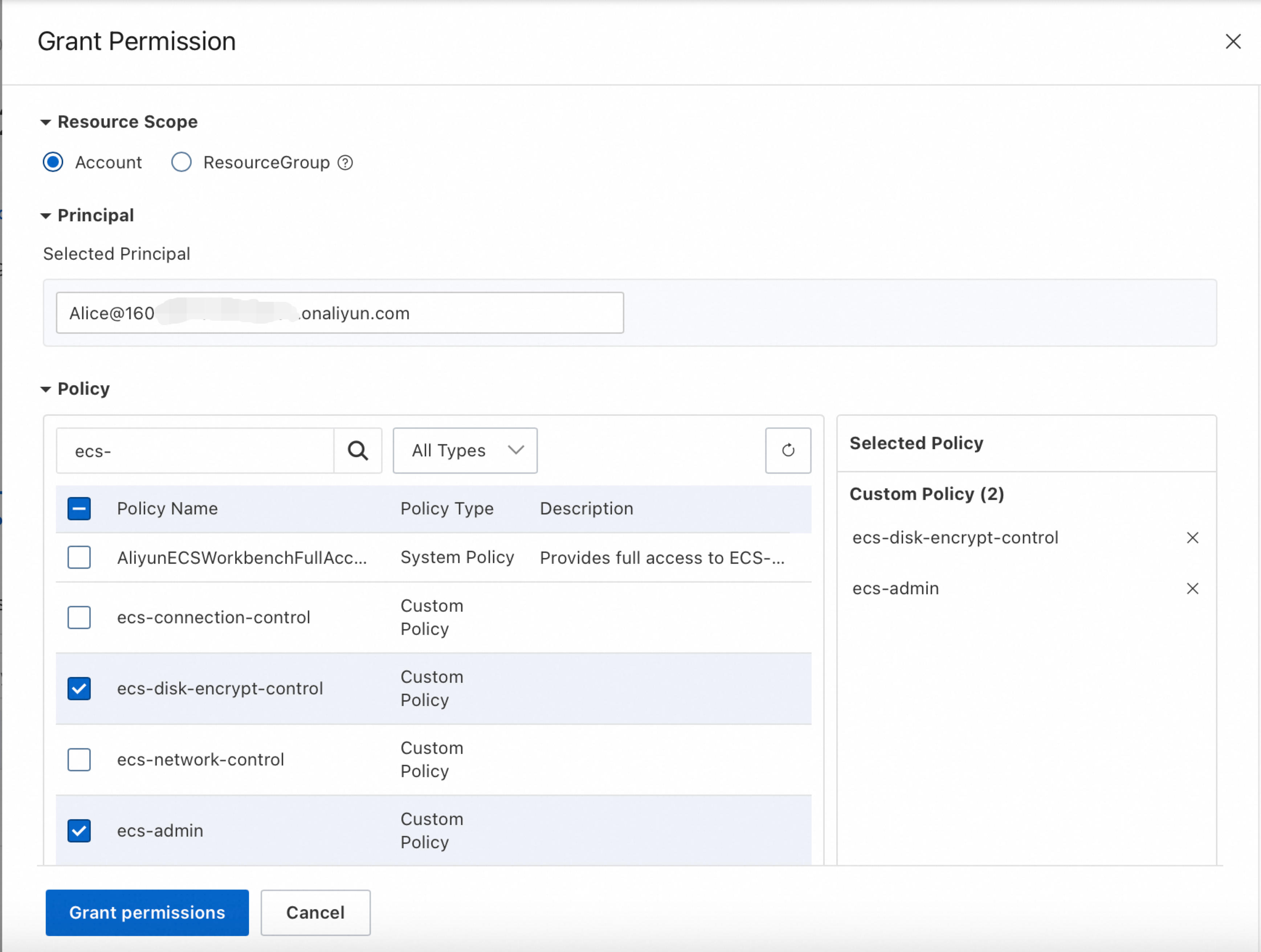

In the RAM console, grant permissions to the RAM user Alice.

Set Authorization Scope to Account Level. Set Principal to the RAM user Alice. For Policy, select the custom policies that you created: ecs-disk-encrypt-control and ecs-admin. For more information, see Manage permissions for a RAM user.

Verify the results

Log on to the Alibaba Cloud Management Console as the RAM user (Alice).

For specific steps, see Log on to the Alibaba Cloud Management Console as a RAM user.

Test 1: Create an ECS instance without disk encryption

Go to the instance purchase page.
Click the Custom Purchase tab.

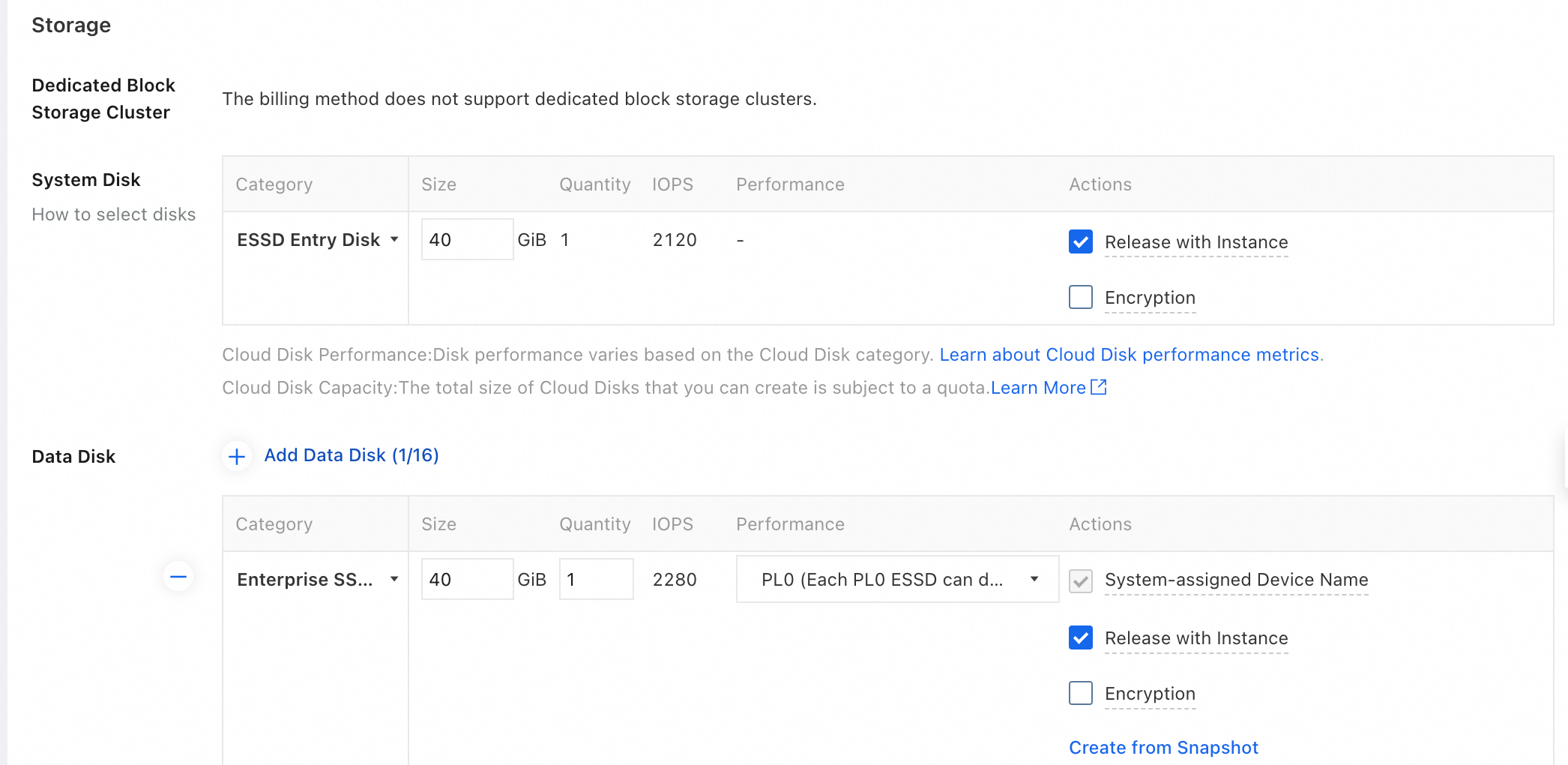

Select configurations such as the billing method, region, instance type, and image. Do not select Encrypt for the System Disk and Data Disk. For more information, see Create an instance using the wizard.
After you confirm the order, the creation fails and an error message appears.

Test 2: Create a standalone disk without disk encryption

Go to ECS console - Block Storage.
On the Disks tab, click Create Disk.

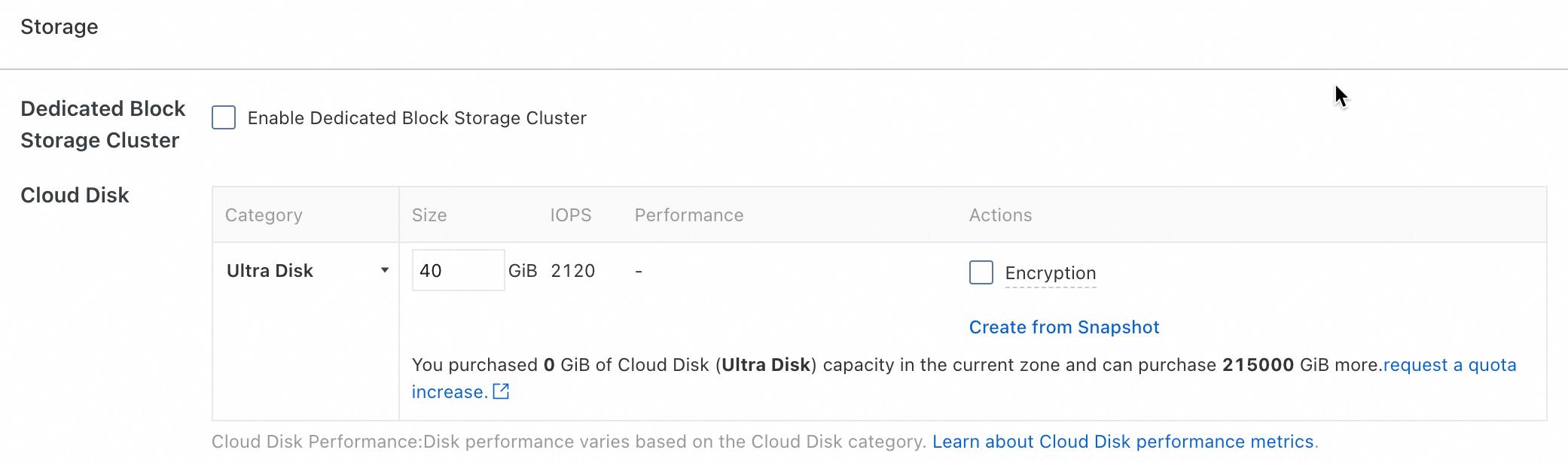

On the Create Disk page, configure the disk parameters. Do not select Encrypt. For more information, see Create an empty data disk.
After you confirm the order, the creation fails and an error message appears.
