    DataWorks:Configure STS access for associated roles

    Document Center

    DataWorks:Configure STS access for associated roles

    Last Updated:Mar 26, 2026

    In traditional DataWorks node development, accessing external services such as Object Storage Service (OSS) requires configuring plaintext AccessKeys. Hard-coding permanent keys creates a leak risk — a single exposed key can compromise your entire data asset. Managing individual keys per task also leads to overly broad permissions that violate the least-privilege principle. RAM role authorization solves both problems: DataWorks uses Security Token Service (STS) to obtain short-lived temporary credentials dynamically, so no permanent key is stored and each task gets only the permissions it needs.

    Solution overview

    The setup requires three steps: Create a RAM role → Create an access policy → Grant permissions to a RAM user.


    Each step produces one artifact, and all three together form a complete authorization chain:

    Step

    Artifact

    Purpose

    Step 1

    Trust policy on the RAM role

    Allows dataworks.aliyuncs.com to assume the role

    Step 2

    Permissions policy on the RAM role

    Defines what the role can do (for example, read OSS)

    Step 3

    PassRole policy attached to the RAM user

    Allows the user to pass that specific role to DataWorks

    Prerequisites

    Before you begin, ensure that you have:

    • An Alibaba Cloud account or a RAM administrator account with the AliyunRAMFullAccess permission

    Step 1: Create and configure a RAM role

    This role is the identity credential that DataWorks assumes when accessing other cloud resources.

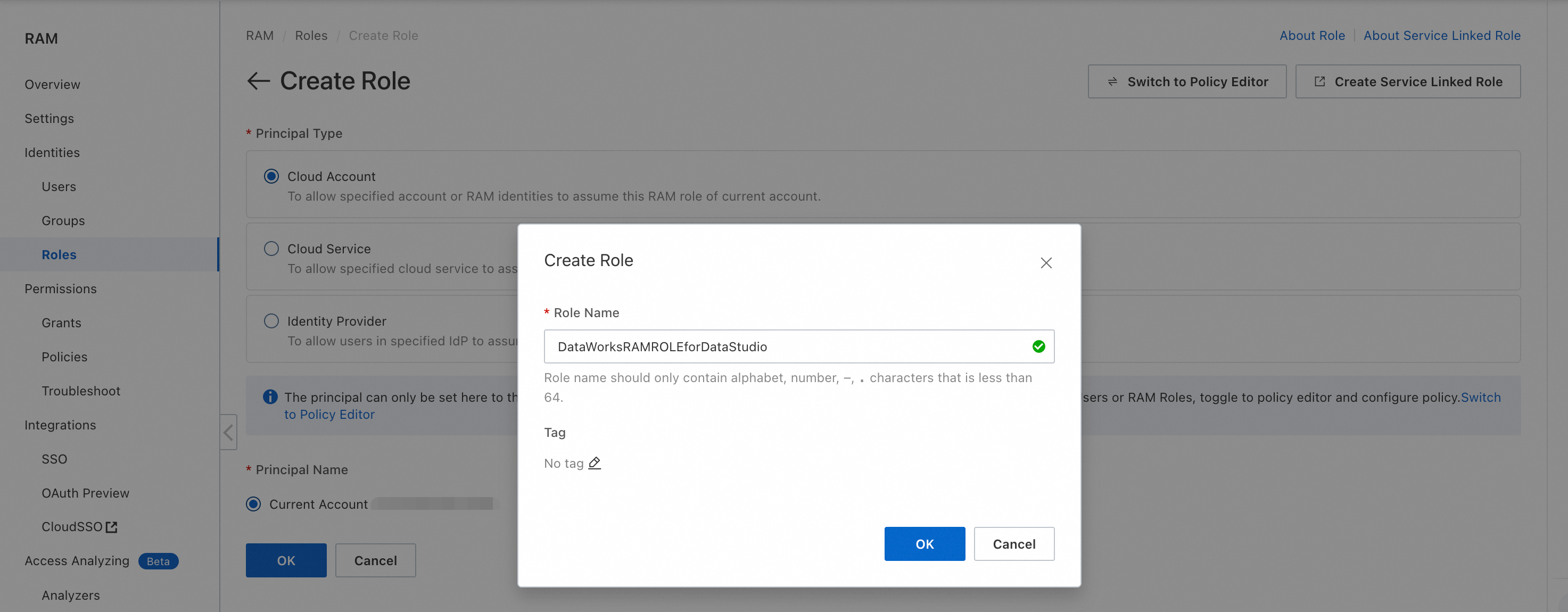

    1. Log in to the Roles page of the RAM console and click Create Role. Keep the default settings, click OK, and enter a descriptive role name such as DataWorksRAMROLEforDataStudio.


    2. After the role is created, open its details page. On the Trust Policy tab, replace the policy with the following document to allow only dataworks.aliyuncs.com to assume this role: > For background on editing trust policies, see Modify the trust policy of a RAM role.

      {
  "Version": "1",
  "Statement": [
    {
      "Action": "sts:AssumeRole",
      "Effect": "Allow",
      "Principal": {
        "Service": [
          "dataworks.aliyuncs.com"
        ]
      }
    }
  ]
}

      Restricting Principal to dataworks.aliyuncs.com ensures that no other service or user can assume this role, even if the role later has broad permissions. Do not use a wildcard (*) here.

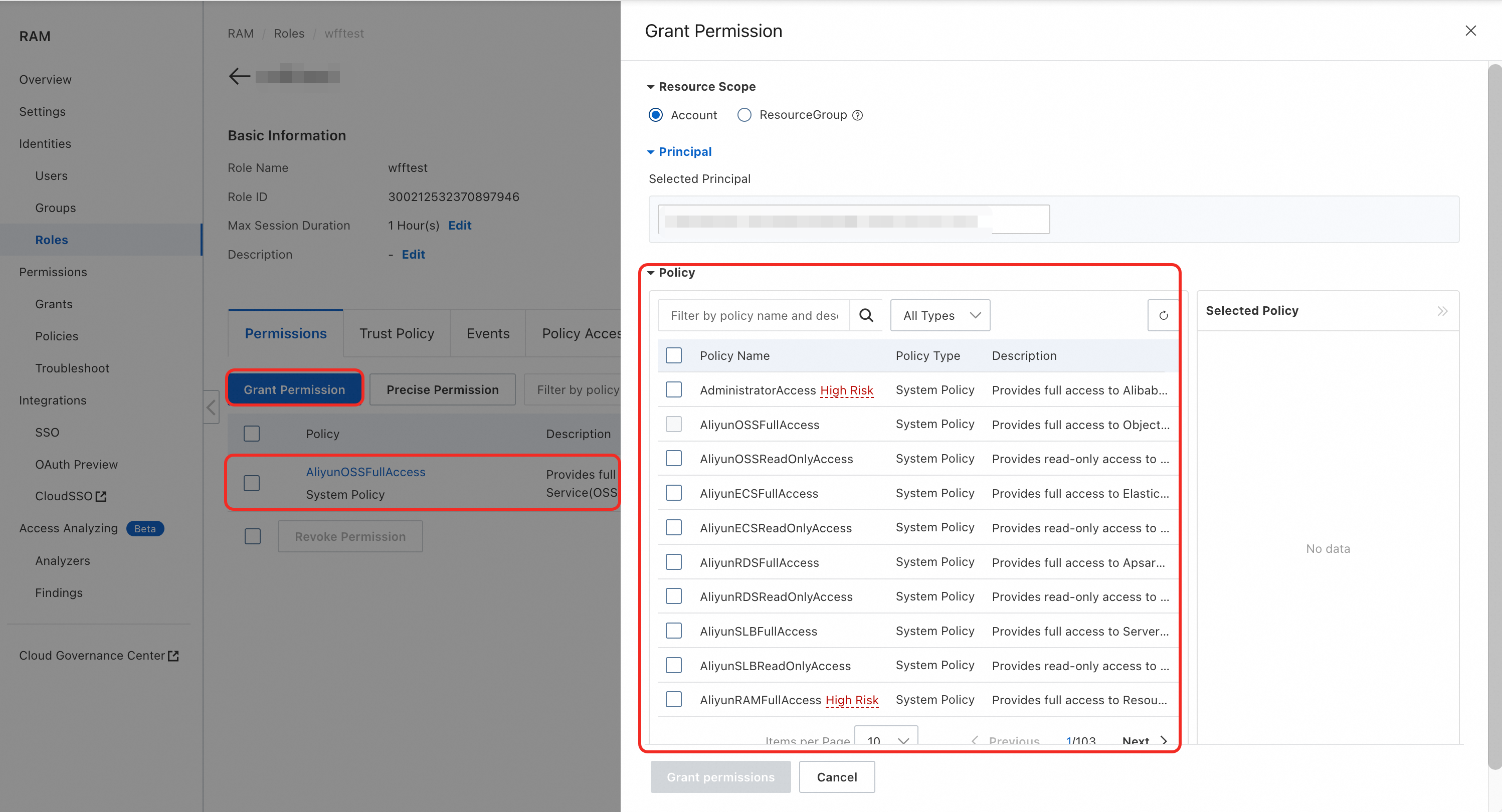

    3. On the role details page, click the Permissions tab, then click Grant Permissions. Attach the permissions the role needs to access target cloud resources. For OSS access, grant AliyunOSSReadOnlyAccess (read-only) or AliyunOSSFullAccess (full access). > For details, see Manage RAM role permissions.


    Step 2: Create an access policy

    This policy lets a RAM user pass the role created in Step 1 to DataWorks. Without it, the user cannot select or assign the role in the DataWorks console.

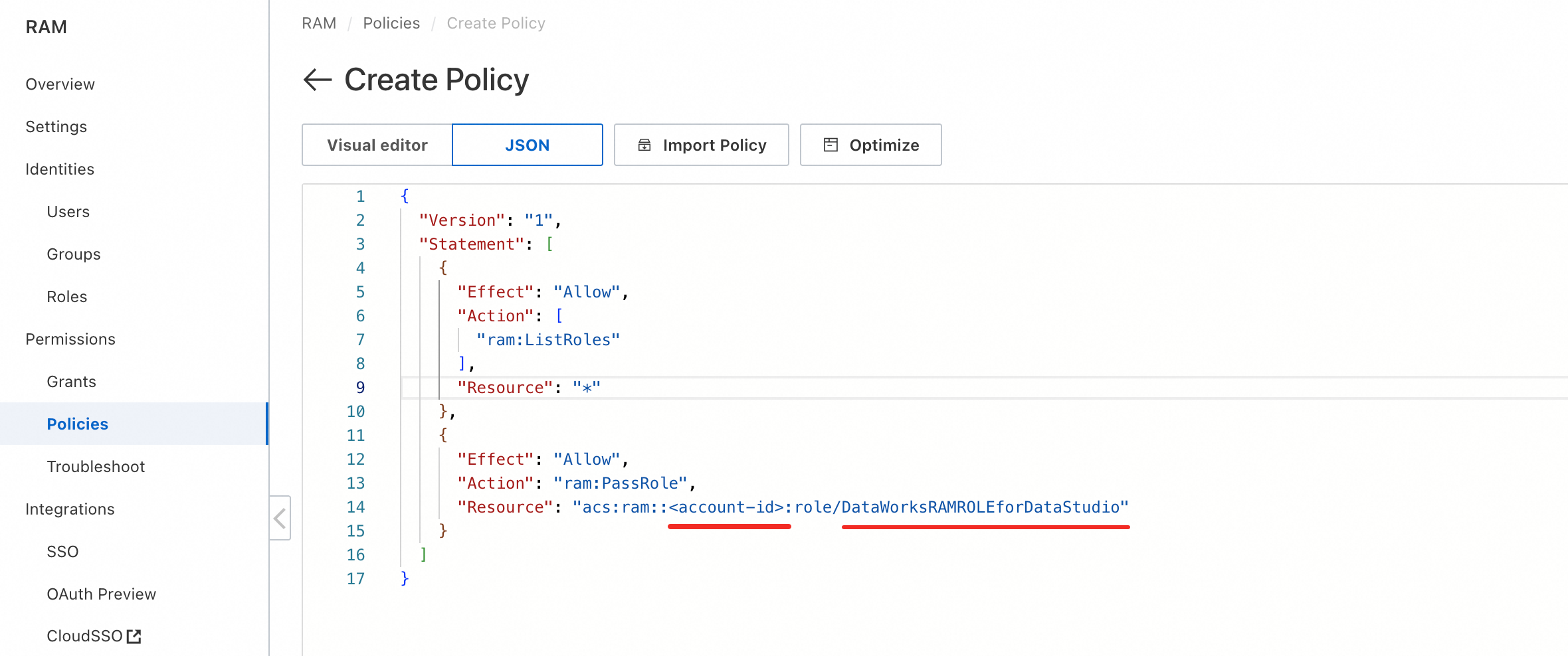

    1. Log in to the Policies page of the RAM console and click Create Policy. On the JSON tab, enter the following policy document:

      Important

      Keep the Resource in ram:PassRole scoped to a specific role ARN, not *. Granting PassRole on * would let the user pass any role in the account, including ones with permissions that exceed what the user is allowed to have directly.

      Placeholder

      Value

      <account-id>

      Your Alibaba Cloud account UID

      <role-name>

      The RAM role name from Step 1 (for example, DataWorksRAMROLEforDataStudio)

      Action

      Purpose

      ram:ListRoles

      Lets the user view available roles in the console dropdown

      ram:PassRole

      Lets the user pass the specified role to DataWorks — scoped to one exact role ARN

      {
  "Version": "1",
  "Statement": [
    {
      "Effect": "Allow",
      "Action": [
        "ram:ListRoles"
      ],
      "Resource": "*"
    },
    {
      "Effect": "Allow",
      "Action": "ram:PassRole",
      "Resource": "acs:ram::<account-id>:role/<role-name>"
    }
  ]
}

      Replace the placeholders before saving: The two statements serve different purposes: > For details on creating custom policies, see Create a custom policy.


    2. Click OK and name the policy DataWorksRAMPolicyforDataStudio.

    Step 3: Grant permissions to a RAM user

    1. Log in to the Users page of the RAM console. Find the RAM user to authorize (for example, new_ram_user@...). In the Actions column, click Add Permissions.

    2. Search for and select the DataWorksRAMPolicyforDataStudio policy created in Step 2, then click OK.

    To authorize multiple RAM users, repeat this step for each user.

    What to do next

    Log in with the authorized RAM user account and open the new Data Development page. Use the Associated Role feature to assign the role to individual nodes and run tasks. For details, see Configure an associated role for a node in scheduling.

    For the list of node types that support associated roles, see the DataWorks console.
