    :WA-CEN build a cross-region network template on the cloud

    Document Center

    :WA-CEN build a cross-region network template on the cloud

    Last Updated:Mar 25, 2025

    Template ID

    L4O1OUS05AK7079R

    Address:https://bpstudio.console.alibabacloud.com/bpStudio/topo?TemplateId=L4O1OUS05AK7079R

    Supported region

    Beijing

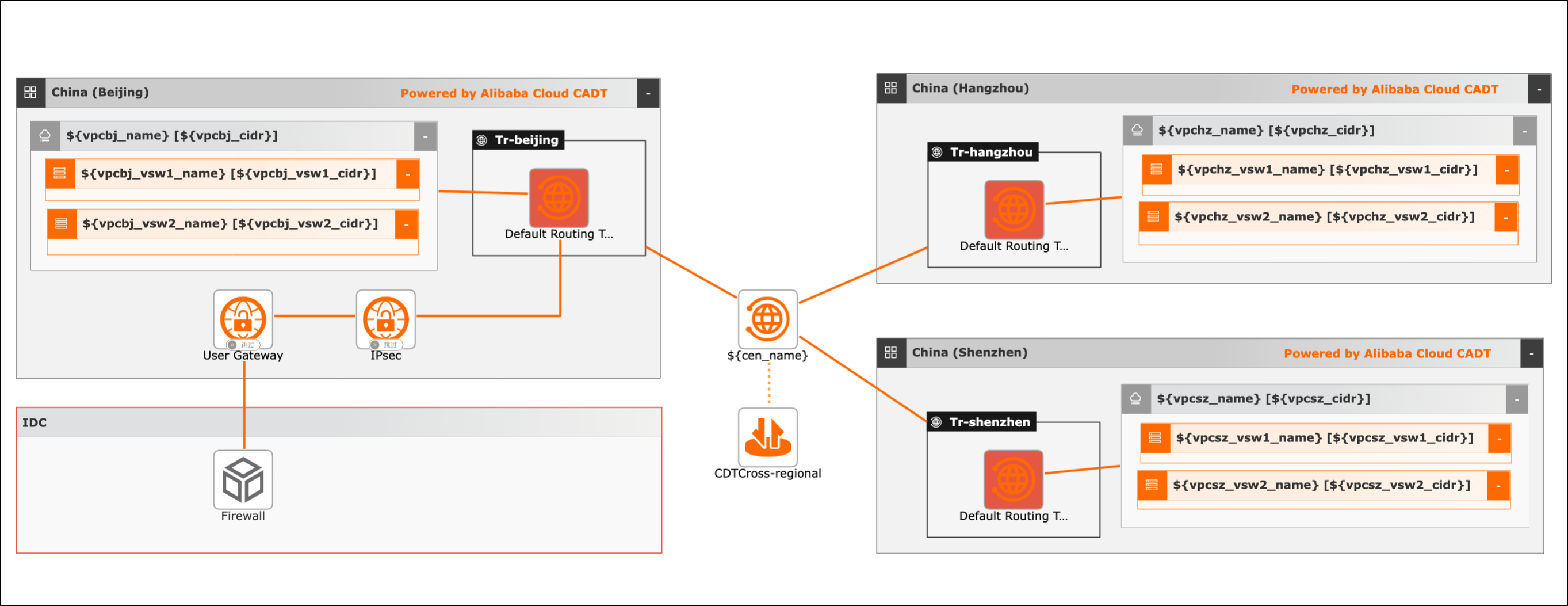

    Template architecture


    Parameter variables

    Parameter variable types include String, Integer, Boolean, Map, etc., and related parameter values are passed through variables.

    If not passed, the default value is used. For modifying the template variable configuration, see:Template Variable Configuration

    Ordinal number

    Variable name

    Variable type

    Default value

    Description

    1

    ${cen_name}

    String

    Cloud Enterprise Network CEN

    The name of the CEN instance

    2

    ${vpcbj_name}

    String

    vpc

    The name of the VPC in the Beijing region

    3

    ${vpcbj_cidr}

    String

    10.0.0.0/24

    The CIDR of the VPC in the Beijing region

    4

    ${vpcbj_vsw1_name}

    String

    vswitch

    The name of the first switch in the VPC in the Beijing region

    5

    ${vpcbj_vsw1_cidr}

    String

    10.0.0.0/29

    The CIDR of the first switch in the VPC in the Beijing region

    6

    ${vpcbj_vsw2_name}

    String

    vswitch

    The name of the second switch in the VPC in the Beijing region

    7

    ${vpcbj_vsw2_cidr}

    String

    10.0.0.8/29

    The CIDR of the second switch in the VPC in the Beijing region

    8

    ${vpchz_name}

    String

    vpc

    The name of the VPC in the Hangzhou region

    9

    ${vpchz_cidr}

    String

    10.10.0.0/24

    The CIDR of the VPC in the Hangzhou region

    10

    ${vpchz_vsw1_name}

    String

    vswitch

    The name of the first switch in the VPC in the Hangzhou region

    11

    ${vpchz_vsw1_cidr}

    String

    10.10.0.0/29

    The CIDR of the first switch in the VPC in the Hangzhou region

    12

    ${vpchz_vsw2_name}

    String

    vswitch

    The name of the second switch in the VPC in the Hangzhou region

    13

    ${vpchz_vsw2_cidr}

    String

    10.10.0.8/29

    The CIDR of the second switch in the VPC in the Hangzhou region

    14

    ${vpcsz_name}

    String

    vpc

    The name of the VPC in the Shenzhen region

    15

    ${vpcsz_cidr}

    String

    10.20.0.0/16

    The CIDR of the VPC in the Shenzhen region

    16

    ${vpcsz_vsw1_name}

    String

    vswitch

    The name of the first switch in the VPC in the Shenzhen region

    17

    ${vpcsz_vsw1_cidr}

    String

    10.20.0.0/29

    The CIDR of the first switch in the VPC in the Shenzhen region

    18

    ${vpcsz_vsw2_name}

    String

    vswitch

    The name of the second switch in the VPC in the Shenzhen region

    19

    ${vpcsz_vsw2_cidr}

    String

    10.20.0.8/29

    The CIDR of the second switch in the VPC in the Shenzhen region

    template_id: L4O1OUS05AK7079R
area_id: "cn-beijing"
instances:

variables:
  ${cen_name}: "cen"
  ${vpcbj_name}: "vpc-bj"
  ${vpcbj_cidr}: "10.0.0.0/24"
  ${vpcbj_vsw1_name}: "vsw1"
  ${vpcbj_vsw1_cidr}: "10.0.0.0/29"
  ${vpcbj_vsw2_name}: "vsw2"
  ${vpcbj_vsw2_cidr}: "10.0.0.8/29"
  ${vpchz_name}: "vpc-hz"
  ${vpchz_cidr}: "10.10.0.0/24"
  ${vpchz_vsw1_name}: "vsw1"
  ${vpchz_vsw1_cidr}: "10.10.0.0/29"
  ${vpchz_vsw2_name}: "vsw2"
  ${vpchz_vsw2_cidr}: "10.10.0.8/29"
  ${vpcsz_name}: "vpc-sz"
  ${vpcsz_cidr}: "10.20.0.0/24"
  ${vpcsz_vsw1_name}: "vsw1"
  ${vpcsz_vsw1_cidr}: "10.20.0.0/24"
  ${vpcsz_vsw2_name}: "vsw2"
  ${vpcsz_vsw2_cidr}: "10.20.0.8/29"

configuration:
  enableMonitor: "0"
  enableReport: "0"

output:
  ecs:
    - Private_ip
  eip:
    - IpAddress

    Notes: 1. To replace existing instances in the template, such as using existing VPCs, switches, security groups, or shared bandwidth, change the value of the id field for the specific resource. The sample code below shows how to replace the current VPC ID with an existing one:

    instances:
 - node_type: vpc
  node_name: vpc-01
  id: vpc-2zeb0q38i10******* (replace with existing instance ID)
