This Product

    :WA-ALB-ECR

    Document Center

    :WA-ALB-ECR

    Last Updated:Dec 25, 2024

    Template ID

    6DG34M62ELQZW75T

    Address: https://bpstudio.console.alibabacloud.com/bpStudio/topo?TemplateId=6DG34M62ELQZW75T

    Supported regions

    Hangzhou, Beijing, Shanghai, Shenzhen, Guangzhou, and Chengdu

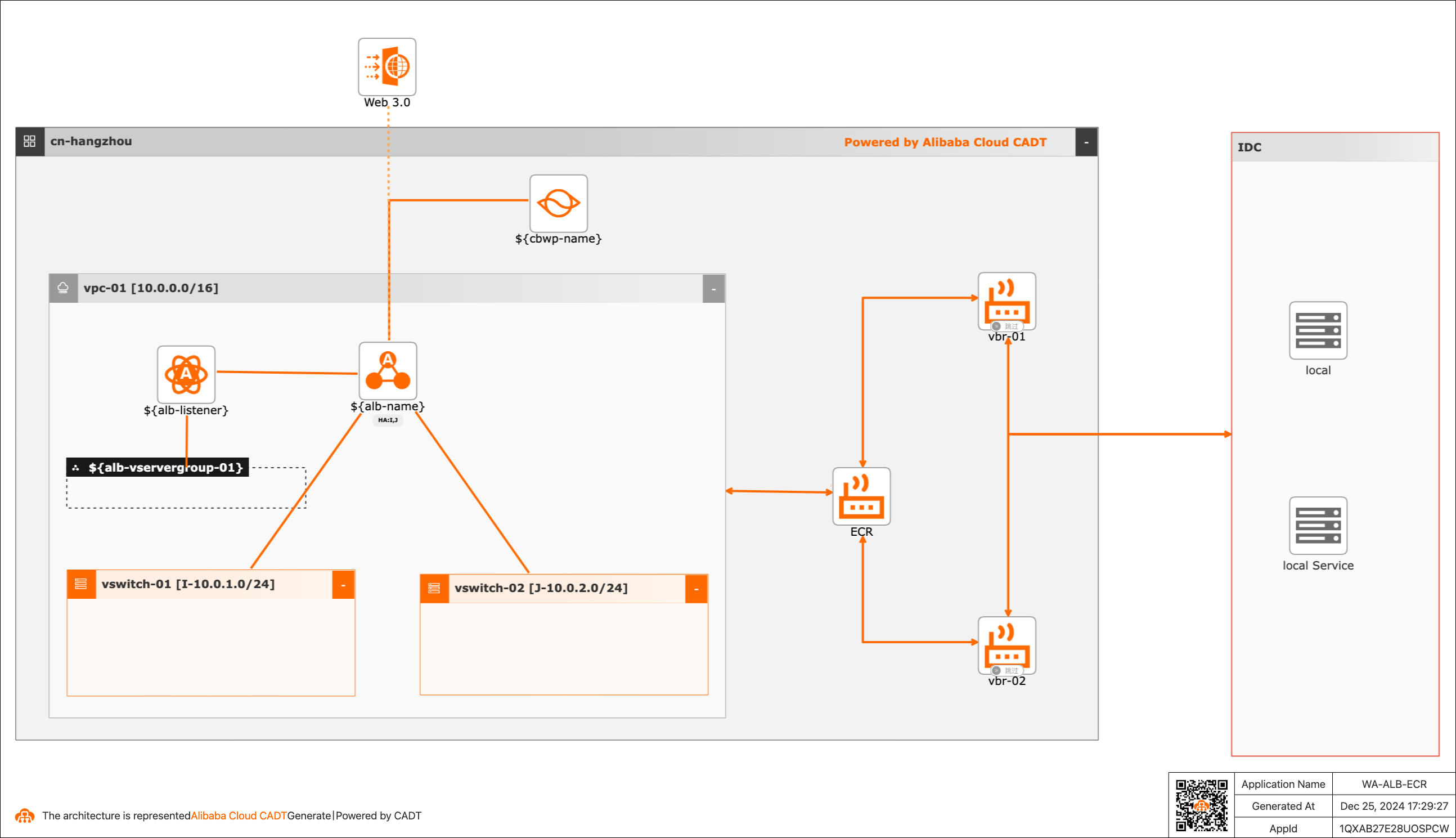

    Template architecture


    Variables

    The parameter type can be STRING, INTEGER, BOOLEAN, MAP, or other types. You can configure the values of the variables.

    If the value of a variable is not configured, the default value is used. For information about how to modify the template variables, see Configure template variables.

    No.

    Variable

    Type

    Default value

    Description

    1

    ${alb-name}

    String

    prod-alb

    The name of the Network Load Balancer (NLB) instance.

    2

    ${alb-network-type}

    String

    Internet

    The network type.

    3

    ${instance-tags}

    Map

    {"createBy":"cadt"}

    The resource tags.

    4

    ${resourcegroupId}

    String

    The ID of the resource group.

    5

    ${cbwp-name}

    String

    alb-cbwp

    The name of the Internet Shared Bandwidth instance.

    6

    ${cbwp-bandwidth}

    Integer

    1

    The bandwidth. Unit: Mbit/s.

    7

    ${alb-listener}

    String

    alb_listener

    The listener of the NLB instance.

    8

    ${alb-listener-port}

    Integer

    80

    The listening port.

    9

    ${alb-vservergroup-01}

    String

    alb_servergroup

    The vServer group.

    10

    ${alb-sg-backend-port}

    List<Map>

    [{"backend_port":"80","weight":100}]

    The port configurations for the vServer group.

    CLI-based debugging

    The following sample code provides an example of parameter configurations, including the default VPC, vSwitch, and Internet Shared Bandwidth instance, in a YAML file:

    template_id: 6DG34M62ELQZW75T
area_id: "cn-hangzhou"
instances:
#  - node_type: vpc
#    node_name: vpc-01
#    id: vpc-bp**********ws
#  - node_type: vswitch
#    node_name: vswitch-01
#    id: vsw-bp**********0ex
#  - node_type: vswitch
#    node_name: vswitch-02
#    id: vsw-bp**********1ek
# By default, a VPC and a vSwitch are created. The related parameters are commented on. When you reuse an existing VPC and vSwitch, uncomment the related parameters and replace the id value with the required ID.

variables:
  ${alb-name}: "ali-prod-alb"
  ${alb-network-type}: "Internet"
  # Private network: Intranet, public network: Internet
  ${cbwp-name}: "ali-alb-cbwp"
  ${cbwp-bandwidth}: "1"
  # The default bandwidth is 1 Mbit/s, and the NLB instance is automatically added to the Internet Shared Bandwidth instance.
  ${alb-listener}: "listener_HTTP_80"
  ${alb-listener-port}: "80"
  ${alb-vservergroup-01}: "SG_HTTP_01"
  ${alb-sg-backend-port}: "[{\"backend_port\":\"80\",\"weight\":\"100\"}]"
  ${instance-tags}: "{\"env\":\"test\",\"createBy\":\"cadt\"}"
  #${resourcegroupId}: "rg-ac*****y"

configuration:
  enableMonitor: "0"
  enableReport: "0"

output:
  alb:
    - Address
    - Port
  eip:
    - IpAddress
    - RegionId
  gateway:
    -EcrId

    Note:

    1. If you want to change the region, change the value of the area_id field. For example, change cn-hangzhou to cn-shanghai.

    For more information, see Regions and zones.

    2. If you want to modify the configurations, such as VPC and vSwitch, change the value of the id field for a specific resource.

    instances:
  - node_type: vpc
    node_name: vpc-01
    id: vpc-bp**********ws
  - node_type: vswitch
    node_name: vswitch-01
    id: vsw-bp**********0ex
  - node_type: vswitch
    node_name: vswitch-02
    id: vsw-bp**********1ek
