    Blockchain as a Service:User access control

    Last Updated:Mar 31, 2026

    Attribute-Based Access Control (ABAC) lets chaincode and the Hyperledger Fabric runtime make access control decisions based on attributes embedded in a user's enrollment certificate (ECert). When you enroll a user identity, the Certificate Authority (CA) embeds one or more named attributes in the ECert. The chaincode reads those attributes at runtime to allow or deny an operation.

    For example, to restrict a sensitive chaincode operation to app administrators only, embed an attribute named app1Admin with a value of true in the administrator's ECert. The chaincode checks for that attribute before executing the restricted operation.

    For the full Hyperledger Fabric ABAC specification, see Attribute-Based Access Control.

    How it works

    1. Set one or more custom attributes in the Superior options when creating an organization user in the BaaS console.

    2. The CA embeds those attributes in the user's ECert alongside three built-in attributes: hf.EnrollmentID, hf.Type, and hf.Affiliation.

    3. The chaincode reads attributes from the ECert and makes an access control decision.

    Set user attributes

    Prerequisites

    Before you begin, ensure that you have:

    Add attributes when creating a user

    1. Log on to the Alibaba Cloud BaaS console.

    2. On the Overview page, locate My Organizations, find the target organization, and click its name.

    3. Click Users.

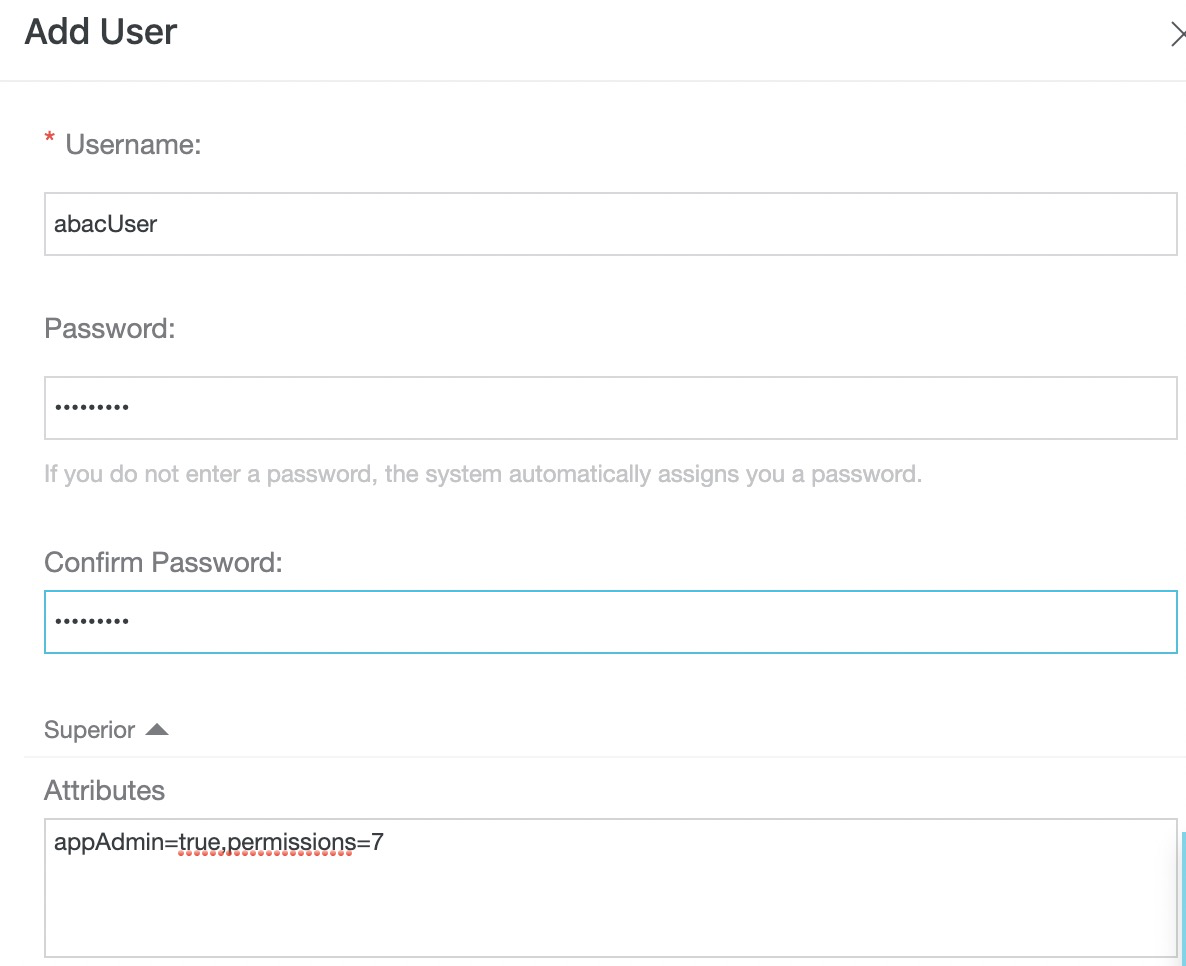

    4. Click Add User, then click Superior and enter the user attributes.

    After creating the user, you can check the user attributes.

    user

    Attribute format

    Attributes are entered as a single comma-separated string using name=value pairs.

    Format: name1=value1,name2=value2

    Example input:

    app1Admin=true,permissions=7

    The CA processes this input and embeds the attributes in the user's ECert:

    {"attrs":{"app1Admin":"true","permissions":"7","hf.Affiliation":"","hf.EnrollmentID":"abacUser1","hf.Type":"client"}}

    Formatting rules:

    RuleDetail
    Attribute separatorUse , to separate multiple attributes
    Name-value separatorUse = to separate an attribute name from its value
    Allowed charactersAttribute names and values must consist of English letters or numbers only
    Value typeAll attribute values are stored as strings ("7", not 7)
    Note: The attributes hf.EnrollmentID, hf.Type, and hf.Affiliation are automatically registered for every identity. You do not need to set them manually.

    Extract attributes in chaincode

    Use the chaincode/shim/ext/cid package to read attributes from the caller's ECert. The package provides two functions for attribute-based access control:

    FunctionWhat it does
    cid.GetAttributeValue(stub, name)Returns the attribute value and a boolean indicating whether the attribute exists
    cid.AssertAttributeValue(stub, name, value)Returns an error if the attribute is missing or does not match the expected value

    Use GetAttributeValue when you need the attribute's value for logic. Use AssertAttributeValue when you only need to confirm that the attribute equals a specific value.

    Example: check that the caller has `permissions=7`

    id, err := cid.New(stub)
fmt.Println("client ID object:")
fmt.Println(id)
if err != nil {
    return shim.Error(err.Error())
}

// Get the attribute value
val, ok, err = cid.GetAttributeValue(stub, "permissions")
if err != nil {
    return shim.Error(err.Error())
}
if !ok {
    return shim.Error("The client identity does not possess the attribute:permissions")
}

// Assert the attribute equals the required value
err := cid.AssertAttributeValue(stub, "permissions", "7")
if err != nil {
    return shim.Error("The client identity does not have the permissions")
}

fmt.Println("permissions:")
fmt.Println(val)
