Alibaba Cloud Service Mesh:Use the DNS proxy feature to discover services in multiple clusters

Prerequisites

• Two Container Service for Kubernetes (ACK) clusters, m1c1 and m1c2 in this example, are added to an ASM instance. For more information, see Step 1 to Step 3 in Use an ASM serverless gateway to act as a single entry point for access to multiple clusters.

• Automatic sidecar proxy injection is enabled for the default namespace. For more information, see Manage global namespaces.

Feature description

When you deploy an application in multiple clusters, its services deployed in different clusters cannot discover each other. To implement cross-cluster service calls, you must deploy the same service in both clusters so that the workload that sends a service request can discover services in the other cluster based on the response of a DNS request.

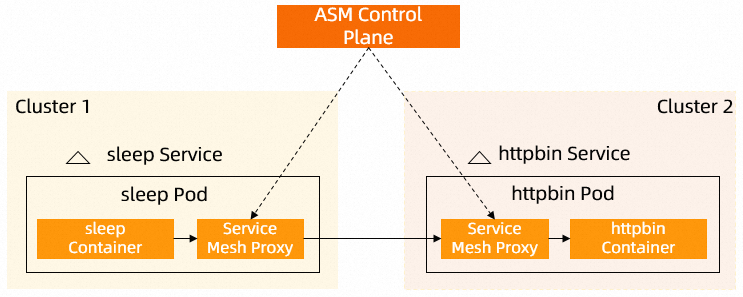

The following example shows how to deploy the services of an application in multiple clusters. In this example, all service mesh proxies in cluster 1 and cluster 2 are centrally managed by a Service Mesh control plane. The call relationship between services is that the sleep service calls the HTTPBin service. The sleep service is deployed only in cluster 1, and the HTTPBin service is deployed only in cluster 2. In this case, the sleep service cannot call the HTTPBin service because no HTTPBin service is deployed in cluster 1. The sleep service cannot automatically discover the HTTPBin service.

Service Mesh supports the DNS proxy feature. After the DNS proxy feature is enabled, when a service mesh proxy receives a DNS query from a service, the service mesh proxy transparently intercepts and resolves the DNS query. This enables service discovery across clusters.

Step 1: Deploy the sleep and HTTPBin services

1. Use the following content to deploy the sleep service in m1c2. For more information, see Deploy an application in an ASM instance.

   Expand to view the YAML file of the sleep service

   apiVersion: v1
   kind: ServiceAccount
   metadata:
     name: sleep
   ---
   apiVersion: v1
   kind: Service
   metadata:
     name: sleep
     labels:
       app: sleep
       service: sleep
   spec:
     ports:
     - port: 80
       name: http
     selector:
       app: sleep
   ---
   apiVersion: apps/v1
   kind: Deployment
   metadata:
     name: sleep
   spec:
     replicas: 1
     selector:
       matchLabels:
         app: sleep
     template:
       metadata:
         labels:
           app: sleep
       spec:
         terminationGracePeriodSeconds: 0
         serviceAccountName: sleep
         containers:
         - name: sleep
           image: curl:8.1.2
           command: ["/bin/sleep", "infinity"]
           imagePullPolicy: IfNotPresent
           volumeMounts:
           - mountPath: /etc/sleep/tls
             name: secret-volume
         volumes:
         - name: secret-volume
           secret:
             secretName: sleep-secret
             optional: true
   ---

2. Use the following content to deploy the HTTPBin service in m1c1. For more information, see Deploy an application in an ASM instance.

   Expand to view the YAML file of the HTTPBin service

   apiVersion: v1
   kind: ServiceAccount
   metadata:
     name: httpbin
   ---
   apiVersion: v1
   kind: Service
   metadata:
     name: httpbin
     labels:
       app: httpbin
       service: httpbin
   spec:
     ports:
     - name: http
       port: 8000
       targetPort: 80
     selector:
       app: httpbin
   ---
   apiVersion: apps/v1
   kind: Deployment
   metadata:
     name: httpbin
   spec:
     replicas: 1
     selector:
       matchLabels:
         app: httpbin
         version: v1
     template:
       metadata:
         labels:
           app: httpbin
           version: v1
       spec:
         serviceAccountName: httpbin
         containers:
         - image: docker.io/kennethreitz/httpbin
           imagePullPolicy: IfNotPresent
           name: httpbin
           ports:
           - containerPort: 80

Step 2: Check whether service discovery takes effect in multiple clusters

Use kubectl to connect to m1c2 based on the information in the kubeconfig file, and then run the following command to send a request from the sleep container:

kubectl exec -it deploy/sleep -c sleep -- curl httpbin:8000

Expected output:

curl: (6) Could not resolve host: httpbin

The HTTPBin service is not deployed in m1c2, and therefore the DNS service in m1c2 cannot resolve the domain name of the HTTPBin service. As a result, the sleep service fails to send the request. This indicates that service discovery does not take effect in multiple clusters.

Step 3: Enable the DNS proxy feature and check whether service discovery takes effect in multiple clusters

1. Enable the DNS proxy feature for the ASM instance. For more information, see the "Enable DNS Proxy" section in Configure sidecar proxies.

2. In m1c2, redeploy a workload for the sleep service. For more information, see the "(Optional) Redeploy workloads" section in Configure sidecar proxies.

3. Use kubectl to connect to m1c2 based on the information in the kubeconfig file, and then run the following command to send a request from the sleep container:

kubectl exec -it deploy/sleep -c sleep -- curl httpbin:8000

Expected output:

<!DOCTYPE html>
<html lang="en">

<head>
    <meta charset="UTF-8">
    <title>httpbin.org</title>
...

The expected output indicates that the response of the request is an HTML page of the HTTPBin service, which indicates that service discovery takes effect in multiple clusters.
