This topic provides answers to some frequently asked questions about the alert management feature of Application Real-Time Monitoring Service (ARMS).

Topics

What are the differences in alert rules between the old and new versions of the alerting feature in ARMS Prometheus Monitoring?

Alibaba Cloud has verified the efficacy of the alert rule template that is provided by the new version of the alerting feature in ARMS Prometheus Monitoring. The alert rules provided in the old version are open source and have not been verified by Alibaba Cloud.

In addition, the new version of the alerting feature in ARMS provides the alert management module, which is not available in the old version. After you create alert rules in ARMS and alerts are generated, the alert events are sent to the alert management module. You can subscribe to notifications for specific alerts in alert management based on your business requirements.

The alert management module provides the following benefits:
  • You can configure alert rules in a more efficient manner. You need to configure only trigger rules for alerts when you create alert rules. Then, you can attach notification policies to alerts to send alert notifications based on your requirements.
  • You can configure notification policies that are more fine-grained than alert rules. For example, you can subscribe to alert notifications based on namespaces of Container Service for Kubernetes (ACK).
  • You can configure a notification policy and bind the policy to multiple alert rules, which reduces manual operations of setting the notification method for each alert rule.

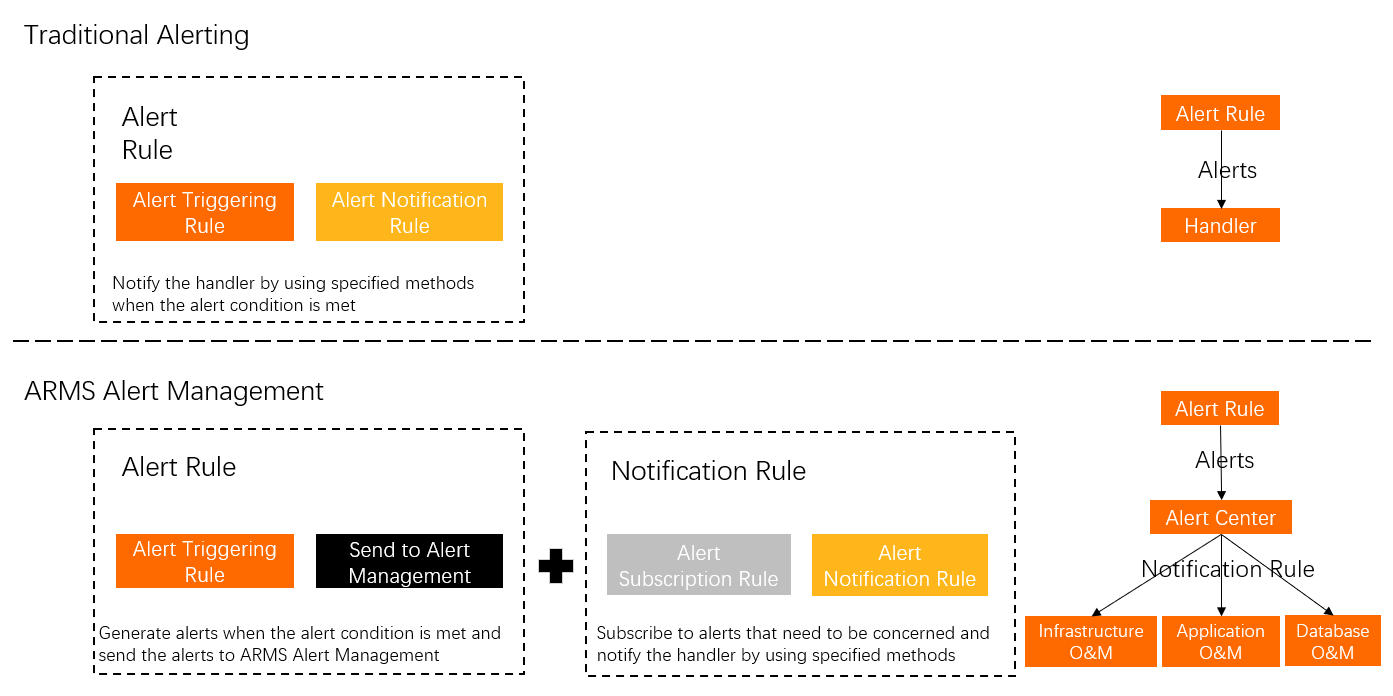

Comparison between the old and new versions of the alerting feature

We recommend that you configure the rules in the notification policy to dispatch alerts to user groups.

Scenarios:

  • Infrastructure O&M: The user group needs to be subscribed to alerts about the resource usage of the production cluster and alerts about ACK components.

    You can configure the following dispatch rules:

    • Rule 1:
      alertName == CPU utilization of nodes higher than 80% & clusterName == Production cluster
    • Rule 2:
      alertname ==  ApiServer Failures  & clusterName == Production cluster
  • Payment service O&M: The user group needs to be subscribed to alerts from the pay and pay-pre namespaces in the production cluster.

    You can configure the following dispatch rules:

    namespace Regex match pay.*   & clustername == Production cluster
  • Notifications for alerts at the P1 level: The user group needs to be subscribed to alerts whose severity is critical.

    You can configure the following dispatch rules:

    severity == critical  & clustername == Production cluster

I have configured a new notification policy. Why am I still receiving alert notifications based on earlier notification policies?

Check and note down the value of the Notification Policy field in the alert notification that you received. Go to the ARMS console and find the notification policy. View the dispatch rules in the notification policy.

  1. Check and note down the value of the Notification Policy field in the alert notification that is sent to you based on the earlier notification policy. For more information, see View historical alerts.
  2. Find the notification policy in the ARMS console, and check whether the dispatch rules in the notification policy match the alert whose notification you received. For more information, see Notification policies.

    If the dispatch rules match the alert, you will still receive alert notifications based on the earlier notification policy.

I have configured a notification policy. Why am I receiving notifications about alerts that I do not want to view?

  1. Check and note down the value of the Notification Policy field in the alert notification that you received. For more information, see View historical alerts.
  2. Find the notification policy in the ARMS console, and check whether the dispatch rules in the notification policy match the alert whose notification you received. For more information, see Notification policies.

    If the dispatch rules match the alert, you will receive alert notifications based on the notification policy.

Why does the dispatch rule _aliyun_arms_alert_rule_id appear in a notification policy?

If you specify a notification policy when you create an alert rule, the dispatch rule _aliyun_arms_alert_rule_id == {{Alert rule ID}} is added to the specified notification policy.

Why do I receive alert notifications after I choose not to specify a notification policy for an alert rule?

Alerts are sent to the alert management module regardless of whether you specify a notification policy for an alert rule. If an alert meets the dispatch rules of an existing notification policy, you can receive an alert notification.

Do notification policies have the same priority?

Yes. If an alert meets the dispatch rules of multiple notification policies, multiple notifications are sent.

What is the logical relation between dispatch rules?

The logical relation between different dispatch rules of the same notification policy is OR. A notification is sent if one rule is matched. The logical relation between different conditions of a dispatch rule is AND. A rule is matched only if all conditions are met.

When I create an alert rule, do I need to specify a notification policy?

When you create an alert rule, you can specify a notification policy to dispatch alerts. For example, you can specify a notification policy to send Alert A to Contact B. If you want to sort, mute, group, or process alerts, we recommend that you do not specify a notification policy when you create an alert rule. After you create an alert rule, you can go to the ARMS console to create a custom notification policy based on your business requirements. For more information, see Notification policies.

Why does ARMS generate false alerts?

The following alerts are false alerts:

  • The CPU utilization of nodes is higher than 8,000%.
  • The status of pods is abnormal.
  • The pods time out during startup.

These alerts are caused by incorrect configurations in the alert rule template provided by the old version of the alerting feature. The new version of the alerting feature in ARMS has updated the template. If you have created alert rules by using the template provided by the old version of the feature, you must manually migrate these rules to the new template.

You can perform the following steps to migrate your existing alert rules to the new template:

  1. Delete the alert rules that are created by using the template of the old version.
  2. Create alert rules by using the new template.
The operations to delete and create alert rules vary with the monitoring service:

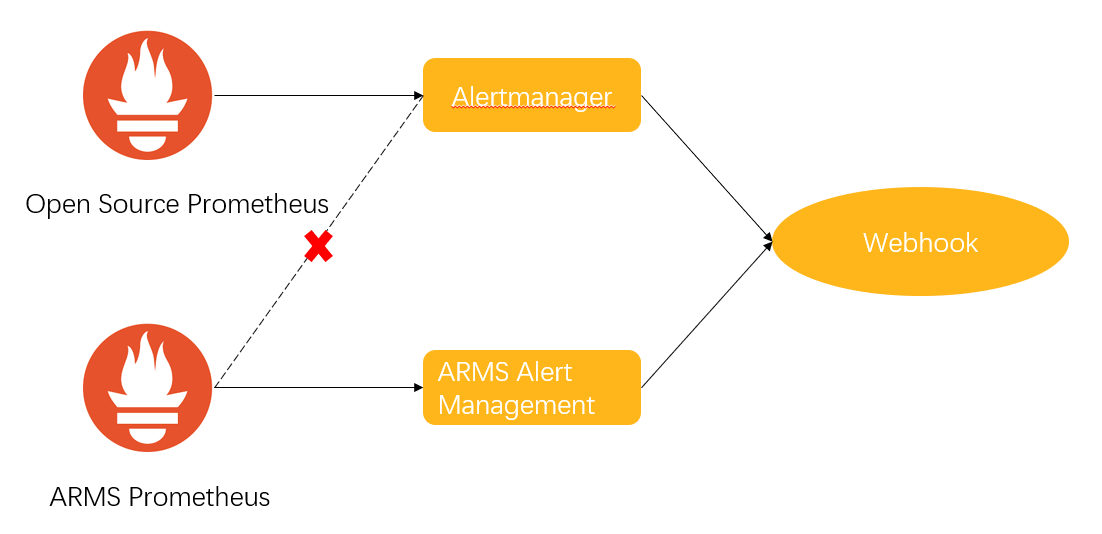

What is the relationship between alert management and Alertmanager? Can I send alerts from ARMS Prometheus Monitoring to a self-managed Alertmanager instance?

In open source Prometheus, you can send generated alerts to Alertmanager, and you need to manually configure Alertmanager to process alerts, such as dispatching alerts and sending alert notifications. When ARMS Prometheus Monitoring is used, the alert management feature is equivalent to a multi-tenant Alertmanager instance that is hosted by Alibaba Cloud. Alerts are automatically sent to alert management for processing. The alert management feature of ARMS supports the main functions of the open source Alertmanager.

You cannot configure ARMS Prometheus Monitoring to send alerts to a self-managed Alertmanager instance. ARMS allows you to use a webhook to send alert notifications in the format used by Alertmanager. For more information, see Format of alert notifications sent by using webhooks.

Relationship between alert management and Alertmanager

Why do some alert notifications contain the New event message that is not preconfigured?

ARMS groups alert events by labels, and sends an alert notification for each event group. When a new event is generated and added to an existing event group, ARMS sends a new alert notification with the New event message.
