Obtain originating IP addresses behind Anti-DDoS Proxy

When Anti-DDoS Proxy forwards traffic to your origin server, the original client IP is masked. Retrieve it by parsing the X-Forwarded-For header or installing a TOA module.

For non-website services (Layer 4)

Install the TOA module on your origin server to obtain the originating IP address. Obtain the originating IP address of a request by installing the TOA module. If you cannot install the TOA module, contact technical support.

Anti-DDoS Proxy IPv4 instance

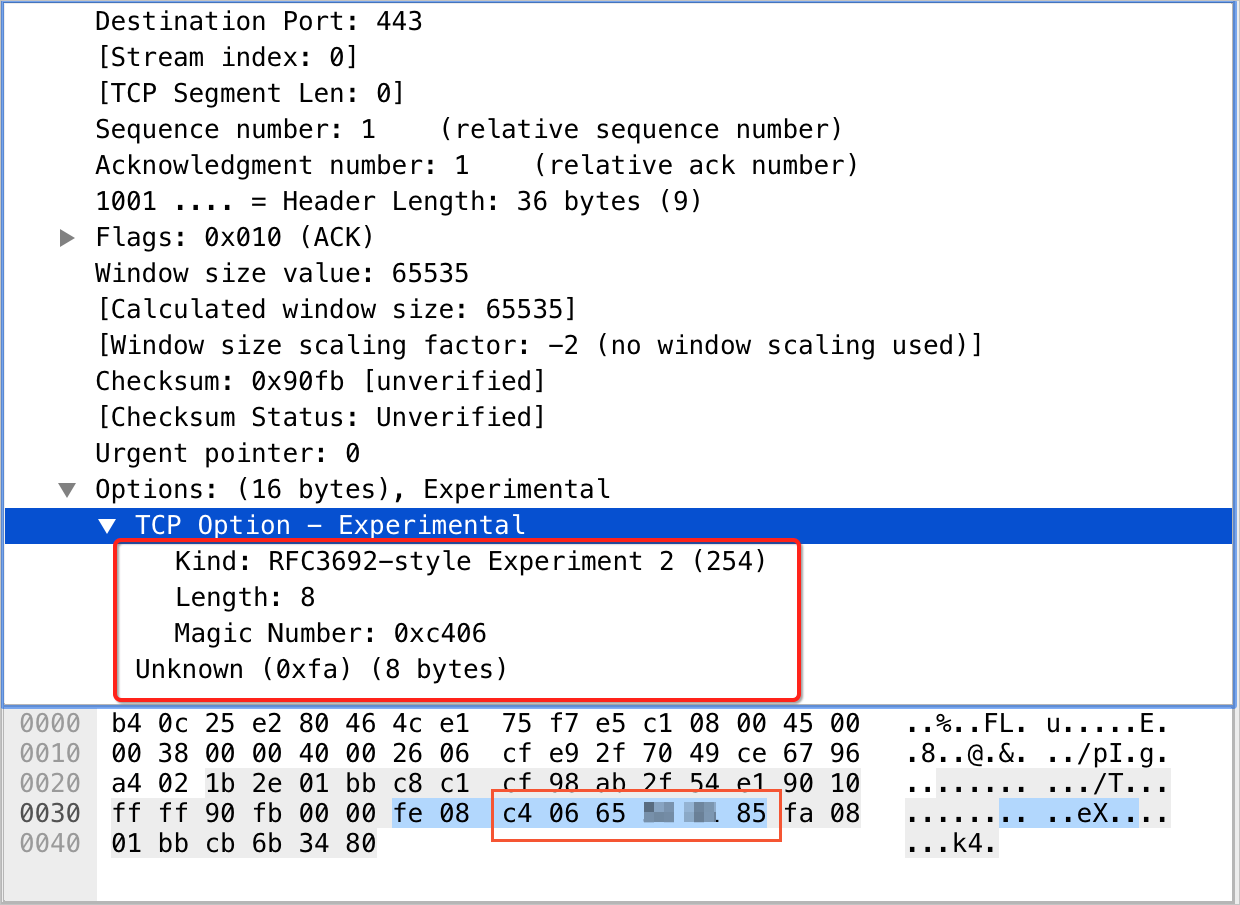

The client's source IP is passed using the TCP Option field. For a non-website service (Layer 4), after the three-way handshake between Anti-DDoS Proxy and the origin server, the proxy modifies the final ACK packet by inserting an 8-byte TCP Option (type 254), which contains the client's source port and source IP. The following Wireshark capture shows an example. The TCP Option – Experimental section contains the port number and source IP information:

    Destination Port: 443
     [Stream index: 0]
     [TCP Segment Len: 0]
    Sequence number: 1    (relative sequence number)
    Acknowledgment number: 1    (relative ack number)
    1001 .... = Header Length: 36 bytes (9)
  ▶ Flags: 0x010 (ACK)
    Window size value: 65535
     [Calculated window size: 65535]
     [Window size scaling factor: -2 (no window scaling used)]
    Checksum: 0x90fb [unverified]
     [Checksum Status: Unverified]
    Urgent pointer: 0
  ▼ Options: (16 bytes), Experimental
    ▼ TCP Option – Experimental
        Kind: RFC3692-style Experiment 2 (254)
        Length: 8
        Magic Number: 0xc406
      Unknown (0xfa) (8 bytes)
0000   b4 0c 25 e2 80 46 4c e1   75 f7 e5 c1 08 00 45 00   ..%..FL. u.....E.
0010   00 38 00 00 40 00 26 06   cf e9 2f 70 49 ce 67 96   .8..@.&. ../pI.g.
0020   a4 02 1b 2e 01 bb c8 c1   cf 98 ab 2f 54 e1 90 10   ........ .../T...
0030   ff ff 90 fb 00 00 fe 08   c4 06 65 xx xx 85 fa 08   ........ ..exx...
0040   01 bb cb 6b 34 80                                     ...k4.

Port number: The Magic Number field contains the port number in hexadecimal. For example, c4 06 converts to decimal 50182.
source IP: The four bytes that follow the port number represent the source IP in hexadecimal. In this example, 65 ** ** 85 corresponds to the source IP 101.*.*.133.

Anti-DDoS Proxy IPv6 instance

v6tov4 mode

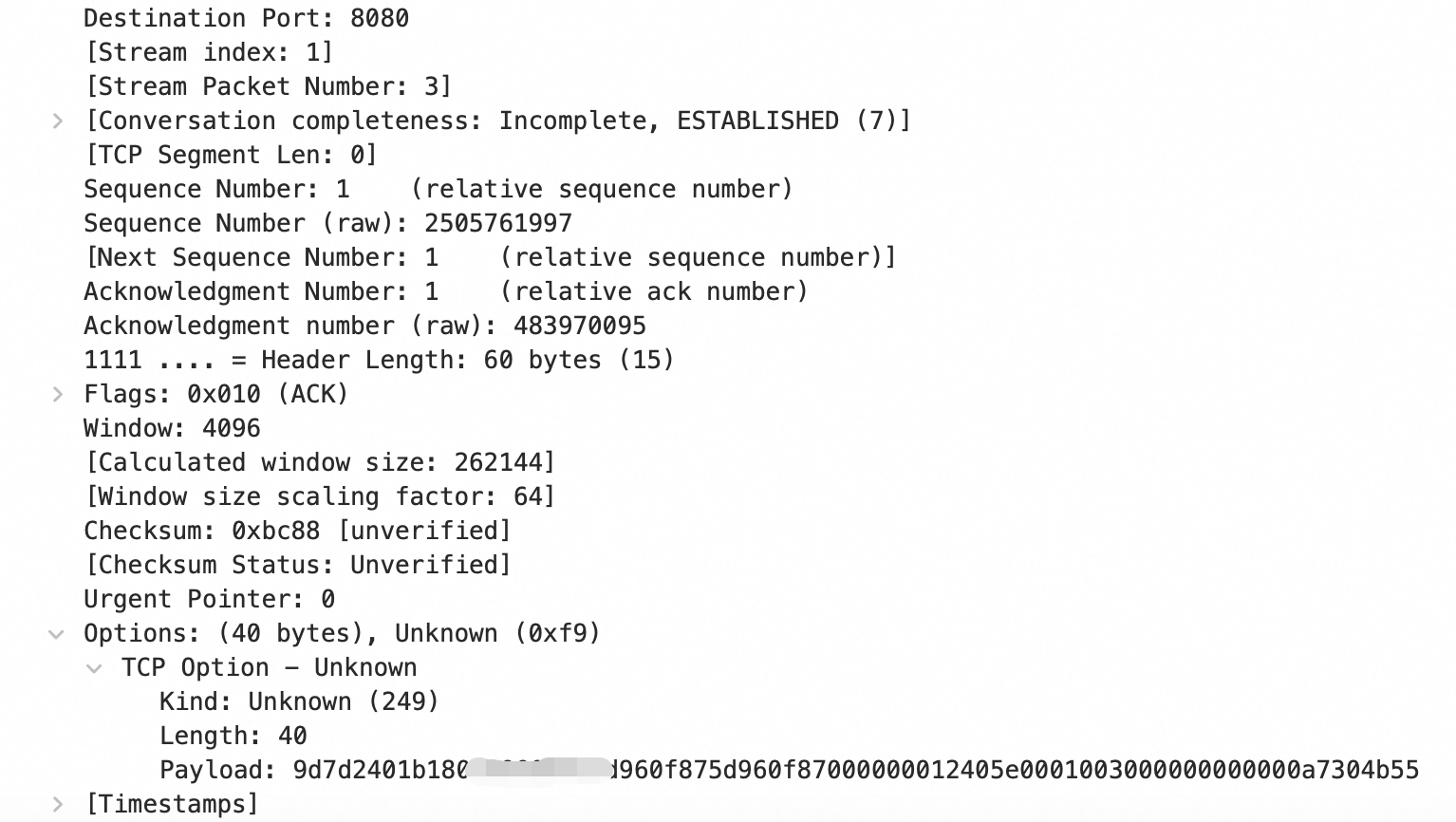

In v6tov4 mode, where an IPv6 client connects to an IPv4 origin server, the final ACK packet contains a 40-byte TCP Option (type 249). This option includes the source port, source IP, and the Anti-DDoS Proxy IP address. The following shows an example:

Destination Port: 8080
[Stream index: 1]
[Stream Packet Number: 3]
[Conversation completeness: Incomplete, ESTABLISHED (7)]
[TCP Segment Len: 0]
Sequence Number: 1    (relative sequence number)
Sequence Number (raw): 2505761997
[Next Sequence Number: 1    (relative sequence number)]
Acknowledgment Number: 1    (relative ack number)
Acknowledgment number (raw): 483970095
1111 .... = Header Length: 60 bytes (15)
Flags: 0x010 (ACK)
Window: 4096
[Calculated window size: 262144]
[Window size scaling factor: 64]
Checksum: 0xbc88 [unverified]
[Checksum Status: Unverified]
Urgent Pointer: 0
Options: (40 bytes), Unknown (0xf9)
  TCP Option – Unknown
    Kind: Unknown (249)
    Length: 40
    Payload: 9d7d2401b180xxxd960f875d960f87000000012405e000100300000000000a7304b55
[Timestamps]

Port number: The first two bytes of the Payload contain the port number in hexadecimal. For example, 9d7d converts to decimal 40317.
Source IP address: The 16 bytes after the port number contain the source IPv6 address in hexadecimal. For example, 2401*****0f87 corresponds to 2401:b180:100*:*:*:f87:5d96:f87.

Note
The remaining 20 bytes in the Payload contain the Anti-DDoS IP information.

v6tov6 mode

In a v6tov6 scenario, where both the client and the origin server use IPv6, the final ACK packet contains a 20-byte TCP Option (type 253). This option includes the source port and source IP. The following shows an example:

Destination Port: 8080
 [Stream index: 0]
 [Stream Packet Number: 1]
 [Conversation completeness: Incomplete (12)]
 [TCP Segment Len: 0]
 Sequence Number: 1    (relative sequence number)
 Sequence Number (raw): 721958393
 [Next Sequence Number: 1    (relative sequence number)]
 Acknowledgment Number: 1    (relative ack number)
 Acknowledgment number (raw): 2789445640
 1010 .... = Header Length: 40 bytes (10)
 Flags: 0x010 (ACK)
 Window: 65535
 [Calculated window size: 65535]
 [Window size scaling factor: -1 (unknown)]
 Checksum: 0x90cc [unverified]
 [Checksum Status: Unverified]
 Urgent Pointer: 0
 Options: (20 bytes), Experimental
   TCP Option - Experimental: Unknown
       Kind: RFC3692-style Experiment 1 (253)
       Length: 20
       Experiment Identifier: Unknown (0xeb98)
       Data: 2401b180100xxx0f875d960f87

Port number: The Experiment Identifier field contains the port number in hexadecimal. For example, eb98 converts to decimal 60312.
Source IP address: The Data field contains the source IPv6 address in hexadecimal. For example, 2401*****0f87 corresponds to 2401:b180:100*:*:*:f87:5d96:f87.

Important

Add the back-to-origin CIDR blocks of Anti-DDoS Proxy to your origin server's whitelist to prevent forwarded traffic from being blocked. Allow back-to-origin CIDR blocks to access the origin server.

Anti-DDoS Proxy -> ECS: Add the back-to-origin CIDR blocks to the ECS security group. Add a security group rule.
Anti-DDoS Proxy -> SLB -> ECS: Add the back-to-origin CIDR blocks to the SLB access control whitelist. Enable access control.

For website services (Layer 7)

Method 1: Use the X-Forwarded-For header

How it works

When a Layer 7 proxy such as Anti-DDoS Proxy forwards a request, the origin server sees the proxy's IP as the source. The X-Forwarded-For header records the client's actual IP. Format: X-Forwarded-For: <originating_IP_address>.
If a request passes through multiple proxies (such as WAF or CDN), the X-Forwarded-For header records the real client IP followed by each proxy IP. Format: X-Forwarded-For: real-client-IP, proxy-server-1-IP, proxy-server-2-IP, proxy-server-3-IP, .... Each proxy appends the previous node's address to X-Forwarded-For but does not append its own.

Retrieval methods

Retrieve the X-Forwarded-For header value in your application code:

Important

The first IP address in the comma-separated X-Forwarded-For value is the client's originating IP.
You can also configure your web server (Nginx, IIS 6, IIS 7, Apache, or Tomcat) to parse the X-Forwarded-For header. Retrieve the originating IP addresses of clients.

ASP

Request.ServerVariables("HTTP_X_FORWARDED_FOR")

ASP.NET (C#)

Request.ServerVariables["HTTP_X_FORWARDED_FOR"]

PHP
```
$_SERVER["HTTP_X_FORWARDED_FOR"]
```

JSP

request.getHeader("HTTP_X_FORWARDED_FOR")

Method 2: Use a custom HTTP header

Overview

In complex architectures, the standard X-Forwarded-For (XFF) header is vulnerable to forgery and IP confusion from multiple proxy layers. A custom HTTP header provides more reliable client IP transmission.

Procedure

Configure Anti-DDoS Proxy to write the client IP to a custom HTTP header. Configure back-to-origin settings.

Log on to the Website Config page in the Anti-DDoS Proxy console.
On the Website Config page, click Add Website.
On the Website Config page, in the Forwarding Settings section, set Traffic Marking to Custom Header (for example, Custom-True-IP).
In your application code, retrieve the value of the custom header, for example: request.getHeader("Custom-True-IP").
