Access container services through MSE Ingress - Container Service for Kubernetes

As Higress Enterprise Edition gateways, Microservices Engine (MSE) Ingress gateways are compatible with NGINX Ingress gateways. Compared with the performance of open source self-managed Ingress gateways, the performance of MSE Ingress gateways is doubled. MSE Ingress gateways are certified as industry-leading Ingress gateways by the China Academy of Information and Communications Technology (CAICT) based on security maturity. MSE Ingress gateways provide the advantages of low cost, security protection, high integration, and high availability. This topic describes how to use MSE Ingress gateways to access services in Container Service for Kubernetes (ACK) clusters and Container Compute Service (ACS) clusters.

Important

For security purposes, MSE Ingress gateways cannot expose services in the kube-system namespace.

Prerequisites

MSE Ingress Controller is installed in an ACK managed cluster, an ACK Serverless cluster, or an ACS cluster.

You are granted permissions to MSE Ingress Controller in your cluster. If your cluster is an ACK managed cluster or ACK Serverless cluster, click the link to grant permissions. If your cluster is an ACS cluster, click the link to grant permissions.
A cluster of version V1.18 or later is created. For more information about how to create a cluster, see Create an ACK managed cluster, Create an ACK Serverless cluster, or Create an ACS cluster.
Note
If the version of your cluster is earlier than V1.18, upgrade the cluster. For more information about upgrade operations, see Manually upgrade ACK clusters.

Step 1: Install MSE Ingress Controller

Log on to the ACK console. In the left-side navigation pane, click Clusters.
On the Clusters page, find the one you want to manage and click its name. In the left-side navigation pane, click Add-ons.

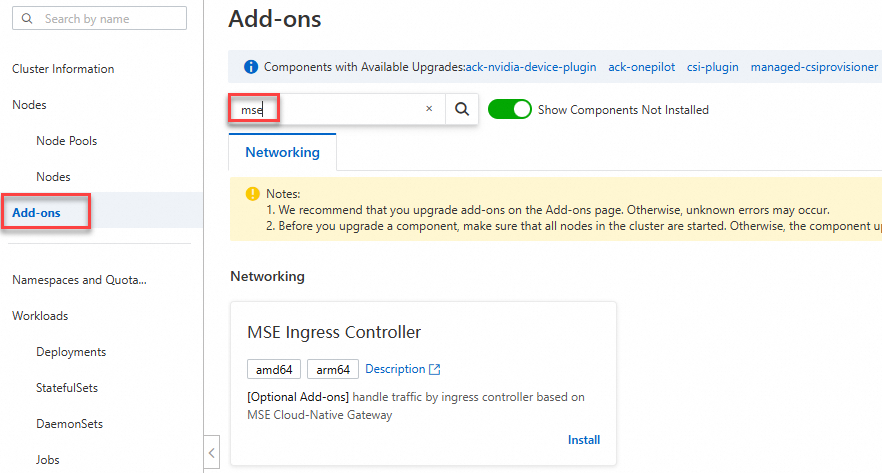

On the Add-ons page, enter mse in the search box, and click Install in the MSE Ingress Controller resource card.
In the Install MSE Ingress Controller dialog box, configure the parameters and click OK.
You can create a cloud-native gateway or use an existing cloud-native gateway.
If you encounter precheck failures when installing the MSE Ingress controller, authorize the MSE Ingress controller to access MSE.
After MSE Ingress Controller is installed, the system automatically creates an MseIngressConfig resource named mse-ingress-premium-{clusterid} and a cloud-native gateway named mse-ingress-premium-{clusterid}.

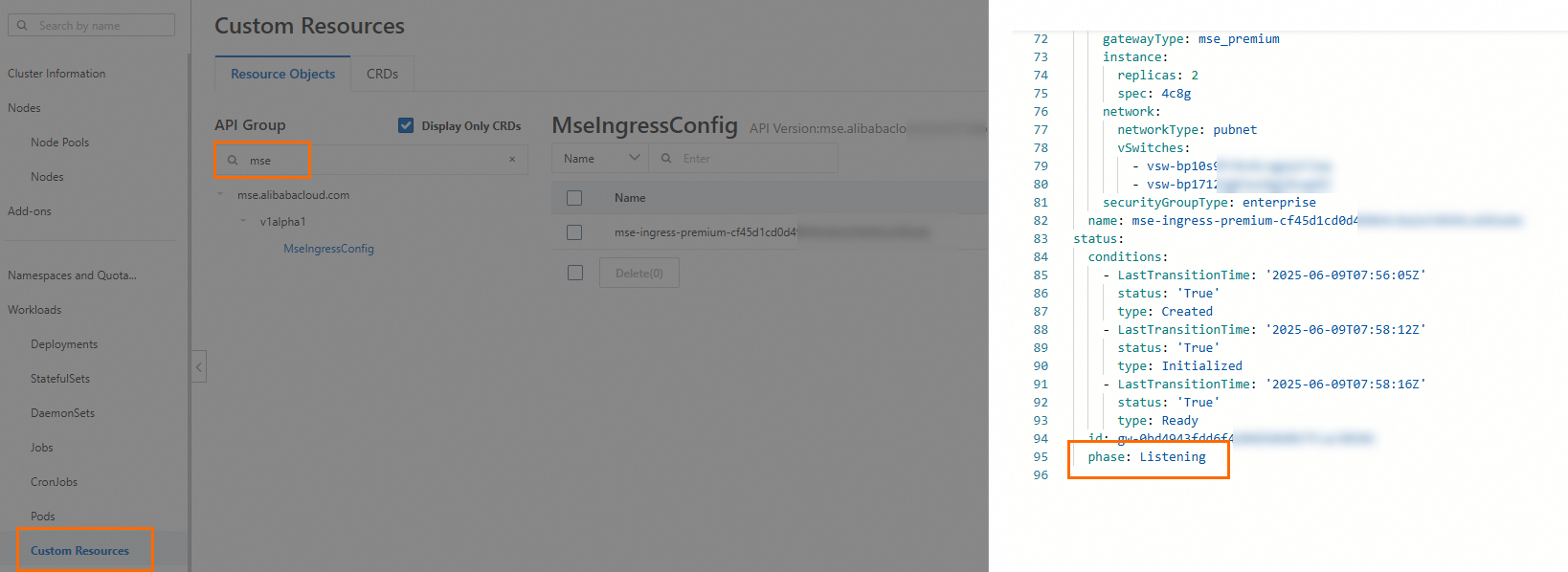

You can go to the ACK console, and click the name of the cluster. In the left-side navigation pane, choose Workloads > Deployments > Custom Resources. On the Resource Objects tab of the Custom Resources page, enter mse in the search box in the API Group section, and click the search icon to query the gateway status in the MseIngressConfig resource description. If the phase changes to Listening after 3 to 5 minutes, the cloud-native gateway is created and is in the Running state. The gateway automatically listens to the Ingress resources whose IngressClass is mse in the cluster.
In normal cases, the gateway status in MseIngressConfig changes in the following order: Pending > Running > Listening. Status description:
- Pending: The cloud-native gateway is being created. You must wait about 3 minutes.
- Running: The cloud-native gateway is created and is running.
- Listening: The cloud-native gateway is running and listens to Ingress resources in the cluster.
- Failed: The cloud-native gateway is in the invalid state. You can view Message in the Status field to identify the cause.
Important
When you create a cluster, an MseIngressConfig resource is automatically created during the installation of MSE Ingress Controller. The lifecycle of the MseIngressConfig resource is associated with the lifecycle of the MSE cloud-native gateway. If you delete an MseIngressConfig resource, the associated MSE cloud-native gateway instance is also deleted. Do not delete MseIngressConfig resources unless otherwise specified.
If the IngressClass resource named mse already exists in the cluster before you install MSE Ingress Controller, an MSE cloud-native gateway and the associated MseIngressConfig resource are not automatically created during the installation of MSE Ingress Controller.

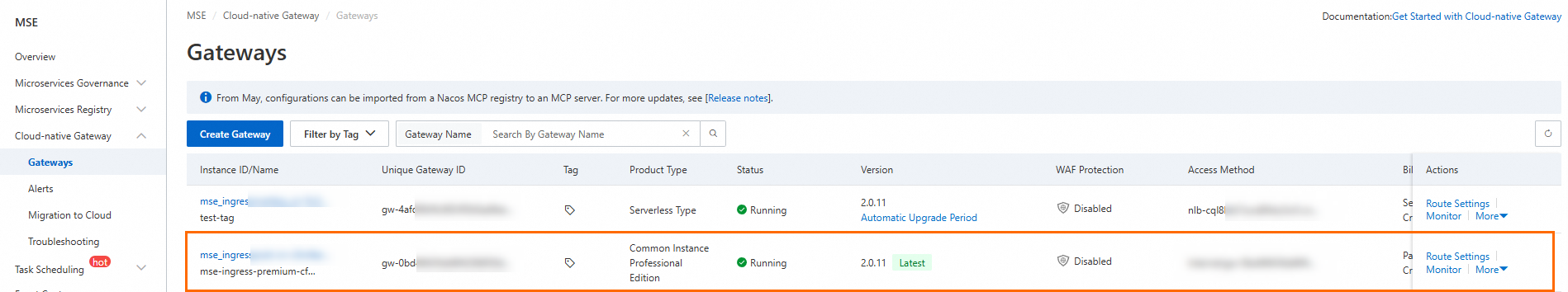

Log on to the MSE console. Check that a cloud-native gateway named mse-ingress-premium-{clusterid} is created in the region.

Step 2: Deploy a backend service

1. Log on to the ACK console. In the left-side navigation pane, click Clusters.
2. On the Clusters page, find the cluster you want and click its name. In the left-side pane, choose Network > Ingresses.

On the Deployments page, click Create from YAML. For example, use the following YAML code to deploy a deployment named httpbin and a service named httpbin.

apiVersion: apps/v1
kind: Deployment
metadata:
  name: httpbin
  namespace: default
spec:
  replicas: 1
  selector:
    matchLabels:
      app: httpbin
  template:
    metadata:
      labels:
        app: httpbin
        version: v1
    spec:
      containers:
        - image: registry.cn-hangzhou.aliyuncs.com/mse-ingress/go-httpbin
          args:
            - "--version=v1"
          imagePullPolicy: Always
          name: httpbin
---
apiVersion: v1
kind: Service
metadata:
  name: httpbin
  namespace: default
spec:
  ports:
    - port: 8080
      protocol: TCP
  selector:
    app: httpbin

Step 3: Configure an MSE Ingress gateway

1. Log on to the ACK console. In the left-side navigation pane, click Clusters.
2. On the Clusters page, find the cluster you want and click its name. In the left-side pane, choose Network > Ingresses.
On the Ingresses page, click Create Ingress.
In the Create Ingress dialog box, select MSE Ingress for Gateway Type, configure the associated backend services and annotations, and then click OK.
Set Ingress Class to mse. To configure a route, select Prefix (Prefix-based Match) from the Rule drop-down list, enter / in the Path field, and then select httpbin from the Service drop-down list.

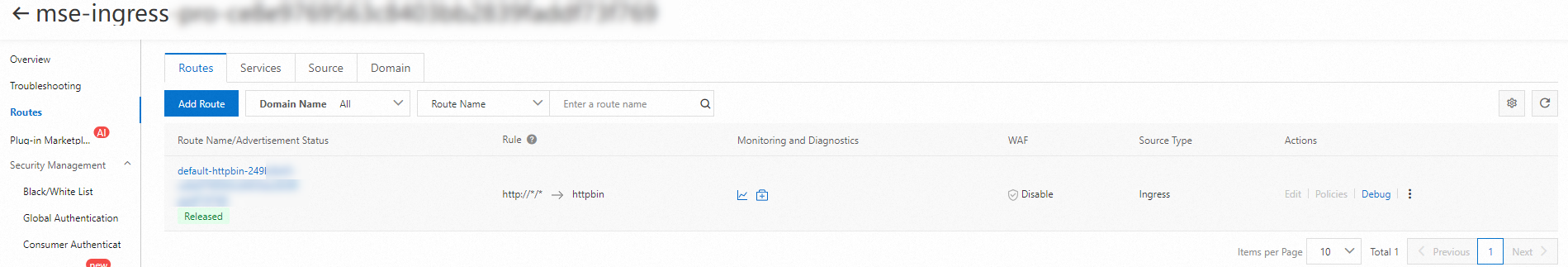

Log on to the MSE console. Check that a route is configured for the cloud-native gateway and the route name contains httpbin.

Step 4: Access the service

1. Log on to the ACK console. In the left-side navigation pane, click Clusters.
2. On the Clusters page, find the cluster you want and click its name. In the left-side pane, choose Network > Ingresses.

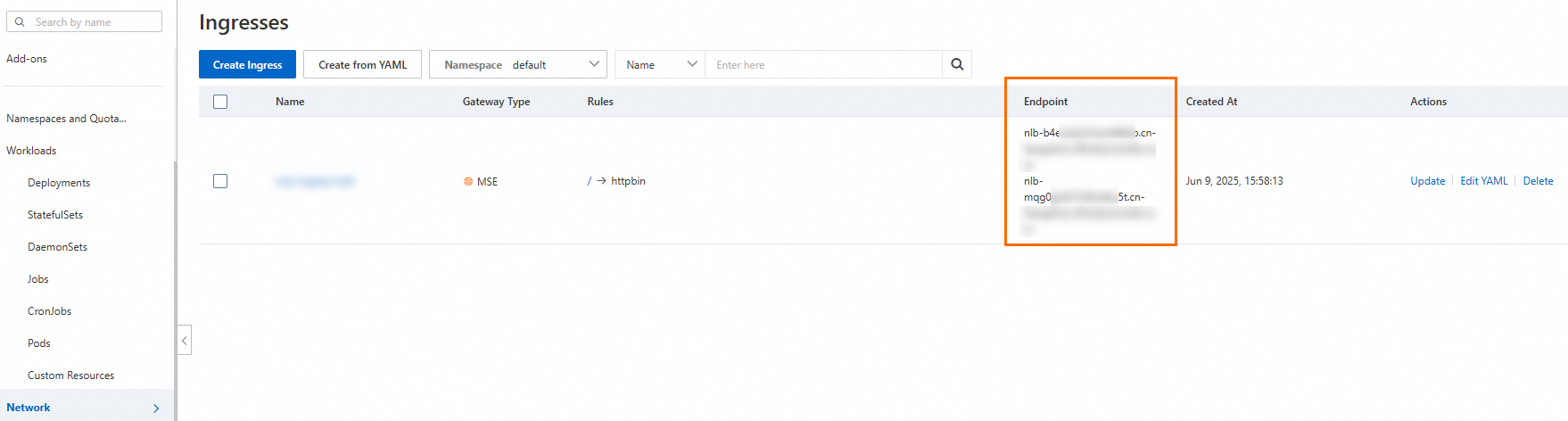

3. On the Ingresses page, view the Ingress endpoint.

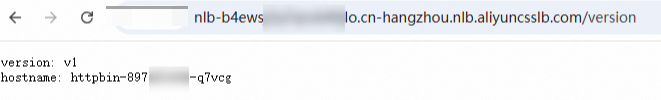

Use web browsers, cmd, or other command-line tools to access the path in the format of NLB domain name/version or Public IP address of the gateway/version and test services. For example, enter nlb-b4ewsj2******.cn-hangzhou.nlb.aliyuncsslb.com/version in the address bar of your web browser to access the service.
