Background information

Alibaba Cloud DNS PrivateZone (internal DNS resolution) is a comprehensive DNS resolution service for corporate intranet scenarios, primarily for Alibaba Cloud VPC intranet environments. It provides domain name resolution and internal domain name acceleration services for various clients (such as ECS instances and containers) in VPC intranet environments. Using PrivateZone incurs fees. For more information, see Billing.

Enable PrivateZone

1. Modify the eci-profile configuration to enable PrivateZone.

   1. Log on to the ACK console. In the left navigation pane, click Clusters.

   2. On the Clusters page, click the name of the one you want to change. In the left-side navigation pane, choose Configurations > ConfigMaps.

   3. Select Namespace as kube-system, find eci-profile, and then click Edit.

   4. Change the value of enablePrivateZone to true, and then click OK.

2. Confirm that PrivateZone is enabled.

   1. In the navigation pane on the left of the Alibaba Cloud DNS console, click Private Zone.

   2. On the User Defined Zones under the Authoritative Zone tab, verify that a zone named svc.cluster.local.<cluster ID> is generated.

Synchronize DNS records of Services to PrivateZone

1. Create a Deployment and Services for testing.

   1. Save the following YAML content as test-pz.yaml.

      The following YAML creates one Deployment and three Services. The types of the Services are Headless, ClusterIP, and LoadBalancer.

      Important

      By default, DNS records of Services are not synchronized to PrivateZone. After you add the service.beta.kubernetes.io/alibaba-cloud-private-zone-enable: "true" annotation to a Service, the virtual node controller synchronizes the DNS records of the Service to PrivateZone.

      apiVersion: v1
      kind: Service
      metadata:
        name: nginx-headless-service
        annotations:
           service.beta.kubernetes.io/alibaba-cloud-private-zone-enable: "true"
      spec:
        ports:
        - port: 80
          protocol: TCP
        selector:
          app: nginx
        clusterIP: None
      ---
      apiVersion: v1
      kind: Service
      metadata:
        name: nginx-clusterip-service
        annotations:
           service.beta.kubernetes.io/alibaba-cloud-private-zone-enable: "true"
      spec:
        ports:
        - port: 80
          protocol: TCP
        selector:
          app: nginx
        type: ClusterIP
      ---
      apiVersion: v1
      kind: Service
      metadata:
        name: nginx-intranet-service
        annotations:
          service.beta.kubernetes.io/alibaba-cloud-loadbalancer-address-type: "intranet"
          service.beta.kubernetes.io/alibaba-cloud-private-zone-enable: "true"
      spec:
        ports:
        - port: 80
          protocol: TCP
        selector:
          app: nginx
        type: LoadBalancer
      ---
      apiVersion: apps/v1
      kind: Deployment
      metadata:
        name: nginx-deployment
        labels:
          app: nginx
      spec:
        replicas: 3
        selector:
          matchLabels:
            app: nginx
        template:
          metadata:
            labels:
              app: nginx
              alibabacloud.com/eci: "true"          # Add a specific label to schedule pods to ECI
          spec:
            containers:
            - name: nginx
              image: anolis-registry.cn-zhangjiakou.cr.aliyuncs.com/openanolis/nginx:1.14.1-8.6
              ports:
              - containerPort: 80

   2. Create the Deployment and Services.

      kubectl create -f test-pz.yaml

2. Confirm that the DNS records of the Services are synchronized to PrivateZone.

   1. In the navigation pane on the left of the Alibaba Cloud DNS console, click Private Zone.

   2. On the User Defined Zones under the Authoritative Zone tab, find the zone named svc.cluster.local.<cluster ID>, and click Settings.

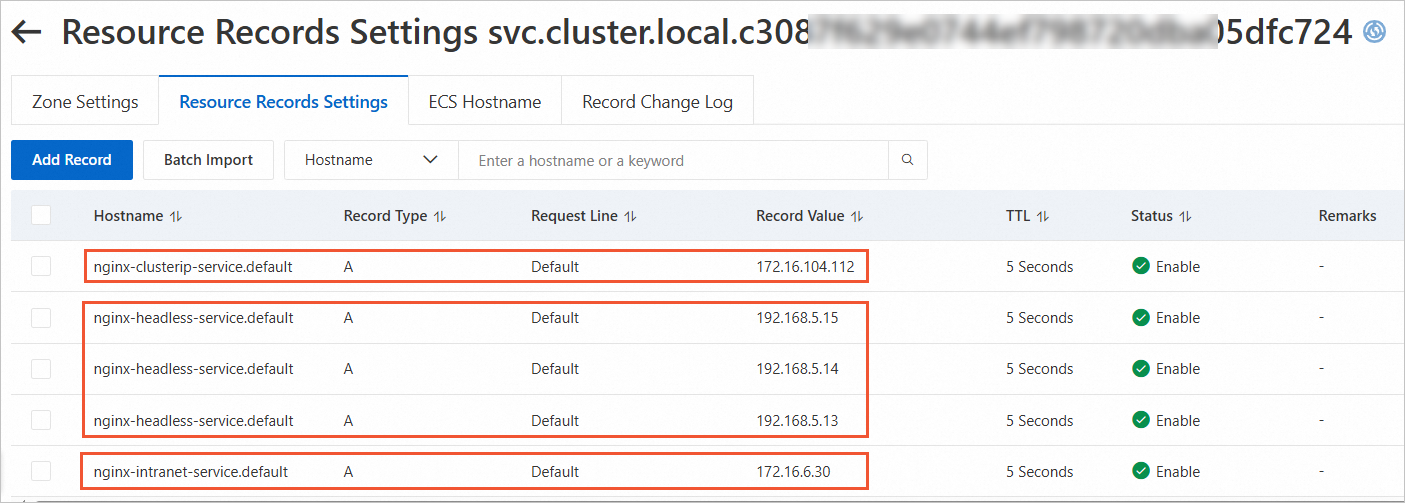

   3. On the Settings tab, you can see that the DNS records of the Services are automatically synchronized.

      The format of DNS records in the zone is <service-name>.<namespace>, which corresponds to the respective IP resolution. The resolution rules are as follows:

      • Headless Service: corresponds to multiple DNS records, each for the IP address of a backend pod.

      • ClusterIP Service: corresponds to one DNS record for the Cluster IP (a virtual IP address assigned by the cluster to the Service for internal communication within the cluster).

      • LoadBalancer Service: corresponds to one DNS record for the Cluster IP (a virtual IP address assigned by the cluster to the Service for internal communication within the cluster).



      After synchronization, you can access Services through private domain names in the VPC environment.

      • Short domain name access: Within the cluster, access a Service in the same namespace using <service-name>, or access a Service in another namespace using <service-name>.<namespace>.

      • Long domain name access: Outside the cluster, access a Service using <service-name>.<namespace>.svc.cluster.local.<clusterId>. This applies only to Headless Services.
