Build a Kagent Q&A Agent on ACK with MCP - Container Service for Kubernetes

Deploy a Q&A agent on ACK using kagent, the qwen3-coder-plus model from Alibaba Cloud Model Studio, and the fetch Model Context Protocol (MCP) server. The agent fetches web page content in real time and answers user questions based on that content.

What you'll build

By the end of this tutorial, you will have:

A ModelConfig that connects kagent to Alibaba Cloud Model Studio
A fetch MCP server deployed as a Kubernetes Service in your ACK cluster
A RemoteMCPServer resource that registers the MCP server with kagent
A Q&A agent (gateway-api-professor) that answers questions about the Kubernetes Gateway API by fetching live documentation

The agent runs as a pod in the kagent namespace and is accessible through the kagent web UI.

Prerequisites

Before you begin, make sure you have:

An ACK cluster with the kagent namespace created
The kagent-crds and kagent applications installed in the kagent namespace — install them from the ACK marketplace or go to Applications > Helm in your ACK cluster
An Alibaba Cloud Model Studio account with an API key
kubectl configured with your cluster's kubeconfig

Step 1: Create a ModelConfig

A ModelConfig tells kagent which LLM provider and model to use. Store the Model Studio API key as a Kubernetes Secret, then create the ModelConfig that references it.

Store the API key as a Secret named bailian-apikey.

export PROVIDER_API_KEY=${Your_Model_Studio_API_Key}
kubectl create secret generic bailian-apikey -n kagent --from-literal credential="$PROVIDER_API_KEY"

Create the ModelConfig.

kubectl -n kagent apply -f - <<EOF
apiVersion: kagent.dev/v1alpha2
kind: ModelConfig
metadata:
  name: bailian-provider-config
spec:
  model: qwen3-coder-plus
  apiKeySecret: bailian-apikey
  apiKeySecretKey: credential
  openAI:
    baseUrl: https://dashscope-intl.aliyuncs.com/compatible-mode/v1
  provider: OpenAI
EOF

Verify the ModelConfig was created.

kubectl get modelconfig -n kagent

Expected output:

NAME                     AGE
bailian-provider-config  10s

Step 2: Deploy the fetch MCP server

The fetch MCP server retrieves web content and converts HTML to Markdown. Deploy it as a Deployment with a ClusterIP Service on port 3000.

kubectl -n kagent apply -f - <<EOF
apiVersion: apps/v1
kind: Deployment
metadata:
  name: streamablehttp-fetch-deployment
spec:
  replicas: 1
  selector:
    matchLabels:
      app: streamablehttp-fetch
  template:
    metadata:
      labels:
        app: streamablehttp-fetch
    spec:
      containers:
      - name: streamablehttp-fetch-container
        image: registry-cn-hangzhou.ack.aliyuncs.com/dev/streamablehttp-fetch:latest
---
apiVersion: v1
kind: Service
metadata:
  name: streamablehttp-fetch-service
spec:
  selector:
    app: streamablehttp-fetch
  ports:
    - protocol: TCP
      port: 3000
      targetPort: 3000
  type: ClusterIP
EOF

Step 3: Register the MCP server

Create a RemoteMCPServer resource to register the fetch MCP server with kagent. kagent uses this resource to discover and call the fetch tool on behalf of the agent.

Create the RemoteMCPServer.

kubectl -n kagent apply -f - <<EOF
apiVersion: kagent.dev/v1alpha2
kind: RemoteMCPServer
metadata:
  name: streamablehttp-fetch
spec:
  description: A Model Context Protocol server that provides web content fetching capabilities. This server enables LLMs to retrieve and process content from web pages, converting HTML to markdown for easier consumption.
  protocol: STREAMABLE_HTTP
  sseReadTimeout: 5m0s
  terminateOnClose: true
  timeout: 30s
  url: http://streamablehttp-fetch-service:3000/
EOF

Verify the RemoteMCPServer is accepted.

kubectl get RemoteMCPServer -n kagent

Expected output:

NAME                   PROTOCOL          URL                                         ACCEPTED
streamablehttp-fetch   STREAMABLE_HTTP   http://streamablehttp-fetch-service:3000/   True

If ACCEPTED shows False, check that the fetch MCP server pod is running and that the Service URL is reachable from within the cluster.

Step 4: Create the agent

Create an Agent resource named gateway-api-professor. The agent's system message provides it with a set of Gateway API documentation URLs and instructions for answering questions.

Create the agent.

kubectl -n kagent apply -f - <<EOF
apiVersion: kagent.dev/v1alpha2
kind: Agent
metadata:
  name: gateway-api-professor
  namespace: kagent
spec:
  declarative:
    modelConfig: bailian-provider-config
    stream: true
    systemMessage: |-
      You are a friendly and helpful agent. Use the streamablehttp-fetch tool to get GatewayAPI information from the following URLs to answer user questions about GatewayAPI.

      # Links
      - intro: https://gateway-api.sigs.k8s.io/
      - api-overview: https://gateway-api.sigs.k8s.io/concepts/api-overview/
      - use-case: https://gateway-api.sigs.k8s.io/concepts/use-cases/
      - servicemesh: https://gateway-api.sigs.k8s.io/mesh/
      - implementations: https://gateway-api.sigs.k8s.io/implementations/
      - v1.4 support overview: https://gateway-api.sigs.k8s.io/implementations/v1.4/
      - Full spec, large page: https://gateway-api.sigs.k8s.io/reference/spec/

      # Instructions

      - If a user's question is unclear, ask for clarification before running any tools.
      - Be friendly and enthusiastic in your responses.
      - If you do not know how to answer a question, do not make up an answer.
        Respond with "Sorry, I don't know how to answer this question" and ask the user to clarify.
      - If the user asks for a summary or overview, make sure to read the entire text before answering.

      # Response format
      - Always respond in Markdown format.
      - Your response must include a summary of the actions you performed and an explanation of the results.
    tools:
    - type: McpServer
      mcpServer:
        apiGroup: kagent.dev
        kind: RemoteMCPServer
        name: streamablehttp-fetch
        toolNames:
        - fetch
  description: This agent primarily answers questions related to the GatewayAPI Spec.
  type: Declarative
EOF

Verify all pods are running.

kubectl get pod -n kagent

Expected output:

NAME                                               READY   STATUS    RESTARTS   AGE
gateway-api-professor-7cb6496b9d-l7nlj             1/1     Running   0          3m1s
kagent-controller-794fc765df-hqswt                 1/1     Running   0          45m
kagent-ui-569cb875c6-h55mg                         1/1     Running   0          45m
streamablehttp-fetch-deployment-75d5cd86cf-h9rvp   1/1     Running   0          4m3s

Step 5: Access the agent

kagent includes a web UI for chatting with agents directly.

Forward the kagent UI port to your local machine.

kubectl port-forward -n kagent service/kagent-ui 8082:8080

Open localhost:8082 in your browser and select the gateway-api-professor agent.
Try the following example questions:

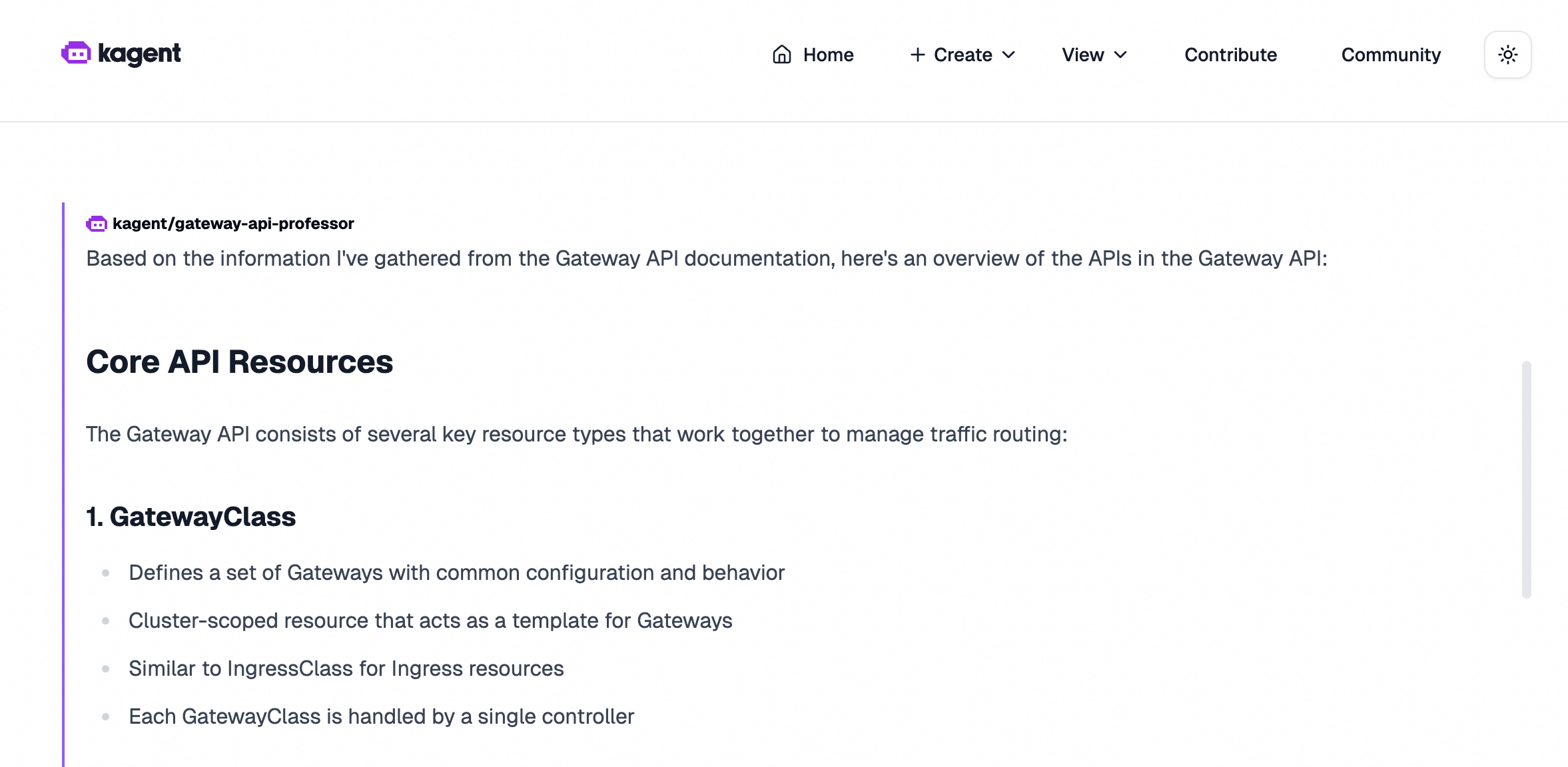

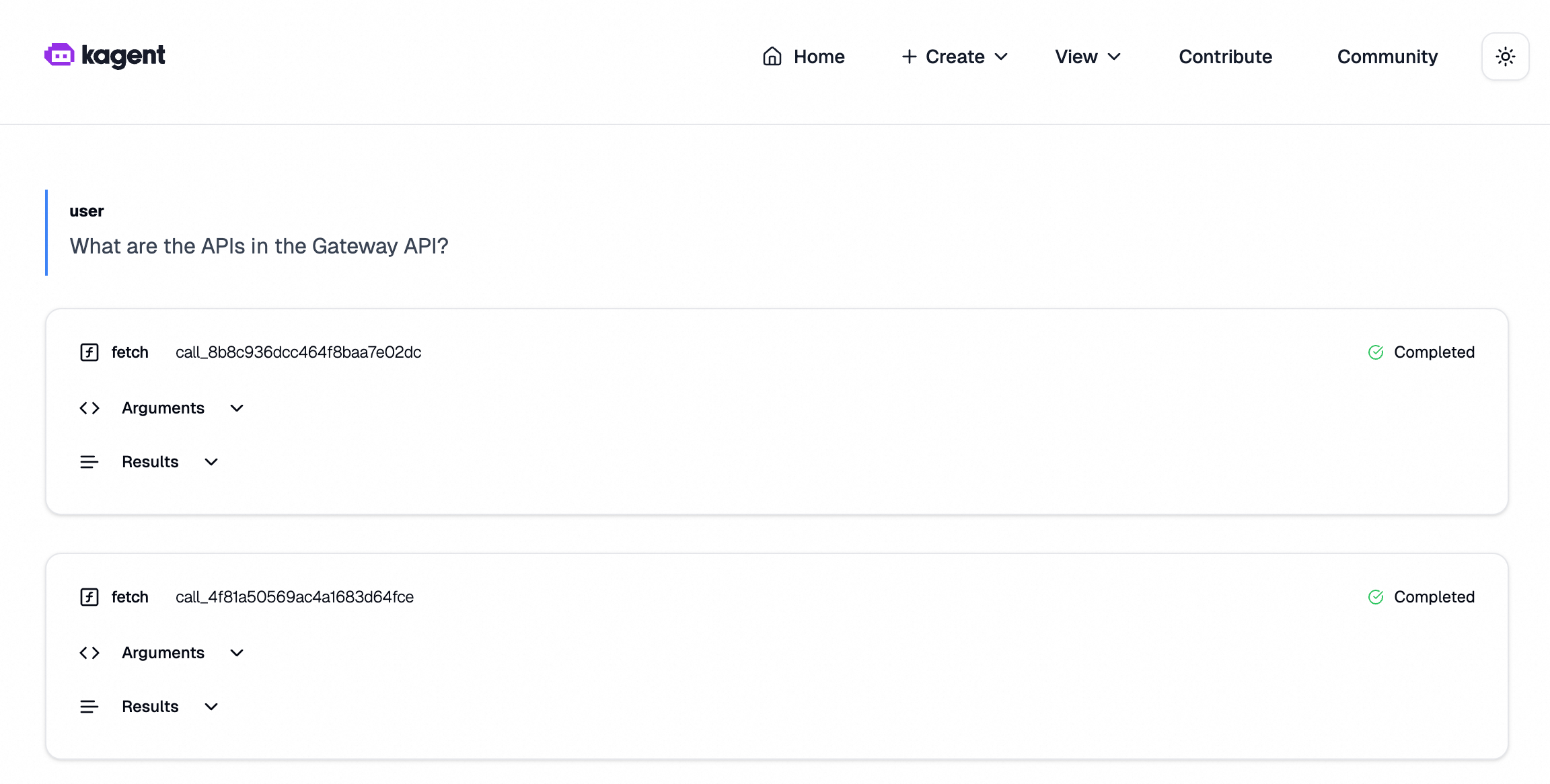

Example 1: What APIs are in the Gateway API?

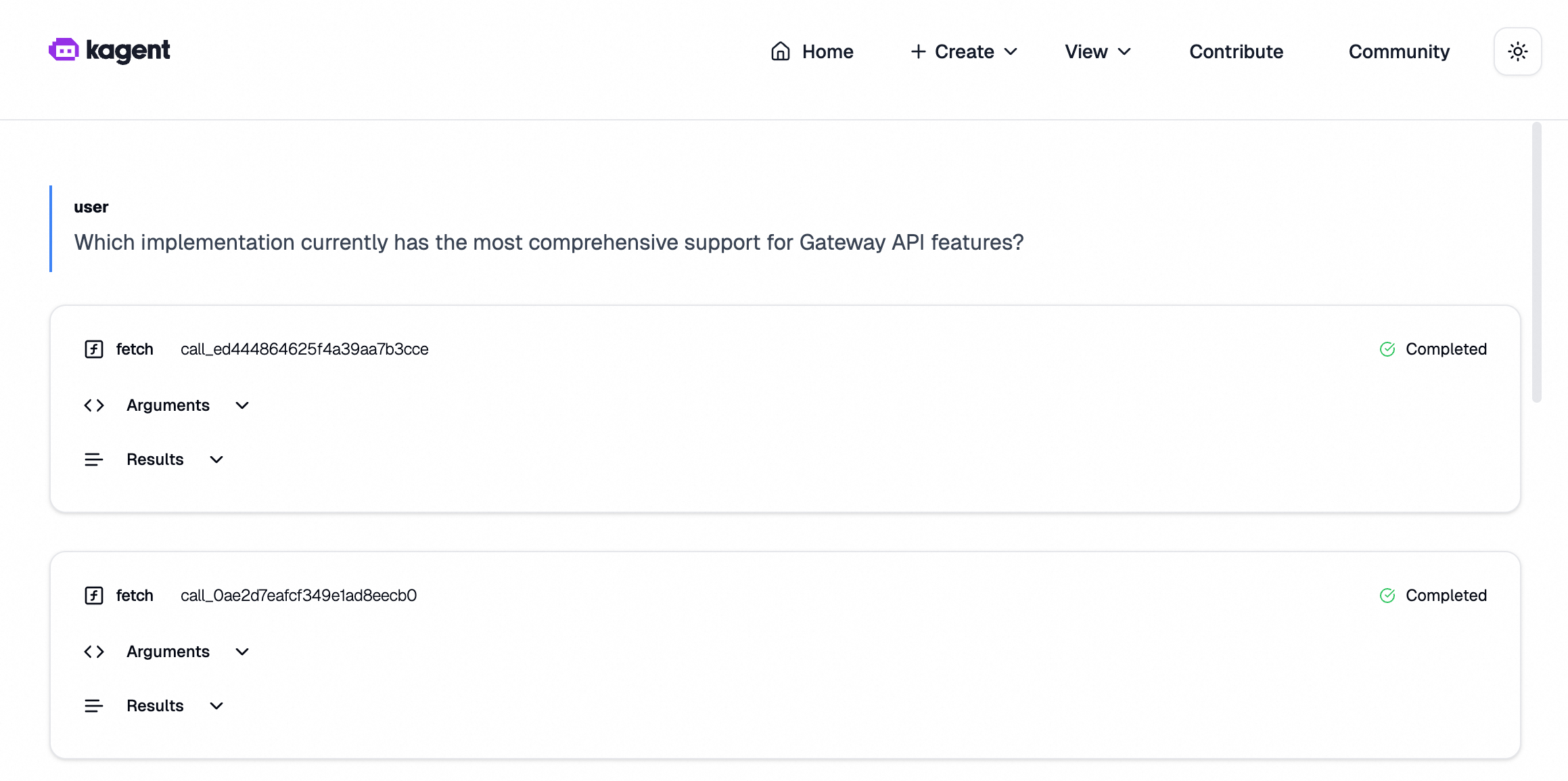

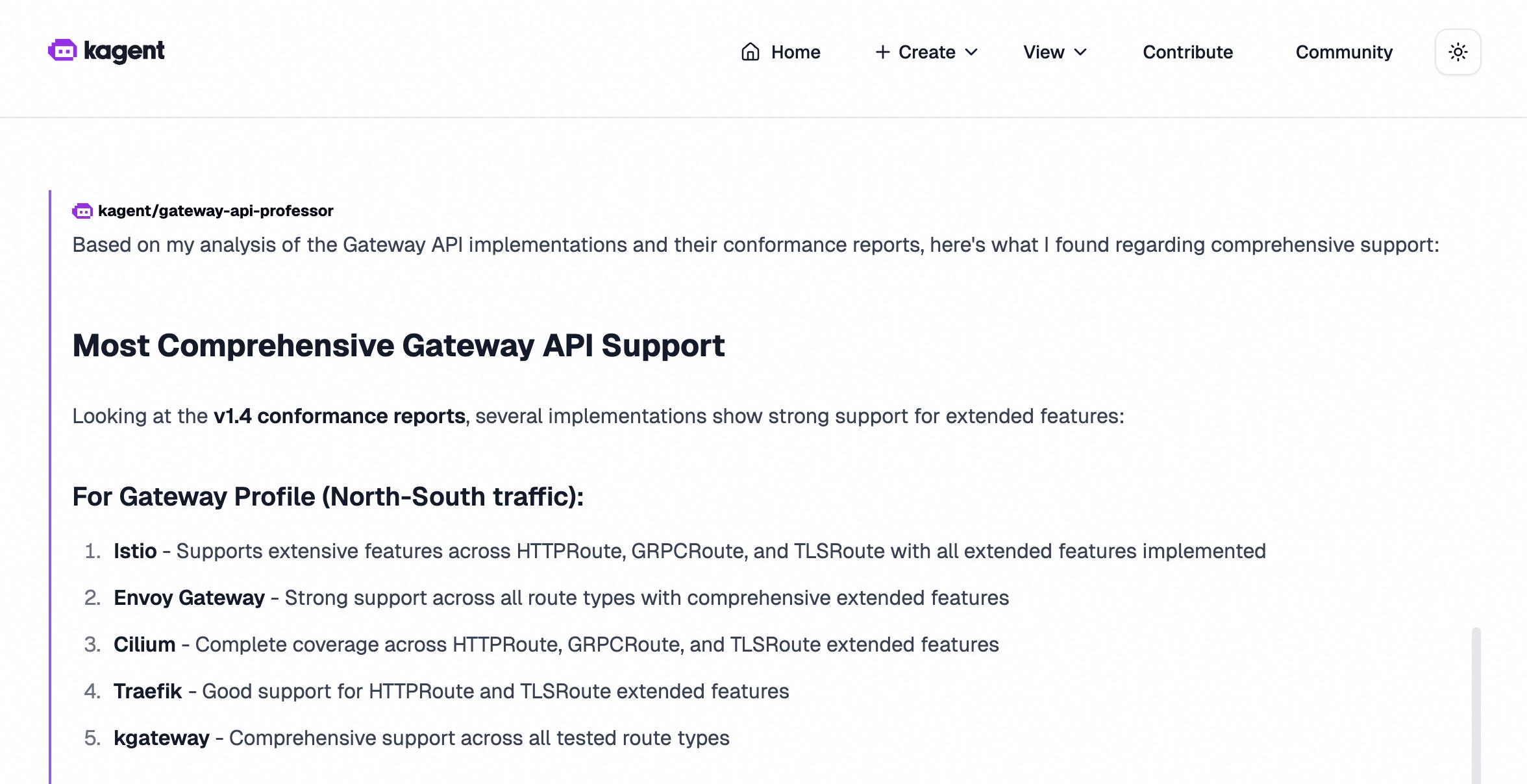

Example 2: Which implementation currently offers the most comprehensive support for Gateway API features?

Troubleshooting

RemoteMCPServer shows `ACCEPTED: False`

The kagent controller cannot reach the fetch MCP server. Verify the Service is running and the URL in the RemoteMCPServer spec matches the actual Service name and port:

kubectl get svc -n kagent
kubectl logs -n kagent deployment/kagent-controller

Agent pod is not starting

Check the agent pod events for image pull or resource errors:

kubectl describe pod -n kagent -l app=gateway-api-professor

API key error or authentication failure

Confirm the Secret was created correctly and the key name matches the ModelConfig:

kubectl get secret bailian-apikey -n kagent -o jsonpath='{.data.credential}' | base64 -d

The output should be your Model Studio API key. If the Secret is missing or the key is blank, re-run the kubectl create secret command from Step 1.

Port-forward fails with "address already in use"

Port 8082 is in use on your local machine. Use a different local port:

kubectl port-forward -n kagent service/kagent-ui 8083:8080

Then access the agent at localhost:8083.

What's next

Explore the kagent documentation to build agents with additional MCP tools.
Review the Model Context Protocol specification to understand how MCP servers expose tools to agents.
Create additional agents in the same cluster by repeating Steps 1–4 with different system messages and tool bindings.
