This topic describes how to create a file system and mount the file system on an ECS instance that runs Windows.

Prerequisites

  1. You have registered an Alibaba Cloud account and completed real-name authentication.

    If you do not have an Alibaba Cloud account, you need to create an account. For more information, see Create an Alibaba Cloud account.

  2. You have activated the Network Attached Storage (NAS) service.

    When you log on to the NAS console for the first time, follow the instructions to activate the NAS service.

  3. An ECS instance must be available in the same region where you need to create a file system.

    If no available ECS instance exists, we recommend that you purchase an ECS instance. For more information, see Step 2. Create an instance.

  4. Ensure that the Workstation and TCP/IP NetBIOS Helper services are started on the Windows system. For more information, see Mount an SMB file system.
    Note
    1. For more information about how to manage NAS by using a RAM user account, see Access control for RAM users.
    2. After you activate the NAS service, the default billing method is pay-as-you-go. If you want to use NAS with an extra discount, you can purchase a storage package. For more information, see Purchase a storage package.
    3. If you need to create a mount point in a VPC, you need to create a VPC in the same region where the new file system resides. Then, you need to attach the ECS instance that hosts the file system to the VPC. For more information, see Create a VPC and VSwitch.

Step 1: Create a file system

  1. Log on to the NAS console.
  2. Choose NAS > File System List, and click Create File System.
  3. In the Create File System dialog box, configure the required settings as described in the following table.
    Name Description
    Region
    Select a region where you need to create a file system.
    Note
    • When a file system and an ECS instance are located in different regions, you cannot mount the file system on the ECS instance.
    • The supported storage types and protocol types of a file system change based on the region. For more information, see Storage types and protocol types supported by NAS in different regions.
    • You can create a maximum of 20 file systems in a region by using an Alibaba Cloud account.
    Storage Type
    Valid values: SSD performance-type and Capacity-type.
    Note The maximum capacity of a NAS Performance file system is 1 PB. The maximum capacity of a NAS Capacity file system is 10 PB. The billing method is pay-as-you-go.
    Protocol Select SMB (2.1 and later).

    NFS is used to share files stored on an ECS instance that runs Linux. SMB is used to share files stored on an ECS instance that runs Windows.

    Zone

    Each region has many isolated locations known as zones. The power supply and network of each zone are independent.

    Note When a file system and an ECS instance are located in different zones in the same region, you can mount the file system on the ECS instance.
    Storage Package

    Storage packages are an alternative billing method. It provides an extra discount over the pay-as-you-go billing method. If you do not purchase a storage package, the default billing method is pay-as-you-go. For more information, see Pricing.

  4. After the configuration is complete, click OK.

Step 2: Create a mount point

In NAS, you need to use a mount point to mount a file system on an ECS instance. NAS supports two types of mount points: VPC and classic network. You can create each type of mount point by performing a respective set of steps.
Note You can create a maximum of two mount points for each file system.
  1. Log on to the NAS console.
  2. Choose NAS > File System List.
  3. Find the target file system, and click Add Mount Point.
  4. In the Add Mount Point dialog box, configure the required settings.

    Mount Point Type: includes VPC and Classic network.

    • If you need to create a mount point with the VPC type, configure the settings as described in the following table.
      Name Descriptions
      VPC
      Select a VPC. If no VPC is available, create a VPC in the Virtual Private Cloud console.
      Note The VPC and VSwitch you select must be the same as those of the ECS instance on which you mount a file system.
      VSwitch

      Select a VSwitch that is created in the VPC.

      Permission Group
      Select VPC default permission group (allow all) or an existing permission group.
      Note This VPC default permission group is generated for each Alibaba Cloud account, which allows access to the file system through the mount point from all IP addresses of the VPC. For more information about how to create a permission group, see Manage permission groups.
    • If you need to create a mount point in a classic network, configure the settings as described in the following table.
      Name Descriptions
      Permission group
      Select a permission group. If no available permission group exists, create a permission group in the NAS console.
      Note
      • You can only create a mount point with the classic network type in a region that is located in Mainland China.
      • You can only attach a mount point with the classic network type to an ECS instance.
      • For data security, NAS dos not provide a permission group for a mount point with the classic network type. Therefore, you need to create a permission group of the classic network type before specifying the permission group for a mount point of the classic network type. Then, you need to add the required rules to the permission group. For more information about how to manage permission groups, see Manage permission groups.
      • When creating a mount point in a classic network for the first time, you are required to use RAM to authorize NAS to access ECS instances hosted by the logon Alibaba Cloud account. We recommend that you follow the instructions to complete the authorization and create a mount point in a classic network. For more information, see Why do I need RAM permissions to create a mount point in a classic network.
  5. Click OK create a mount point.

Step 3: Mount a file system

Perform the following steps to mount an SMB file system on an ECS instance.

  1. Log on to the ECS console.
  2. Open the command prompt and run the following command to mount the file system.
    net use D: \\file-system-id.region.nas.aliyuncs.com\myshare

    The format of the command used to mount the file system is net use <the drive of the mount target> \\<the domain name of a mount point>\myshare.

    • The drive of the mount target: the target drive on which you need to mount a file system.

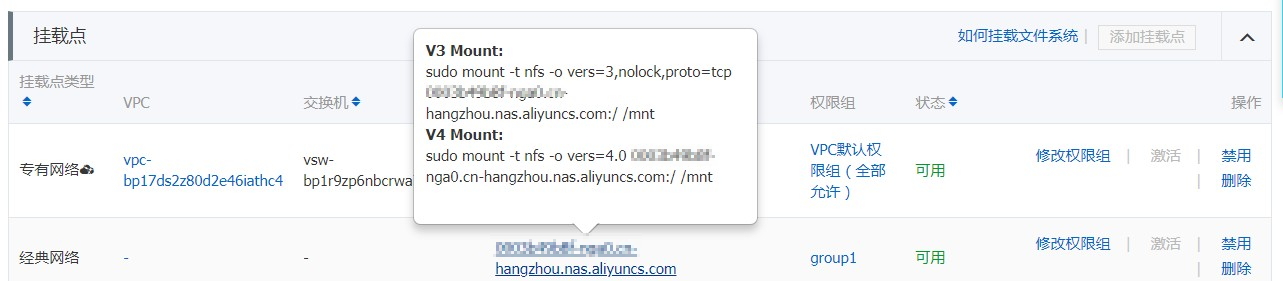

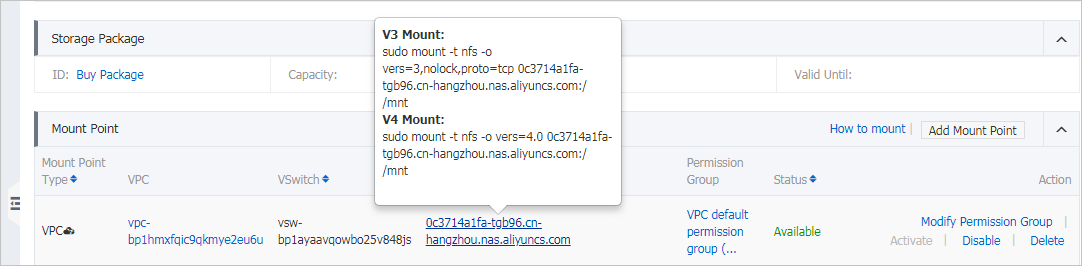

    • The domain name of a mount point: the domain name generated when you create the mount point for a file system. For more information, see Manage mount points.
    • myshare: indicates the name of an SMB share. You cannot change the name.
    Note

    Ensure that the name of the target mount drive is unique on the target ECS instance.

    For more information about how to troubleshoot the errors that occur while the the mount command is running, see Causes and solutions of SMB mount failures.

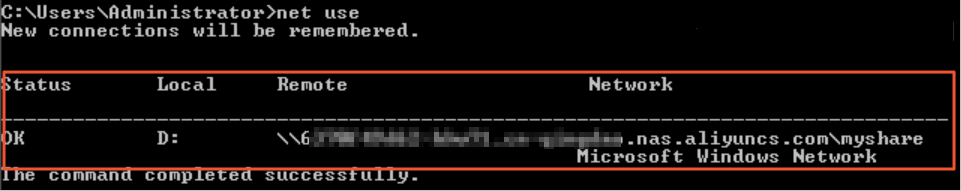

  3. Use the net use command to check mount results.

    An example of a successful mount is shown in the following figure.


    mount results

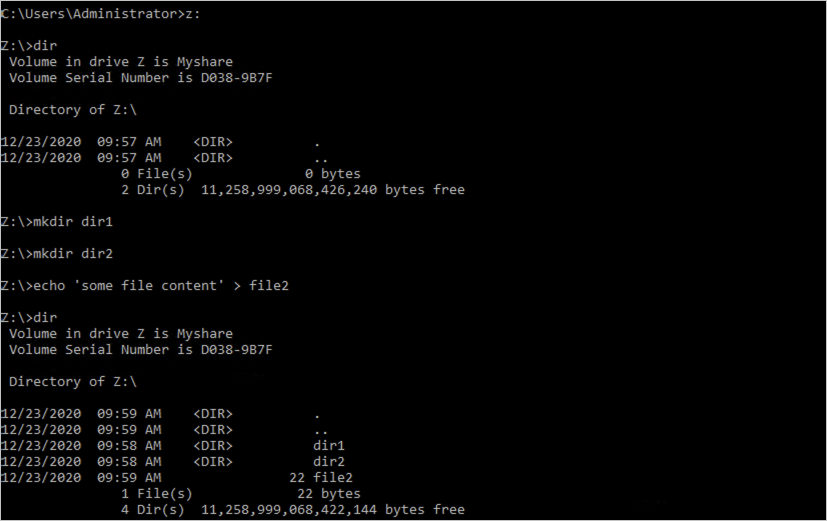

  4. After mounting a NAS file system, you can read and write data to the file system on an ECS instance.
