PolarDB:PolarDB Supabase Best Practices - Web Applications

Last Updated:Mar 28, 2026

PolarDB Supabase is a fully managed Supabase service built on PolarDB for PostgreSQL. It integrates a real-time database, RESTful API, GoTrue Identity Authentication (Auth), file storage, and log collection—eliminating complex parameter management and application O&M. Use it to build web applications, SaaS platforms, and AI-integrated applications.

This guide walks through building a meeting note system with PolarDB Supabase, covering database design, real-time collaboration, security, and client integration.

Capabilities

CapabilityDescription
Full database featuresBuilt on PolarDB for PostgreSQL: relational tables with foreign key constraints and transactions, JSONB for semi-structured data, full-text search, and PostgreSQL extension support (UUID generation, timestamp processing)
Realtime SubscriptionsReal-time data sync via PostgreSQL logical replication. Listens for INSERT, UPDATE, and DELETE events across multiple independent channels, with event filtering and automatic reconnection
Identity Authentication (Auth)Built-in auth with email/password, social login, and magic links. Handles JWT token refresh, session persistence, user registration, password reset, email verification, and anonymous user access
Row-Level Security (RLS)PostgreSQL-native row-level access control. Define SQL policies that filter data at the database level—queries apply policies automatically
Storage ServiceFile storage built on the PolarDB file system. Supports large file uploads, resumable uploads, RLS-based access control, and folder and metadata management
Edge FunctionsServer-side functions running on Deno with native TypeScript support, direct database access, and third-party API integration
APIs (REST and GraphQL)Auto-generated REST API for full CRUD operations. GraphQL support is available on the Enterprise Edition

Build a meeting note system

Prerequisites

Before you begin, make sure you have:

  • A PolarDB Supabase application. Note the public network address and secret.jwt.anonKey from the application details page.

  • Node.js installed. Download it from the official Node.js website.

  • pnpm installed. After installing Node.js, run npm install -g pnpm.

Technology stack

The meeting note system uses the following components:

ComponentRole
PolarDB for PostgreSQL clusterStores meetings, notes, tasks, tags, and user presence data
Realtime SubscriptionsSynchronizes note edits and user online status in real time
Row-Level Security (RLS)Controls per-user access to meetings and notes
Storage ServiceHandles meeting file uploads and downloads
Identity Authentication (Auth)Manages user sign-in and session lifecycle
  • Frontend: Next.js 15 + React 18 + TypeScript

  • Backend: PolarDB Supabase (PostgreSQL + authentication + Realtime Subscriptions + Storage)

  • UI: Tailwind CSS + Radix UI

  • State management: React Hooks + local state

Step 1: Design the database

The system uses seven tables linked by foreign key constraints to maintain data consistency.

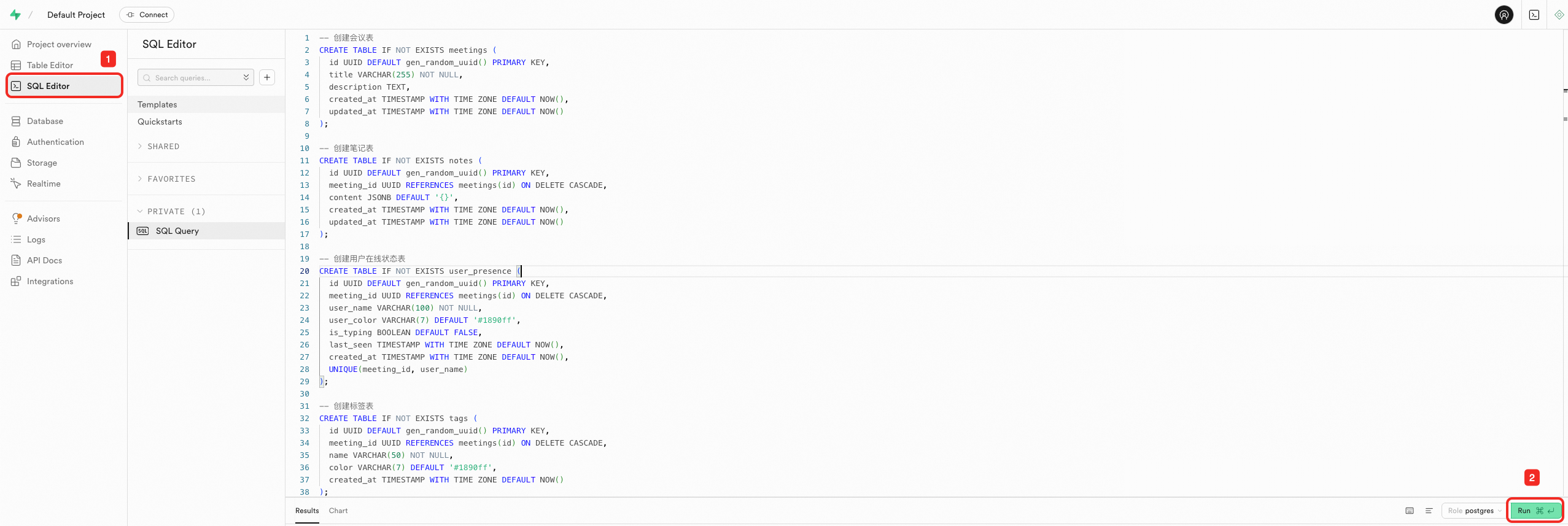

Open the scripts/01-create-tables.sql file from the sample project and run it in the SQL Editor in the Supabase Dashboard. The SQL creates the following tables:

SQL Example

-- Create meeting table
CREATE TABLE IF NOT EXISTS meetings (
  id UUID DEFAULT gen_random_uuid() PRIMARY KEY,
  title VARCHAR(255) NOT NULL,
  description TEXT,
  created_at TIMESTAMP WITH TIME ZONE DEFAULT NOW(),
  updated_at TIMESTAMP WITH TIME ZONE DEFAULT NOW()
);

-- Create note table
CREATE TABLE IF NOT EXISTS notes (
  id UUID DEFAULT gen_random_uuid() PRIMARY KEY,
  meeting_id UUID REFERENCES meetings(id) ON DELETE CASCADE,
  content JSONB DEFAULT '{}', -- Stores rich text content
  created_at TIMESTAMP WITH TIME ZONE DEFAULT NOW(),
  updated_at TIMESTAMP WITH TIME ZONE DEFAULT NOW()
);

-- Create user presence table
CREATE TABLE IF NOT EXISTS user_presence (
  id UUID DEFAULT gen_random_uuid() PRIMARY KEY,
  meeting_id UUID REFERENCES meetings(id) ON DELETE CASCADE,
  user_name VARCHAR(100) NOT NULL,
  user_color VARCHAR(7) DEFAULT '#1890ff',
  is_typing BOOLEAN DEFAULT FALSE,
  last_seen TIMESTAMP WITH TIME ZONE DEFAULT NOW(),
  created_at TIMESTAMP WITH TIME ZONE DEFAULT NOW(),
  UNIQUE(meeting_id, user_name)
);

-- Create tag table
CREATE TABLE IF NOT EXISTS tags (
  id UUID DEFAULT gen_random_uuid() PRIMARY KEY,
  meeting_id UUID REFERENCES meetings(id) ON DELETE CASCADE,
  name VARCHAR(50) NOT NULL,
  color VARCHAR(7) DEFAULT '#1890ff',
  created_at TIMESTAMP WITH TIME ZONE DEFAULT NOW()
);

-- Create task table
CREATE TABLE IF NOT EXISTS tasks (
  id UUID DEFAULT gen_random_uuid() PRIMARY KEY,
  meeting_id UUID REFERENCES meetings(id) ON DELETE CASCADE,
  title VARCHAR(255) NOT NULL,
  description TEXT,
  assignee VARCHAR(100),
  status VARCHAR(20) DEFAULT 'pending',
  due_date TIMESTAMP WITH TIME ZONE,
  created_at TIMESTAMP WITH TIME ZONE DEFAULT NOW(),
  updated_at TIMESTAMP WITH TIME ZONE DEFAULT NOW()
);

-- Create meeting activity log table
CREATE TABLE IF NOT EXISTS meeting_activities (
  id UUID DEFAULT gen_random_uuid() PRIMARY KEY,
  meeting_id UUID REFERENCES meetings(id) ON DELETE CASCADE,
  user_name VARCHAR(100) NOT NULL,
  activity_type VARCHAR(50) NOT NULL, -- 'join', 'leave', 'edit', 'add_tag', 'add_task', etc.
  activity_data JSONB DEFAULT '{}',
  created_at TIMESTAMP WITH TIME ZONE DEFAULT NOW()
);

-- Create meeting files table
CREATE TABLE IF NOT EXISTS meeting_files (
  id UUID PRIMARY KEY DEFAULT gen_random_uuid(),
  meeting_id UUID REFERENCES meetings(id) ON DELETE CASCADE,
  file_name VARCHAR(255) NOT NULL,
  file_url TEXT NOT NULL,
  uploader VARCHAR(100),
  uploaded_at TIMESTAMP WITH TIME ZONE DEFAULT NOW(),
  file_size BIGINT,
  mime_type VARCHAR(100)
);

-- Add index for meeting ID
CREATE INDEX IF NOT EXISTS idx_meeting_files_meeting_id ON meeting_files(meeting_id);

Step 2: Enable Row-Level Security

Enable RLS on every table before writing application queries. Enable RLS and define policies that match your access model:

-- Enable RLS
ALTER TABLE meetings ENABLE ROW LEVEL SECURITY;

-- Allow all authenticated users to view meetings
CREATE POLICY "Users can view all meetings" ON meetings
  FOR SELECT USING (true);

-- Allow any authenticated user to create a meeting
CREATE POLICY "Users can create meetings" ON meetings
  FOR INSERT WITH CHECK (true);

-- Restrict updates to the meeting creator
CREATE POLICY "Users can update their own meetings" ON meetings
  FOR UPDATE USING (auth.uid() = created_by);

Apply similar policies to notes, tasks, tags, user_presence, meeting_activities, and meeting_files based on the access rules your application requires. Use auth.uid() in RLS policies to tie data access to the authenticated user identity.

Step 3: Configure Realtime Subscriptions

Enable Realtime on each table

Add all tables to the supabase_realtime publication:

ALTER PUBLICATION supabase_realtime ADD TABLE meetings;
ALTER PUBLICATION supabase_realtime ADD TABLE notes;
ALTER PUBLICATION supabase_realtime ADD TABLE user_presence;
ALTER PUBLICATION supabase_realtime ADD TABLE tags;
ALTER PUBLICATION supabase_realtime ADD TABLE tasks;
ALTER PUBLICATION supabase_realtime ADD TABLE meeting_activities;
ALTER PUBLICATION supabase_realtime ADD TABLE meeting_files;

Subscribe from the client

Use one dedicated channel per business concern to keep logic decoupled. The following example creates a custom React hook that manages channel subscriptions and cleanup:

// Create a custom Hook to manage Realtime subscriptions
export function useRealtime(meetingId: string, callbacks: RealtimeCallbacks) {

  const channelsRef = useRef<any[]>([])

  const cleanup = useCallback(() => {
    channelsRef.current.forEach((channel) => {
      supabase.removeChannel(channel)
    })
    channelsRef.current = []
  }, [])

  useEffect(() => {
    if (!meetingId) return

    // Clean up previous connections
    cleanup()

    // Subscribe to user presence changes for this meeting
    const presenceChannel = supabase
      .channel(`presence:${meetingId}`)
      .on(
        "postgres_changes",
        {
          event: "*",
          schema: "public",
          table: "user_presence",
          filter: `meeting_id=eq.${meetingId}`,
        },
        (payload) => {
          console.log("User presence change:", payload)
          if (callbacks.onUserPresenceChange) {
            loadOnlineUsers()
          }
        },
      )
      .subscribe()

    // Save channel references for cleanup
    channelsRef.current = [presenceChannel, /* other channels */]
  }, [meetingId, callbacks])

  return { cleanup }
}

Design principles for Realtime subscriptions:

  • Isolate by business concern: Create one channel per scenario (presence, document edits, task notifications) to keep logic decoupled.

  • Filter events: Use the filter parameter (for example, meeting_id=eq.${meetingId}) to limit events to relevant rows and reduce unnecessary traffic.

  • Release resources: Call removeChannel when a component unmounts or the user navigates away. The useEffect cleanup above handles this automatically.

  • Handle errors gracefully: Monitor channel status and implement retry or graceful degradation for disconnections and timeouts.

Step 4: Set up the client

Initialize the Supabase client

Create a shared client instance in lib/supabase.ts:

// lib/supabase.ts
import { createClient } from '@supabase/supabase-js'

const supabaseUrl = process.env.NEXT_PUBLIC_SUPABASE_URL!
const supabaseAnonKey = process.env.NEXT_PUBLIC_SUPABASE_ANON_KEY!

export const supabase = createClient(supabaseUrl, supabaseAnonKey)

// Type definition
export interface Meeting {
  id: string
  created_at: string
  title: string
  description: string | null
}

Configure environment variables

Create .env.local in the project root:

NEXT_PUBLIC_SUPABASE_URL=<YOUR_SUPABASE_PUBLIC_URL>
NEXT_PUBLIC_SUPABASE_ANON_KEY=<YOUR_SUPABASE_ANON_KEY>

Replace the placeholders with values from your PolarDB Supabase application:

PlaceholderValueWhere to find it
<YOUR_SUPABASE_PUBLIC_URL>Public network address of the applicationAI Capabilities > AI Applications — click Application IDTopology tab
<YOUR_SUPABASE_ANON_KEY>Value of secret.jwt.anonKeyAI Capabilities > AI Applications — click Application IDConfiguration tab

Add user authentication

The following example shows sign-in and user profile mapping:

const login = useCallback(async (email: string, password: string) => {
  try {
    const { data, error } = await supabase.auth.signInWithPassword({ email, password })
    if (error) throw error
    if (data.user) {
      const userData = transformSupabaseUser(data.user)
      setUser(userData)
      localStorage.setItem("meeting_user", JSON.stringify(userData))
      return { success: true, user: userData }
    }
    return { success: false, error: 'Login failed' }
  } catch (error: any) {
    return { success: false, error: error.message || 'Login failed' }
  }
}, [])

const transformSupabaseUser = (supabaseUser: SupabaseUser): User => ({
  id: supabaseUser.id,
  email: supabaseUser.email || null,
  name: supabaseUser.user_metadata?.name || supabaseUser.email?.split('@')[0] || 'User',
  avatar_url: supabaseUser.user_metadata?.avatar_url || null,
  created_at: supabaseUser.created_at,
  is_anonymous: supabaseUser.user_metadata?.is_anonymous || false,
})

Step 5: Run the project

  1. Download the sample project: PolarDB-Supabase-App-Demo.

  2. Create .env.local in the project root and add your PolarDB Supabase configuration (see Configure environment variables).

  3. Run the database initialization SQL. Open scripts/01-create-tables.sql, then paste and run it in the SQL Editor in the right-side navigation of the Supabase Dashboard.


  4. Install dependencies and start the project:

    pnpm install
    pnpm dev

    The application is available at http://localhost:3000.

Best practices

Database design:

  • Define foreign key constraints between related tables to enforce data integrity at the database level.

  • Add indexes on frequently filtered columns, such as meeting_id, to support efficient queries.

  • Use JSONB columns for flexible, schema-less data (for example, rich text content in notes.content).

Realtime subscriptions:

  • Separate channels by business concern—presence, document edits, and notifications each get their own channel.

  • Always filter by a specific row identifier (for example, meeting_id) to avoid receiving events for unrelated data.

  • Clean up channels explicitly when components unmount to prevent connection leaks.

Security:

  • Enable RLS on every table before writing application queries.

  • Write the narrowest policy possible. Default to denying access and grant only what each role needs.

  • Use auth.uid() in RLS policies to tie data access to the authenticated user identity.

Deployment:

  • Store all credentials in environment variables. Never hardcode NEXT_PUBLIC_SUPABASE_URL or NEXT_PUBLIC_SUPABASE_ANON_KEY in source code.

  • Test RLS policies in a staging environment before deploying to production.

What's next

  • Explore Edge Functions to add server-side processing. Edge Functions run on Deno with native TypeScript support:

    import { serve } from "https://deno.land/std@0.168.0/http/server.ts"
    import { createClient } from 'https://esm.sh/@supabase/supabase-js@2'

    serve(async (req) => {
      const supabase = createClient(
        Deno.env.get('SUPABASE_URL') ?? '',
        Deno.env.get('SUPABASE_ANON_KEY') ?? ''
      )

      const { data } = await supabase.from('meetings').select('*')
      return new Response(JSON.stringify(data), {
        headers: { 'Content-Type': 'application/json' }
      })
    })
  • Enable the Storage Service to let users attach files to meetings. The sample project uses the meeting-files bucket:

    const { data, error } = await supabase.storage
      .from('meeting-files')
      .upload('document.pdf', file, {
        cacheControl: '3600',
        upsert: false
      })
  • Review the REST API for querying meeting data with joins and GraphQL (Enterprise Edition) for external services:

    const { data, error } = await supabase
      .from('meetings')
      .select('*, notes(*)')
      .eq('id', meetingId)
      .single()
