Container Compute Service:Use the computing power of ACS in ACK Serverless clusters

Prerequisites

Before you begin, ensure that you have:

• Activated the ACK service and completed authorization. For details, see Create an ACK managed cluster

• Activated ACS. Log in to the ACS console and follow the on-screen instructions

• An ACK Serverless Pro cluster running Kubernetes 1.26 or later

• The ACK Virtual Node component installed at the version that matches your cluster's Kubernetes version: If ACK Virtual Node is already at the required version, skip to Schedule pods to ACS computing nodes.

  Kubernetes version	ACK Virtual Node version
  >= 1.26	>= v2.13.0

Update ACK Virtual Node

ACK Serverless Pro clusters have ACK Virtual Node installed by default. Follow these steps to update it to the required version.

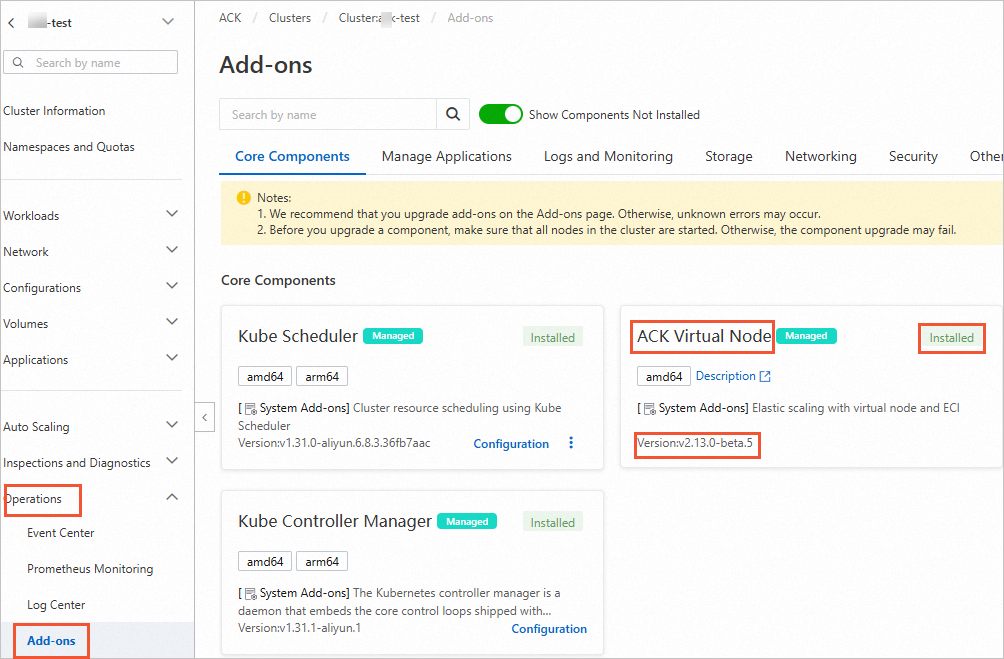

1. On the Clusters page, find your cluster and click its name. In the left-side navigation pane, click Add-ons.

2. On the Core Components tab, find and update ACK Virtual Node.

   Note

   If prompted to activate ACS and complete authorization, follow the on-screen instructions.



Schedule pods to ACS computing nodes

Add labels to a pod to control how it is scheduled to an ACS computing node. The alibabacloud.com/compute-class label directs pod scheduling to the specified ACS compute class. The alibabacloud.com/compute-qos label sets the QoS class for the pod.

The following example creates a Deployment that schedules two nginx pods to ACS computing nodes.

1. Create a file named nginx.yaml with the following content:

   apiVersion: apps/v1
   kind: Deployment
   metadata:
     name: nginx
     labels:
       app: nginx
   spec:
     replicas: 2
     selector:
       matchLabels:
         app: nginx
     template:
       metadata:
         name: nginx
         labels:
           app: nginx
           alibabacloud.com/compute-class: general-purpose # ACS compute class. Default: general-purpose.
           alibabacloud.com/compute-qos: default           # ACS QoS class. Default: default.
       spec:
         containers:
         - name: nginx
           image: registry.openanolis.cn/openanolis/nginx:1.14.1-8.6
           resources:
             limits:
               cpu: 2
             requests:
               cpu: 2

2. Apply the manifest and verify the deployment:

   1. Create the Deployment:

      kubectl apply -f nginx.yaml

      Expected output:

      deployment.apps/nginx created

   2. Check that the pods are running on virtual nodes:

      kubectl get pods -o wide

      Expected output:

      NAME                     READY   STATUS    RESTARTS   AGE   IP              NODE                            NOMINATED NODE   READINESS GATES
      nginx-675c8f56b4-4zczj   1/1     Running   0          25s   192.168.3.220   virtual-kubelet-cn-shanghai-l   <none>           <none>
      nginx-675c8f56b4-dgzvz   1/1     Running   0          25s   192.168.3.219   virtual-kubelet-cn-shanghai-l   <none>           <none>

3. Confirm that ACS pods are created by checking the pod annotations:

   kubectl describe pod nginx-675c8f56b4-4zczj

   In the Annotations section of the output, the alibabacloud.com/instance-id field confirms the pod is running on ACS. The ID begins with acs-.

   Annotations:      ProviderCreate: done
                     alibabacloud.com/client-token: dbaa4a4f-4251-402b-b74c-9f762d******
                     alibabacloud.com/instance-id: acs-uf6008givz7tfq******
                     alibabacloud.com/pod-ephemeral-storage: 30Gi
                     alibabacloud.com/pod-use-spec: 2-2Gi
                     alibabacloud.com/request-id: 7E1F90D3-D1A4-50F3-867A-313B9F******
                     alibabacloud.com/schedule-result: finished
                     alibabacloud.com/user-id: 1488999589******
                     kubernetes.io/pod-stream-port: 10250
                     kubernetes.io/resource-type: serverless
