The real-time diagnosis feature applies when you need to monitor application performance monitored for a short period of time and locate problem causes. This topic describes how to use the real-time diagnosis feature.

Background information

If you need to monitor the performance of an application for a short period of time in specific scenarios, you can use the real-time diagnosis feature. For example, when you release an application or perform stress testing on an application, you can use this feature. After the real-time diagnosis feature is enabled, the system monitors the application for 5 consecutive minutes and reports all the trace data in this period. Then, you can start from the trace that has performance problems, and use features, such as the waterfall charts of method stacks and thread profiling, to locate the problem causes.

Procedure

  1. Log on to the EDAS console.
  2. Perform one of the following operations as needed to go to the application details page:
    • In the left-side navigation pane, choose Resource Management > Container Service Kubernetes Clusters or Resource Management > Serverless Kubernetes Clusters. In the top navigation bar, select a region. In the upper part of the page, select a namespace. On the Container Service Kubernetes Cluster or Serverless Kubernetes Clusters page, click a cluster ID. In the Applications section of the Cluster Details page, click the name of the application for which you want to view the details.
    • In the left-side navigation pane, click Applications. In the top navigation bar, select a region. In the upper part of the page, select a namespace. Select Container Service or Serverless Kubernetes Cluster from the Cluster Type drop-down list and click the application name.
  3. In the left-side navigation pane of the application details page, choose Monitor > Application Diagnosis - Real-time Diagnosis.

Enable and disable real-time diagnostics

The first time you access the Real-time Diagnosis page, real-time diagnostics is automatically enabled. To enable real-time diagnostics in other cases, click Enable real-time diagnosis in the upper-right corner.

Real-time diagnostics is automatically enabled for 5 minutes and then disabled. To disable real-time diagnostics, click Terminate Real-time Diagnosis in the upper-right corner.

View real-time monitoring data

In the Real-time Requests Distribution and Requests by Response Time sections, you can view the statistics of the last 1,000 requests captured as of the current point in time.

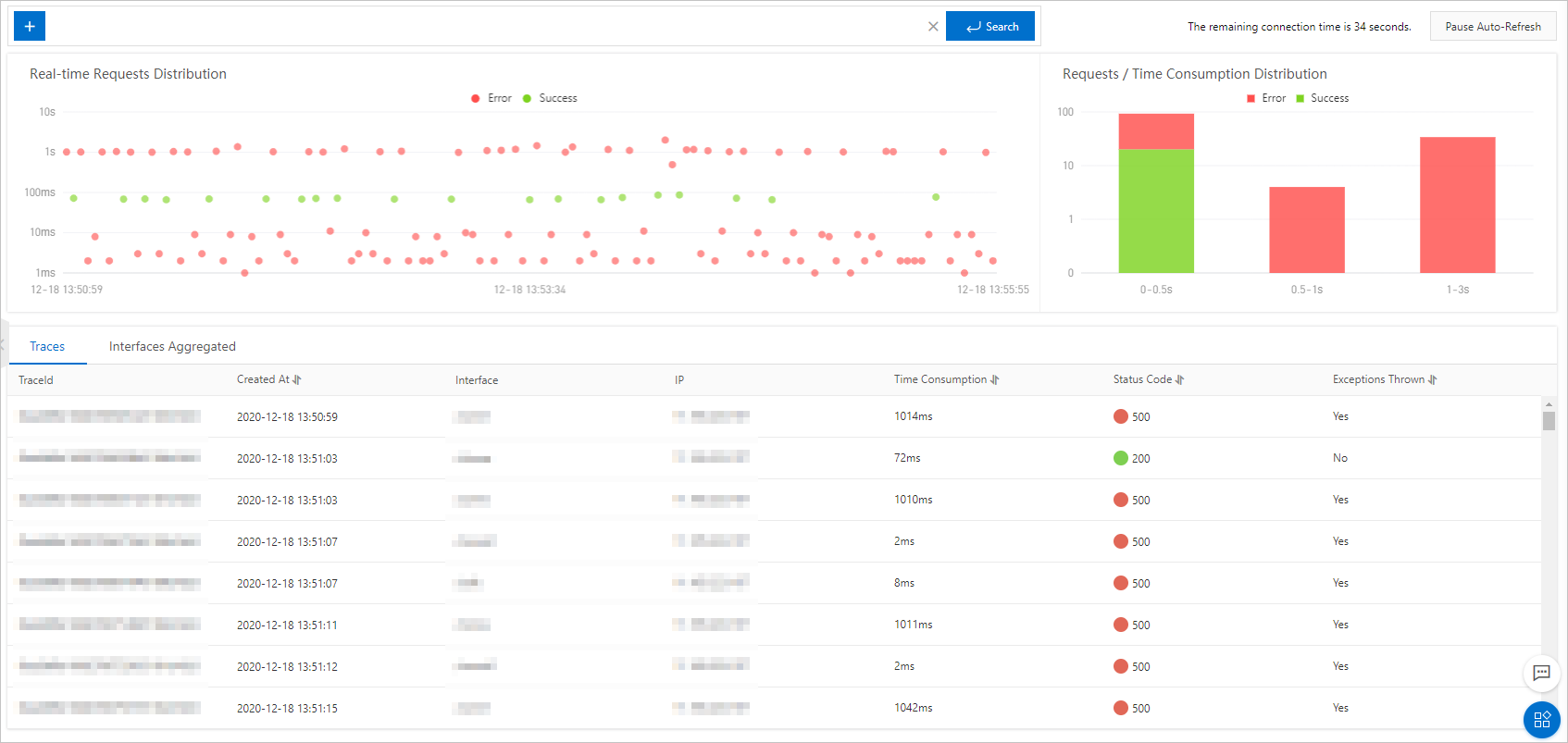

Page Realtime Diagnosis

In the chart of the Real-time Requests Distribution section, select a time range. Data of the selected time range can be set as visible. The chart shows data only within this time range. Click Reset in the upper-right corner of the chart and the default view can be restored.

Expanded Time Range

Filter monitoring data

You can filter request monitoring data displayed on the page by operation name or IP address.

  1. Click the + icon above the Real-time Requests Distribution section.
  2. Select an API operation or IP address from the drop-down list and click Search.
    Only the request monitoring data of the selected operation is displayed on the page.

View information of traces

On the Traces and Interfaces Aggregated tabs, you can view information of all traces captured in the corresponding period. Click a trace ID to access the Link Invocation page. Use the local method stack waterfall chart and thread profiling to identify the causes of exceptions.

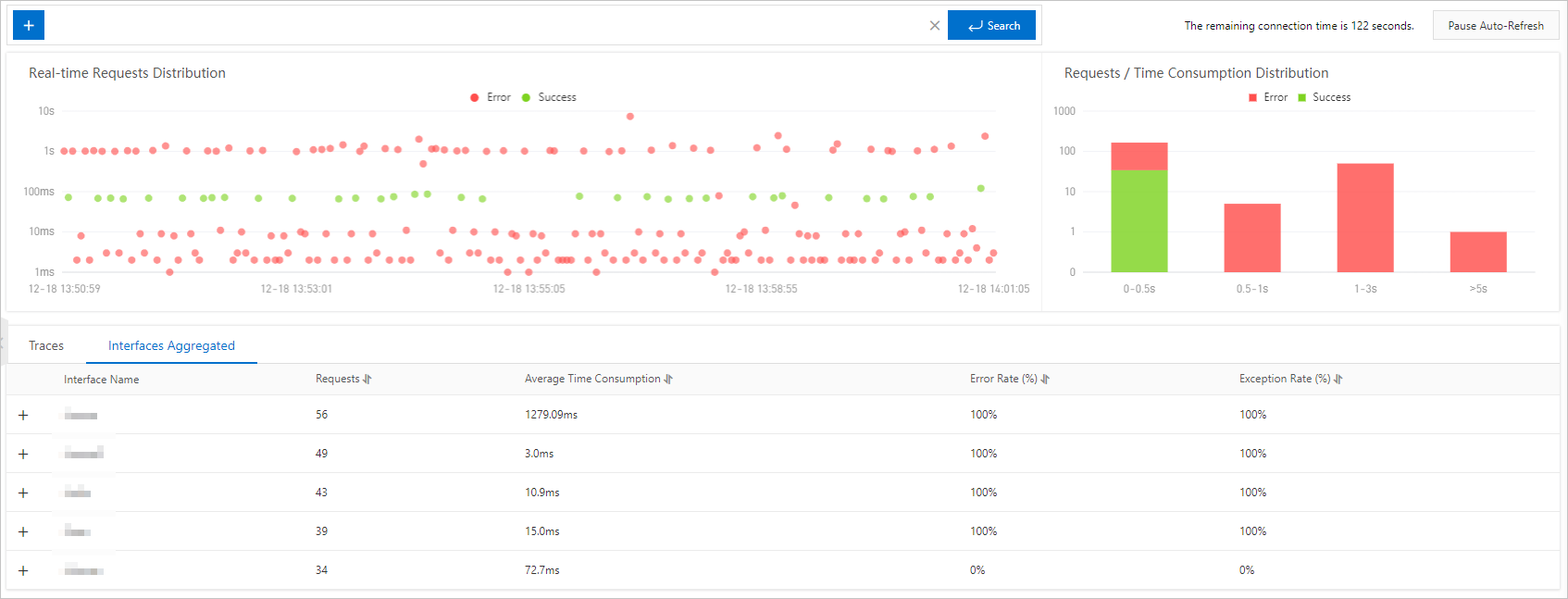

Aggregated by API
