filter組件 - Security Center

功能描述

動作	描述	使用情境
filter	對某個節點的資料進行過濾。	對某個節點的資料進行過濾，篩選出符合規則的資料。

組件配置樣本

本文提供了filter組件各動作的參數配置樣本，您可將其作為測試劇本匯入。通過可視化流程編輯器，能更直觀地瞭解和測試各動作的配置參數，輕鬆掌握組件的功能邏輯與使用方式。操作步驟可參考劇本匯入。

說明

請先將樣本資料儲存為JSON檔案，再匯入編輯器中。

樣本資料

{
    "cells": [
        {
            "position": {
                "x": -770,
                "y": -170
            },
            "size": {
                "width": 36,
                "height": 36
            },
            "attrs": {
                "body": {
                    "fill": "white",
                    "strokeOpacity": 0.95,
                    "stroke": "#63ba4d",
                    "strokeWidth": 2
                },
                "label": {
                    "text": "start",
                    "fontSize": 12,
                    "refX": 0.5,
                    "refY": "100%",
                    "refY2": 4,
                    "textAnchor": "middle",
                    "textVerticalAnchor": "top"
                },
                "path": {
                    "stroke": "#63ba4d"
                }
            },
            "visible": true,
            "shape": "circle",
            "id": "58d87b7d-28d9-4f0e-b135-4adc4f1a70e4",
            "zIndex": 1,
            "data": {
                "nodeType": "startEvent",
                "appType": "basic",
                "nodeName": "start",
                "icon": "icon-circle",
                "description": "劇本開始節點，一個劇本必須有且僅有一個開始節點，需為劇本配置輸入資料。"
            },
            "markup": [
                {
                    "tagName": "circle",
                    "selector": "body"
                },
                {
                    "tagName": "text",
                    "selector": "label"
                }
            ],
            "isNode": true
        },
        {
            "shape": "custom-edge",
            "attrs": {
                "line": {
                    "stroke": "#63ba4d",
                    "targetMarker": {
                        "stroke": "#63ba4d"
                    }
                }
            },
            "zIndex": 1,
            "id": "5293c3f9-e1c9-4a49-b0eb-635067dc67e8",
            "data": {
                "nodeType": "sequenceFlow",
                "appType": "basic",
                "isRequired": true,
                "icon": "icon-upper-right-arrow"
            },
            "isNode": false,
            "source": {
                "cell": "58d87b7d-28d9-4f0e-b135-4adc4f1a70e4"
            },
            "target": {
                "cell": "c1b02b5a-b343-48c9-8e17-984abf6965ed"
            },
            "visible": true,
            "router": {
                "name": "manhattan",
                "args": {
                    "padding": 5,
                    "excludeHiddenNodes": true,
                    "excludeNodes": [
                        "clone_node_id"
                    ]
                }
            },
            "vertices": [
            ]
        },
        {
            "position": {
                "x": 80,
                "y": -170
            },
            "size": {
                "width": 36,
                "height": 36
            },
            "attrs": {
                "body": {
                    "fill": "white",
                    "strokeOpacity": 0.95,
                    "stroke": "#63ba4d",
                    "strokeWidth": 2
                },
                "path": {
                    "r": 12,
                    "refX": "50%",
                    "refY": "50%",
                    "fill": "#63ba4d",
                    "strokeOpacity": 0.95,
                    "stroke": "#63ba4d",
                    "strokeWidth": 4
                },
                "label": {
                    "text": "end",
                    "fontSize": 12,
                    "refX": 0.5,
                    "refY": "100%",
                    "refY2": 4,
                    "textAnchor": "middle",
                    "textVerticalAnchor": "top"
                }
            },
            "visible": true,
            "shape": "circle",
            "id": "317dd1be-2d20-460e-977e-1fc936ffb583",
            "zIndex": 1,
            "data": {
                "nodeType": "endEvent",
                "appType": "basic",
                "nodeName": "end",
                "icon": "icon-radio-off-full",
                "description": "end"
            },
            "markup": [
                {
                    "tagName": "circle",
                    "selector": "body"
                },
                {
                    "tagName": "circle",
                    "selector": "path"
                },
                {
                    "tagName": "text",
                    "selector": "label"
                }
            ],
            "isNode": true
        },
        {
            "position": {
                "x": -380,
                "y": -185
            },
            "size": {
                "width": 137,
                "height": 66
            },
            "view": "react-shape-view",
            "attrs": {
                "label": {
                    "text": "filter"
                }
            },
            "shape": "activity",
            "id": "41ac8fbf-0390-4b1c-9d44-b91150a607a3",
            "data": {
                "componentName": "filter",
                "appType": "component",
                "nodeType": "action",
                "icon": "https://img.alicdn.com/imgextra/i3/O1CN01zYP1Bk1msd4DgMiBa_!!6000000005010-55-tps-22-22.svg",
                "ownType": "sys",
                "zIndex": 1,
                "customInput": false,
                "operateType": "general",
                "name": "filter",
                "nodeName": "filter",
                "actionName": "filter",
                "actionDisplayName": "filter",
                "cascaderValue": [
                    {
                        "label": "DataFormat",
                        "value": "${DataFormat}",
                        "children": [
                            {
                                "label": "DataFormat.total_data_with_dup",
                                "name": "DataFormat.total_data_with_dup",
                                "value": "${DataFormat.total_data_with_dup}"
                            },
                            {
                                "label": "DataFormat.datalist.*.name",
                                "name": "DataFormat.datalist.*.name",
                                "value": "${DataFormat.datalist.*.name}"
                            },
                            {
                                "label": "DataFormat.total_exe_successful",
                                "name": "DataFormat.total_exe_successful",
                                "value": "${DataFormat.total_exe_successful}"
                            },
                            {
                                "label": "DataFormat.total_data",
                                "name": "DataFormat.total_data",
                                "value": "${DataFormat.total_data}"
                            },
                            {
                                "label": "DataFormat.total_exe",
                                "name": "DataFormat.total_exe",
                                "value": "${DataFormat.total_exe}"
                            },
                            {
                                "label": "DataFormat.status",
                                "name": "DataFormat.status",
                                "value": "${DataFormat.status}"
                            },
                            {
                                "label": "DataFormat.total_data_successful",
                                "name": "DataFormat.total_data_successful",
                                "value": "${DataFormat.total_data_successful}"
                            }
                        ]
                    }
                ],
                "valueData": {
                    "upstreamNode": "DataFormat",
                    "condition": "{\"condition\":\"AND\",\"rules\":[{\"field\":\"${DataFormat.datalist.*.name}\",\"value\":[\"test1\"],\"match\":\"is\",\"type\":\"string\",\"valueSource\":\"value\"}]}"
                },
                "status": "success"
            },
            "zIndex": 1
        },
        {
            "shape": "custom-edge",
            "attrs": {
                "line": {
                    "stroke": "#63ba4d",
                    "targetMarker": {
                        "stroke": "#63ba4d"
                    }
                }
            },
            "zIndex": 1,
            "id": "3e5126c8-61ce-4582-9fcd-49e3fca844ea",
            "data": {
                "nodeType": "sequenceFlow",
                "appType": "basic",
                "isRequired": true,
                "icon": "icon-upper-right-arrow"
            },
            "isNode": false,
            "visible": true,
            "router": {
                "name": "manhattan",
                "args": {
                    "padding": 5,
                    "excludeHiddenNodes": true,
                    "excludeNodes": [
                        "clone_node_id"
                    ]
                }
            },
            "source": {
                "cell": "41ac8fbf-0390-4b1c-9d44-b91150a607a3"
            },
            "target": {
                "cell": "437f1a16-609f-40d9-9ac8-5d9bd8aeafcd"
            },
            "vertices": [
            ]
        },
        {
            "position": {
                "x": -165,
                "y": -185
            },
            "size": {
                "width": 137,
                "height": 66
            },
            "view": "react-shape-view",
            "attrs": {
                "label": {
                    "text": "DataFormat_2"
                }
            },
            "shape": "activity",
            "id": "437f1a16-609f-40d9-9ac8-5d9bd8aeafcd",
            "data": {
                "componentName": "DataFormat",
                "appType": "component",
                "nodeType": "action",
                "icon": "https://sophon-gen-v2.oss-cn-zhangjiakou.aliyuncs.com/componentUpload/1719222281702_DataFormat_logo.png?Expires=1745654600&OSSAccessKeyId=STS. NXW5************&Signature=j5SXLh%2Fw5b4PhkhzWa%2FWgl%2BGWRQ%3D&security-token=CAIS2AJ1q6Ft5B2yfSjIr5vifvv6269M2bWOYV%2FojmsWNLhPgrXsiTz2IHhMenFpAegcv%2Fw%2BlGFZ6%2F8elrp6SJtIXleCZtF94oxN9h2gb4fb40Y6HzyK0s%2FLI3OaLjKm9u2wCryLYbGwU%2FOpbE%2B%2B5U0X6LDmdDKkckW4OJmS8%2FBOZcgWWQ%2FKBlgvRq0hRG1YpdQdKGHaONu0LxfumRCwNkdzvRdmgm4NgsbWgO%2Fks0OP3AOrlrBN%2Bdiuf8T9NvMBZskvD42Hu8VtbbfE3SJq7BxHybx7lqQs%2B02c5onDWwAJu0%2FXa7uEo4wydVNjFbM9A65Dqufxn%2Fpgt%2Braj4X7xhhEIOVJSSPbSZBbSxJNvU1RXDxQVcEYWxylurjnXvF%2Bo58zxrcUGin%2B2svzhw6RGJ1dq8DgINtD0jokjPndRVbLXs84nxS7gbsGn76oY2zradH%2FdU4J6tvBMytAXxqAAYb6jxZjLe7TMmktKoKJDPNYGnTAeViZJKpduCT2k7DBuEUN%2B%2B8fsvmMKsLLycLOYmqBqU%2FB4%2Fdy5Muz%2B6WDAQFoEDgzB17wouEZsoQG5EoCHljEH6DBajdzaAaISFedQrIaeBqEJIrLqLMKQlSqas3HEp8VqOaseKoWLb5PDxTGIAA%3D",
                "ownType": "sys",
                "zIndex": 1,
                "tenantId": "baba",
                "customInput": false,
                "description": "產生一個新的資料",
                "id": 0,
                "name": "formatdata",
                "operateType": "general",
                "output": [
                ],
                "parameters": [
                    {
                        "dataType": "Complex",
                        "defaultValue": "",
                        "description": "要轉換產生的資料",
                        "enDescription": "",
                        "name": "outputFields",
                        "needCascader": false,
                        "required": false,
                        "tags": ""
                    }
                ],
                "riskLevel": 2,
                "nodeName": "DataFormat_2",
                "actionName": "formatdata",
                "actionDisplayName": "formatdata",
                "cascaderValue": [
                    {
                        "label": "filter_1",
                        "value": "${filter_1}",
                        "children": [
                            {
                                "label": "filter_1.failedReason",
                                "name": "filter_1.failedReason",
                                "value": "${filter_1.failedReason}"
                            },
                            {
                                "label": "filter_1.total_exe_successful",
                                "name": "filter_1.total_exe_successful",
                                "value": "${filter_1.total_exe_successful}"
                            },
                            {
                                "label": "filter_1.status",
                                "name": "filter_1.status",
                                "value": "${filter_1.status}"
                            },
                            {
                                "label": "filter_1.filter_total_data_successful",
                                "name": "filter_1.filter_total_data_successful",
                                "value": "${filter_1.filter_total_data_successful}"
                            },
                            {
                                "label": "filter_1.total_data_successful",
                                "name": "filter_1.total_data_successful",
                                "value": "${filter_1.total_data_successful}"
                            },
                            {
                                "label": "filter_1.total_data_with_dup",
                                "name": "filter_1.total_data_with_dup",
                                "value": "${filter_1.total_data_with_dup}"
                            },
                            {
                                "label": "filter_1.filter_total_data",
                                "name": "filter_1.filter_total_data",
                                "value": "${filter_1.filter_total_data}"
                            },
                            {
                                "label": "filter_1.total_data",
                                "name": "filter_1.total_data",
                                "value": "${filter_1.total_data}"
                            },
                            {
                                "label": "filter_1.total_exe",
                                "name": "filter_1.total_exe",
                                "value": "${filter_1.total_exe}"
                            }
                        ]
                    },
                    {
                        "label": "DataFormat",
                        "value": "${DataFormat}",
                        "children": [
                        ]
                    }
                ],
                "valueData": {
                    "outputFields": "[{\"fieldName\":\"name\",\"fieldValue\":\"${filter.datalist.*.name}\"}]"
                },
                "status": "success"
            },
            "zIndex": 1
        },
        {
            "shape": "custom-edge",
            "attrs": {
                "line": {
                    "stroke": "#63ba4d",
                    "targetMarker": {
                        "stroke": "#63ba4d"
                    }
                }
            },
            "zIndex": 1,
            "id": "b299b622-6607-4284-b05d-aa8339eee601",
            "data": {
                "nodeType": "sequenceFlow",
                "appType": "basic",
                "isRequired": true,
                "icon": "icon-upper-right-arrow"
            },
            "isNode": false,
            "visible": true,
            "router": {
                "name": "manhattan",
                "args": {
                    "padding": 5,
                    "excludeHiddenNodes": true,
                    "excludeNodes": [
                        "clone_node_id"
                    ]
                }
            },
            "source": {
                "cell": "437f1a16-609f-40d9-9ac8-5d9bd8aeafcd"
            },
            "target": {
                "cell": "317dd1be-2d20-460e-977e-1fc936ffb583"
            },
            "vertices": [
            ]
        },
        {
            "position": {
                "x": -610,
                "y": -190
            },
            "size": {
                "width": 137,
                "height": 66
            },
            "view": "react-shape-view",
            "attrs": {
                "label": {
                    "text": "DataFormat"
                }
            },
            "shape": "activity",
            "id": "c1b02b5a-b343-48c9-8e17-984abf6965ed",
            "data": {
                "componentName": "DataFormat",
                "appType": "component",
                "nodeType": "action",
                "icon": "https://sophon-gen-v2.oss-cn-zhangjiakou.aliyuncs.com/componentUpload/1719222281702_DataFormat_logo.png?Expires=1745654600&OSSAccessKeyId=STS. NXW5************&Signature=j5SXLh%2Fw5b4PhkhzWa%2FWgl%2BGWRQ%3D&security-token=CAIS2AJ1q6Ft5B2yfSjIr5vifvv6269M2bWOYV%2FojmsWNLhPgrXsiTz2IHhMenFpAegcv%2Fw%2BlGFZ6%2F8elrp6SJtIXleCZtF94oxN9h2gb4fb40Y6HzyK0s%2FLI3OaLjKm9u2wCryLYbGwU%2FOpbE%2B%2B5U0X6LDmdDKkckW4OJmS8%2FBOZcgWWQ%2FKBlgvRq0hRG1YpdQdKGHaONu0LxfumRCwNkdzvRdmgm4NgsbWgO%2Fks0OP3AOrlrBN%2Bdiuf8T9NvMBZskvD42Hu8VtbbfE3SJq7BxHybx7lqQs%2B02c5onDWwAJu0%2FXa7uEo4wydVNjFbM9A65Dqufxn%2Fpgt%2Braj4X7xhhEIOVJSSPbSZBbSxJNvU1RXDxQVcEYWxylurjnXvF%2Bo58zxrcUGin%2B2svzhw6RGJ1dq8DgINtD0jokjPndRVbLXs84nxS7gbsGn76oY2zradH%2FdU4J6tvBMytAXxqAAYb6jxZjLe7TMmktKoKJDPNYGnTAeViZJKpduCT2k7DBuEUN%2B%2B8fsvmMKsLLycLOYmqBqU%2FB4%2Fdy5Muz%2B6WDAQFoEDgzB17wouEZsoQG5EoCHljEH6DBajdzaAaISFedQrIaeBqEJIrLqLMKQlSqas3HEp8VqOaseKoWLb5PDxTGIAA%3D",
                "ownType": "sys",
                "zIndex": 1,
                "tenantId": "baba",
                "customInput": false,
                "description": "把輸入資料轉換為JSON類型的。如果是JSONArray，則把所有的數組直接放到datalist中。如果是JSONObject，則作為datalist的一行資料",
                "id": 0,
                "name": "convertToJSON",
                "operateType": "general",
                "parameters": [
                    {
                        "dataType": "Text",
                        "defaultValue": "",
                        "description": "輸入資料",
                        "name": "inputData",
                        "needCascader": false,
                        "required": false
                    }
                ],
                "riskLevel": 2,
                "nodeName": "DataFormat",
                "actionName": "convertToJSON",
                "actionDisplayName": "convertToJSON",
                "cascaderValue": [
                ],
                "valueData": {
                    "inputData": "[{\"name\":\"test\"},{\"name\":\"test1\"}]"
                },
                "status": "success"
            },
            "zIndex": 1
        },
        {
            "shape": "custom-edge",
            "attrs": {
                "line": {
                    "stroke": "#63ba4d",
                    "targetMarker": {
                        "stroke": "#63ba4d"
                    }
                }
            },
            "zIndex": 1,
            "id": "d87ef9c5-9ce1-4a0a-81c3-5bbb1fc22c6a",
            "data": {
                "nodeType": "sequenceFlow",
                "appType": "basic",
                "isRequired": true,
                "icon": "icon-upper-right-arrow"
            },
            "isNode": false,
            "visible": true,
            "router": {
                "name": "manhattan",
                "args": {
                    "padding": 5,
                    "excludeHiddenNodes": true,
                    "excludeNodes": [
                        "clone_node_id"
                    ]
                }
            },
            "source": {
                "cell": "c1b02b5a-b343-48c9-8e17-984abf6965ed"
            },
            "target": {
                "cell": "41ac8fbf-0390-4b1c-9d44-b91150a607a3"
            },
            "vertices": [
            ]
        }
    ]
}

filter

將合格資料，傳入下個節點。

參數說明

參數	說明
選擇節點	要過濾資料的節點。
條件	支援多組合條件，預設為一個條件組。

條件配置說明

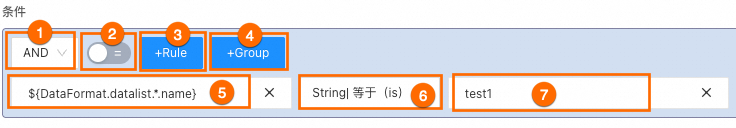

SOAR提供了可視化頁面來配置filter組件的條件規則，介面說明如下：

序號	說明
1-邏輯運算子	AND：所有的條件都要滿足。 OR：滿足條件之一即可。重要邏輯運算子只能決定同一組內部的不同規則的邏輯關係。
2-取反開關	對當前組的條件判斷取反。
3-增加組內規則	增加組內一條規則，組內多條規則的邏輯關係由左上方1-邏輯運算子決定。
4-增加條件組	單擊增加一組篩選條件。重要不同組之間的條件固定為AND的關係，不受1-邏輯運算子影響。
5-條件欄位	支援輸入運算式、常量，通常為前置節點的輸出欄位。
6-條件判斷規則	支援字串（String）、數字（Number）、觀察列表（Dataset）的IN、=等操作。具體說明參考下文filter組件。
7-條件值	支援輸入運算式、常量。

條件判斷規則說明

規則名稱	規則說明	備忘
NOT IN IP Dataset	不在IP觀察列表中。	觀察列表需要在“Security Center-Agentic SOC-接入中心-觀察列表”中配置後才可以選擇。
IN IP Dataset	在IP觀察列表中。
NOT IN Dataset	不在觀察列表中。
IN Dataset	在觀察列表中。
String\| 等於	等於。	無
String\| 不等於	不等於。	無
String\| 包含	包含。	樣本：abc 包含 bc。
String\| 不包含	不包含。	樣本：abc 不包含 d。
String\| 以此開頭	以此開頭。	樣本：abc 以 ab 開頭。
String\| 以此結尾	以此結尾。	樣本：abc 以 bc結尾。
String\| 不以此結尾	不以此結尾。	樣本：abc 不以 ab結尾。
String\| 正則匹配	正則匹配。	樣本：abcabc 匹配 (abc)+。
String\| 非正則匹配	非正則匹配。	樣本：abab 不匹配 (abc)+。
String\| 為空白	是Null 字元串。	Null 字元串、null、NULL都認為是Null 字元串。
String\| 不為空白	不是Null 字元串。	無
Number\| 等於	等於。	無
Number\| 不等於	不等於。	無
Number\| 大於	大於。	無
Number\| 大於等於	大於等於。	無
Number\| 小於	小於。	無
Number\| 小於等於	小於等於。	無
Number\| 範圍	數字條件值是否字在配置範圍內。格式為“數值,數值”。	樣本：1處於 -1,5的範圍。

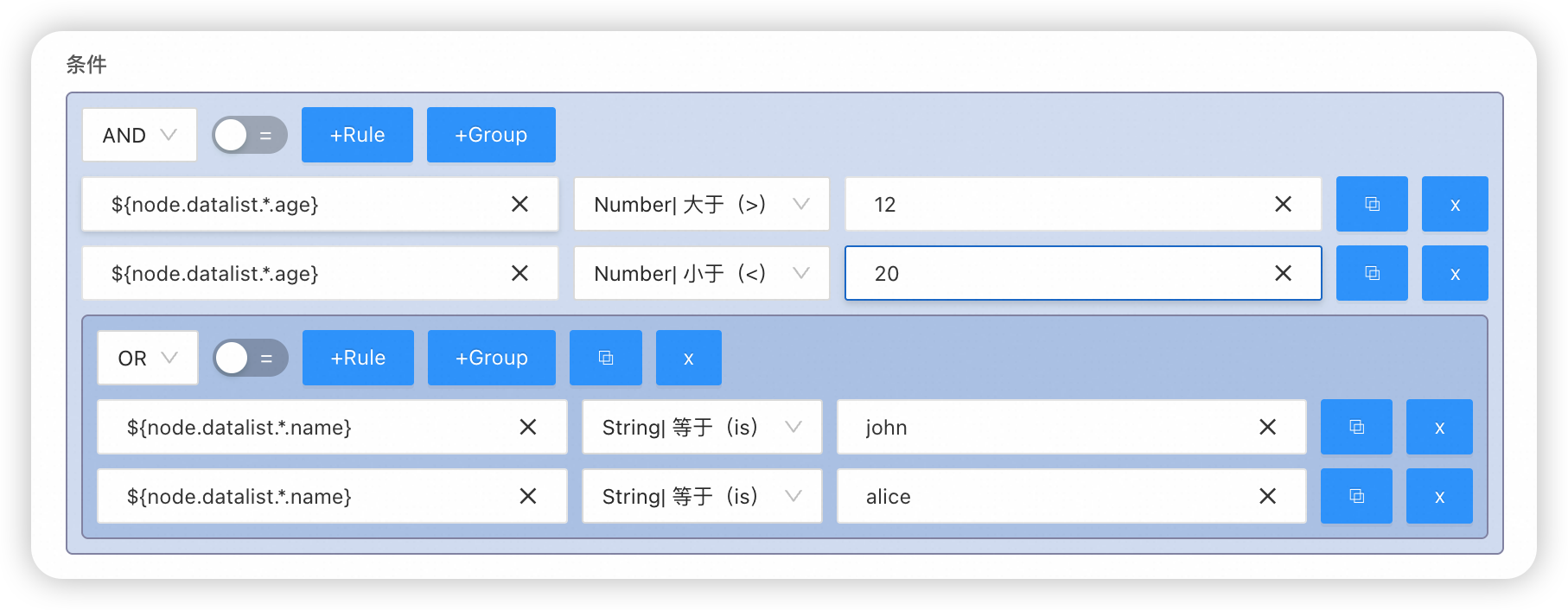

條件配置樣本

外層使用 AND 邏輯組，添加兩條規則：欄位路徑為 ${node.datalist.*.age}，類型 Number，運算子分別為大於（>）和小於（<）；內嵌一個 OR 邏輯子組，添加兩條規則：欄位路徑為 ${node.datalist.*.name}，類型 String，運算子均為等於（is）。

以上圖為例，當node節點中name為john或alice且age在 12 到 20 之間（含邊界值）將判定為符合條件。
