ApsaraVideo Live：Android SDK整合

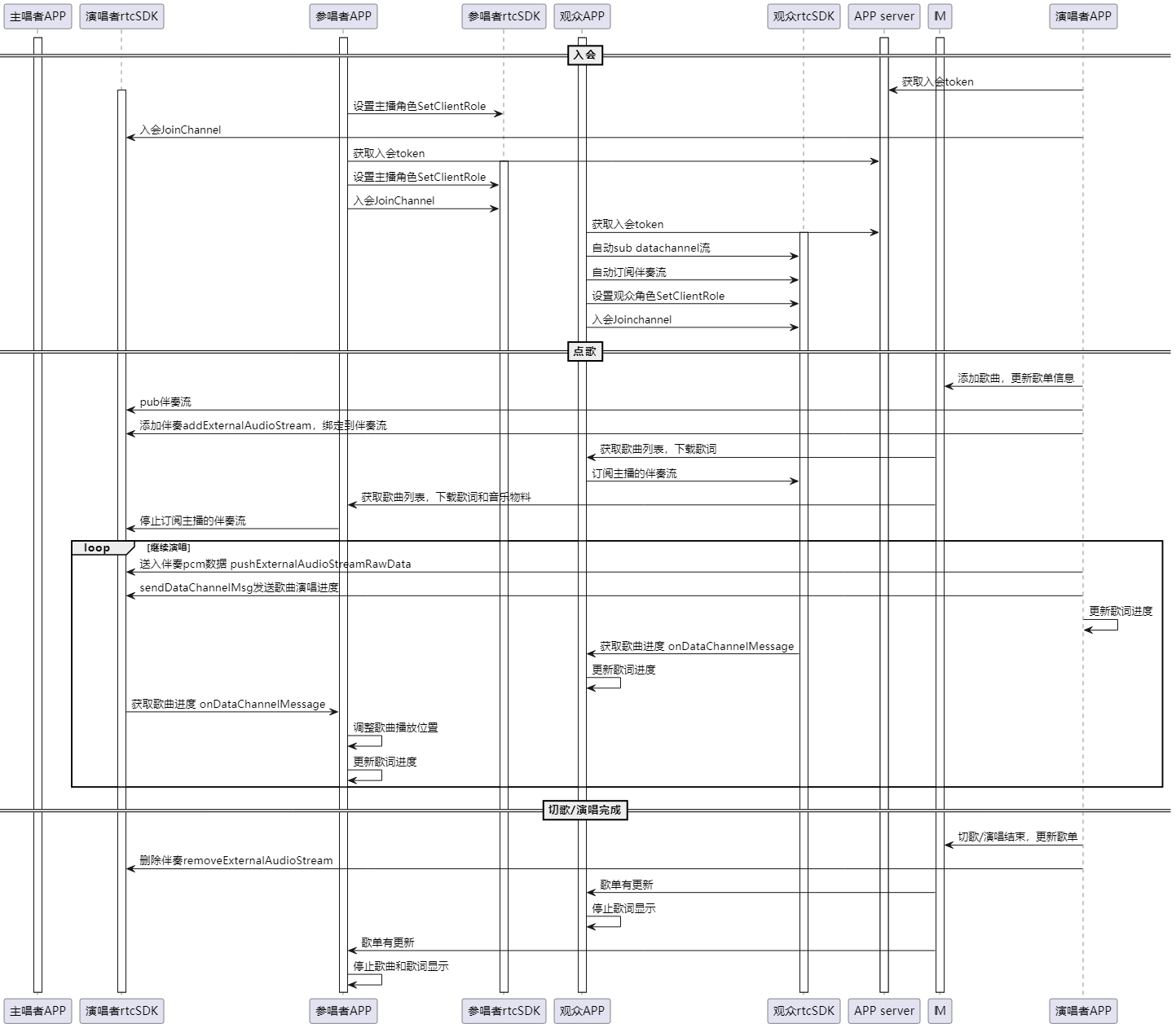

功能時序圖

使用自研播放器播放音樂

使用ARTC解碼和播放音樂

如果您需要使用即時音視頻ARTC解碼和播放音樂，請提交工單諮詢。關於如何提交工單，請參見聯絡我們。

主播建立房間

mAliRtcEngine.setChannelProfile(AliRTCSdkInteractiveLive);
mAliRtcEngine.setClientRole(AliRTCSdkInteractive);
/* 使用高音質和ktv情境 */
mAliRtcEngine.setAudioProfile(AliRtcEngineHighQualityMode, AliRtcSceneKtvMode);
//auto pub
mAliRtcEngine.publishLocalAudioStream(true);

/* 設定回調的監聽 */
mAliRtcEngine.setRtcEngineEventListener(this);

//auto sub
mAliRtcEngine.setDefaultSubscribeAllRemoteAudioStreams(true);
mAliRtcEngine.subscribeAllRemoteAudioStreams(true);
mAliRtcEngine.setAudioOnlyMode(true);

mAliRtcEngine.enableSpeakerphone(true);
JSONObject tokenv2 = new JSONObject();
tokenv2.put("appid", userInfo.appId);
tokenv2.put("channelid", userInfo.channelId);
tokenv2.put("userid", userInfo.userId);
tokenv2.put("nonce", userInfo.nonce);
tokenv2.put("timestamp", userInfo.timestamp);
tokenv2.put("gslb",userInfo.gslb);
tokenv2.put("token", userInfo.token);
String base64TokenV2 = Base64.encodeToString(JSON.toJSONBytes(tokenv2),Base64.NO_WRAP);
/* 入會 */
mAliRtcEngine.joinChannel(base64TokenV2, null, null, mUsername);
/* 開啟datachannel 用於接受歌曲進度 */
String param = "\"data\":{\"enablePubDataChannel\":true" + ",\"enableSubDataChannel\":true}";
param = "{" + param + "}";
mAliRtcEngine.setParameter(param);

觀眾進入房間

mAliRtcEngine.setChannelProfile(AliRTCSdkInteractiveLive);
mAliRtcEngine.setClientRole(AliRTCSdkLive);
/* 使用高音質和ktv情境 */
mAliRtcEngine.setAudioProfile(AliRtcEngineHighQualityMode, AliRtcSceneKtvMode);
//auto pub
mAliRtcEngine.publishLocalAudioStream(true);

/* 設定回調的監聽 */
mAliRtcEngine.setRtcEngineEventListener(this);

//auto sub
mAliRtcEngine.setDefaultSubscribeAllRemoteAudioStreams(true);
mAliRtcEngine.subscribeAllRemoteAudioStreams(true);
/* 觀眾需要訂閱伴奏流 */
mAliRtcEngine.subscribeAllRemoteDualAudioStreams(true);

mAliRtcEngine.setAudioOnlyMode(true);

mAliRtcEngine.enableSpeakerphone(true);
JSONObject tokenv2 = new JSONObject();
tokenv2.put("appid", userInfo.appId);
tokenv2.put("channelid", userInfo.channelId);
tokenv2.put("userid", userInfo.userId);
tokenv2.put("nonce", userInfo.nonce);
tokenv2.put("timestamp", userInfo.timestamp);
tokenv2.put("gslb",userInfo.gslb);
tokenv2.put("token", userInfo.token);
String base64TokenV2 = Base64.encodeToString(JSON.toJSONBytes(tokenv2),Base64.NO_WRAP);
/* 入會 */
mAliRtcEngine.joinChannel(base64TokenV2, null, null, mUsername);
/* 開啟datachannel 用於接受歌曲進度 */
String param = "\"data\":{\"enablePubDataChannel\":true" + ",\"enableSubDataChannel\":true}";
param = "{" + param + "}";
mAliRtcEngine.setParameter(param);

主播點歌

1. 添加伴奏流並建立pcm輸入。

   mAliRtcEngine.publishLocalDualAudioStream(true);
   AliRtcEngine.AliRtcExternalAudioStreamConfig config = new AliRtcEngine.AliRtcExternalAudioStreamConfig();
   config.sampleRate = sampleRate;
   config.channels = channels;
   /* 伴奏音樂本地播放的音量，如果需要rtc sdk來實現播放，可以設定該值 */
   config.playoutVolume = 60;
   config.publishVolume = 100;
   config.publishStream = 1; // 指定通過伴奏流推送
   int externalAudioStreamId = aliRtcEngine.addExternalAudioStream(config);

2. 準備好物料檔案之後，持續解碼輸入pcm資料。

   /* ... 持續送入pcm資料... */
   AliRtcEngine.AliRtcAudioFrame sample = new AliRtcEngine.AliRtcAudioFrame();
   sample.data = buffer;
   sample.numSamples = numSamples;
   sample.numChannels = channels;
   sample.sampleRate = sampleRate;
   sample.bytesPerSample = bytesPerSample;
   int ret = aliRtcEngine.pushExternalAudioStreamRawData(externalAudioStreamId, sample);

3. 輸入pcm資料的同時，更新進度。

   AliRtcEngine.AliRtcDataChannelMsg msg = new AliRtcEngine.AliRtcDataChannelMsg();
   msg.type = AliRtcEngine.AliRtcDataMsgType.AliEngineDataMsgMusicProgress;
   msg.networkTime = mAliRtcEngine.getNetworkTime();
   msg.progress = progress;

   mAliRtcEngine.sendDataChannelMsg(msg);

觀眾擷取進度更新歌詞

public void onDataChannelMessage(String uid, AliRtcEngine.AliRtcDataChannelMsg controlMsg) {
    super.onDataChannelMessage(uid, controlMsg);
    Log.d(TAG, "datachannel type=" + controlMsg.type + ", time=" + controlMsg.networkTime + ", progress=" + controlMsg.progress);
    /* 更新進度到controlMsg.progress */
}

觀眾上麥成為參唱者

/* 參與演唱不需要訂閱伴奏流，本地播放 */
mAliRtcEngine.subscribeAllRemoteDualAudioStreams(false);
mAliRtcEngine.setClientRole(AliRTCSdkInteractive);

參唱者接受進度更新播放位置

public void onDataChannelMessage(String uid, AliRtcEngine.AliRtcDataChannelMsg controlMsg) {
    super.onDataChannelMessage(uid, controlMsg);
    Log.d(TAG, "datachannel type=" + controlMsg.type + ", time=" + controlMsg.networkTime + ", progress=" + controlMsg.progress);
    /* 進度需要加上 傳輸耗時，做到伴奏精準同步 */
    long div = mAliRtcEngine.getNetworkTime() - controlMsg.networkTime；
    long progress = controlMsg.progress + div;
    /* 更新歌曲播放進度到progress */
}

參唱者下麥成為觀眾

/* 觀眾需要訂閱遠端的流來播放伴奏 */
mAliRtcEngine.subscribeAllRemoteDualAudioStreams(true);
mAliRtcEngine.setClientRole(AliRTCSdkLive);

主播切歌

mAliRtcEngine.removeExternalAudioStream(externalAudioStreamId);
/* 停止伴奏流 */
mAliRtcEngine.publishLocalDualAudioStream(true);
/* 停止歌曲解碼 、IM通知其他人 */
