為使用Istio的服務掛載Java探針 - Application Real-Time Monitoring Service

ack-onepilot組件需要在應用啟動前通過init-container為Java應用提前準備ARMS探針，在同時使用ack-onepilot與Istio時，由於Istio環境中網路設定與普通叢集中有差異，請按照本文升級ack-onepilot組件或對低版本ack-onepilot進行一些額外的配置。

步驟一：安裝ack-onepilot組件

ACK叢集安裝操作，請參見Container ServiceACK和容器計算服務ACS通過ack-onepilot組件安裝Java探針。
ACK One註冊叢集安裝操作，請參見將應用即時監控服務ARMS接入註冊叢集。
通用Kubernetes環境安裝操作，請參見通用Kubernetes環境自動安裝探針。

重要

將ack-onepilot升級至最新版本（3.0.19及以上版本）可自動修改istio-proxy攔截配置，此時無需執行步驟二。升級操作，請參見管理組件。
如果您想關閉ack-onepilot自動修改istio-proxy攔截配置的能力，可以將ack-onepilot升級到4.1.2及以上版本，同時設定為false，步驟如下：
1. 登入Container Service管理主控台，在左側導覽列選擇叢集列表。
2. 在叢集列表頁面，單擊目的地組群名稱，然後在左側導覽列，選擇工作負載 > 無狀態。
3. 在無狀態頁面單擊ack-onepilot組件（一般在ack-onepilot命名空間下，名稱為ack-onepilot-ack-onepilot）。
4. 在ack-onepilot-ack-onepilot頁面右上方單擊編輯，然後設定ARMS_ISTIO_AUTO_INJECT_ENABLE環境變數為false。

步驟二：修改istio-proxy攔截配置

將以下VIP網段通過英文半形逗號（,）分隔的方式配置到Pod的Annotation上。

展開查看istio-proxy不攔截的網段

Region	Region ID	VPC網路Endpoint	VIP網段
華東1（杭州）	oss-cn-hangzhou	oss-cn-hangzhou-internal.aliyuncs.com	100.118.28.0/24 100.114.102.0/24 100.98.170.0/24 100.118.31.0/24
華東2（上海）	oss-cn-shanghai	oss-cn-shanghai-internal.aliyuncs.com	100.98.35.0/24 100.98.110.0/24 100.98.169.0/24 100.118.102.0/24
華北1（青島）	oss-cn-qingdao	oss-cn-qingdao-internal.aliyuncs.com	100.115.173.0/24 100.99.113.0/24 100.99.114.0/24 100.99.115.0/24
華北2（北京）	oss-cn-beijing	oss-cn-beijing-internal.aliyuncs.com	100.118.58.0/24 100.118.167.0/24 100.118.170.0/24 100.118.171.0/24 100.118.172.0/24 100.118.173.0/24
華北 3（張家口）	oss-cn-zhangjiakou	oss-cn-zhangjiakou-internal.aliyuncs.com	100.118.90.0/24 100.98.159.0/24 100.114.0.0/24 100.114.1.0/24
華北5（呼和浩特）	oss-cn-huhehaote	oss-cn-huhehaote-internal.aliyuncs.com	100.118.195.0/24 100.99.110.0/24 100.99.111.0/24 100.99.112.0/24
華北6（烏蘭察布）	oss-cn-wulanchabu	oss-cn-wulanchabu-internal.aliyuncs.com	100.114.11.0/24 100.114.12.0/24 100.114.100.0/24 100.118.214.0/24
華南1（深圳）	oss-cn-shenzhen	oss-cn-shenzhen-internal.aliyuncs.com	100.118.78.0/24 100.118.203.0/24 100.118.204.0/24 100.118.217.0/24
華南2（河源）	oss-cn-heyuan	oss-cn-heyuan-internal.aliyuncs.com	100.98.83.0/24 100.118.174.0/24
華南3（廣州）	oss-cn-guangzhou	oss-cn-guangzhou-internal.aliyuncs.com	100.115.33.0/24 100.114.101.0/24
西南1（成都）	oss-cn-chengdu	oss-cn-chengdu-internal.aliyuncs.com	100.115.155.0/24 100.99.107.0/24 100.99.108.0/24 100.99.109.0/24
中國香港	oss-cn-hongkong	oss-cn-hongkong-internal.aliyuncs.com	100.115.61.0/24 100.99.103.0/24 100.99.104.0/24 100.99.106.0/24
日本（東京）	oss-ap-northeast-1	oss-ap-northeast-1-internal.aliyuncs.com	100.114.211.0/24 100.114.114.0/25
新加坡	oss-ap-southeast-1	oss-ap-southeast-1-internal.aliyuncs.com	100.118.219.0/24 100.99.213.0/24 100.99.116.0/24 100.99.117.0/24
馬來西亞（吉隆坡）	oss-ap-southeast-3	oss-ap-southeast-3-internal.aliyuncs.com	100.118.165.0/24 100.99.125.0/24 100.99.130.0/24 100.99.131.0/24
印尼（雅加達）	oss-ap-southeast-5	oss-ap-southeast-5-internal.aliyuncs.com	100.114.98.0/24
德國（法蘭克福）	oss-eu-central-1	oss-eu-central-1-internal.aliyuncs.com	100.115.154.0/24
英國（倫敦）	oss-eu-west-1	oss-eu-west-1-internal.aliyuncs.com	100.114.114.128/25
美國（矽谷）	oss-us-west-1	oss-us-west-1-internal.aliyuncs.com	100.115.107.0/24
美國（維吉尼亞）	oss-us-east-1	oss-us-east-1-internal.aliyuncs.com	100.115.60.0/24 100.99.100.0/24 100.99.101.0/24 100.99.102.0/24
沙特（利雅得）	me-central-1	oss-me-central-1-internal.aliyuncs.com	100.99.121.0/24

以杭州地區為例：

  traffic.sidecar.istio.io/excludeOutboundIPRanges: "100.118.28.0/24,100.114.102.0/24,100.98.170.0/24,100.118.31.0/24"

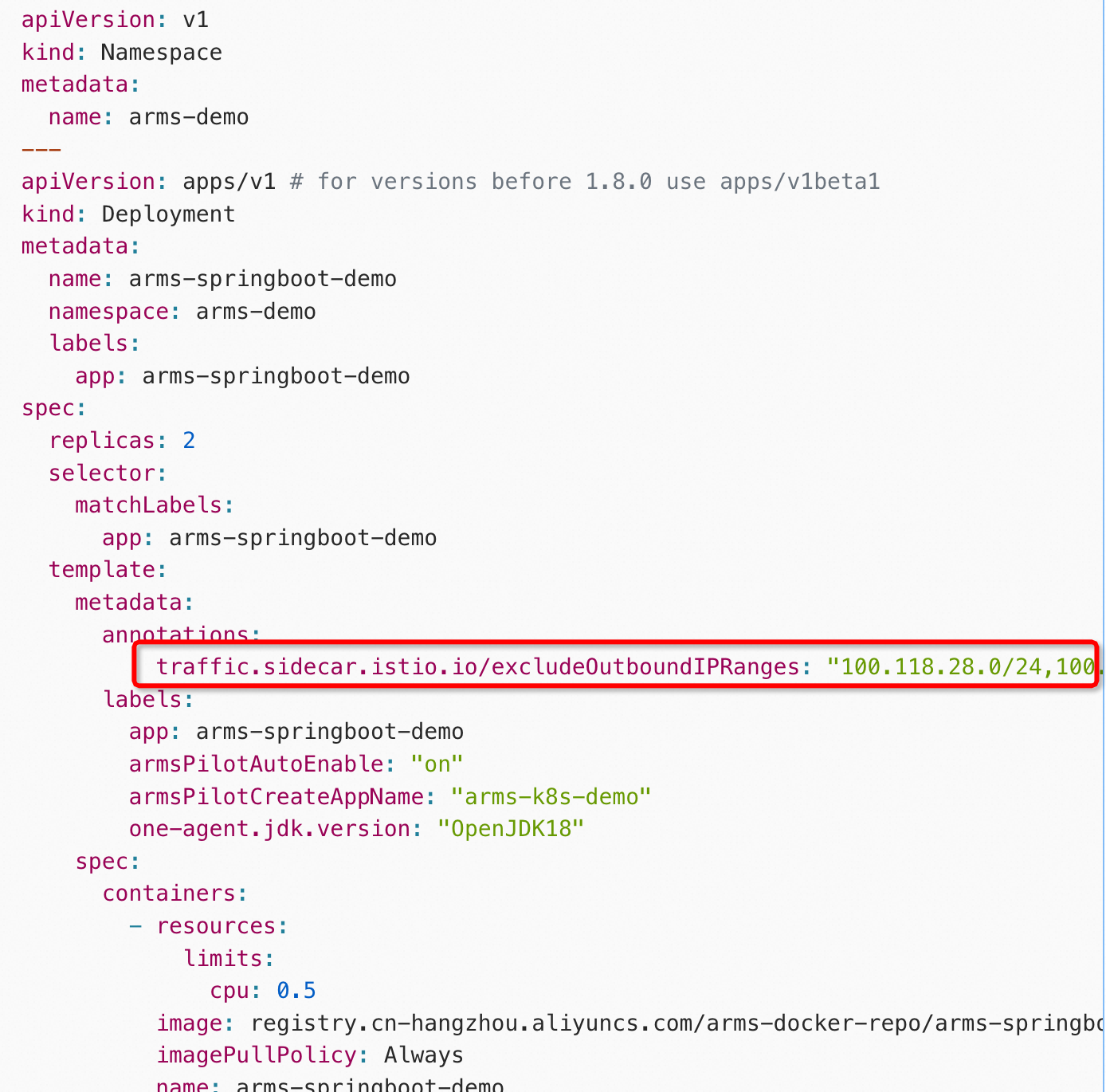

修改應用的YAML檔案，將以下annotations添加到spec.template.metadata層級下。

展開查看完成的YAML樣本

apiVersion: v1
kind: Namespace
metadata:
  name: arms-demo
---
apiVersion: apps/v1 # for versions before 1.8.0 use apps/v1beta1
kind: Deployment
metadata:
  name: arms-springboot-demo
  namespace: arms-demo
  labels:
    app: arms-springboot-demo
spec:
  replicas: 2
  selector:
    matchLabels:
      app: arms-springboot-demo
  template:
    metadata:
      annotations:
          traffic.sidecar.istio.io/excludeOutboundIPRanges: "100.118.28.0/24,100.114.102.0/24,100.98.170.0/24,100.118.31.0/24"
      labels:
        app: arms-springboot-demo
        armsPilotAutoEnable: "on"
        armsPilotCreateAppName: "arms-k8s-demo"
        one-agent.jdk.version: "OpenJDK18"
    spec:
      containers:
        - resources:
            limits:
              cpu: 0.5
          image: registry.cn-hangzhou.aliyuncs.com/arms-docker-repo/arms-springboot-demo:v0.1
          imagePullPolicy: Always
          name: arms-springboot-demo
          env:
            - name: SELF_INVOKE_SWITCH
              value: "true"
            - name: COMPONENT_HOST
              value: "arms-demo-component"
            - name: COMPONENT_PORT
              value: "6666"
            - name: MYSQL_SERVICE_HOST
              value: "arms-demo-mysql"
            - name: MYSQL_SERVICE_PORT
              value: "3306"
---
apiVersion: apps/v1 # for versions before 1.8.0 use apps/v1beta1
kind: Deployment
metadata:
  name: arms-springboot-demo-subcomponent
  namespace: arms-demo
  labels:
    app: arms-springboot-demo-subcomponent
spec:
  replicas: 2
  selector:
    matchLabels:
      app: arms-springboot-demo-subcomponent
  template:
    metadata:
      labels:
        app: arms-springboot-demo-subcomponent
        armsPilotAutoEnable: "on"
        armsPilotCreateAppName: "arms-k8s-demo-subcomponent"
        one-agent.jdk.version: "OpenJDK18"
    spec:
      containers:
        - resources:
            limits:
              cpu: 0.5
          image: registry.cn-hangzhou.aliyuncs.com/arms-docker-repo/arms-springboot-demo:v0.1
          imagePullPolicy: Always
          name: arms-springboot-demo-subcomponent
          env:
            - name: SELF_INVOKE_SWITCH
              value: "false"
            - name: MYSQL_SERVICE_HOST
              value: "arms-demo-mysql"
            - name: MYSQL_SERVICE_PORT
              value: "3306"
---
apiVersion: v1
kind: Service
metadata:
  labels:
    name: arms-demo-component
  name: arms-demo-component
  namespace: arms-demo
spec:
  ports:
    # the port that this service should serve on
    - name: arms-demo-component-svc
      port: 6666
      targetPort: 8888
  # label keys and values that must match in order to receive traffic for this service
  selector:
    app: arms-springboot-demo-subcomponent
---
apiVersion: apps/v1 # for versions before 1.8.0 use apps/v1beta1
kind: Deployment
metadata:
  name: arms-demo-mysql
  namespace: arms-demo
  labels:
    app: mysql
spec:
  replicas: 1
  selector:
    matchLabels:
      app: mysql
  template:
    metadata:
      labels:
        app: mysql
    spec:
      containers:
        - resources:
            limits:
              cpu: 0.5
          image: registry.cn-hangzhou.aliyuncs.com/arms-docker-repo/arms-demo-mysql:v0.1
          name: mysql
          ports:
            - containerPort: 3306
              name: mysql
---
apiVersion: v1
kind: Service
metadata:
  labels:
    name: mysql
  name: arms-demo-mysql
  namespace: arms-demo
spec:
  ports:
    # the port that this service should serve on
    - name: arms-mysql-svc
      port: 3306
      targetPort: 3306
  # label keys and values that must match in order to receive traffic for this service
  selector:
    app: mysql
---
