    Container Service for Kubernetes：輪轉ACK專有叢集etcd認證

    更新時間：Nov 20, 2025

    為了確保服務的持續可用和安全，避免潛在的認證泄露或密鑰破解帶來的安全風險，在ACK專有叢集中，建議您根據系統提醒及時輪轉Master節點的etcd認證。本文介紹如何輪轉ACK專有叢集Master節點的etcd認證。

    背景資訊

    ACK專有叢集支援遷移至ACK託管叢集Pro版，您可以選擇將叢集遷移到ACK託管叢集Pro版。ACK託管叢集Pro版的etcd和Kubernetes管控面認證由阿里雲託管，原ACK專有叢集遷移完成後，無需進行以下輪轉操作。遷移具體操作，請參見熱遷移ACK專有叢集至ACK託管叢集Pro版。

    注意事項

    • Container Service for Kubernetes (ACK)會在etcd認證到期前兩個月發送站內和簡訊到期提醒，並在叢集列表頁面顯示更新ETCD認證。

    • 輪轉過程中，系統將會逐個節點（one by one）重啟叢集Master節點的API Server、etcd、kube-controller-manager和kubelet等控制面組件，其間對API Server的長串連請求會發生斷連，請在業務低峰期操作。輪轉流程預計在30分鐘內結束。

    • 如果您修改過ACK專有叢集的etcd或Kubernetes的預設設定檔目錄，請建立軟連結到原有目錄後再進行輪轉，否則會導致輪轉失敗。

    • 如果您通過手工方式輪轉完成後，Container Service控制台依舊會顯示更新ETCD認證的到期提示，請您提交工單，通過後台配置取消更新提示。

    • 輪轉流程中，如遇任何問題導致輪轉失敗，請提交工單處理。

    情境一：etcd認證未到期時輪轉方案

    當etcd認證即將到期，提示需要更新時，您可以通過以下兩種方式進行etcd認證輪轉。

    控制台自動化方式輪轉etcd認證

    1. 登入Container Service管理主控台，在左側導覽列選擇叢集列表。

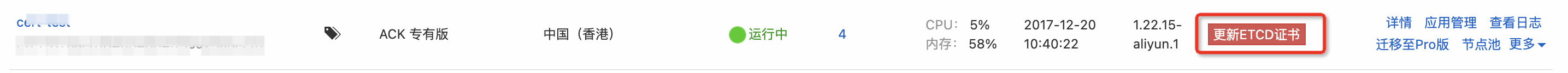

    2. 單擊etcd認證即將到期叢集右側的更新ETCD認證，進入更新認證頁面，然後單擊更新認證。

      說明

      若叢集認證即將在兩個月後到期，在對應叢集右側才會出現更新ETCD認證。

      etcd

    3. 在提示對話方塊，單擊確定。

      認證更新成功後，您可以看到以下內容：

      • 在更新認證頁面，顯示更新成功。

      • 在叢集列表頁面，目的地組群右側無更新ETCD認證提示。

    手工方式輪轉etcd認證

    使用情境

    • ACK專有叢集etcd認證即將到期。

    • 無法通過範本部署的方式自動化輪轉etcd認證。

    • 無法通過控制台操作更新etcd認證。

    當出現以上情境時，叢集管理員可以登入任意Master節點，通過操作如下指令碼來手工輪轉etcd認證。

    說明

    以下指令碼使用需要root使用者執行。

    1. 確認叢集Master節點之間配置了root使用者的免密登入。

      在Master上通過SSH方式登入其他任意Master節點，如果提示輸入密碼，請您參考如下方式配置Master節點之間的免密登入。

      # 1. 產生密鑰。如果您的節點上已存在對應的登入密鑰，可以跳過該步驟。
ssh-keygen -t rsa

# 2. 使用ssh-copy-id工具傳輸公開金鑰到其他所有Master節點，$(internal-ip)為其他Master節點的內網IP。
ssh-copy-id -i ~/.ssh/id_rsa.pub $(internal-ip)
      說明

      如果您未執行免密登入相關操作，在運行指令碼時，則需要輸入root使用者密碼。

    2. 分別複製以下指令碼內容，儲存並命名為restart-apiserver.sh和rotate-etcd.sh，然後將兩者儲存到同一個檔案夾下。

      說明

      rotate-etcd.sh指令碼會嘗試通過訪問節點的中繼資料服務擷取Region資訊並從該Region就近拉取輪轉鏡像，您也可以在執行該指令碼時，輸入參數--region xxxx指定Region資訊。

      展開查看restart-apiserver.sh指令碼

      #! /bin/bash

declare -x cmd

k8s::wait_apiserver_ready() {
  set -e
  for i in $(seq 600); do
    if kubectl cluster-info &>/dev/null; then
      return 0
    else
      echo "wait apiserver to be ready, retry ${i}th after 1s"
      sleep 1
    fi
  done
  echo "failed to wait apiserver to be ready"
  return 1
}

function check_container_runtime() {
  if command -v dockerd &>/dev/null && ps aux | grep -q "[d]ockerd"; then
    cmd=docker
  elif command -v containerd &>/dev/null && ps aux | grep -q "[c]ontainerd"; then
    cmd=crictl
  else
    echo "Neither Dockerd nor Containerd is installed or running."
    exit 1
  fi
}

function restart_apiserver() {
  # 判斷容器運行時
  if [[ $cmd == "docker" ]]; then
    # 使用docker命令重啟kube-apiserver Pod
    container_id=$(docker ps | grep kube-apiserver | awk '{print $1}' | head -n 1 )
    if [[ -n $container_id ]]; then
      echo "Restarting kube-apiserver pod using Docker: $container_id"
      docker restart "${container_id}"
    else
      echo "kube-apiserver pod not found."
    fi
  elif [[ $cmd == "crictl" ]]; then
    # 使用crictl命令重啟kube-apiserver Pod
    pod_id=$(crictl pods --label component=kube-apiserver --latest --state=ready | grep -v "POD ID" | head -n 1 | awk '{print $1}')
    if [[ -n $pod_id ]]; then
      echo "Restarting kube-apiserver pod using crictl: $pod_id"
      crictl stopp "${pod_id}"
    else
      echo "kube-apiserver pod not found."
    fi
  else
    echo "Unsupported container runtime: $cmd"
  fi
  k8s::wait_apiserver_ready
}

check_container_runtime
restart_apiserver
echo "API Server restarted"

      展開查看rotate-etcd.sh指令碼

      #!/bin/bash

set -eo pipefail

declare -x TARGET_TEAR
declare -x cmd
dir=/tmp/etcdcert
KUBE_CERT_PATH=/etc/kubernetes/pki
ETCD_CERT_DIR=/var/lib/etcd/cert
ETCD_HOSTS=""
currentDir="$PWD"

# 更新K8s認證，根據叢集Region替換下面cn-hangzhou的預設鏡像地區。
function get_etcdhosts() {
  name1=$(find "$ETCD_CERT_DIR" -name '*-name-1.pem' -exec basename {} \; | sed 's/-name-1.pem//g')
  name2=$(find "$ETCD_CERT_DIR" -name '*-name-2.pem' -exec basename {} \; | sed 's/-name-2.pem//g')
  name3=$(find "$ETCD_CERT_DIR" -name '*-name-3.pem' -exec basename {} \; | sed 's/-name-3.pem//g')

  echo "hosts: $name1 $name2 $name3"
  ETCD_HOSTS="$name1 $name2 $name3"
}

function gencerts() {
  echo "generate ssl cert ..."
  rm -rf $dir
  mkdir -p "$dir"

  local hosts
  hosts=$(echo $ETCD_HOSTS | tr -s " " ",")

  echo "-----generate ca"
  echo '{"CN":"CA","key":{"algo":"rsa","size":2048}, "ca": {"expiry": "438000h"}}' |
    cfssl gencert -initca - | cfssljson -bare $dir/ca -
  echo '{"signing":{"default":{"expiry":"438000h","usages":["signing","key encipherment","server auth","client auth"]}}}' >$dir/ca-config.json

  echo "-----generate etcdserver"
  export ADDRESS=$hosts,ext1.example.com,coreos1.local,coreos1,127.0.0.1
  export NAME=etcd-server
  echo '{"CN":"'$NAME'","hosts":[""],"key":{"algo":"rsa","size":2048}}' |
    cfssl gencert -config=$dir/ca-config.json -ca=$dir/ca.pem -ca-key=$dir/ca-key.pem -hostname="$ADDRESS" - | cfssljson -bare $dir/$NAME
  export ADDRESS=
  export NAME=etcd-client
  echo '{"CN":"'$NAME'","hosts":[""],"key":{"algo":"rsa","size":2048}}' |
    cfssl gencert -config=$dir/ca-config.json -ca=$dir/ca.pem -ca-key=$dir/ca-key.pem -hostname="$ADDRESS" - | cfssljson -bare $dir/$NAME

  # gen peer-ca
  echo "-----generate peer certificates"
  echo '{"CN":"Peer-CA","key":{"algo":"rsa","size":2048}, "ca": {"expiry": "438000h"}}' | cfssl gencert -initca - | cfssljson -bare $dir/peer-ca -
  echo '{"signing":{"default":{"expiry":"438000h","usages":["signing","key encipherment","server auth","client auth"]}}}' >$dir/peer-ca-config.json
  i=0
  for host in $ETCD_HOSTS; do
    ((i = i + 1))
    export MEMBER=${host}-name-$i
    echo '{"CN":"'${MEMBER}'","hosts":[""],"key":{"algo":"rsa","size":2048}}' |
      cfssl gencert -ca=$dir/peer-ca.pem -ca-key=$dir/peer-ca-key.pem -config=$dir/peer-ca-config.json -profile=peer \
        -hostname="$hosts,${MEMBER}.local,${MEMBER}" - | cfssljson -bare $dir/${MEMBER}
  done

  # 製作bundle ca
  cat $KUBE_CERT_PATH/etcd/ca.pem >>$dir/bundle_ca.pem
  cat $ETCD_CERT_DIR/ca.pem >>$dir/bundle_ca.pem
  cat $dir/ca.pem >>$dir/bundle_ca.pem

  # 製作bundle peer-ca
  cat $ETCD_CERT_DIR/peer-ca.pem >$dir/bundle_peer-ca.pem
  cat $dir/peer-ca.pem >>$dir/bundle_peer-ca.pem

  current_year=$(date +%Y)
  TARGET_TEAR=$((TARGET_TEAR + 50))

  # chown
  chown -R etcd:etcd $dir
  chmod 0644 $dir/*
}

function etcd_client_urls() {
  local etcd_hosts=()
  for ip in "${ETCD_HOSTS[@]}"; do
    etcd_hosts+=("https://$ip:2379")
  done
  local result=$(
    IFS=','
    echo "${etcd_hosts[*]}"
  )
  echo "$result"
}

function check_cert_files_exist() {
  REQUIRED_CERTS=("ca.pem" "etcd-server-key.pem" "etcd-server.pem" "peer-ca-key.pem" "peer-ca.pem")
  if [ ! -d "$ETCD_CERT_DIR" ]; then
    echo "Error: Directory $ETCD_CERT_DIR does not exist"
    exit 1
  fi

  for cert_file in "${REQUIRED_CERTS[@]}"; do
    if [ ! -f "$ETCD_CERT_DIR/$cert_file" ]; then
      echo "Error: File $ETCD_CERT_DIR/$cert_file does not exist"
      exit 1
    fi
  done

  echo "All required certificate files exist"
}

function check_etcd_cluster_ready() {
  local etcd_endpoints=()
  for ip in $ETCD_HOSTS; do
    etcd_endpoints+=("https://$ip:2379")
  done
  ready=0
  for i in $(seq 300); do
    for idx in "${!etcd_endpoints[@]}"; do
      endpoint="${etcd_endpoints[$idx]}"
      local health_output=$(ETCDCTL_API=3 etcdctl --cacert=/var/lib/etcd/cert/ca.pem --cert=/var/lib/etcd/cert/etcd-server.pem --key=/var/lib/etcd/cert/etcd-server-key.pem --endpoints "$endpoint" endpoint health --command-timeout=1s 2>&1)
      if echo "$health_output" | grep -q "successfully committed proposal"; then
          unset 'etcd_endpoints[$idx]'
      else
          echo "etcdctl result: ${health_output}"
          echo "$endpoint is not ready"
      fi
    done
    # shellcheck disable=SC2199
    if [[ -z "${etcd_endpoints[@]}" ]]; then
      echo "ETCD cluster is ready"
      ready=1
      break
    fi
    printf "wait etcd cluster to be ready, retry %d after 1s,total 300s \n" "$i"
  done
}

function check_container_runtime() {
  if command -v dockerd &>/dev/null && ps aux | grep -q "[d]ockerd"; then
    cmd=docker
  elif command -v containerd &>/dev/null && ps aux | grep -q "[c]ontainerd"; then
    cmd=crictl
  else
    echo "Neither Dockerd nor Containerd is installed or running."
    exit 1
  fi
}

function rotate_etcd_ca() {
  for ADDR in $ETCD_HOSTS; do
    echo "update etcd CA on node $ADDR"
    scp -o StrictHostKeyChecking=no $dir/bundle_ca.pem root@$ADDR:$ETCD_CERT_DIR/ca.pem
    scp -o StrictHostKeyChecking=no $dir/bundle_ca.pem root@$ADDR:$KUBE_CERT_PATH/etcd/ca.pem
    scp -o StrictHostKeyChecking=no $dir/etcd-client.pem root@$ADDR:$KUBE_CERT_PATH/etcd/etcd-client.pem
    scp -o StrictHostKeyChecking=no $dir/etcd-client-key.pem root@$ADDR:$KUBE_CERT_PATH/etcd/etcd-client-key.pem
    scp -o StrictHostKeyChecking=no $dir/bundle_peer-ca.pem root@$ADDR:$ETCD_CERT_DIR/peer-ca.pem

    ssh -o StrictHostKeyChecking=no root@$ADDR chown -R etcd:etcd $ETCD_CERT_DIR
    ssh -o StrictHostKeyChecking=no root@$ADDR chmod 0644 $ETCD_CERT_DIR/*
    echo "restart etcd on node $ADDR"
    ssh -o StrictHostKeyChecking=no root@$ADDR systemctl restart etcd
    echo "etcd on node $ADDR restarted"

    # 校正etcd是否啟動成功,校正叢集是否正常
    echo "check connectivity for etcd nodes"
    check_etcd_cluster_ready
    echo "end to check connectivity for etcd nodes"
    restart_one_apiserver $ADDR
    echo "apiserver on node $ADDR restarted"
  done
}

function rotate_etcd_certs() {
  for ADDR in $ETCD_HOSTS; do
    echo "update etcd peer certs on node $ADDR"
    scp -o StrictHostKeyChecking=no \
      $dir/{peer-ca-key.pem,etcd-server.pem,etcd-server-key.pem,etcd-client.pem,etcd-client-key.pem,ca-key.pem,*-name*.pem} root@$ADDR:$ETCD_CERT_DIR/

    ssh -o StrictHostKeyChecking=no root@$ADDR chown -R etcd:etcd $ETCD_CERT_DIR

    ssh -o StrictHostKeyChecking=no root@$ADDR \
      chmod 0400 $ETCD_CERT_DIR/{peer-ca-key.pem,etcd-server.pem,etcd-server-key.pem,etcd-client.pem,etcd-client-key.pem,ca-key.pem,*-name*.pem}

    echo "restart etcd on node $ADDR"
    ssh -o StrictHostKeyChecking=no root@$ADDR systemctl restart etcd
    echo "etcd on node $ADDR restarted"
    echo "check connectivity for etcd nodes"
    check_etcd_cluster_ready
    echo "end to check connectivity for etcd nodes"
  done
}

function recover_etcd_ca() {
  # Update certs on etcd nodes.
  for ADDR in $ETCD_HOSTS; do
    echo "replace etcd CA on node $ADDR"
    scp -o StrictHostKeyChecking=no $dir/ca.pem root@$ADDR:$ETCD_CERT_DIR/ca.pem
    scp -o StrictHostKeyChecking=no $dir/ca.pem root@$ADDR:$KUBE_CERT_PATH/etcd/ca.pem
    scp -o StrictHostKeyChecking=no $dir/ca.pem root@$ADDR:$KUBE_CERT_PATH/etcd/ca.pem
    scp -o StrictHostKeyChecking=no $dir/peer-ca.pem root@$ADDR:$ETCD_CERT_DIR/peer-ca.pem
    ssh -o StrictHostKeyChecking=no root@$ADDR chown -R etcd:etcd $ETCD_CERT_DIR
    echo "restart apiserver on node $ADDR"
    restart_one_apiserver $ADDR
    echo "apiserver on node $ADDR restarted"
    echo "restart etcd on node $ADDR"
    ssh -o StrictHostKeyChecking=no root@$ADDR systemctl restart etcd
    echo "etcd on node $ADDR restarted"
    echo "check connectivity for etcd nodes"
    check_etcd_cluster_ready
    echo "end to check connectivity for etcd nodes"
    sleep 5
  done
}

function recover_etcd_client_ca() {
  # Update certs on etcd nodes.
  for ADDR in $ETCD_HOSTS; do
    echo "replace etcd CA on node $ADDR"
    scp -o StrictHostKeyChecking=no $dir/ca.pem root@$ADDR:$KUBE_CERT_PATH/etcd/ca.pem
    scp -o StrictHostKeyChecking=no $dir/ca.pem root@$ADDR:$KUBE_CERT_PATH/etcd/ca.pem
  done
}

function renew_k8s_certs() {
  # try to get region id from meta-server if not given in parameter
  META_REGION=$(get_region_id)
  if [[ -z "$REGION" ]]; then
    if [[ -z "$META_REGION" ]]; then
        echo "failed to get region id from ECS meta-server, please enter the region parameter."
        return 1
    fi
    REGION=$META_REGION
  elif [[ -n "${META_REGION}" && "$REGION" != "$META_REGION" ]] ; then
    echo "switch to use local region id $META_REGION"
    REGION=$META_REGION
  fi
  # Update certs for k8s components and kubeconfig
  for ADDR in $ETCD_HOSTS; do
    echo "renew k8s components cert on node $ADDR"
    #compatible containerd
    set +e
    IMAGE="registry.$REGION.aliyuncs.com/acs/etcd-rotate:v2.0.0"
    if is_vpc; then
      IMAGE="registry-vpc.$REGION.aliyuncs.com/acs/etcd-rotate:v2.0.0"
    fi
    echo "will pull rotate image $IMAGE"
    ssh -o StrictHostKeyChecking=no root@$ADDR docker run --privileged=true  -v /:/alicoud-k8s-host --pid host --net host \
             $IMAGE /renew/upgrade-k8s.sh --role master
    ssh -o StrictHostKeyChecking=no root@$ADDR ctr image pull $IMAGE
    ssh -o StrictHostKeyChecking=no root@$ADDR ctr run --privileged=true --mount type=bind,src=/,dst=/alicoud-k8s-host,options=rbind:rw \
            --net-host $IMAGE cert-rotate /renew/upgrade-k8s.sh --role master
    set -e
    echo "finished renew k8s components cert on $ADDR"
  done
}

function get_region_id() {
    set +e; # close error out
    local TOKEN=`curl -X PUT "http://100.100.100.200/latest/api/token" \
    -H "X-aliyun-ecs-metadata-token-ttl-seconds:900"`
    local path=100.100.100.200/latest/meta-data/region-id
    for (( i=0; i<3; i++));
    do
        response=$(curl -H "X-aliyun-ecs-metadata-token: $TOKEN" --retry 1 --retry-delay 5 -sSL $path)
        if [[ $? -gt 0 || "x$response" == "x" ]];
        then
            sleep 2; continue
        fi
        if echo "$response"|grep -E "<title>.*</title>" >/dev/null;
        then
            sleep 3; continue
        fi
        echo "$response"
        # return from metadata succeed.
        set -e; return
    done
    set -e # open error out
    # function will return empty string when failed
}

function is_vpc() {
    # Execute the curl command and capture the network-type from ECS meta-server
    local TOKEN=`curl -X PUT "http://100.100.100.200/latest/api/token" \
    -H "X-aliyun-ecs-metadata-token-ttl-seconds:900"`
    response=$(curl -H "X-aliyun-ecs-metadata-token: $TOKEN" -s http://100.100.100.200/latest/meta-data/network-type)
    if [ "$response" = "vpc" ]; then
      return 0
    else
      return 1
    fi
}

function generate_cm() {
  echo "generate status configmap"

  cat <<-"EOF" >/tmp/ack-rotate-etcd-ca-cm.yaml.tpl
apiVersion: v1
kind: ConfigMap
metadata:
  name: ack-rotate-etcd-status
  namespace: kube-system
data:
  status: "success"
  hosts: "$hosts"
EOF

  sed -e "s#\$hosts#$ETCD_HOSTS#" /tmp/ack-rotate-etcd-ca-cm.yaml.tpl | kubectl apply -f -
}

function restart_one_apiserver() {
  ADDR=$1
  if [[ -z "${ADDR}" ]]; then
    printf "ADDR is empty,exit."
    exit 1
  fi
  printf "restart apiserver on node %s\n" "${ADDR}"
  scp -o StrictHostKeyChecking=no "${currentDir}"/restart-apiserver.sh root@"${ADDR}":/tmp/restart-apiserver.sh
  ssh -e none -o StrictHostKeyChecking=no root@"${ADDR}" chmod +x /tmp/restart-apiserver.sh
  ssh -e none -o StrictHostKeyChecking=no root@"${ADDR}" bash /tmp/restart-apiserver.sh
}

while
    [[ $# -gt 0 ]]
do
    key="$1"

    case $key in
    --region)
      export REGION=$2
      shift
      ;;
    *)
      echo "unknown option [$key]"
      exit 1
      ;;
    esac
    shift
done

get_etcdhosts
echo "${ETCD_HOSTS[@]}"

check_container_runtime

# Update certs on etcd nodes.
echo "---restart runtime and kubelet on master nodes---"
for ADDR in $ETCD_HOSTS; do
  if [ "$cmd" == "docker" ]; then
    echo "restart docker on node $ADDR"
    ssh -o StrictHostKeyChecking=no root@$ADDR systemctl restart docker
  fi
  ssh -e none -o StrictHostKeyChecking=no root@"${ADDR}" systemctl restart kubelet
done
sleep 5
echo "---end to restart runtime and kubelet on master nodes---"

echo "---renew k8s components certs---"
renew_k8s_certs
echo "---end to renew k8s components certs---"

echo "---check cert files exist---"
check_cert_files_exist
echo "---end to check cert files exist---"

echo "---check connectivity for etcd nodes---"
check_etcd_cluster_ready
echo "---end to check connectivity for etcd nodes---"

# Update certs on etcd nodes.
for ADDR in $ETCD_HOSTS; do
  scp -o StrictHostKeyChecking=no restart-apiserver.sh root@$ADDR:/tmp/restart-apiserver.sh
  ssh -o StrictHostKeyChecking=no root@$ADDR chmod +x /tmp/restart-apiserver.sh
done

gencerts

echo "---rotate etcd ca and etcd client ca---"
rotate_etcd_ca
echo "---end to rotate etcd ca and etcd client ca---"

echo "---rotate etcd peer and certs---"
rotate_etcd_certs
echo "---end to rotate etcd peer and certs---"

echo "check etcd cluster ready"
check_etcd_cluster_ready

echo "---replace etcd ca---"
recover_etcd_ca
echo "---end to replace etcd ca---"

generate_cm
echo "etcd CA and certs have succesfully rotated!"

    3. 在任意Master節點上運行bash rotate-etcd.sh。

      當看到命令列輸出etcd CA and certs have successfully rotated!時，表示所有Master節點上的認證和K8s認證已經輪轉完成。

    4. 驗證認證是否更新。

      cd /var/lib/etcd/cert
for i in `ls | grep pem| grep -v key`;do openssl x509 -noout -text -in $i | grep -i after && echo "$i" ;done


cd /etc/kubernetes/pki/etcd
for i in `ls | grep pem| grep -v key`;do openssl x509 -noout -text -in $i | grep -i after && echo "$i" ;done


cd /etc/kubernetes/pki/
for i in `ls | grep crt| grep -v key`;do openssl x509 -noout -text -in $i | grep -i after && echo "$i" ;done
      說明

      • 當以上指令碼輸出的時間在50年之後，表示輪轉完成。

      • 通過手工方式輪轉成功後，由於Container Service控制面側無法擷取輪轉結果，控制台叢集列表中對應叢集仍會顯示更新按鈕，請您提交工單以清除該按鈕。

    情境二：etcd認證已到期時輪轉方案

    使用情境

    • etcd認證已到期。

    • API Server無法訪問時輪轉etcd認證。

    • 無法通過範本部署的方式自動化輪轉etcd認證。

    • 無法通過控制台操作更新etcd認證。

    當出現以上情境時，叢集管理員可以登入任意Master節點，通過操作如下指令碼來手工輪轉etcd認證。

    說明

    以下指令碼使用需要root使用者執行。

    1. 確認叢集Master節點之間配置了root使用者的免密登入。

      在Master上通過SSH方式登入其他任意Master節點，如果提示輸入密碼，請您參考如下方式配置Master節點之間的免密登入。

      # 1. 產生密鑰。如果您的節點上已存在對應的登入密鑰，可以跳過該步驟。
ssh-keygen -t rsa

# 2. 使用ssh-copy-id工具傳輸公開金鑰到其他所有Master節點，$(internal-ip)為其他Master節點的內網IP。
ssh-copy-id -i ~/.ssh/id_rsa.pub $(internal-ip)
      說明

      如果您未執行免密登入相關操作，在運行指令碼時，則需要輸入root使用者密碼。

    2. 分別複製以下指令碼內容，儲存並命名為restart-apiserver.sh和rotate-etcd.sh，然後將兩者儲存到同一個檔案夾下。

      說明

      rotate-etcd.sh指令碼會嘗試通過訪問節點的中繼資料服務擷取Region資訊並從該Region就近拉取輪轉鏡像，您也可以在執行該指令碼時，輸入參數--region xxxx指定Region資訊。

      展開查看restart-apiserver.sh指令碼

      #! /bin/bash

declare -x cmd

k8s::wait_apiserver_ready() {
  set -e
  for i in $(seq 600); do
    if kubectl cluster-info &>/dev/null; then
      return 0
    else
      echo "wait apiserver to be ready, retry ${i}th after 1s"
      sleep 1
    fi
  done
  echo "failed to wait apiserver to be ready"
  return 1
}

function check_container_runtime() {
  if command -v dockerd &>/dev/null && ps aux | grep -q "[d]ockerd"; then
    cmd=docker
  elif command -v containerd &>/dev/null && ps aux | grep -q "[c]ontainerd"; then
    cmd=crictl
  else
    echo "Neither Dockerd nor Containerd is installed or running."
    exit 1
  fi
}

function restart_apiserver() {
  # 判斷容器運行時
  if [[ $cmd == "docker" ]]; then
    # 使用docker命令重啟kube-apiserver Pod
    container_id=$(docker ps | grep kube-apiserver | awk '{print $1}' | head -n 1 )
    if [[ -n $container_id ]]; then
      echo "Restarting kube-apiserver pod using Docker: $container_id"
      docker restart "${container_id}"
    else
      echo "kube-apiserver pod not found."
    fi
  elif [[ $cmd == "crictl" ]]; then
    # 使用crictl命令重啟kube-apiserver Pod
    pod_id=$(crictl pods --label component=kube-apiserver --latest --state=ready | grep -v "POD ID" | head -n 1 | awk '{print $1}')
    if [[ -n $pod_id ]]; then
      echo "Restarting kube-apiserver pod using crictl: $pod_id"
      crictl stopp "${pod_id}"
    else
      echo "kube-apiserver pod not found."
    fi
  else
    echo "Unsupported container runtime: $cmd"
  fi
  k8s::wait_apiserver_ready
}

check_container_runtime
restart_apiserver
echo "API Server restarted"

      展開查看rotate-etcd.sh指令碼

      #!/bin/bash

set -eo pipefail

declare -x TARGET_TEAR
declare -x cmd
dir=/tmp/rollback/etcdcert
KUBE_CERT_PATH=/etc/kubernetes/pki
ETCD_CERT_DIR=/var/lib/etcd/cert
ETCD_HOSTS=""
currentDir="$PWD"

# 更新K8s認證，根據叢集Region替換下面cn-hangzhou的預設鏡像地區。
function get_etcdhosts() {
  name1=$(find "$ETCD_CERT_DIR" -name '*-name-1.pem' -exec basename {} \; | sed 's/-name-1.pem//g')
  name2=$(find "$ETCD_CERT_DIR" -name '*-name-2.pem' -exec basename {} \; | sed 's/-name-2.pem//g')
  name3=$(find "$ETCD_CERT_DIR" -name '*-name-3.pem' -exec basename {} \; | sed 's/-name-3.pem//g')

  echo "hosts: $name1 $name2 $name3"
  ETCD_HOSTS="$name1 $name2 $name3"
}

function gencerts() {
  echo "generate ssl cert ..."
  rm -rf $dir
  mkdir -p "$dir"
  cd $dir

  local hosts
  hosts=$(echo $ETCD_HOSTS | tr -s " " ",")

  echo "generate ca"
  echo '{"CN":"CA","key":{"algo":"rsa","size":2048}, "ca": {"expiry": "438000h"}}' |
    cfssl gencert -initca - | cfssljson -bare $dir/ca -
  echo '{"signing":{"default":{"expiry":"438000h","usages":["signing","key encipherment","server auth","client auth"]}}}' >$dir/ca-config.json

  echo "generate etcd server certificates"
  export ADDRESS=$hosts,ext1.example.com,coreos1.local,coreos1,127.0.0.1
  export NAME=etcd-server
  echo '{"CN":"'$NAME'","hosts":[""],"key":{"algo":"rsa","size":2048}}' |
    cfssl gencert -config=$dir/ca-config.json -ca=$dir/ca.pem -ca-key=$dir/ca-key.pem -hostname="$ADDRESS" - | cfssljson -bare $dir/$NAME
  export ADDRESS=
  export NAME=etcd-client
  echo '{"CN":"'$NAME'","hosts":[""],"key":{"algo":"rsa","size":2048}}' |
    cfssl gencert -config=$dir/ca-config.json -ca=$dir/ca.pem -ca-key=$dir/ca-key.pem -hostname="$ADDRESS" - | cfssljson -bare $dir/$NAME

  # gen peer-ca
  echo "generate peer certificates"
  echo '{"CN":"Peer-CA","key":{"algo":"rsa","size":2048}, "ca": {"expiry": "438000h"}}' | cfssl gencert -initca - | cfssljson -bare $dir/peer-ca -
  echo '{"signing":{"default":{"expiry":"438000h","usages":["signing","key encipherment","server auth","client auth"]}}}' >$dir/peer-ca-config.json
  i=0
  for host in $ETCD_HOSTS; do
    ((i = i + 1))
    export MEMBER=${host}-name-$i
    echo '{"CN":"'${MEMBER}'","hosts":[""],"key":{"algo":"rsa","size":2048}}' |
      cfssl gencert -ca=$dir/peer-ca.pem -ca-key=$dir/peer-ca-key.pem -config=$dir/peer-ca-config.json -profile=peer \
        -hostname="$hosts,${MEMBER}.local,${MEMBER}" - | cfssljson -bare $dir/${MEMBER}
  done

  # chown
  chown -R etcd:etcd $dir
  chmod 0644 $dir/*

  for ADDR in $ETCD_HOSTS; do
    printf "sync the certificates of node %s" "${ADDR}"
    ssh -e none -o StrictHostKeyChecking=no root@"${ADDR}" mkdir -p "${dir}"
    scp -o StrictHostKeyChecking=no "${dir}"/* root@"${ADDR}":/var/lib/etcd/cert/
    scp -o StrictHostKeyChecking=no "${dir}"/ca.pem "${dir}"/etcd-client.pem "${dir}"/etcd-client-key.pem root@"${ADDR}":/etc/kubernetes/pki/etcd/
  done
}

function generate_cm() {
  echo "generate status configmap"

  cat <<-"EOF" >/tmp/ack-rotate-etcd-ca-cm.yaml.tpl
apiVersion: v1
kind: ConfigMap
metadata:
  name: ack-rotate-etcd-status
  namespace: kube-system
data:
  status: "success"
  hosts: "$hosts"
EOF

  sed -e "s#\$hosts#$ETCD_HOSTS#" /tmp/ack-rotate-etcd-ca-cm.yaml.tpl | kubectl apply -f -
}

function rotate_etcd() {
  for ADDR in $ETCD_HOSTS; do
    printf "rotate etcd's certificates on node %s\n" "${ADDR}"
      if [ "$cmd" == "docker" ]; then
        echo "restart docker on node $ADDR"
        ssh -e none -o StrictHostKeyChecking=no root@$ADDR systemctl restart docker
      fi
    ssh -e none -o StrictHostKeyChecking=no root@$ADDR systemctl restart etcd
  done
}

function rotate_apiserver() {
  echo "current dir: $currentDir"
  for ADDR in $ETCD_HOSTS; do
    printf "restart apiserver on node %s\n" "${ADDR}"
    scp -o StrictHostKeyChecking=no "${currentDir}"/restart-apiserver.sh root@"${ADDR}":/tmp/restart-apiserver.sh
    ssh -e none -o StrictHostKeyChecking=no root@"${ADDR}" systemctl restart kubelet
    ssh -e none -o StrictHostKeyChecking=no root@"${ADDR}" chmod +x /tmp/restart-apiserver.sh
    ssh -e none -o StrictHostKeyChecking=no root@"${ADDR}" bash /tmp/restart-apiserver.sh
  done
}

function check_etcd_cluster_ready() {
  local etcd_endpoints=()
  for ip in $ETCD_HOSTS; do
    etcd_endpoints+=("https://$ip:2379")
  done

  for i in $(seq 300); do
    for idx in "${!etcd_endpoints[@]}"; do
      endpoint="${etcd_endpoints[$idx]}"
      local health_output=$(ETCDCTL_API=3 etcdctl --cacert=/var/lib/etcd/cert/ca.pem --cert=/var/lib/etcd/cert/etcd-server.pem --key=/var/lib/etcd/cert/etcd-server-key.pem --endpoints "$endpoint" endpoint health --command-timeout=1s 2>&1)
      if echo "$health_output" | grep -q "successfully committed proposal"; then
          unset 'etcd_endpoints[$idx]'
      else
          echo "etcdctl result: ${health_output}"
          echo "$endpoint is not ready"
      fi
    done
    # shellcheck disable=SC2199
    if [[ -z "${etcd_endpoints[@]}" ]]; then
      echo "ETCD cluster is ready"
      break
    fi
    sleep 1
    printf "wait etcd cluster to be ready, retry %d after 1s,total 300s \n" "$i"
  done
}

function get_region_id() {
    set +e; # close error out
    local TOKEN=`curl -X PUT "http://100.100.100.200/latest/api/token" \
    -H "X-aliyun-ecs-metadata-token-ttl-seconds:900"`
    local path=100.100.100.200/latest/meta-data/region-id
    for (( i=0; i<3; i++));
    do
        response=$(curl -H "X-aliyun-ecs-metadata-token: $TOKEN" --retry 1 --retry-delay 5 -sSL $path)
        if [[ $? -gt 0 || "x$response" == "x" ]];
        then
            sleep 2; continue
        fi
        if echo "$response"|grep -E "<title>.*</title>" >/dev/null;
        then
            sleep 3; continue
        fi
        echo "$response"
        # return from metadata succeed.
        set -e; return
    done
    set -e # open error out
    # function will return empty string when failed
}

function is_vpc() {
    # Execute the curl command and capture the network-type from ECS meta-server
    local TOKEN=`curl -X PUT "http://100.100.100.200/latest/api/token" \
    -H "X-aliyun-ecs-metadata-token-ttl-seconds:900"`
    response=$(curl -H "X-aliyun-ecs-metadata-token: $TOKEN" -s http://100.100.100.200/latest/meta-data/network-type)
    if [ "$response" = "vpc" ]; then
      return 0
    else
      return 1
    fi
}

function renew_k8s_certs() {
  # try to get region id from meta-server if not given in parameter
  META_REGION=$(get_region_id)
  if [[ -z "$REGION" ]]; then
    if [[ -z "$META_REGION" ]]; then
        echo "failed to get region id from ECS meta-server, please enter the region parameter."
        return 1
    fi
    REGION=$META_REGION
  elif [[ -n "${META_REGION}" && "$REGION" != "$META_REGION" ]] ; then
    echo "switch to use local region id $META_REGION"
    REGION=$META_REGION
  fi
  # Update certs for k8s components and kubeconfig
  for ADDR in $ETCD_HOSTS; do
    echo "renew k8s components cert on node $ADDR"
    #compatible containerd
    set +e
    IMAGE="registry.$REGION.aliyuncs.com/acs/etcd-rotate:v2.0.0"
    if is_vpc; then
      IMAGE="registry-vpc.$REGION.aliyuncs.com/acs/etcd-rotate:v2.0.0"
    fi
    echo "will pull rotate image $IMAGE"
    ssh -o StrictHostKeyChecking=no root@$ADDR docker run --privileged=true  -v /:/alicoud-k8s-host --pid host --net host \
             $IMAGE /renew/upgrade-k8s.sh --role master
    ssh -o StrictHostKeyChecking=no root@$ADDR ctr image pull $IMAGE
    ssh -o StrictHostKeyChecking=no root@$ADDR ctr run --privileged=true --mount type=bind,src=/,dst=/alicoud-k8s-host,options=rbind:rw \
            --net-host $IMAGE cert-rotate /renew/upgrade-k8s.sh --role master
    set -e
    echo "finished renew k8s components cert on $ADDR"
  done
}

function check_container_runtime() {
  if command -v dockerd &>/dev/null && ps aux | grep -q "[d]ockerd"; then
    cmd=docker
  elif command -v containerd &>/dev/null && ps aux | grep -q "[c]ontainerd"; then
    cmd=crictl
  else
    echo "Neither Dockerd nor Containerd is installed or running."
    exit 1
  fi
}

while
    [[ $# -gt 0 ]]
do
    key="$1"

    case $key in
    --region)
      export REGION=$2
      shift
      ;;
    *)
      echo "unknown option [$key]"
      exit 1
      ;;
    esac
    shift
done

get_etcdhosts
printf "ETCD_HOSTS: %s\n" "$ETCD_HOSTS"

gencerts
echo "---generate certificates successfully---"

rotate_etcd
echo "---rotate etcd successfully---"

echo "---check etcd cluster ready---"
check_etcd_cluster_ready

rotate_apiserver
echo "---restart apiserver successfully---"

echo "---renew k8s components certs---"
renew_k8s_certs
echo "---end to renew k8s components certs---"

generate_cm
echo "etcd CA and certs have successfully rotated!"

rm -rf $dir

    1. 驗證認證是否更新。

    cd /var/lib/etcd/cert
for i in `ls | grep pem| grep -v key`;do openssl x509 -noout -text -in $i | grep -i after && echo "$i" ;done


cd /etc/kubernetes/pki/etcd
for i in `ls | grep pem| grep -v key`;do openssl x509 -noout -text -in $i | grep -i after && echo "$i" ;done


cd /etc/kubernetes/pki/
for i in `ls | grep crt| grep -v key`;do openssl x509 -noout -text -in $i | grep -i after && echo "$i" ;done
    說明

    • 當以上指令碼輸出的時間在50年之後，表示輪轉完成。

    • 通過手工方式輪轉成功後，由於Container Service控制面側無法擷取輪轉結果，控制台叢集列表中對應叢集仍會顯示已到期狀態，請您提交工單以清除到期狀態顯示。

    認證輪轉失敗後復原

    使用情境

    • 通過雲控制台認證輪轉失敗，恢複K8s叢集。

    • 通過黑屏方式認證輪轉失敗，恢複K8s叢集。

    當出現以上情境時，叢集管理員可以登入任意Master節點，通過操作如下指令碼來手工更新etcd認證，因老認證即將到期，此操作會新產生一套etcd認證，並更新etcd server認證和kube-apiserver的client認證。

    說明

    以下指令碼使用需要root使用者執行。

    1. 確認叢集Master節點之間配置了root使用者的免密登入。

      在Master上通過SSH方式登入其他任意Master節點，如果提示輸入密碼，請您參考如下方式配置Master節點之間的免密登入。

      # 1. 產生密鑰。如果您的節點上已存在對應的登入密鑰，可以跳過該步驟。
ssh-keygen -t rsa

# 2. 使用ssh-copy-id工具傳輸公開金鑰到其他所有Master節點，$(internal-ip)為其他Master節點的內網IP。
ssh-copy-id -i ~/.ssh/id_rsa.pub $(internal-ip)
      說明

      如果您未執行免密登入相關操作，在運行指令碼時，則需要輸入root使用者密碼。

    2. 分別複製以下指令碼內容，儲存並命名為restart-apiserver.sh和rollback-etcd.sh，然後將兩者儲存到同一個檔案夾

      說明

      rollback-etcd.sh指令碼會嘗試通過訪問節點的中繼資料服務擷取Region資訊並從該Region就近拉取輪轉鏡像，您也可以在執行該指令碼時，輸入參數--region xxxx指定Region資訊。

      展開查看restart-apiserver.sh指令碼

      #! /bin/bash

declare -x cmd

k8s::wait_apiserver_ready() {
  set -e
  for i in $(seq 600); do
    if kubectl cluster-info &>/dev/null; then
      return 0
    else
      echo "wait apiserver to be ready, retry ${i}th after 1s"
      sleep 1
    fi
  done
  echo "failed to wait apiserver to be ready"
  return 1
}

function check_container_runtime() {
  if command -v dockerd &>/dev/null && ps aux | grep -q "[d]ockerd"; then
    cmd=docker
  elif command -v containerd &>/dev/null && ps aux | grep -q "[c]ontainerd"; then
    cmd=crictl
  else
    echo "Neither Dockerd nor Containerd is installed or running."
    exit 1
  fi
}

function restart_apiserver() {
  # 判斷容器運行時
  if [[ $cmd == "docker" ]]; then
    # 使用docker命令重啟kube-apiserver Pod
    container_id=$(docker ps | grep kube-apiserver | awk '{print $1}' | head -n 1 )
    if [[ -n $container_id ]]; then
      echo "Restarting kube-apiserver pod using Docker: $container_id"
      docker restart "${container_id}"
    else
      echo "kube-apiserver pod not found."
    fi
  elif [[ $cmd == "crictl" ]]; then
    # 使用crictl命令重啟kube-apiserver Pod
    pod_id=$(crictl pods --label component=kube-apiserver --latest --state=ready | grep -v "POD ID" | head -n 1 | awk '{print $1}')
    if [[ -n $pod_id ]]; then
      echo "Restarting kube-apiserver pod using crictl: $pod_id"
      crictl stopp "${pod_id}"
    else
      echo "kube-apiserver pod not found."
    fi
  else
    echo "Unsupported container runtime: $cmd"
  fi
  k8s::wait_apiserver_ready
}

check_container_runtime
restart_apiserver
echo "API Server restarted"

      展開查看rollback-etcd.sh指令碼

      #!/bin/bash

set -eo pipefail

declare -x TARGET_TEAR
declare -x cmd
dir=/tmp/rollback/etcdcert
KUBE_CERT_PATH=/etc/kubernetes/pki
ETCD_CERT_DIR=/var/lib/etcd/cert
ETCD_HOSTS=""
currentDir="$PWD"

# 更新K8s認證，根據叢集Region替換下面cn-hangzhou的預設鏡像地區。
function get_etcdhosts() {
  name1=$(find "$ETCD_CERT_DIR" -name '*-name-1.pem' -exec basename {} \; | sed 's/-name-1.pem//g')
  name2=$(find "$ETCD_CERT_DIR" -name '*-name-2.pem' -exec basename {} \; | sed 's/-name-2.pem//g')
  name3=$(find "$ETCD_CERT_DIR" -name '*-name-3.pem' -exec basename {} \; | sed 's/-name-3.pem//g')

  echo "hosts: $name1 $name2 $name3"
  ETCD_HOSTS="$name1 $name2 $name3"
}

function gencerts() {
  echo "generate ssl cert ..."
  rm -rf $dir
  mkdir -p "$dir"
  cd $dir

  local hosts
  hosts=$(echo $ETCD_HOSTS | tr -s " " ",")

  echo "generate ca"
  echo '{"CN":"CA","key":{"algo":"rsa","size":2048}, "ca": {"expiry": "438000h"}}' |
    cfssl gencert -initca - | cfssljson -bare $dir/ca -
  echo '{"signing":{"default":{"expiry":"438000h","usages":["signing","key encipherment","server auth","client auth"]}}}' >$dir/ca-config.json

  echo "generate etcd server certificates"
  export ADDRESS=$hosts,ext1.example.com,coreos1.local,coreos1,127.0.0.1
  export NAME=etcd-server
  echo '{"CN":"'$NAME'","hosts":[""],"key":{"algo":"rsa","size":2048}}' |
    cfssl gencert -config=$dir/ca-config.json -ca=$dir/ca.pem -ca-key=$dir/ca-key.pem -hostname="$ADDRESS" - | cfssljson -bare $dir/$NAME
  export ADDRESS=
  export NAME=etcd-client
  echo '{"CN":"'$NAME'","hosts":[""],"key":{"algo":"rsa","size":2048}}' |
    cfssl gencert -config=$dir/ca-config.json -ca=$dir/ca.pem -ca-key=$dir/ca-key.pem -hostname="$ADDRESS" - | cfssljson -bare $dir/$NAME

  # gen peer-ca
  echo "generate peer certificates"
  echo '{"CN":"Peer-CA","key":{"algo":"rsa","size":2048}, "ca": {"expiry": "438000h"}}' | cfssl gencert -initca - | cfssljson -bare $dir/peer-ca -
  echo '{"signing":{"default":{"expiry":"438000h","usages":["signing","key encipherment","server auth","client auth"]}}}' >$dir/peer-ca-config.json
  i=0
  for host in $ETCD_HOSTS; do
    ((i = i + 1))
    export MEMBER=${host}-name-$i
    echo '{"CN":"'${MEMBER}'","hosts":[""],"key":{"algo":"rsa","size":2048}}' |
      cfssl gencert -ca=$dir/peer-ca.pem -ca-key=$dir/peer-ca-key.pem -config=$dir/peer-ca-config.json -profile=peer \
        -hostname="$hosts,${MEMBER}.local,${MEMBER}" - | cfssljson -bare $dir/${MEMBER}
  done

  # chown
  chown -R etcd:etcd $dir
  chmod 0644 $dir/*

  for ADDR in $ETCD_HOSTS; do
    printf "sync the certificates of node %s" "${ADDR}"
    ssh -e none -o StrictHostKeyChecking=no root@"${ADDR}" mkdir -p "${dir}"
    scp -o StrictHostKeyChecking=no "${dir}"/* root@"${ADDR}":/var/lib/etcd/cert/
    scp -o StrictHostKeyChecking=no "${dir}"/ca.pem "${dir}"/etcd-client.pem "${dir}"/etcd-client-key.pem root@"${ADDR}":/etc/kubernetes/pki/etcd/
  done
}

function generate_cm() {
  echo "generate status configmap"

  cat <<-"EOF" >/tmp/ack-rotate-etcd-ca-cm.yaml.tpl
apiVersion: v1
kind: ConfigMap
metadata:
  name: ack-rotate-etcd-status
  namespace: kube-system
data:
  status: "success"
  hosts: "$hosts"
EOF

  sed -e "s#\$hosts#$ETCD_HOSTS#" /tmp/ack-rotate-etcd-ca-cm.yaml.tpl | kubectl apply -f -
}

function rotate_etcd() {
  for ADDR in $ETCD_HOSTS; do
    printf "rotate etcd's certificates on node %s\n" "${ADDR}"
      if [ "$cmd" == "docker" ]; then
        echo "restart docker on node $ADDR"
        ssh -e none -o StrictHostKeyChecking=no root@$ADDR systemctl restart docker
      fi
    ssh -e none -o StrictHostKeyChecking=no root@$ADDR systemctl restart etcd
  done
}

function rotate_apiserver() {
  echo "current dir: $currentDir"
  for ADDR in $ETCD_HOSTS; do
    printf "restart apiserver on node %s\n" "${ADDR}"
    scp -o StrictHostKeyChecking=no "${currentDir}"/restart-apiserver.sh root@"${ADDR}":/tmp/restart-apiserver.sh
    ssh -e none -o StrictHostKeyChecking=no root@"${ADDR}" systemctl restart kubelet
    ssh -e none -o StrictHostKeyChecking=no root@"${ADDR}" chmod +x /tmp/restart-apiserver.sh
    ssh -e none -o StrictHostKeyChecking=no root@"${ADDR}" bash /tmp/restart-apiserver.sh
  done
}

function check_etcd_cluster_ready() {
  local etcd_endpoints=()
  for ip in $ETCD_HOSTS; do
    etcd_endpoints+=("https://$ip:2379")
  done

  for i in $(seq 300); do
    for idx in "${!etcd_endpoints[@]}"; do
      endpoint="${etcd_endpoints[$idx]}"
      local health_output=$(ETCDCTL_API=3 etcdctl --cacert=/var/lib/etcd/cert/ca.pem --cert=/var/lib/etcd/cert/etcd-server.pem --key=/var/lib/etcd/cert/etcd-server-key.pem --endpoints "$endpoint" endpoint health --command-timeout=1s 2>&1)
      if echo "$health_output" | grep -q "successfully committed proposal"; then
          unset 'etcd_endpoints[$idx]'
      else
          echo "etcdctl result: ${health_output}"
          echo "$endpoint is not ready"
      fi
    done
    # shellcheck disable=SC2199
    if [[ -z "${etcd_endpoints[@]}" ]]; then
      echo "ETCD cluster is ready"
      break
    fi
    sleep 1
    printf "wait etcd cluster to be ready, retry %d after 1s,total 300s \n" "$i"
  done
}

function get_region_id() {
    set +e; # close error out
    local TOKEN=`curl -X PUT "http://100.100.100.200/latest/api/token" \
    -H "X-aliyun-ecs-metadata-token-ttl-seconds:900"`
    local path=100.100.100.200/latest/meta-data/region-id
    for (( i=0; i<3; i++));
    do
        response=$(curl -H "X-aliyun-ecs-metadata-token: $TOKEN" --retry 1 --retry-delay 5 -sSL $path)
        if [[ $? -gt 0 || "x$response" == "x" ]];
        then
            sleep 2; continue
        fi
        if echo "$response"|grep -E "<title>.*</title>" >/dev/null;
        then
            sleep 3; continue
        fi
        echo "$response"
        # return from metadata succeed.
        set -e; return
    done
    set -e # open error out
    # function will return empty string when failed
}

function is_vpc() {
    # Execute the curl command and capture the network-type from ECS meta-server
    local TOKEN=`curl -X PUT "http://100.100.100.200/latest/api/token" \
    -H "X-aliyun-ecs-metadata-token-ttl-seconds:900"`
    response=$(curl -H "X-aliyun-ecs-metadata-token: $TOKEN" -s http://100.100.100.200/latest/meta-data/network-type)
    if [ "$response" = "vpc" ]; then
      return 0
    else
      return 1
    fi
}

function renew_k8s_certs() {
  # try to get region id from meta-server if not given in parameter
  META_REGION=$(get_region_id)
  if [[ -z "$REGION" ]]; then
    if [[ -z "$META_REGION" ]]; then
        echo "failed to get region id from ECS meta-server, please enter the region parameter."
        return 1
    fi
    REGION=$META_REGION
  elif [[ -n "${META_REGION}" && "$REGION" != "$META_REGION" ]] ; then
    echo "switch to use local region id $META_REGION"
    REGION=$META_REGION
  fi
  # Update certs for k8s components and kubeconfig
  for ADDR in $ETCD_HOSTS; do
    echo "renew k8s components cert on node $ADDR"
    #compatible containerd
    set +e
    IMAGE="registry.$REGION.aliyuncs.com/acs/etcd-rotate:v2.0.0"
    if is_vpc; then
      IMAGE="registry-vpc.$REGION.aliyuncs.com/acs/etcd-rotate:v2.0.0"
    fi
    echo "will pull rotate image $IMAGE"
    ssh -o StrictHostKeyChecking=no root@$ADDR docker run --privileged=true  -v /:/alicoud-k8s-host --pid host --net host \
             $IMAGE /renew/upgrade-k8s.sh --role master
    ssh -o StrictHostKeyChecking=no root@$ADDR ctr image pull $IMAGE
    ssh -o StrictHostKeyChecking=no root@$ADDR ctr run --privileged=true --mount type=bind,src=/,dst=/alicoud-k8s-host,options=rbind:rw \
            --net-host $IMAGE cert-rotate /renew/upgrade-k8s.sh --role master
    set -e
    echo "finished renew k8s components cert on $ADDR"
  done
}

function check_container_runtime() {
  if command -v dockerd &>/dev/null && ps aux | grep -q "[d]ockerd"; then
    cmd=docker
  elif command -v containerd &>/dev/null && ps aux | grep -q "[c]ontainerd"; then
    cmd=crictl
  else
    echo "Neither Dockerd nor Containerd is installed or running."
    exit 1
  fi
}

while
    [[ $# -gt 0 ]]
do
    key="$1"

    case $key in
    --region)
      export REGION=$2
      shift
      ;;
    *)
      echo "unknown option [$key]"
      exit 1
      ;;
    esac
    shift
done

get_etcdhosts
printf "ETCD_HOSTS: %s\n" "$ETCD_HOSTS"

gencerts
echo "---generate certificates successfully---"

rotate_etcd
echo "---rotate etcd successfully---"

echo "---check etcd cluster ready---"
check_etcd_cluster_ready

rotate_apiserver
echo "---restart apiserver successfully---"

echo "---renew k8s components certs---"
renew_k8s_certs
echo "---end to renew k8s components certs---"

generate_cm
echo "etcd CA and certs have successfully rotated!"

rm -rf $dir

    3. 在任意Master節點上運行bash rollback-etcd.sh。

      當看到命令列輸出etcd CA and certs have successfully rotated!時，表示所有Master節點上的認證和K8s認證已經輪轉完成。

    4. 驗證認證是否更新。

    cd /var/lib/etcd/cert
for i in `ls | grep pem| grep -v key`;do openssl x509 -noout -text -in $i | grep -i after && echo "$i" ;done


cd /etc/kubernetes/pki/etcd
for i in `ls | grep pem| grep -v key`;do openssl x509 -noout -text -in $i | grep -i after && echo "$i" ;done


cd /etc/kubernetes/pki/
for i in `ls | grep crt| grep -v key`;do openssl x509 -noout -text -in $i | grep -i after && echo "$i" ;done
    說明

    當以上指令碼輸出的時間在50年之後，表示輪轉完成。
