Setiap instans ECS dalam VPC memiliki batas kueri DNS sebesar 5.000 kueri per detik. Anda dapat mengatasi pembatasan laju ini dengan melakukan scale out instans ECS atau mengaktifkan layanan caching nscd.
Setiap instans Elastic Compute Service (ECS) dalam Virtual Private Cloud (VPC) memiliki batas kueri DNS sebesar 5.000 kueri per detik. Jika jumlah kueri DNS dari satu instans melebihi ambang batas ini, instans tersebut akan dikenai pembatasan laju dan SLA ketersediaan tidak dapat dijamin. Untuk mengatasi masalah ini, pertimbangkan pendekatan berikut:
-
Lakukan scale out instans ECS sehingga permintaan kueri DNS didistribusikan ke lebih banyak instans, mengurangi volume kueri per instans.
-
Aktifkan layanan nscd (Name Service Cache Daemon) pada host ECS untuk akselerasi cache.
CatatanSaat layanan nscd diaktifkan, perubahan pada rekaman DNS akan memerlukan waktu lebih lama untuk berlaku.
Apa itu nscd?
nscd adalah layanan cache sistem yang menyimpan informasi layanan nama seperti passwd, group, hosts, services, dan netgroup. Layanan ini mengurangi jumlah kueri layanan nama dan lalu lintas jaringan, sehingga respons layanan menjadi lebih cepat. Panduan ini berfokus pada konfigurasi hosts untuk mengurangi kueri DNS dari instans ECS.
Perintah Linux umum untuk nscd
|
Command |
Description |
|
yum install -y nscd |
Install nscd. |
|
systemctl start nscd |
Start nscd. |
|
systemctl stop nscd |
Stop nscd. |
|
systemctl restart nscd |
Restart nscd. |
|
systemctl status nscd |
Query the operational status of nscd. |
|
nscd -g |
Outputs the effective configuration of all parameters and cache hit ratio statistics. |
|
nscd -i |
Invalidates the specified cache. You can specify passwd, group, hosts, services, netgroup, etc. For example: nscd -i hosts. |
|
cat /etc/nscd.conf |
Query the current nscd configuration details. |
|
vi /etc/nscd.conf |
Modify nscd configuration parameters. |
Menginstal nscd
nscd umumnya sudah terinstal secara default pada Linux. Untuk memeriksa apakah nscd telah terinstal pada instans ECS Anda, jalankan perintah berikut:
systemctl status nscd # Periksa status running nscd.Jika output-nya seperti berikut, berarti nscd belum terinstal.
[root@iZbp1fd580caxxxxxxxxxxxxtZ ~]# systemctl status nscd

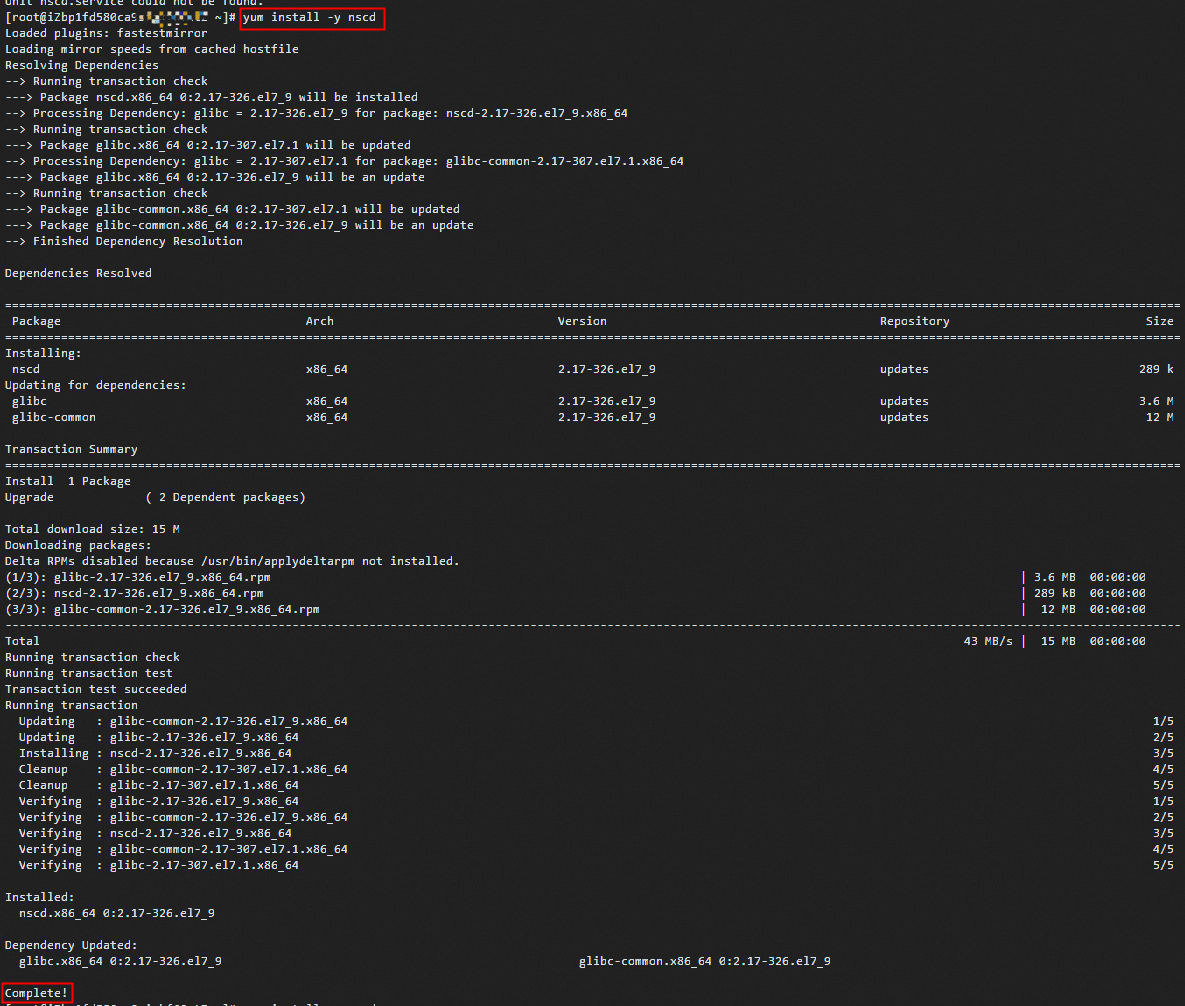

Unit nscd.service could not be found.Jalankan perintah berikut untuk menginstal nscd:
yum install -y nscd[root@izbp1fd580ca5xxx ~]# yum install -y nscd
Loaded plugins: fastestmirror
Loading mirror speeds from cached hostfile
Resolving Dependencies
--> Running transaction check
---> Package nscd.x86_64 0:2.17-326.el7_9 will be installed
--> Processing Dependency: glibc = 2.17-326.el7_9 for package: nscd-2.17-326.el7_9.x86_64
--> Running transaction check
---> Package glibc.x86_64 0:2.17-307.el7.1 will be updated
--> Processing Dependency: glibc = 2.17-307.el7.1 for package: glibc-common-2.17-307.el7.1.x86_64
---> Package glibc.x86_64 0:2.17-326.el7_9 will be an update
--> Running transaction check
---> Package glibc-common.x86_64 0:2.17-307.el7.1 will be updated
---> Package glibc-common.x86_64 0:2.17-326.el7_9 will be an update
--> Finished Dependency Resolution
Dependencies Resolved
================================================================================
Package Arch Version Repository Size
================================================================================
Installing:
nscd x86_64 2.17-326.el7_9 updates 289 k
Updating for dependencies:
glibc x86_64 2.17-326.el7_9 updates 3.6 M
glibc-common x86_64 2.17-326.el7_9 updates 12 M
Transaction Summary
================================================================================
Install 1 Package
Upgrade ( 2 Dependent packages)
Total download size: 15 M
Downloading packages:
Delta RPMs disabled because /usr/bin/applydeltarpm not installed.
(1/3): glibc-2.17-326.el7_9.x86_64.rpm | 3.6 MB 00:00:00
(2/3): nscd-2.17-326.el7_9.x86_64.rpm | 289 kB 00:00:00
(3/3): glibc-common-2.17-326.el7_9.x86_64.rpm | 12 MB 00:00:00
--------------------------------------------------------------------------------
Total 43 MB/s | 15 MB 00:00:00
Running transaction check
Running transaction test
Transaction test succeeded
Running transaction
Updating : glibc-common-2.17-326.el7_9.x86_64 1/5
Updating : glibc-2.17-326.el7_9.x86_64 2/5
Installing : nscd-2.17-326.el7_9.x86_64 3/5
Cleanup : glibc-common-2.17-307.el7.1.x86_64 4/5
Cleanup : glibc-2.17-307.el7.1.x86_64 5/5
Verifying : glibc-2.17-326.el7_9.x86_64 1/5
Verifying : glibc-common-2.17-326.el7_9.x86_64 2/5
Verifying : nscd-2.17-326.el7_9.x86_64 3/5
Verifying : glibc-common-2.17-307.el7.1.x86_64 4/5
Verifying : glibc-2.17-307.el7.1.x86_64 5/5
Installed:
nscd.x86_64 0:2.17-326.el7_9
Dependency Updated:
glibc.x86_64 0:2.17-326.el7_9 glibc-common.x86_64 0:2.17-326.el7_9
Complete!Jalankan kembali perintah status. nscd kini telah terinstal tetapi belum berjalan.
[root@izbp1fxxx ~]# systemctl status nscd
● nscd.service - Name Service Cache Daemon
Loaded: loaded (/usr/lib/systemd/system/nscd.service; disabled; vendor preset: disabled)
Active: inactive (dead)Mengaktifkan layanan nscd
Jalankan perintah berikut untuk memulai nscd:
systemctl start nscdJalankan kembali perintah status untuk memverifikasi bahwa nscd sedang berjalan.
[root@izbp1fd58cxxx ~]# systemctl status nscd
● nscd.service - Name Service Cache Daemon
Loaded: loaded (/usr/lib/systemd/system/nscd.service; disabled; vendor preset: disabled)
Active: active (running) since Fri 2023-08-11 15:00:19 CST; 19s ago
Process: 12520 ExecStart=/usr/sbin/nscd $NSCD_OPTIONS (code=exited, status=0/SUCCESS)
Main PID: 12521 (nscd)
CGroup: /system.slice/nscd.service
└─12521 /usr/sbin/nscdUntuk menginstal nscd pada sistem operasi CentOS atau Red Hat, jalankan perintah: yum install -y nscd.
Untuk menginstal nscd pada sistem operasi Debian atau Ubuntu, jalankan perintah: apt-get install -y nscd.
Parameter konfigurasi nscd

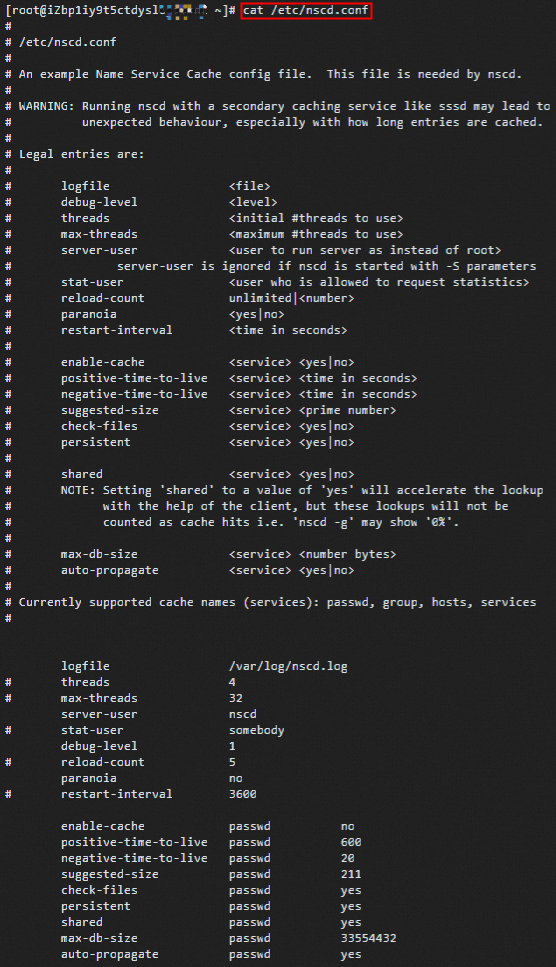

File konfigurasi default untuk nscd adalah /etc/nscd.conf. Jalankan perintah berikut untuk melihat konfigurasinya:
cat /etc/nscd.conf[root@iZbp1iy9t5ctdys1... ~]# cat /etc/nscd.conf
#
# /etc/nscd.conf
#
# An example Name Service Cache config file. This file is needed by nscd.
#
# WARNING: Running nscd with a secondary caching service like sssd may lead to
# unexpected behaviour, especially with how long entries are cached.
#
# Legal entries are:
#
# logfile <file>
# debug-level <level>
# threads <initial #threads to use>
# max-threads <maximum #threads to use>
# server-user <user to run server as instead of root>
# server-user is ignored if nscd is started with -S parameters
# stat-user <user who is allowed to request statistics>
# reload-count unlimited|<number>
# paranoia <yes|no>
# restart-interval <time in seconds>
#
# enable-cache <service> <yes|no>
# positive-time-to-live <service> <time in seconds>
# negative-time-to-live <service> <time in seconds>
# suggested-size <service> <prime number>
# check-files <service> <yes|no>
# persistent <service> <yes|no>
#
# shared <service> <yes|no>
# NOTE: Setting 'shared' to a value of 'yes' will accelerate the lookup
# with the help of the client, but these lookups will not be
# counted as cache hits i.e. 'nscd -g' may show '0%'.
#
# max-db-size <service> <number bytes>
# auto-propagate <service> <yes|no>
#
# Currently supported cache names (services): passwd, group, hosts, services
#
logfile /var/log/nscd.log
# threads 4
# max-threads 32
server-user nscd
# stat-user somebody
debug-level 1
# reload-count 5
paranoia no
# restart-interval 3600
enable-cache passwd no
positive-time-to-live passwd 600
negative-time-to-live passwd 20
suggested-size passwd 211
check-files passwd yes
persistent passwd yes
shared passwd yes
max-db-size passwd 33554432
auto-propagate passwd yesDeskripsi parameter konfigurasi utama
|
Configuration parameter |
Description |
|
debug-level |
|
|
reload-count |
Determines how many times a successfully cached entry is actively refreshed before expiring. |
|
paranoia |
Paranoia mode. If enabled, nscd will restart periodically. |
|
restart-interval |
The interval between automatic restarts when paranoia mode is enabled. |
|
enable-cache |
Enables the cache service. |
|
positive-time-to-live |
The TTL for successful response caches. |
|
negative-time-to-live |
The TTL for failed response caches. Set this to 0 to prevent failed lookups from affecting subsequent requests. |
|
check-files |
Periodically checks whether cache-related files (/etc/passwd, /etc/group, /etc/hosts) have been modified. If changes are detected, the corresponding cache is invalidated. |
|
persistent |
Retains cache content across nscd restarts. Recommended when paranoia mode is enabled. |
|
shared |
Shares the nscd database memory mapping with clients. Defaults to yes. To query the cache hit ratio with |
|
max-db-size |
The maximum size of the nscd cache database, in bytes. |
-
Pengaturan positive-time-to-live tidak berpengaruh secara praktis pada caching DNS. TTL aktual ditentukan oleh nilai yang dikembalikan dalam respons DNS.
Menguji efektivitas cache nscd
Pengujian dengan nscd dinonaktifkan
-
Jalankan perintah berikut pada instans ECS untuk menangkap paket UDP pada port 53:
tcpdump -i any udp and port 53 -

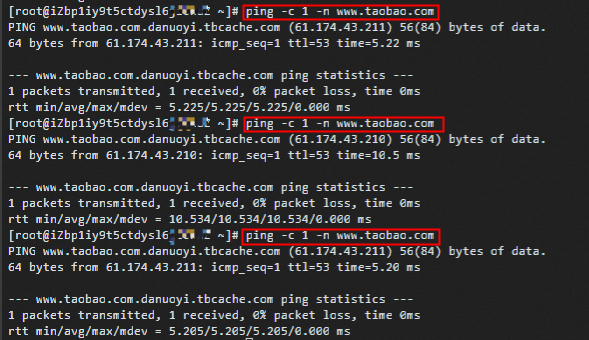

Kemudian, dengan nscd dinonaktifkan, jalankan perintah berikut pada instans ECS beberapa kali—uji tiga kali berturut-turut.
ping -c 1 -n www.taobao.com # Kirim satu perintah ping ke nama domain www.taobao.com.[root@iZbp1iy9t5ctdysl6xxx ~]# ping -c 1 -n www.taobao.com PING www.taobao.com.danuoyi.tbcache.com (61.174.43.211) 56(84) bytes of data. 64 bytes from 61.174.43.211: icmp_seq=1 ttl=53 time=5.22 ms --- www.taobao.com.danuoyi.tbcache.com ping statistics --- 1 packets transmitted, 1 received, 0% packet loss, time 0ms rtt min/avg/max/mdev = 5.225/5.225/5.225/0.000 ms [root@iZbp1iy9t5ctdysl6xxx ~]# ping -c 1 -n www.taobao.com PING www.taobao.com.danuoyi.tbcache.com (61.174.43.210) 56(84) bytes of data. 64 bytes from 61.174.43.210: icmp_seq=1 ttl=53 time=10.5 ms --- www.taobao.com.danuoyi.tbcache.com ping statistics --- 1 packets transmitted, 1 received, 0% packet loss, time 0ms rtt min/avg/max/mdev = 10.534/10.534/10.534/0.000 ms [root@iZbp1iy9t5ctdysl6xxx ~]# ping -c 1 -n www.taobao.com PING www.taobao.com.danuoyi.tbcache.com (61.174.43.211) 56(84) bytes of data. 64 bytes from 61.174.43.211: icmp_seq=1 ttl=53 time=5.20 ms --- www.taobao.com.danuoyi.tbcache.com ping statistics --- 1 packets transmitted, 1 received, 0% packet loss, time 0ms rtt min/avg/max/mdev = 5.205/5.205/5.205/0.000 ms -

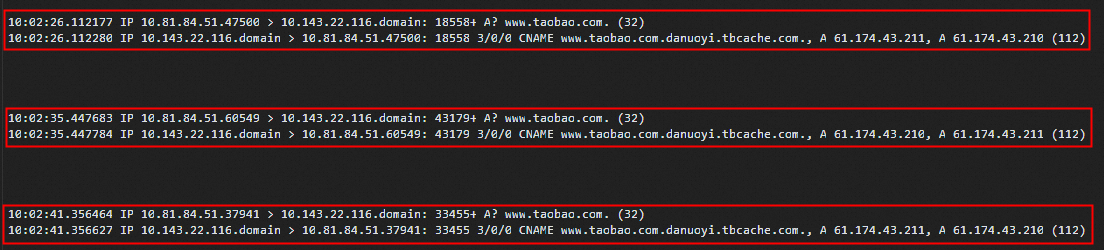

Periksa hasil tangkapan paket. Terdapat tiga permintaan kueri DNS pada port 53, masing-masing mengembalikan rekaman resolusi. Hal ini mengonfirmasi bahwa respons DNS tidak di-cache dan instans ECS mengirim kueri baru melalui port 53 setiap kali.
10:02:26.112177 IP 10.81.84.51.47500 > 10.143.22.116.domain: 18558+ A? www.taobao.com. (32) 10:02:26.112280 IP 10.143.22.116.domain > 10.81.84.51.47500: 18558 3/0/0 CNAME www.taobao.com.danuoyi.tbcache.com., A 61.174.43.211, A 61.174.43.210 (112) 10:02:35.447683 IP 10.81.84.51.60549 > 10.143.22.116.domain: 43179+ A? www.taobao.com. (32) 10:02:35.447784 IP 10.143.22.116.domain > 10.81.84.51.60549: 43179 3/0/0 CNAME www.taobao.com.danuoyi.tbcache.com., A 61.174.43.210, A 61.174.43.211 (112) 10:02:41.356464 IP 10.81.84.51.37941 > 10.143.22.116.domain: 33455+ A? www.taobao.com. (32) 10:02:41.356627 IP 10.143.22.116.domain > 10.81.84.51.37941: 33455 3/0/0 CNAME www.taobao.com.danuoyi.tbcache.com., A 61.174.43.211, A 61.174.43.210 (112)
Pengujian dengan nscd diaktifkan
-
Jalankan perintah start untuk mengaktifkan layanan nscd, dan pastikan nscd telah aktif menggunakan perintah query status.
-

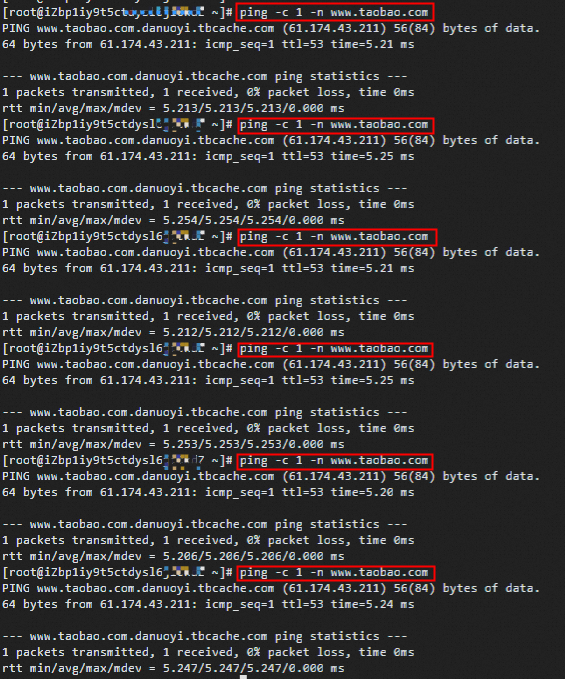

Dengan nscd diaktifkan, jalankan perintah berikut pada instans ECS—uji enam kali berturut-turut. Secara bersamaan, tangkap paket pada port 53 instans ECS.
ping -c 1 -n www.taobao.com[root@iZbp1iy9t5ctxxx ~]# ping -c 1 -n www.taobao.com PING www.taobao.com.danuoyi.tbcache.com (61.174.43.211) 56(84) bytes of data. 64 bytes from 61.174.43.211: icmp_seq=1 ttl=53 time=5.21 ms --- www.taobao.com.danuoyi.tbcache.com ping statistics --- 1 packets transmitted, 1 received, 0% packet loss, time 0ms rtt min/avg/max/mdev = 5.213/5.213/5.213/0.000 ms [root@iZbp1iy9t5ctdysl6xxx ~]# ping -c 1 -n www.taobao.com PING www.taobao.com.danuoyi.tbcache.com (61.174.43.211) 56(84) bytes of data. 64 bytes from 61.174.43.211: icmp_seq=1 ttl=53 time=5.25 ms --- www.taobao.com.danuoyi.tbcache.com ping statistics --- 1 packets transmitted, 1 received, 0% packet loss, time 0ms rtt min/avg/max/mdev = 5.254/5.254/5.254/0.000 ms [root@iZbp1iy9t5ctdysl6xxx ~]# ping -c 1 -n www.taobao.com PING www.taobao.com.danuoyi.tbcache.com (61.174.43.211) 56(84) bytes of data. 64 bytes from 61.174.43.211: icmp_seq=1 ttl=53 time=5.21 ms --- www.taobao.com.danuoyi.tbcache.com ping statistics --- 1 packets transmitted, 1 received, 0% packet loss, time 0ms rtt min/avg/max/mdev = 5.212/5.212/5.212/0.000 ms [root@iZbp1iy9t5ctdysl6xxx ~]# ping -c 1 -n www.taobao.com PING www.taobao.com.danuoyi.tbcache.com (61.174.43.211) 56(84) bytes of data. 64 bytes from 61.174.43.211: icmp_seq=1 ttl=53 time=5.25 ms --- www.taobao.com.danuoyi.tbcache.com ping statistics --- 1 packets transmitted, 1 received, 0% packet loss, time 0ms rtt min/avg/max/mdev = 5.253/5.253/5.253/0.000 ms [root@iZbp1iy9t5ctdysl6xxx ~]# ping -c 1 -n www.taobao.com PING www.taobao.com.danuoyi.tbcache.com (61.174.43.211) 56(84) bytes of data. 64 bytes from 61.174.43.211: icmp_seq=1 ttl=53 time=5.20 ms --- www.taobao.com.danuoyi.tbcache.com ping statistics --- 1 packets transmitted, 1 received, 0% packet loss, time 0ms rtt min/avg/max/mdev = 5.206/5.206/5.206/0.000 ms [root@iZbp1iy9t5ctdysl6xxx ~]# ping -c 1 -n www.taobao.com PING www.taobao.com.danuoyi.tbcache.com (61.174.43.211) 56(84) bytes of data. 64 bytes from 61.174.43.211: icmp_seq=1 ttl=53 time=5.24 ms --- www.taobao.com.danuoyi.tbcache.com ping statistics --- 1 packets transmitted, 1 received, 0% packet loss, time 0ms rtt min/avg/max/mdev = 5.247/5.247/5.247/0.000 ms -
Periksa hasil tangkapan paket. Hanya satu permintaan kueri DNS yang muncul pada port 53, mengonfirmasi bahwa kueri selanjutnya mengenai cache nscd alih-alih melewati port 53.
Dalam hasil tangkapan paket, domain target untuk kueri rekaman A DNS adalah
www.taobao.com. Output-nya sebagai berikut.10:20:46.011924 IP 10.81.84.51.52131 > 10.143.22.118.domain: 12973+ A? www.taobao.com. (32) 10:20:46.012115 IP 10.143.22.118.domain > 10.81.84.51.52131: 12973 3/0/0 CNAME www.taobao.com.danuoyi.tbcache.com., A 61.174.43.211, A 61.174.43.210 (112) 10:20:46.012221 IP 10.81.84.51.56349 > 10.143.22.118.domain: 1209+ AAAA? www.taobao.com. (32) 10:20:46.013867 IP 10.143.22.118.domain > 10.81.84.51.56349: 1209 3/0/0 CNAME www.taobao.com.danuoyi.tbcache.com., AAAA 240e:f7:a093:101:3::3e8, AAAA 240e:f7:a093:101:3::3e7 (136)PentingSaat menangkap paket, Anda mungkin melihat tcpdump masih menangkap paket kueri DNS setelah perintah ping selesai. Hal ini disebabkan oleh mekanisme refresh aktif nscd dan merupakan perilaku yang diharapkan. Untuk menonaktifkan refresh aktif, atur parameter reload-count menjadi 0.
-
Anda juga dapat memeriksa statistik hit cache. Jalankan perintah ping beberapa kali, lalu jalankan perintah berikut untuk melihat statistiknya:

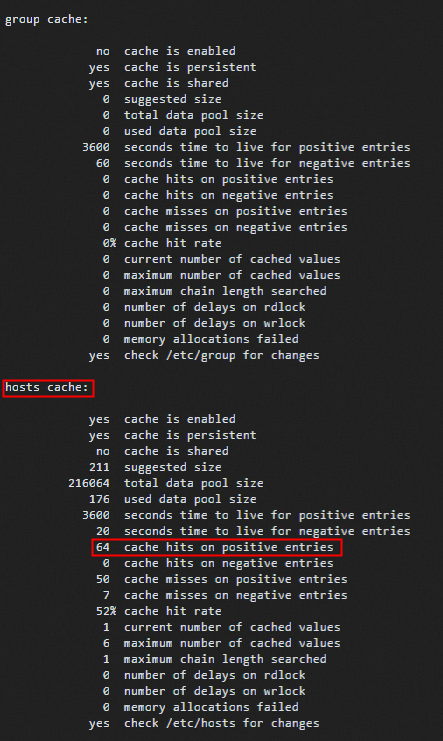

nscd -g # Output the configuration of all active parameters and cache hit ratio statistics.Pada bagian cache hosts dalam output, nilai cache hits on positive entries adalah 64, dengan tingkat hit cache sebesar 52%.
group cache: no cache is enabled yes cache is persistent yes cache is shared 0 suggested size 0 total data pool size 0 used data pool size 3600 seconds time to live for positive entries 60 seconds time to live for negative entries 0 cache hits on positive entries 0 cache hits on negative entries 0 cache misses on positive entries 0 cache misses on negative entries 0% cache hit rate 0 current number of cached values 0 maximum number of cached values 0 maximum chain length searched 0 number of delays on rdlock 0 number of delays on wrlock 0 memory allocations failed yes check /etc/group for changes hosts cache: yes cache is enabled yes cache is persistent no cache is shared 211 suggested size 216064 total data pool size 176 used data pool size 3600 seconds time to live for positive entries 20 seconds time to live for negative entries 64 cache hits on positive entries 0 cache hits on negative entries 50 cache misses on positive entries 7 cache misses on negative entries 52% cache hit rate 1 current number of cached values 6 maximum number of cached values 1 maximum chain length searched 0 number of delays on rdlock 0 number of delays on wrlock 0 memory allocations failed yes check /etc/hosts for changes
