Cloud Enterprise Network:Mengaktifkan komunikasi jaringan yang aman menggunakan router transit edisi perusahaan

Konsol

Terraform

Anda dapat menggunakan Terraform untuk menyiapkan lingkungan untuk contoh ini. Untuk detail tentang instalasi dan konfigurasi Terraform, lihat Instal Terraform.

Bagian berikut menggunakan Terraform v1.9.8 pada host Linux sebagai contoh. Pastikan Anda telah menyelesaikan Autentikasi sebelum melanjutkan.

Langkah 1: Buat sumber daya

1. Buat direktori untuk skenario dan navigasikan ke dalamnya.

   mkdir tf-CenSec && cd tf-CenSec

2. Buat file main.tf untuk mendefinisikan sumber daya yang diperlukan.

   touch main.tf

3. Buka file main.tf, tempelkan kode berikut ke dalam file, dan simpan perubahan. File ini mencakup semua sumber daya dan konfigurasi yang diperlukan.

   variable "pname" {
     description = "Nama awalan untuk sumber daya"
     type        = string
     default     = "tf-CenSec"
   }

   variable "default_region" {
     description = "Wilayah default"
     type        = string
     default     = "cn-hangzhou"
   }

   variable "az" {
     description = "Daftar zona ketersediaan yang digunakan"
     type        = list(string)
     default     = ["cn-hangzhou-i", "cn-hangzhou-j", "cn-hangzhou-k"]
   }

   variable "vpc_count" {
     description = "Jumlah VPC yang akan dibuat"
     type        = number
     default     = 3
   }

   provider "alicloud" {
     region = var.default_region
   }

   # vpc
   resource "alicloud_vpc" "main" {
     count      = var.vpc_count
     vpc_name   = "${var.pname}-vpc${count.index + 1}"
     cidr_block = "10.${count.index}.0.0/16"
   }

   # vsw
   resource "alicloud_vswitch" "main" {
     count        = var.vpc_count * length(var.az)
     vpc_id       = alicloud_vpc.main[floor(count.index / length(var.az))].id
     cidr_block   = "10.${floor(count.index / length(var.az))}.${count.index % length(var.az)}.0/24"
     zone_id      = var.az[count.index % length(var.az)]
     vswitch_name = "${var.pname}-vsw${count.index + 1}"
   }

   # ecs
   resource "alicloud_instance" "main" {
     count                = var.vpc_count
     instance_name        = "${var.pname}-ecs${count.index + 1}"
     instance_type        = "ecs.e-c1m1.large"
     security_groups      = [alicloud_security_group.main[count.index].id]
     vswitch_id           = alicloud_vswitch.main[count.index * length(var.az)].id
     image_id             = "aliyun_3_x64_20G_qboot_alibase_20230727.vhd"
     system_disk_category = "cloud_essd"
     private_ip           = "10.${count.index}.0.1"
     instance_charge_type = "PostPaid"
     user_data = base64encode(<<-EOT
       #!/bin/bash
       ${count.index == 0 ? "echo 1 > /proc/sys/net/ipv4/ip_forward" : ""}
       yum install -y traceroute
       yum install -y mtr
     EOT
     ) # ecs1 aktifkan ip_forward
   }

   # sg
   resource "alicloud_security_group" "main" {
     count  = var.vpc_count
     name   = "${var.pname}-${count.index + 1}"
     vpc_id = alicloud_vpc.main[count.index].id
   }

   resource "alicloud_security_group_rule" "allow_inbound_ssh" {
     count             = var.vpc_count
     type              = "ingress"
     ip_protocol       = "tcp"
     nic_type          = "intranet"
     policy            = "accept"
     port_range        = "22/22"
     priority          = 1
     security_group_id = alicloud_security_group.main[count.index].id
     cidr_ip           = "0.0.0.0/0"
   }

   resource "alicloud_security_group_rule" "allow_inbound_icmp" {
     count             = var.vpc_count
     type              = "ingress"
     ip_protocol       = "icmp"
     nic_type          = "intranet"
     policy            = "accept"
     port_range        = "-1/-1"
     priority          = 1
     security_group_id = alicloud_security_group.main[count.index].id
     cidr_ip           = "0.0.0.0/0"
   }

   resource "alicloud_security_group_rule" "allow_all_outbound" {
     count             = var.vpc_count
     type              = "egress"
     ip_protocol       = "tcp"
     nic_type          = "intranet"
     policy            = "accept"
     port_range        = "1/65535"
     priority          = 1
     security_group_id = alicloud_security_group.main[count.index].id
     cidr_ip           = "0.0.0.0/0"
   }

   # cen
   resource "alicloud_cen_instance" "cen1" {
     cen_instance_name = var.pname
   }

   # tr
   resource "alicloud_cen_transit_router" "tr1" {
     transit_router_name = var.pname
     cen_id              = alicloud_cen_instance.cen1.id
   }

   # attach1  ke vsw2 vsw3 di vpc1
   resource "alicloud_cen_transit_router_vpc_attachment" "attach1" {
     cen_id            = alicloud_cen_instance.cen1.id
     transit_router_id = alicloud_cen_transit_router.tr1.transit_router_id
     vpc_id            = alicloud_vpc.main[0].id
     zone_mappings {
       zone_id    = var.az[1]
       vswitch_id = alicloud_vswitch.main[1].id # vsw2, vpc1-2
     }
     zone_mappings {
       zone_id    = var.az[2]
       vswitch_id = alicloud_vswitch.main[2].id # vsw3, vpc1-3
     }
     transit_router_vpc_attachment_name = "attach1"
   }

   # attach2 ke vsw1 vsw2 di vpc2
   resource "alicloud_cen_transit_router_vpc_attachment" "attach2" {
     cen_id            = alicloud_cen_instance.cen1.id
     transit_router_id = alicloud_cen_transit_router.tr1.transit_router_id
     vpc_id            = alicloud_vpc.main[1].id
     zone_mappings {
       zone_id    = var.az[0]
       vswitch_id = alicloud_vswitch.main[3].id # vsw4, vpc2-1
     }
     zone_mappings {
       zone_id    = var.az[1]
       vswitch_id = alicloud_vswitch.main[4].id # vsw5, vpc2-2
     }
     transit_router_vpc_attachment_name = "attach2"
   }


   # attach3 ke vsw1 vsw2 di vpc3
   resource "alicloud_cen_transit_router_vpc_attachment" "attach3" {
     cen_id            = alicloud_cen_instance.cen1.id
     transit_router_id = alicloud_cen_transit_router.tr1.transit_router_id
     vpc_id            = alicloud_vpc.main[2].id
     zone_mappings {
       zone_id    = var.az[0]
       vswitch_id = alicloud_vswitch.main[6].id # vsw6, vpc3-1
     }
     zone_mappings {
       zone_id    = var.az[1]
       vswitch_id = alicloud_vswitch.main[7].id # vsw7, vpc3-2
     }
     transit_router_vpc_attachment_name = "attach3"
   }

   # 3 rt untuk vpc1
   resource "alicloud_route_table" "rt" {
     count            = 3
     vpc_id           = alicloud_vpc.main[0].id
     route_table_name = "${var.pname}-rt${count.index}"
     associate_type   = "VSwitch"
   }

   # 3 rt pasang ke vsw1 2 3
   resource "alicloud_route_table_attachment" "rt_attach" {
     count          = 3
     vswitch_id     = alicloud_vswitch.main[count.index].id
     route_table_id = alicloud_route_table.rt[count.index].id
   }

   # rt entry, vpc1
   resource "alicloud_route_entry" "rt-entry1" { # hop berikutnya tr
     route_table_id        = alicloud_route_table.rt[0].id
     destination_cidrblock = "0.0.0.0/0"
     nexthop_type          = "Attachment"
     nexthop_id            = alicloud_cen_transit_router_vpc_attachment.attach1.transit_router_attachment_id
   }
   resource "alicloud_route_entry" "rt-entry2" { # hop berikutnya ecs1
     route_table_id        = alicloud_route_table.rt[1].id
     destination_cidrblock = "0.0.0.0/0"
     nexthop_type          = "Instance"
     nexthop_id            = alicloud_instance.main[0].id # ecs1
   }
   resource "alicloud_route_entry" "rt-entry3" { # hop berikutnya ecs1
     route_table_id        = alicloud_route_table.rt[2].id
     destination_cidrblock = "0.0.0.0/0"
     nexthop_type          = "Instance"
     nexthop_id            = alicloud_instance.main[0].id # ecs1
   }

   # rt entry, vpc2 vpc3
   resource "alicloud_route_entry" "rt-entry4" {
     route_table_id        = alicloud_vpc.main[1].route_table_id
     destination_cidrblock = "0.0.0.0/0"
     nexthop_type          = "Attachment"
     nexthop_id            = alicloud_cen_transit_router_vpc_attachment.attach2.transit_router_attachment_id
   }
   resource "alicloud_route_entry" "rt-entry5" {
     route_table_id        = alicloud_vpc.main[2].route_table_id
     destination_cidrblock = "0.0.0.0/0"
     nexthop_type          = "Attachment"
     nexthop_id            = alicloud_cen_transit_router_vpc_attachment.attach3.transit_router_attachment_id
   }

   # baru 2 tr_rt
   resource "alicloud_cen_transit_router_route_table" "tr_rt1" {
     transit_router_id               = alicloud_cen_transit_router.tr1.transit_router_id
     transit_router_route_table_name = "tr_rt1"
   }

   resource "alicloud_cen_transit_router_route_table" "tr_rt2" {
     transit_router_id               = alicloud_cen_transit_router.tr1.transit_router_id
     transit_router_route_table_name = "tr_rt2"
   }

   # ass rt1 attach2 3
   resource "alicloud_cen_transit_router_route_table_association" "ass1" {
     transit_router_route_table_id = alicloud_cen_transit_router_route_table.tr_rt1.transit_router_route_table_id
     transit_router_attachment_id  = alicloud_cen_transit_router_vpc_attachment.attach2.transit_router_attachment_id
   }
   resource "alicloud_cen_transit_router_route_table_association" "ass2" {
     transit_router_route_table_id = alicloud_cen_transit_router_route_table.tr_rt1.transit_router_route_table_id
     transit_router_attachment_id  = alicloud_cen_transit_router_vpc_attachment.attach3.transit_router_attachment_id
   }
   # ass rt2 attach1
   resource "alicloud_cen_transit_router_route_table_association" "ass3" {
     transit_router_route_table_id = alicloud_cen_transit_router_route_table.tr_rt2.transit_router_route_table_id
     transit_router_attachment_id  = alicloud_cen_transit_router_vpc_attachment.attach1.transit_router_attachment_id
   }

   # tr_rt_entry
   resource "alicloud_cen_transit_router_route_entry" "tr_rt1_entry1" {
     transit_router_route_table_id                     = alicloud_cen_transit_router_route_table.tr_rt1.transit_router_route_table_id
     transit_router_route_entry_destination_cidr_block = "0.0.0.0/0"
     transit_router_route_entry_next_hop_type          = "Attachment"
     transit_router_route_entry_next_hop_id            = alicloud_cen_transit_router_vpc_attachment.attach1.transit_router_attachment_id
   }
   resource "alicloud_cen_transit_router_route_entry" "tr_rt2_entry1" {
     transit_router_route_table_id                     = alicloud_cen_transit_router_route_table.tr_rt2.transit_router_route_table_id
     transit_router_route_entry_destination_cidr_block = "10.1.0.0/16"
     transit_router_route_entry_next_hop_type          = "Attachment"
     transit_router_route_entry_next_hop_id            = alicloud_cen_transit_router_vpc_attachment.attach2.transit_router_attachment_id
   }
   resource "alicloud_cen_transit_router_route_entry" "tr_rt2_entry2" {
     transit_router_route_table_id                     = alicloud_cen_transit_router_route_table.tr_rt2.transit_router_route_table_id
     transit_router_route_entry_destination_cidr_block = "10.2.0.0/16"
     transit_router_route_entry_next_hop_type          = "Attachment"
     transit_router_route_entry_next_hop_id            = alicloud_cen_transit_router_vpc_attachment.attach3.transit_router_attachment_id
   }

   output "ecs1_login_address" {
     value = "https://ecs-workbench.aliyun.com/?from=EcsConsole&instanceType=ecs&regionId=${var.default_region}&instanceId=${alicloud_instance.main[0].id}"
   }

   output "ecs2_login_address" {
     value = "https://ecs-workbench.aliyun.com/?from=EcsConsole&instanceType=ecs&regionId=${var.default_region}&instanceId=${alicloud_instance.main[1].id}"
   }

   output "ecs3_login_address" {
     value = "https://ecs-workbench.aliyun.com/?from=EcsConsole&instanceType=ecs&regionId=${var.default_region}&instanceId=${alicloud_instance.main[2].id}"
   }

4. Inisialisasi direktori untuk menyelesaikan pengaturan Terraform.

   terraform init

5. Buat sumber daya, Terraform akan menampilkan pratinjau sumber daya yang akan dibuat. Setelah verifikasi, masukkan yes untuk memulai proses pembuatan.

   terraform apply

Langkah 2: Uji konektivitas

1. Masuk ke instance ECS2 bernama tf-CenSec-ecs2.

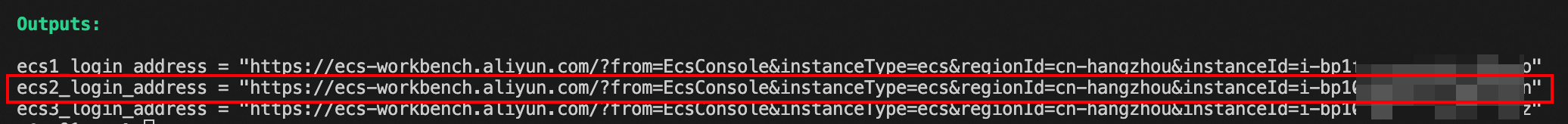

   Alamat masuk untuk ECS2 tersedia di Output Terraform. Salin alamat ke browser dan pilih Temporary SSH Key-based sebagai metode autentikasi.



2. Jalankan perintah mtr di ECS2 untuk menguji jalur jaringan ke ECS3:

   mtr 10.2.0.1 -i 5

   -i 5 menunjukkan bahwa permintaan ping dikirim setiap 5 detik.

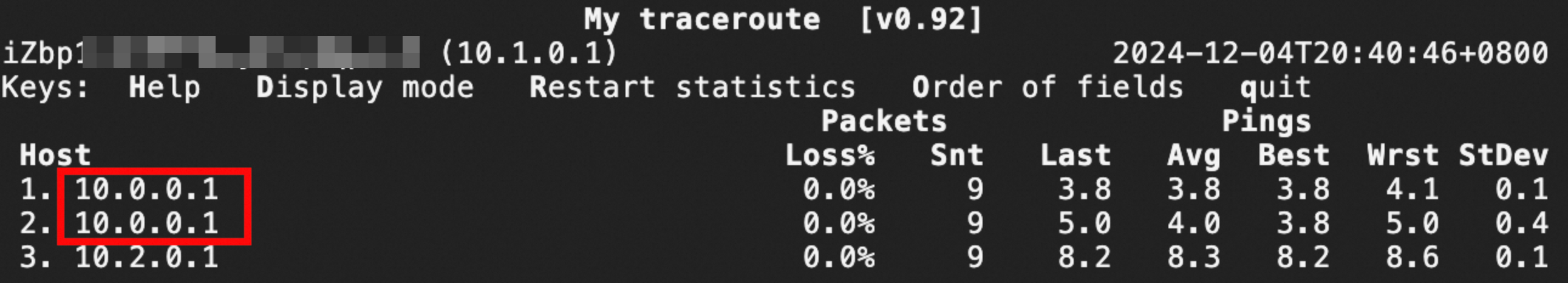

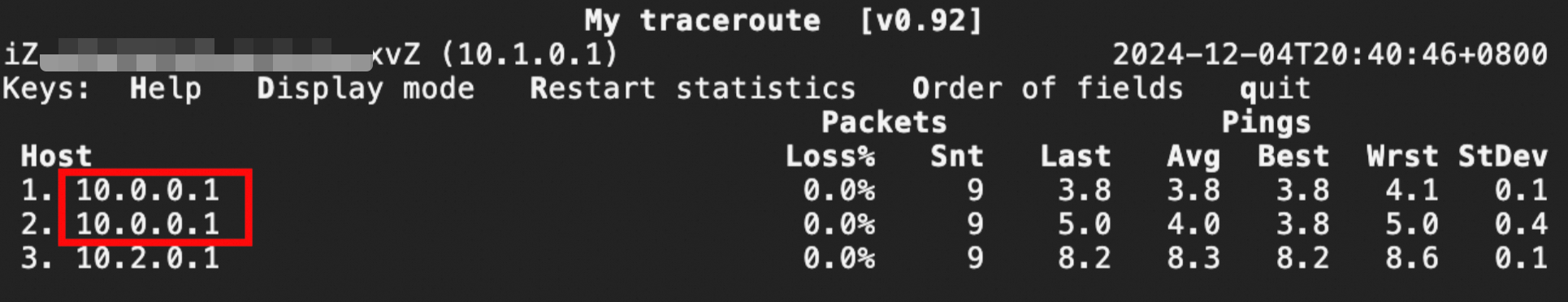

   Hasilnya menunjukkan bahwa paket dari ECS2 ke ECS3 sedang dirutekan melalui ECS1 (10.0.0.1). Ini mengonfirmasi bahwa lalu lintas antara VPC2 dan VPC3 diarahkan melalui ECS1, yaitu ECS keamanan.

Langkah 3: Lepaskan sumber daya

Ketika verifikasi selesai dan Anda tidak lagi memerlukan sumber daya tersebut, jalankan perintah berikut untuk melepaskannya dan menghentikan penagihan.

terraform destroy --auto-approve
