API Gateway cloud-native menyediakan manajemen terpadu, analisis, tampilan, dan notifikasi data event. Anda dapat menggunakan event untuk melacak perubahan resource serta memecahkan masalah event abnormal dengan panduan bawaan.

Model peristiwa

Sebuah event API Gateway cloud-native memiliki parameter berikut.

Parameter	Description
Time	Waktu terjadinya event.
Product Name	Cloud-native API Gateway
Event Name	Nama event. Termasuk kode event dan deskripsi event.
Event Level	Event Hub di Cloud-native API Gateway mengklasifikasikan event ke dalam tiga level berdasarkan dampaknya. Information (INFO): Operasi sistem normal. Event ini menunjukkan perilaku yang diharapkan dan tidak memengaruhi bisnis Anda. Warning (WARN): Sistem berjalan normal atau dapat pulih secara otomatis. Event ini mungkin memengaruhi bisnis Anda dan perlu diperhatikan. Critical (CRITICAL): Sistem mengalami masalah dan tidak dapat pulih secara otomatis. Event ini mencegah bisnis Anda berjalan dengan benar.
Region	Wilayah instans.
Resource	Nama Sumber Daya Alibaba Cloud (ARN) dari resource yang terdampak.
Contents	Detail event.
Actions	Lihat detail event.

Titik masuk

Masuk ke Konsol API Gateway.
Pada panel navigasi kiri, pilih event.

Kueri event

Pusat Insiden mendukung kueri event berdasarkan berbagai kriteria, seperti:

Level event
Nama event
Kata kunci
Waktu event

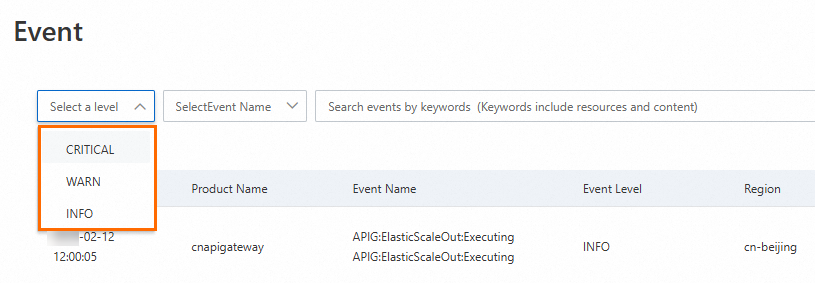

Kueri berdasarkan level event

Filter event berdasarkan tingkat keparahannya.

Level event adalah Critical, Warning, dan Information.

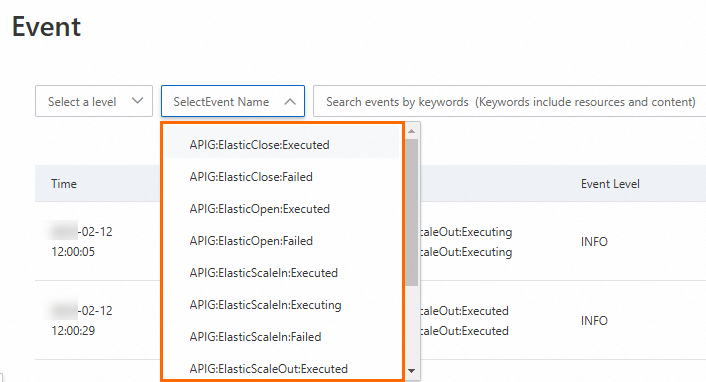

Kueri berdasarkan nama event

Filter event berdasarkan namanya.

Daftar event mencakup kolom Event time, Event name, dan Event level.

Kueri berdasarkan kata kunci

Filter event berdasarkan kata kunci. Misalnya, untuk menemukan event untuk instans gateway gw-ctbq4qum1hknl20trv40d, masukkan gw-ctbq4qum1hknl20trv40 ke dalam kotak pencarian.

Catatan

Anda dapat menemukan kata kunci di kolom Resource dan Contents.

Kueri berdasarkan waktu event

Kueri event dalam rentang waktu kustom.

Catatan

Di Pusat Insiden API Gateway Cloud Native, Anda dapat mengkueri event dari 90 hari terakhir. Rentang waktu maksimum untuk satu kueri adalah tiga hari berturut-turut.

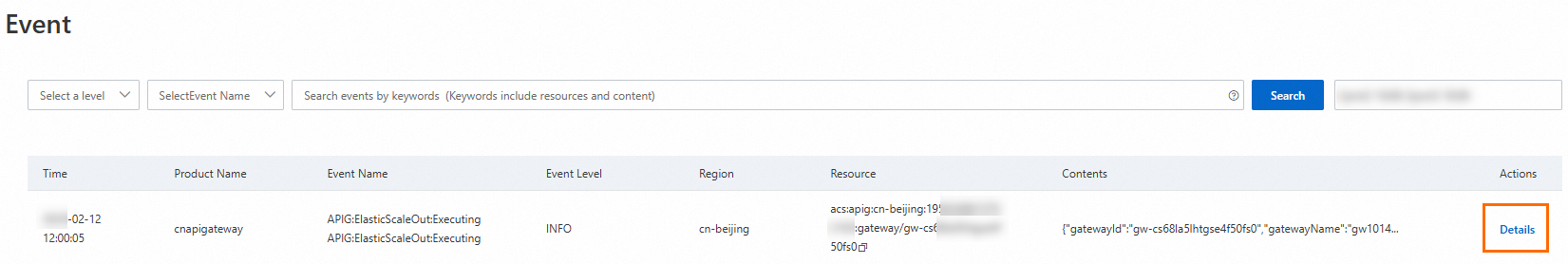

Lihat detail event

Pada kolom Actions, klik Details untuk melihat detail event.

Event

Skema dan operasi berikut menghasilkan notifikasi event:

Scale-out otomatis API Gateway cloud-native (APIG:ElasticScaleOut)

Saat scale-out otomatis berlangsung, API Gateway cloud-native menghasilkan event yang mencerminkan status operasi.

Executing: Sedang berlangsung | Executed: Berhasil | Failed: Gagal

`Executing`

Operasi scale-out otomatis sedang berlangsung.

Format JSON:

{
    "Status": "Executing",
    "InstanceName": "gw-test-01",
    "ResourceId": "acs:apig:cn-hangzhou:1321*******4629:gateway/gw-d2o34q6m1hkgipd1hph0",
    "Content": {
        "gatewayId": "gw-d2o34q6m1hkgipd1hph0",
        "gatewayName": "gw-test-01",
        "message": "Auto scale-out started.",
        "operator": "SYSTEM",
        "publishRecordId": 6264487,
        "replicas": 3
    },
    "Product": "cnapigateway",
    "Time": 1756400523000,
    "Level": "INFO",
    "RegionId": "cn-hangzhou",
    "Id": "f41bb19f-c0ae-4938-b182-13b3cead0322",
    "GroupId": "0",
    "Name": "APIG:ElasticScaleOut:Executing"
}

`Executed`

Operasi scale-out otomatis berhasil.

Format JSON:

{
    "Status": "Executed",
    "InstanceName": "gw-test-01",
    "ResourceId": "acs:apig:cn-hangzhou:1321****094629:gateway/gw-d2o34q6m1hkgipd1hph0",
    "Content": {
        "gatewayId": "gw-d2o34q6m1hkgipd1hph0",
        "gatewayName": "gw-test-01",
        "message": "Auto scale-out succeeded.",
        "operator": "SYSTEM",
        "publishRecordId": 6264487,
        "replicas": 3
    },
    "Product": "cnapigateway",
    "Time": 1756400539000,
    "Level": "INFO",
    "RegionId": "cn-hangzhou",
    "Id": "3f70b85e-ed52-4d20-b97e-6bcc35588114",
    "GroupId": "0",
    "Name": "APIG:ElasticScaleOut:Executed"
}

`Failed`

Operasi scale-out otomatis gagal.

Format JSON:

{
    "Status": "Failed",
    "InstanceName": "gw-test-01",
    "ResourceId": "acs:apig:cn-hangzhou:13219*****94629:gateway/gw-d2o34q6m1hkgipd1hph0",
    "Content": {
        "gatewayId": "gw-d2o34q6m1hkgipd1hph0",
        "gatewayName": "gw-test-01",
        "message": "Auto scale-out failed.",
        "operator": "SYSTEM",
        "publishRecordId": 6264487,
        "replicas": 3
    },
    "Product": "cnapigateway",
    "Time": 1756400539000,
    "Level": "WARN",
    "RegionId": "cn-hangzhou",
    "Id": "3f70b85e-ed52-4d20-b97e-6bcc35588114",
    "GroupId": "0",
    "Name": "APIG:ElasticScaleOut:Failed"
}

Objek Content berisi bidang-bidang berikut.

Parameter	Description	Example
gatewayName	Nama gateway.	gw-test-01
replicas	Jumlah node instans gateway setelah scale-out.	3
message	Pesan event.	Auto scale-out succeeded.
gatewayId	ID unik gateway.	gw-d2o34q6m1hkgipd1hph0
operator	Entitas yang memicu event.	SYSTEM
publishRecordId	ID catatan publikasi.	6264487

Scale-in otomatis API Gateway cloud-native (APIG:ElasticScaleIn)

Saat scale-in otomatis berlangsung, API Gateway cloud-native menghasilkan event dengan tiga status yang mungkin:

Executing: Sedang berlangsung | Executed: Berhasil | Failed: Gagal

`Executing`

Operasi scale-in otomatis sedang berlangsung.

Format JSON:

{
    "Status": "Executing",
    "InstanceName": "gw-test-01",
    "ResourceId": "acs:apig:cn-hangzhou:132******94629:gateway/gw-d2o34q6m1hkgipd1hph0",
    "Content": {
        "gatewayId": "gw-d2o34q6m1hkgipd1hph0",
        "gatewayName": "gw-test-01",
        "message": "Auto scale-in started",
        "operator": "SYSTEM",
        "publishRecordId": 6266557,
        "replicas": 2
    },
    "Product": "cnapigateway",
    "Time": 1756414922000,
    "Level": "INFO",
    "RegionId": "cn-hangzhou",
    "Id": "7bb39402-08ff-4f1f-b3d1-2d259ee4711d",
    "GroupId": "0",
    "Name": "APIG:ElasticScaleIn:Executing"
}

`Executed`

Operasi scale-in otomatis berhasil.

Format JSON:

{
    "Status": "Executed",
    "InstanceName": "gw-test-01",
    "ResourceId": "acs:apig:cn-hangzhou:132******94629:gateway/gw-d2o34q6m1hkgipd1hph0",
    "Content": {
        "gatewayId": "gw-d2o34q6m1hkgipd1hph0",
        "gatewayName": "gw-test-01",
        "message": "Auto scale-in succeeded",
        "operator": "SYSTEM",
        "publishRecordId": 6266557,
        "replicas": 2
    },
    "Product": "cnapigateway",
    "Time": 1756414922000,
    "Level": "INFO",
    "RegionId": "cn-hangzhou",
    "Id": "7bb39402-08ff-4f1f-b3d1-2d259ee4711d",
    "GroupId": "0",
    "Name": "APIG:ElasticScaleIn:Executed"
}

`Failed`

Operasi scale-in otomatis gagal.

Format JSON:

{
    "Status": "Failed",
    "InstanceName": "gw-test-01",
    "ResourceId": "acs:apig:cn-hangzhou:132******94629:gateway/gw-d2o34q6m1hkgipd1hph0",
    "Content": {
        "gatewayId": "gw-d2o34q6m1hkgipd1hph0",
        "gatewayName": "gw-test-01",
        "message": "Auto scale-in failed",
        "operator": "SYSTEM",
        "publishRecordId": 6266557,
        "replicas": 2
    },
    "Product": "cnapigateway",
    "Time": 1756414922000,
    "Level": "WARN",
    "RegionId": "cn-hangzhou",
    "Id": "7bb39402-08ff-4f1f-b3d1-2d259ee4711d",
    "GroupId": "0",
    "Name": "APIG:ElasticScaleIn:Failed"
}

Tabel berikut menjelaskan bidang dalam objek Content.

Parameter	Description	Example value
gatewayName	Nama gateway.	gw-test-01
replicas	Jumlah instans gateway.	2
message	Pesan event.	Auto scale-in succeeded
gatewayId	ID gateway.	gw-d2o34q6m1hkgipd1hph0
operator	Entitas yang memicu event.	SYSTEM
publishRecordId	ID catatan publikasi.	6266557

Skalabilitas elastis API Gateway cloud-native (APIG:ElasticOpen)

Saat Anda mengaktifkan skalabilitas elastis, API Gateway cloud-native menghasilkan event yang menunjukkan hasilnya:

Executed: Berhasil | Failed: Gagal

`Executed`

Skalabilitas elastis diaktifkan untuk instans API Gateway cloud-native.

Format JSON:

{
    "Status": "Executed",
    "InstanceName": "gw-test-01",
    "ResourceId": "acs:apig:cn-hangzhou:13219******4629:gateway/gw-d2o34q6m1hkgipd1hph0",
    "Content": {
        "message": "Create Elastic Strategy:Success",
        "gatewayId": "gw-d2o34q6m1hkgipd1hph0",
        "gatewayName": "gw-test-01",
        "newElasticStrategy": {
            "elasticEnabled": true,
            "elasticType": "CronHPA",
            "timePolicyList": [
                {
                    "units": 3,
                    "startTime": "01:02",
                    "endTime": "05:02"
                }
            ],
            "maxUnits": null,
            "loadWarningThreshold": null,
            "enableScaleTimePolicyList": [
                {
                    "startTime": "",
                    "endTime": ""
                }
            ],
            "disableScaleTimePolicyList": null
        }
    },
    "Product": "cnapigateway",
    "Time": 1756378065000,
    "Level": "INFO",
    "RegionId": "cn-hangzhou",
    "Id": "589abc6e-97de-4d3d-b580-7fe53cda6feb",
    "GroupId": "0",
    "Name": "APIG:ElasticOpen:Executed"
}

`Failed`

Aktivasi skalabilitas elastis untuk instans API Gateway cloud-native gagal.

Format JSON:

{
    "Status": "Failed",
    "InstanceName": "gw-test-01",
    "ResourceId": "acs:apig:cn-hangzhou:13219******4629:gateway/gw-d2o34q6m1hkgipd1hph0",
    "Content": {
        "message": "Create Elastic Strategy:Failed",
        "gatewayId": "gw-d2o34q6m1hkgipd1hph0",
        "gatewayName": "gw-test-01"
    },
    "Product": "cnapigateway",
    "Time": 1756378065000,
    "Level": "WARN",
    "RegionId": "cn-hangzhou",
    "Id": "589abc6e-97de-4d3d-b580-7fe53cda6feb",
    "GroupId": "0",
    "Name": "APIG:ElasticOpen:Failed"
}

Tabel berikut menjelaskan bidang dalam objek Content.

Parameter	Description	Example
message	Pesan log.	Create Elastic Strategy:Success
gatewayId	ID gateway.	gw-d2o34q6m1hkgipd1hph0
gatewayName	Nama gateway.	gw-test-01
newElasticStrategy	Kebijakan penskalaan baru.
elasticEnabled	Menunjukkan apakah skalabilitas elastis diaktifkan.	true
elasticType	Metode penskalaan.	CronHPA
units	Jumlah target node.	3
startTime	Waktu mulai eksekusi kebijakan.	01:02
endTime	Waktu akhir eksekusi kebijakan.	05:02
maxUnits	Jumlah maksimum node.	null
loadWarningThreshold	Ambang batas penskalaan.	null
disableScaleTimePolicyList	Periode waktu ketika scale-in tidak diizinkan.	null

Menonaktifkan skalabilitas elastis untuk API Gateway cloud-native (APIG:ElasticClose)

Saat Anda menonaktifkan skalabilitas elastis, API Gateway cloud-native menghasilkan event yang menunjukkan hasilnya:

Executed: Berhasil | Failed: Gagal

`Executed`

Skalabilitas elastis dinonaktifkan untuk instans tersebut.

Format JSON:

{
    "Status": "Executed",
    "InstanceName": "gw-test-01",
    "ResourceId": "acs:apig:cn-hangzhou:132*******629:gateway/gw-d2o34q6m1hkgipd1hph0",
    "Content": {
        "message": "Delete Elastic Strategy:Success",
        "gatewayId": "gw-d2o34q6m1hkgipd1hph0",
        "gatewayName": "gw-test-01",
        "oldElasticStrategy": {
            "elasticEnabled": true,
            "elasticType": "CronHPA",
            "timePolicyList": [
                {
                    "units": 3,
                    "startTime": "05:04",
                    "endTime": "08:04"
                }
            ],
            "maxUnits": null,
            "loadWarningThreshold": null,
            "enableScaleTimePolicyList": [
                {
                    "startTime": "",
                    "endTime": ""
                }
            ],
            "disableScaleTimePolicyList": null
        }
    },
    "Product": "cnapigateway",
    "Time": 1756430305000,
    "Level": "INFO",
    "RegionId": "cn-hangzhou",
    "Id": "6305f83d-3735-4c5c-aa41-ec1353af7d60",
    "GroupId": "0",
    "Name": "APIG:ElasticClose:Executed"
}

`Failed`

Penonaktifan skalabilitas elastis untuk instans tersebut gagal.

Format JSON:

{
    "Status": "Failed",
    "InstanceName": "gw-test-01",
    "ResourceId": "acs:apig:cn-hangzhou:13219******4629:gateway/gw-d2o34q6m1hkgipd1hph0",
    "Content": {
        "message": "Delete Elastic Strategy:Failed",
        "gatewayId": "gw-d2o34q6m1hkgipd1hph0",
        "gatewayName": "gw-test-01"
    },
    "Product": "cnapigateway",
    "Time": 1756378065000,
    "Level": "WARN",
    "RegionId": "cn-hangzhou",
    "Id": "589abc6e-97de-4d3d-b580-7fe53cda6feb",
    "GroupId": "0",
    "Name": "APIG:ElasticClose:Failed"
}

Tabel berikut menjelaskan bidang dalam objek Content.

Parameter	Description	Example value
message	Pesan log.	Delete Elastic Strategy:Success
gatewayId	ID gateway.	gw-d2o34q6m1hkgipd1hph0
gatewayName	Nama gateway.	gw-test-01
oldElasticStrategy	Konfigurasi kebijakan skalabilitas elastis sebelumnya.
elasticEnabled	Menunjukkan apakah skalabilitas elastis sebelumnya diaktifkan.	true
elasticType	Metode penskalaan.	CronHPA
units	Jumlah target node.	3
startTime	Waktu mulai kebijakan.	05:04
endTime	Waktu akhir kebijakan.	08:04
maxUnits	Jumlah maksimum node yang diizinkan.	4
loadWarningThreshold	Ambang batas beban yang memicu aksi penskalaan.	true
disableScaleTimePolicyList	Periode waktu ketika scale-in tidak diizinkan.	null

Pembaruan kebijakan skalabilitas elastis (APIG:ElasticStrategyUpdate)

Saat skalabilitas elastis diaktifkan, API Gateway cloud-native menghasilkan event ini untuk melaporkan hasil pembaruan kebijakan penskalaan.

Executed: Berhasil | Failed: Tidak berhasil

`Executed`

Kebijakan skalabilitas elastis telah diperbarui.

Format JSON:

{
    "Status": "Executed",
    "InstanceName": "gw-test-01",
    "ResourceId": "acs:apig:cn-hangzhou:1321*****4629:gateway/gw-d2o34q6m1hkgipd1hph0",
    "Content": {
        "message": "Update Elastic Strategy:Success",
        "gatewayId": "gw-d2o34q6m1hkgipd1hph0",
        "gatewayName": "gw-test-01",
        "oldElasticStrategy": {
            "elasticEnabled": true,
            "elasticType": "CronHPA",
            "timePolicyList": [
                {
                    "units": 3,
                    "startTime": "01:02",
                    "endTime": "05:02"
                }
            ],
            "maxUnits": null,
            "loadWarningThreshold": null,
            "enableScaleTimePolicyList": [
                {
                    "startTime": "",
                    "endTime": ""
                }
            ],
            "disableScaleTimePolicyList": null
        },
        "newElasticStrategy": {
            "elasticEnabled": true,
            "elasticType": "CronHPA",
            "timePolicyList": [
                {
                    "units": 3,
                    "startTime": "05:04",
                    "endTime": "08:04"
                }
            ],
            "maxUnits": null,
            "loadWarningThreshold": null,
            "enableScaleTimePolicyList": [
                {
                    "startTime": "",
                    "endTime": ""
                }
            ],
            "disableScaleTimePolicyList": null
        }
    },
    "Product": "cnapigateway",
    "Time": 1756430007000,
    "Level": "INFO",
    "RegionId": "cn-hangzhou",
    "Id": "ee78f750-1f3a-45d7-8c4f-cc17d6ae5f75",
    "GroupId": "0",
    "Name": "APIG:ElasticStrategyUpdate:Executed"
}

`Failed`

Pembaruan kebijakan skalabilitas elastis gagal.

Format JSON:

{
    "Status": "Failed",
    "InstanceName": "gw-test-01",
    "ResourceId": "acs:apig:cn-hangzhou:13219******4629:gateway/gw-d2o34q6m1hkgipd1hph0",
    "Content": {
        "message": "Update Elastic Strategy:Failed",
        "gatewayId": "gw-d2o34q6m1hkgipd1hph0",
        "gatewayName": "gw-test-01"
    },
    "Product": "cnapigateway",
    "Time": 1756378065000,
    "Level": "WARN",
    "RegionId": "cn-hangzhou",
    "Id": "589abc6e-97de-4d3d-b580-7fe53cda6feb",
    "GroupId": "0",
    "Name": "APIG:ElasticStrategyUpdate:Failed"
}

Tabel berikut menjelaskan bidang dalam objek content.

Parameter	Description	Example
message	Pesan log.	Update Elastic Strategy:Success
gatewayId	ID gateway.	gw-d2o34q6m1hkgipd1hph0
gatewayName	Nama gateway.	gw-test-01
oldElasticStrategy	Konfigurasi kebijakan sebelum pembaruan.
newElasticStrategy	Konfigurasi kebijakan setelah pembaruan.
elasticEnabled	Menunjukkan apakah skalabilitas elastis diaktifkan.	true
elasticType	Metode penskalaan.	CronHPA
units	Jumlah target node untuk kebijakan tersebut.	3
startTime	Waktu mulai eksekusi kebijakan.	05:04
endTime	Waktu akhir eksekusi kebijakan.	08:04
maxUnits	Jumlah maksimum node.	4
loadWarningThreshold	Ambang batas penskalaan.	true
disableScaleTimePolicyList	Periode saat scale-in dinonaktifkan.	null

Tabel berikut mencantumkan semua event API Gateway cloud-native dan tindakan yang direkomendasikan.

Event code	Event name	Event level	Cloud Monitor event name	Description
APIG:ElasticScaleOut	Elastic scale-out of a cloud-native API gateway	Warning	APIG:ElasticScaleOut:Failed: The cloud-native API gateway failed to scale out.	Event ini menunjukkan status operasi elastic scale-out.
		INFO	APIG:ElasticScaleOut:Executing: The cloud-native API gateway is scaling out.
		INFO	APIG:ElasticScaleOut:Executed: The cloud-native API gateway successfully scaled out.
APIG:ElasticScaleIn	Elastic scale-in of a cloud-native API gateway	Warning	APIG:ElasticScaleIn:Failed: The cloud-native API gateway failed to scale in.	Event ini menunjukkan status operasi elastic scale-in.
		INFO	APIG:ElasticScaleIn:Executing: The cloud-native API gateway is scaling in.
		INFO	APIG:ElasticScaleIn:Executed: The cloud-native API gateway successfully scaled in.
APIG:ElasticOpen	Enabling elastic scaling for a cloud-native API gateway	Warning	APIG:ElasticOpen:Failed: Failed to enable elastic scaling for the cloud-native API gateway.	Event ini menunjukkan hasil aktivasi skalabilitas elastis.
		INFO	APIG:ElasticOpen:Executed: Elastic scaling was successfully enabled for the cloud-native API gateway.
APIG:ElasticClose	Disabling elastic scaling for a cloud-native API gateway	Warning	APIG:ElasticClose:Failed: Failed to disable elastic scaling for the cloud-native API gateway.	Event ini menunjukkan hasil penonaktifan skalabilitas elastis.
		INFO	APIG:ElasticClose:Executed: Elastic scaling was successfully disabled for the cloud-native API gateway.
APIG:ElasticStrategyUpdate	Updating the elastic scaling policy for a cloud-native API gateway	Warning	APIG:ElasticStrategyUpdate:Failed: Failed to update the elastic scaling policy for the cloud-native API gateway.	Saat skalabilitas elastis diaktifkan, event ini menunjukkan hasil pembaruan kebijakan skalabilitas elastis.
		INFO	APIG:ElasticStrategyUpdate:Executed: The elastic scaling policy for the cloud-native API gateway was successfully updated.
