Cloud Parallel File Storage:Getting started with the CPFS-NFS client (recommended)

Prerequisites

• The CPFS service is activated.

  When you log on to the CPFS console for the first time, follow the on-screen instructions to activate the service.

• An Elastic Compute Service (ECS) instance is created and meets the following conditions. For more information, see Create an instance.

  • A public IPv4 address is assigned to the instance, or an Elastic IP Address (EIP) is associated with the instance.

  • The instance runs one of the following operating systems supported by the CPFS-NFS client.

    Operating system type	Operating system version
    Alibaba Cloud Linux	Alibaba Cloud Linux 3.2104 64-bit Alibaba Cloud Linux 2.1903 64-bit
    CentOS	CentOS 8.x 64-bit CentOS 7.x 64-bit
    Ubuntu	Ubuntu 20.04 64-bit Ubuntu 18.04 64-bit Ubuntu 16.04 64-bit
    Debian	Debian 10.x 64-bit Debian 9.x 64-bit Debian 8.x 64-bit
    SUSE	SUSE Linux Enterprise Server 15 64-bit

Procedure

1. Create a file system

2. Create a fileset (optional)

3. Create a protocol service and an export directory

4. Mount the CPFS file system

5. Verify the mount

Step 1: Create a file system

1. Log on to the CPFS console.

2. At the bottom of the Overview page, click Create CPFS File System.

3. On the CPFS (Pay-As-You-Go) page, configure the required parameters as described in the following table. For the other parameters, use the default configurations or specify custom values as needed. For more information, see Create a file system.

   Parameter	Description
   Region	From the drop-down list, select China (Shanghai).
   Zone	Select Shanghai Zone B. The file system and the ECS instance must be in the same zone.
   Type	Select 100 MB/s/TiB Baseline.
   Storage Capacity	Select the storage capacity of the file system. This topic uses 3600 GiB as an example.
   VPC	Select an existing VPC.
   vSwitch	Select a vSwitch that is in the selected VPC.

4. Click Buy Now and follow the on-screen instructions to complete the purchase.

Step 2: Create a fileset (optional)

A fileset is a subdivision of a CPFS file system that has an independent inode space and can be managed separately. It appears as a directory in the file system's directory structure. You can create a fileset to export data and create NFS mount targets. A fileset provides more features than a regular directory, such as limits on the number of files and data flow control.

1. In the navigation pane on the left, choose File System > File System List, and then click the name of the file system that you just created.

2. On the file system details page, click the Fileset tab.

3. On the Fileset tab, click Create Fileset and configure the required parameters. For the other parameters, use the default configurations or specify custom values as needed.

   Fileset Path: The path of the fileset in the file system. The path must start and end with a forward slash (/). For example, /fileset1/.

4. Click OK.

Step 3: Create a protocol service and an export directory

To access a CPFS file system using the NFS protocol, you must configure a protocol service to generate a mount target. The ECS instance uses this mount target to mount the CPFS file system.

1. On the file system details page, click the Protocol Service tab. Click Create Protocol Service and configure the required parameters as described in the following table. For the other parameters, use the default configurations or specify custom values as needed. For more information, see Manage protocol services.

   Parameter	Description
   Protocol Type	Select NFS V3.
   vSwitch	Select a vSwitch that is in the same VPC as the file system.
   Protocol Export	Click Fileset (Recommended) and select the fileset that you created in Step 2.
   Export VPC	Select the same VPC as the ECS instance.
   Export vSwitch	Select the same vSwitch as the ECS instance. The protocol cluster exports the protocol service to the specified export VPC through this vSwitch. Note A single protocol service can consume up to 32 IP addresses on the vSwitch. Make sure that the vSwitch has sufficient IP resources.

2. Click OK.

3. For the protocol service that you just created, click Export Directory in the Action column.

4. In the Export Directory panel, copy the mount address for later use.



Step 4: Install the CPFS-NFS client and mount the file system

1. Connect to the ECS instance. For more information, see Connect to an ECS instance.

2. Configure the CPFS-NFS client.

   1. Download the CPFS-NFS client.

      wget https://cpfs-hangzhou-nfs-client.oss-cn-hangzhou.aliyuncs.com/aliyun-alinas-utils-latest.el.noarch.rpm

   2. Install the CPFS-NFS client.

      sudo yum install aliyun-alinas-utils-*.rpm

   3. Check whether the CPFS-NFS client is installed.

      which mount.cpfs-nfs

      If output similar to the following is returned, the CPFS-NFS client is installed.

      /usr/sbin/mount.cpfs-nfs

3. Mount the CPFS file system.

   sudo mount -t cpfs-nfs -o vers=3,rsize=1048576,wsize=1048576,hard,timeo=600,retrans=2,noresvport file-system-id.region.cpfs.aliyuncs.com:/share/path /mnt

   Replace file-system-id.region.cpfs.aliyuncs.com:/share/path with the mount target that you copied in Step 3. Replace /mnt with the local path on the server where you want to mount the file system. For more information about mount parameters, see Parameter description.

4. Run the mount -l command to view the mount result.

   After the file system is mounted, run the df -h command to view the capacity of the file system.

   Note

   To automatically mount the file system when the ECS instance starts, add the mount configuration to the /etc/fstab file. This prevents the mount information from being lost if the instance restarts. For more information, see Configure automatic mounting at startup.

Step 5: Use the file system

After the file system is mounted, access and use it as a regular directory on the ECS instance.

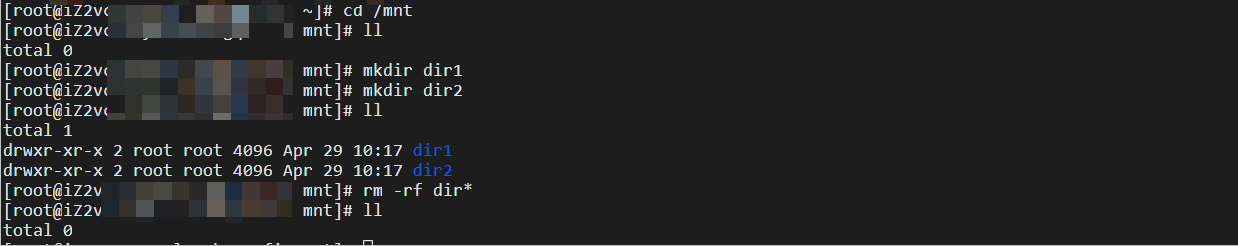

The following example shows how to create and delete files in the CPFS file system using the /mnt local path on the ECS instance.
