Workloads with different priorities are usually deployed on the same node to make full use of the computing resources of the node. The resource usage of workloads with different priorities varies by time. You can dynamically adjust the resource usage and resource water marks of workloads based on priorities to improve the efficiency of your workloads. This topic describes how to dynamically adjust water marks, use CronJobs, and enforce isolation policies to improve the resource utilization of workloads with different priorities.

Prerequisites

The resource-controller component is installed. For more information, see resource-controller.

Background information

Workloads with different priorities are usually deployed on the same node to make full use of the computing resources of the node. For example, a latency-sensitive (LS) workload (with a high priority) and a best-effort (BE) workload (with a low priority) can be deployed on the same node. Different workloads usually have different peak hours. A workload requires different amounts of resources in different time periods. For example, LS workloads require a higher amount of resources in the daytime than in the nighttime.

In the daytime, you can dynamically adjust resource water marks to reduce the resource usage of BE workloads. This allows you to improve the resource usage of LS workloads and ensures the quality of service (QoS) of these workloads. In the nighttime, you can increase the resource water marks of BE workloads to improve their resource usage. This allows you to make full use of idle resources and improves overall resource utilization. Dynamically adjust water marks

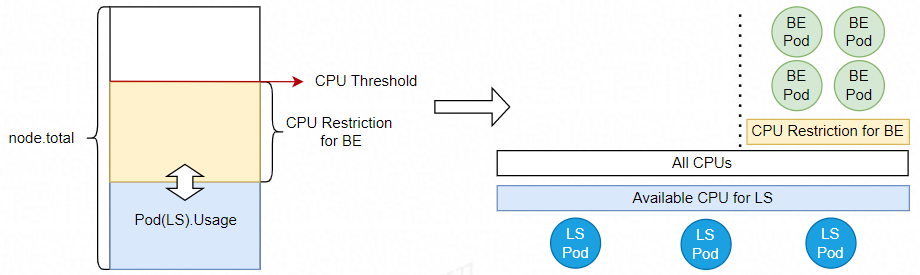

Dynamically adjust resource water marks to control the resource usage of low-priority workloads

  1. Create a ConfigMap.
    1. Create a resource-controller-config.yaml file based on the following code:
      apiVersion: v1
kind: ConfigMap
metadata:
  name: resource-controller-config
  namespace: kube-system
data:
  default.qosClass: LS #LS (Latency Sensitive with High priority scheduling), BE (Best Effort with Low priority scheduling).
  default.cpushare.qos.low.cpu-watermark: "50" # 25, 50, and 100. Set maximum water mark of workload of low qos.
  default.cpushare.qos.low.namespaces: "besteffort-ns1, besteffort-ns2" # By default NULL, suppress existing workload within specified namespaces immediately.
  default.cpushare.qos.high.force-reserved: "false" # By default false, true: turn on this switch to reserve dedicated CPUs for high priority tasks (LS).
      Parameter Description
      default.cpushare.qos.low.cpu-watermark Specifies the maximum percentage of resources that can be occupied by low-priority tasks.
      default.cpushare.qos.low.namespaces Specifies the namespace of the low-priority tasks that you want to control.
      default.cpushare.qos.high.force-reserved Specifies whether to isolate high-priority tasks and low-priority tasks by scheduling the tasks to different CPUs.

      This parameter takes effect after the ConfigMap is created. For existing tasks, the parameter applies only to low-priority tasks. High-priority tasks are not affected.

    2. Run the following command to create the ConfigMap:
      kubectl create -f resource-controller-config.yaml
  2. Create an application.
    The following example shows how to create a low-priority task that calculates the value of Pi (π). The annotations parameter is set.
    1. Create a cal-pi.yaml file based on the following code:
      apiVersion: v1
kind: Pod
metadata:
  name: cal-pi
  annotations:
    alibabacloud.com/qosClass: "BE"
spec:
  restartPolicy: Never
  containers:
  - image: registry.cn-zhangjiakou.aliyuncs.com/xianlu/java-pi
    name: cal-pi
    resources:
      requests:
        cpu: 4
      limits:
        cpu: 4  # Specify the value of resources.limit.cpu.
    env:
    - name: limit
      value: "20000"
    - name: threadNum
      value: "3000"

      alibabacloud.com/qosClass specifies the workload type:

      • The default value is specified in the default.qosClass field of the resource-controller-configmap.yaml file. A value of LS indicates the LS type. A value of BE indicates the BE type.
      • You can also set this field in the following parameters:
        • The metadata parameter of pod configurations.
        • The spec.metada parameter of Deployment configurations.
        • The template.metadata parameter of DaemonSet, StatefulSet, and Job configurations.
    2. Run the following command to create the application:
      kubectl create -f cal-pi.yaml

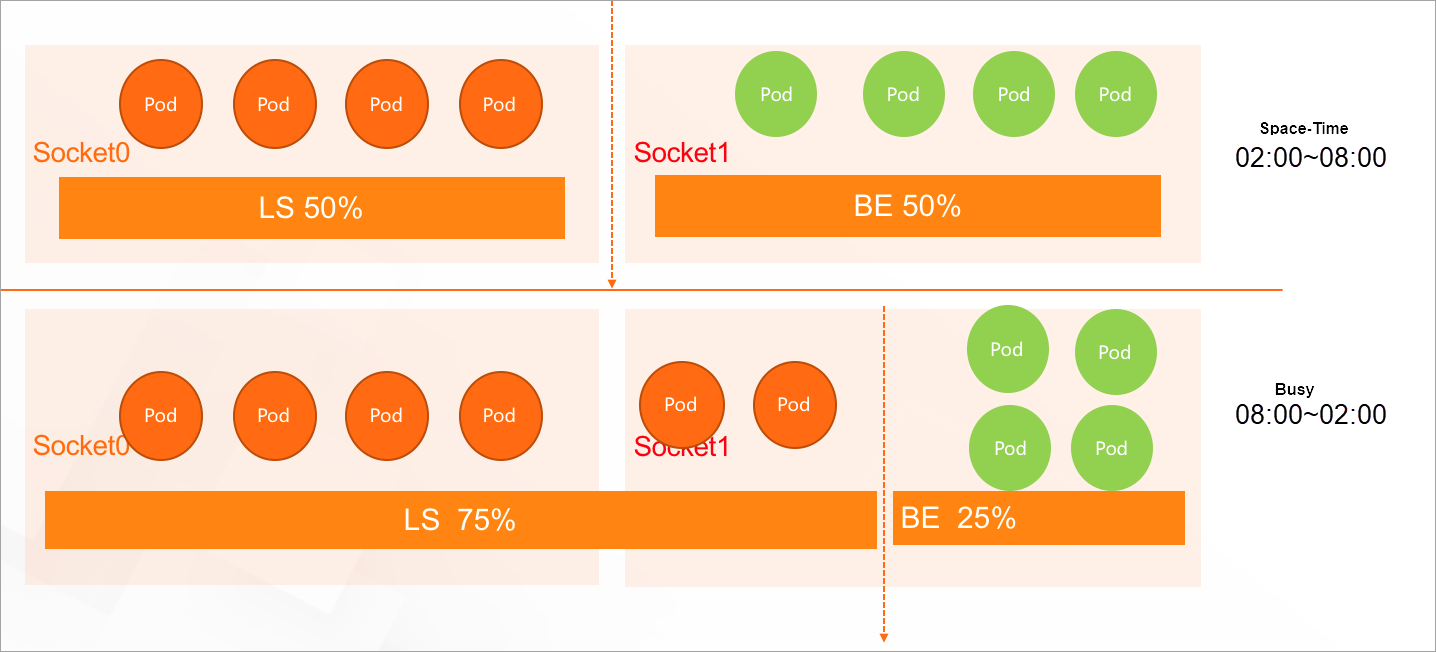

Use CronJobs to control the resource usage of low-priority tasks by time

You can create a CronJob to configure the water marks of low-priority tasks. You can modify the schedule and json parameters to adjust the water marks of low-priority tasks by time. The schedule parameter specifies the task execution schedule. The json parameter specifies the resource configurations.

In this example, all low-priority BE tasks are allowed a maximum CPU usage of 25% starting from 07:00. This ensures that high-priority tasks have sufficient CPU resources.

  1. Create a mix-strategy-1.yaml file based on the following code:
    apiVersion: batch/v1beta1
kind: CronJob
metadata:
  name: mix-strategy-1
  namespace: kube-system
spec:
  schedule: "0 7 * * *"
  jobTemplate:
    spec:
      completions: 1
      parallelism: 1
      template:
        spec:
          containers:
            - args:
              - $(JSON_INPUT)
              env:
              - name: JSON_INPUT
                value:
                   '{
                    "apiVersion":"v1",
                    "kind":"ConfigMap",
                    "metadata":{
                      "name":"resource-controller-config",
                      "namespace":"kube-system"
                    },
                    "data":{
                      "default.cpushare.qos.high.force-reserved": "false",
                      "default.cpushare.qos.low.cpu-watermark":"25",
                      "default.qosClass":"LS",
                      "default.cpushare.qos.low.namespaces": "low-qos-workload-namespace"
                    }
                    }
                  '
              name: strategy
              command: ["change-config"]
              image: registry.cn-hangzhou.aliyuncs.com/shuangkun/change-config:v1
              imagePullPolicy: Always
          serviceAccount: admin
          restartPolicy: OnFailure
  2. Run the following command to create a CronJob:
    kubectl create -f mix-strategy-1.yaml

Similarly, you can use CronJobs to control the water marks of other low-priority tasks in other time periods. This helps improve overall resource utilization.

Enforce isolation policies to control the resource usage of tasks

We recommend that you enforce isolation policies when the CPU usage of low-priority and high-priority tasks is both lower than 50%. You can set default.cpushare.qos.high.force-reserved to true and set default.cpushare.qos.low.cpu-watermark to 50. This isolates high-priority tasks and low-priority tasks on different non-uniform memory access (NUMA) nodes and core complexes (CCXes), and provides a higher-performance environment for high-priority tasks

  1. Modify the resource-controller-config.yaml file as shown in the following code:
    apiVersion: v1
kind: ConfigMap
metadata:
  name: resource-controller-config
  namespace: kube-system
data:
  default.qosClass: LS #LS (Latency Sensitive with High priority scheduling), BE (Best Effort with Low priority scheduling)
  default.cpushare.qos.low.cpu-watermark: "50" # 25, 50, and 100. Set maximum water mark of workload of low qos
  default.cpushare.qos.low.namespaces: "besteffort-ns1, besteffort-ns2" # By default NULL, suppress existing workload within specified namespaces immediately.
  default.cpushare.qos.high.force-reserved: "true" # By default false, true: turn on this switch to reserve dedicated CPUs for high priority tasks (LS)
  2. Run the following command to modify the ConfigMap:
    kubectl apply -f resource-controller-config.yaml
