:Resolve 403 errors caused by hotlink protection in CDN

Symptom

After you configure hotlink protection for a CDN-accelerated domain, accessing resources through the domain returns a 403 error. The response header X-Tengine-Error contains the value denied by Referer ACL.

Cause

Hotlink protection works by checking the Referer header of incoming requests against the whitelist or blacklist configured on your CDN domain. A 403 error occurs when the Referer header does not match the configured rules. This typically happens in one of the following scenarios:

• Referer mismatch: The request contains a Referer header, but the referring domain is not included in the hotlink protection whitelist.

• Empty Referer blocked: The request does not contain a Referer header (for example, when you access a URL directly from the browser address bar), and the hotlink protection configuration does not allow empty Referer values.

Solution

First, identify whether the 403 error is caused by a Referer mismatch or by an empty Referer being blocked. Then, apply the corresponding fix.

Step 1: Identify the cause

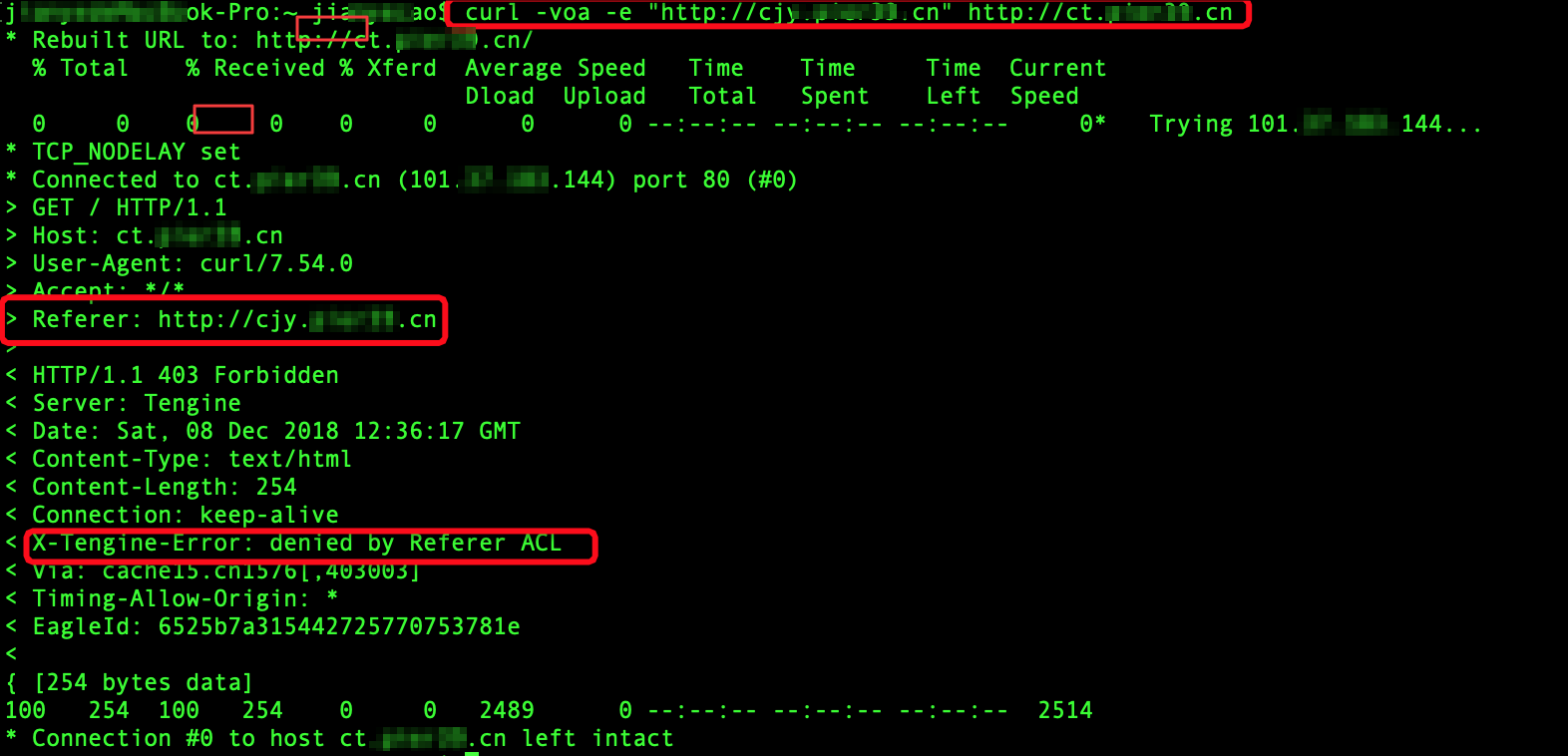

• Test with a Referer header: Run the following curl command. Replace demo.aliyundoc.com with the actual referring domain and example.aliyundoc.com with your CDN-accelerated domain.

  curl -voa -e "http://demo.aliyundoc.com" http://example.aliyundoc.com

  If the response returns a 403 error and the X-Tengine-Error header shows denied by Referer ACL, the Referer domain is not in the hotlink protection whitelist. See the fix in the Fix a Referer mismatch section.

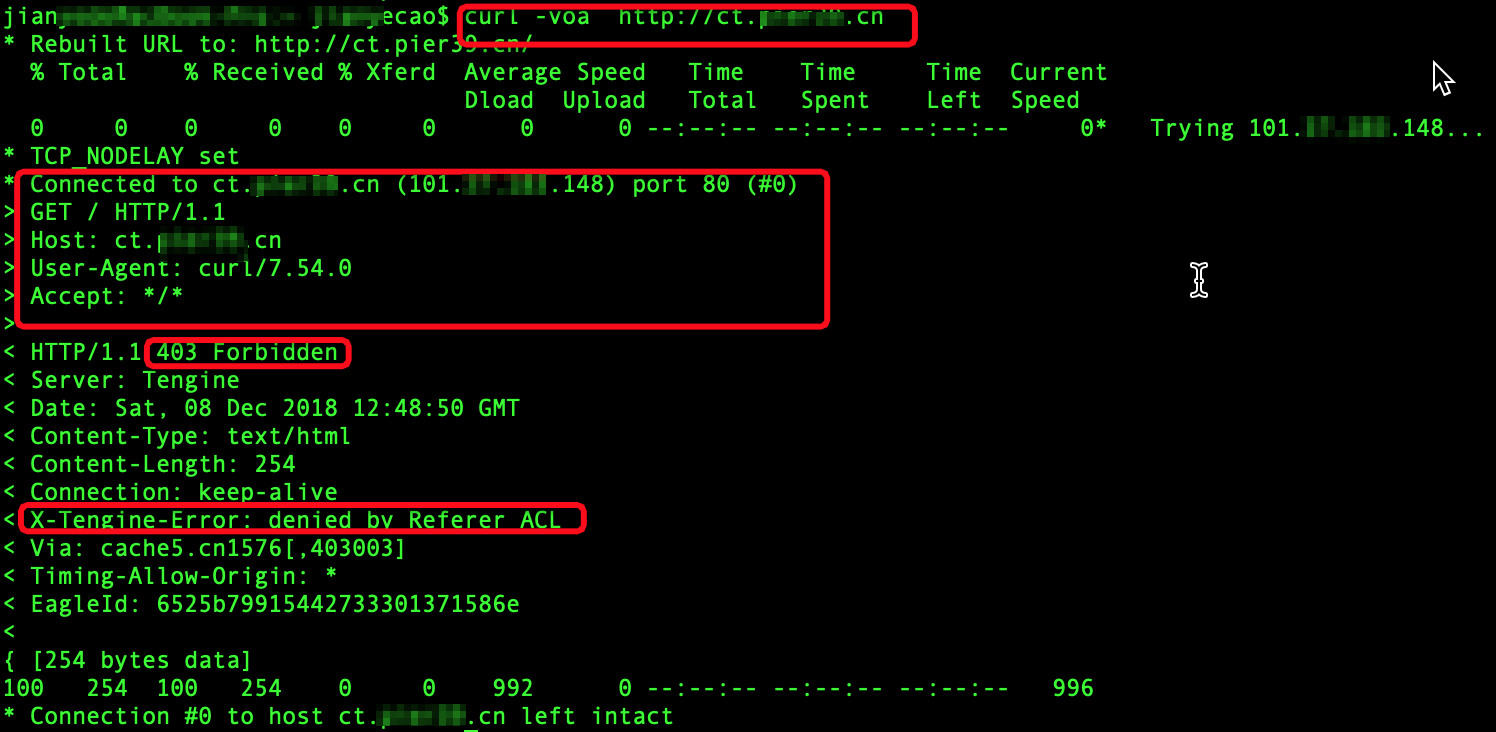

• Test without a Referer header: Run the following curl command without the -e flag.

  curl -voa http://example.aliyundoc.com

  If the response returns a 403 error and the X-Tengine-Error header shows denied by Referer ACL, the hotlink protection configuration does not allow requests with an empty Referer. See the fix in the Fix empty Referer blocked section.

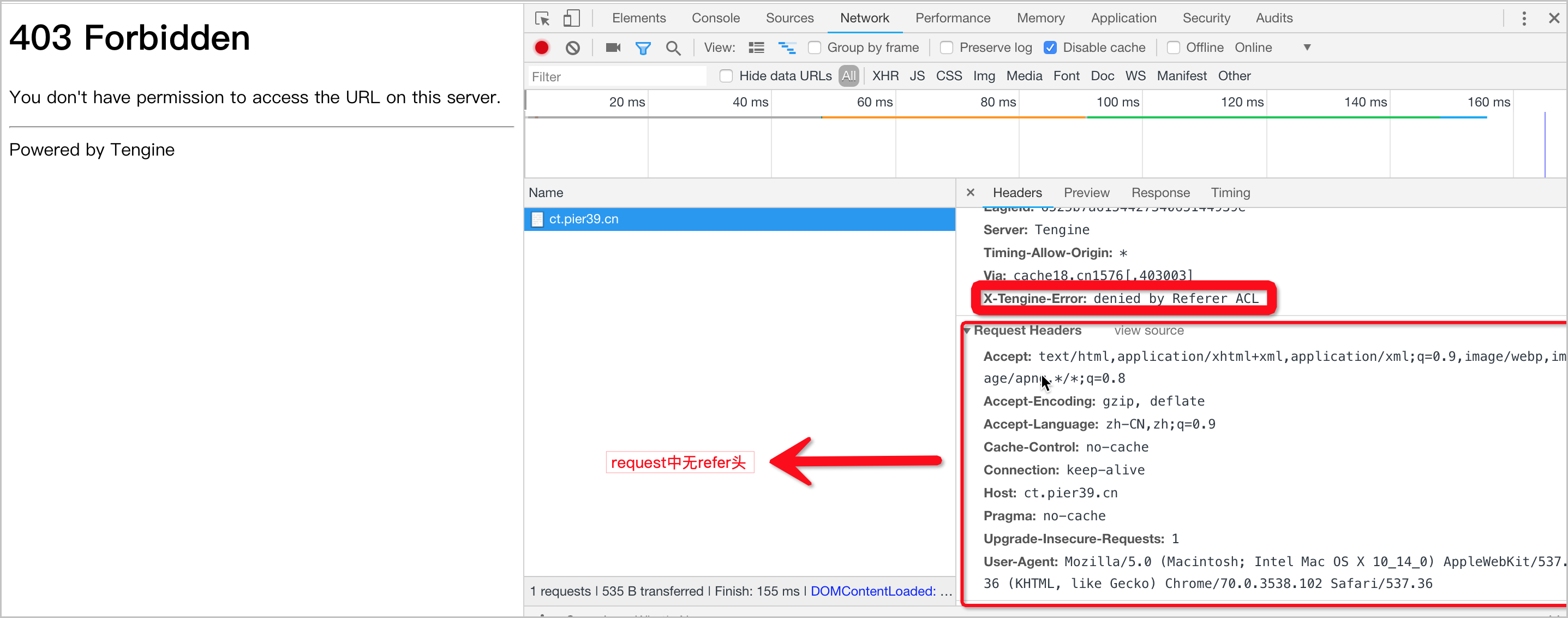

• Test in a browser: Open the CDN-accelerated URL directly in the browser address bar and open the browser DevTools (F12). Check the Network tab. If the request does not include a Referer header and the response is 403, the hotlink protection configuration does not allow empty Referer values.

Step 2a: Fix a Referer mismatch

If the 403 error occurs because the Referer domain does not match the whitelist, add the referring domain to the hotlink protection whitelist:

1. Log on to the Alibaba Cloud CDN console.

2. In the left-side navigation pane, choose Domain Names.

3. Find the target domain and click Manage.

4. Choose Access Control > Referer Black/Whitelist > Modify.

5. Verify that the Whitelist is selected. Add the referring domain (for example, demo.aliyundoc.com) to the whitelist, then click OK.

Step 2b: Fix empty Referer blocked

If the 403 error occurs because requests without a Referer header are blocked, allow empty Referer access:

1. Log on to the Alibaba Cloud CDN console.

2. In the left-side navigation pane, choose Domain Names.

3. Find the target domain and click Manage.

4. Choose Access Control > Referer Black/Whitelist > Modify.

5. Select Allow resource URL access from browsers, then click OK.
