ApsaraDB RDS for MySQL 8.0 supports X-Engine. X-Engine provides better data compression
capabilities and reduces disk space costs. This topic describes how to convert tables
from InnoDB, TokuDB, or MyRocks to X-Engine.
Background information
X-Engine is an online transaction processing (OLTP) database storage engine that is
developed by Alibaba Cloud to suit the needs of PolarDB. X-Engine now is widely used
in a number of business systems of Alibaba Group to reduce costs. These include the
transaction history database and DingTalk chat history database. In addition, X-Engine
is a crucial database technology that empowers Alibaba Group to withstand bursts of
traffic that may surge by hundreds of times than usual during Double 11, a shopping
festival in China.
For more information, see the following topics:
Precautions
- If the tables that you want to convert uses InnoDB, make sure that the remaining disk
space of your RDS instance is twice the data volume of the tables. After the conversion
to X-Engine, the disk space that is occupied by the tables decreases to 10% to 50%
of the original disk space that is occupied by the tables before the conversion.
- If you use Solution 1 in this topic to perform the conversion, you must reconfigure
parameters and restart your RDS instance. Stop your database service before you perform
the conversion.
- If you use Solution 2 in this topic to migrate all data from your RDS instance to
a new RDS instance, you must update the endpoints on your application. We recommend
that you perform the migration during off-peak hours.
- Before the conversion, make sure that X-Engine is compatible with SQL.
- After the conversion, change the value of the default_storage_engine parameter to xengine. This ensures that all of the tables that are created later use X-Engine.
Solution recommendations
- If your RDS instance runs MySQL 8.0 with a minor engine version of 20200229 or later,
we recommend that you use Solution 1. This way, you do not need to configure various tools.
Note If the minor engine version of your RDS instance does not meet your business requirements,
you can update the minor engine version on the
Basic Information page in the ApsaraDB RDS console. In the Configuration Information section of the
Basic Information page, click the
Upgrade Kernel Version button to update the minor engine version of your RDS instance. If the button does
not exist, you are using the latest minor engine version. For more information, see
Update the minor engine version of an ApsaraDB RDS for MySQL instance.
- If your RDS instance runs MySQL 5.6 or MySQL 5.7, we recommend that you use Solution 2.
Solution 1
This solution allows you to enable X-Engine by using a parameter template. Then, you
can use data definition language (DDL) statements to convert tables to X-Engine. This
solution is easy and fast, but requires a restart of your RDS instance. In addition,
data manipulation language (DML) operations may be blocked, and the conversion of
large-sized tables is time-consuming.
- Access RDS Instances, select a region at the top, and then click the ID of the target RDS instance.
- In the left-side navigation pane, click Parameters.
- In the upper-left corner of the Editable Parameters tab, click Apply Template. In the dialog box that appears, select MySQL_8.0_X-Engine_High-availability_Default Parameter Template from the Apply Template drop-down list and click OK.
Note This operation triggers a restart of your RDS instance. After the restart, 95% of
the memory resources are allocated to X-Engine. Do not use X-Engine and InnoDB at
the same time.
- Log on to your RDS instance by using Data Management (DMS). For more information,
see Use DMS to log on to an ApsaraDB RDS for MySQL instance.
- Run the following command to convert a table on the SQL Console tab:
alter table <The name of the database in which the table resides>.<The name of the table> engine xengine;
Example:
alter table test.sbtest1 engine xengine;
Solution 2
This solution allows you to synchronize the data of tables in real time from your
RDS instance to a new RDS instance by using Data Transmission Service (DTS). After
the data synchronization is complete, you can switch over your workloads to the new
RDS instance.
Note The new RDS instance inherits the storage engine of your RDS instance by default.
You must export the SQL statements that are used to create tables. In addition, you
must change the storage engine to X-Engine in these SQL statements. Then, you can
migrate the data to the new X-Engine tables.

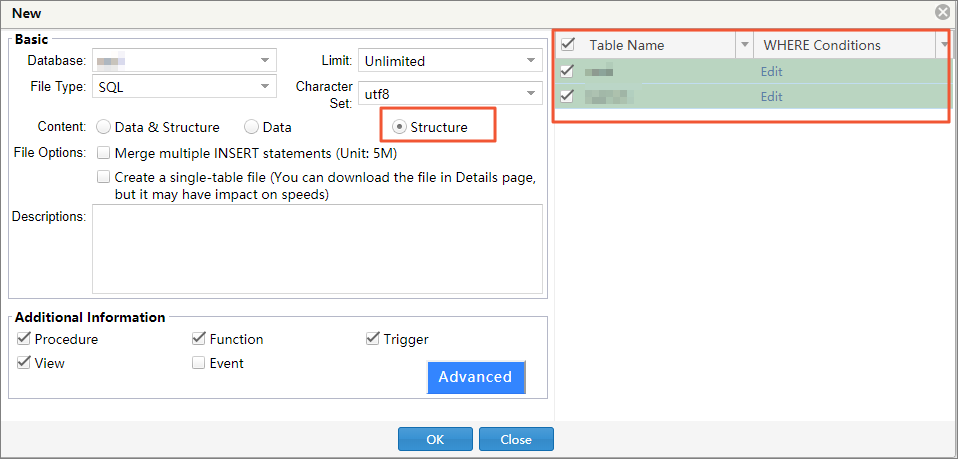

- Log on to your RDS instance by using DMS and export all the schemas of your RDS instance.
For more information, see Use DMS to log on to an ApsaraDB RDS for MySQL instance and Export databases.
- Decompress the schemas and change InnoDB or TokuDB to X-Engine.
- Purchase a new RDS instance that runs MySQL 8.0 and has the same specifications as
your RDS instance. Make sure that you select the X-Engine parameter template.
Note When you create the new RDS instance, you can use the default X-Engine parameter template
to specify X-Engine as the default storage engine. For more information, see
Create an ApsaraDB RDS for MySQL instance.
- Log on to the new RDS instance by using DMS and import the schemas into the new RDS
instance. For more information, see Use DMS to log on to an ApsaraDB RDS for MySQL instance and Import data.
- Synchronize data from your RDS instance to the new RDS instance. For more information,
see Configure two-way data synchronization between MySQL instances.

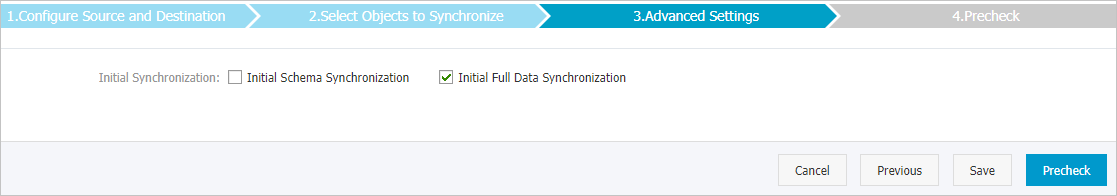

Warning In the Advanced Settings step, do not select
Initial Schema Synchronization.

Result
After the synchronization is complete, you can check whether the data synchronization
is successful. Then, you can test the compatibility between X-Engine and SQL. If X-Engine
is compatible with SQL, you can convert tables to X-Engine.
