:Consume Kafka data in real time

Apache Kafka is a distributed publish-subscribe messaging system that features fault tolerance and low latency. The Streaming Server allows you to load Kafka data from Apache Kafka and Confluent Kafka. You can use readable foreign tables of AnalyticDB for PostgreSQL to convert and write the data to the destination tables of AnalyticDB for PostgreSQL.

Prerequisites

• A Kafka instance and an AnalyticDB for PostgreSQL instance are created in the same virtual private cloud (VPC).

  Important

  If the Kafka instance and the AnalyticDB for PostgreSQL instance are deployed in the same VPC, but are not connected to the same vSwitch, you must perform the following operations:

  • Add the IPv4 CIDR block of the vSwitch of the Kafka instance to a whitelist of the AnalyticDB for PostgreSQL instance. For more information, see Configure an IP address whitelist.

  • Add the IPv4 CIDR block of the vSwitch of the AnalyticDB for PostgreSQL instance to a whitelist of the Kafka instance. For more information, see Configure whitelists.

• A large amount of sample data is generated for the Kafka instance. In this example, an ApsaraMQ for Kafka instance that has the following basic information is used:

  • Endpoints: alikafka-post-cn-wwo3hflb****-1-vpc.alikafka.aliyuncs.com:9092,alikafka-post-cn-wwo3hflb****-2-vpc.alikafka.aliyuncs.com:9092,alikafka-post-cn-wwo3hflb****-3-vpc.alikafka.aliyuncs.com:9092

  • Topic: test_topic

  • Consumer group: test_consumer_group

• A user and a table are created for the AnalyticDB for PostgreSQL instance. The user must have the following permissions:

  • Permissions to use the gpfdist protocol to create read-only foreign tables.

  • USAGE and CREATE permissions on the involved schema.

  • SELECT and INSERT permissions on the involved destination table.

  In this example, a user named liss_test and a table named liss_test.liss_test_plaintext are created.

  CREATE role liss_test with login;
  ALTER role liss_test with password 'lissTest****';
  ALTER role liss_test CREATEEXTTABLE(type = 'readable', protocol = 'gpfdist');

  \c - liss_test
  CREATE DATABASE liss_test;
  \c liss_test
  CREATE SCHEMA liss_test;

  CREATE TABLE liss_test.liss_test_plaintext (
  column_1 varchar(32),
  column_2 bigint,
  column_3 numeric,
  column_4 varchar(32),
  column_5 varchar(32)
  ) distributed by (column_1, column_2);

Limits

• To use the high-speed data import API, the minor version of an AnalyticDB for PostgreSQL V6.0 instance must be 6.6.0 or later, and the minor version of an AnalyticDB for PostgreSQL V7.0 instance must be 7.0.3 or later. AnalyticDB for PostgreSQL in Serverless mode does not support the high-speed data import API.

• The real-time data consumption feature supports only the INSERT, MERGE (UPSERT), and UPDATE statements. The DELETE and READ statements are not supported.

• If you use the MERGE (UPSERT) or UPDATE statement, the involved AnalyticDB for PostgreSQL table must have a primary key index.

• When you use the real-time data consumption feature, you must use the primary key as the partition key to prevent global deadlocks and data update failures.

• The real-time data consumption feature supports only Kafka data. Change data capture (CDC) data sources are not supported.

• The wizard mode supports the CSV and Delimited formats, and the professional mode supports the CSV, Delimited, and protobuf formats.

Procedure

Step 1: Enable the real-time data service feature

1. Log on to the AnalyticDB for PostgreSQL console.

2. In the upper-left corner of the console, select a region.

3. Find the instance that you want to manage and click the instance ID.

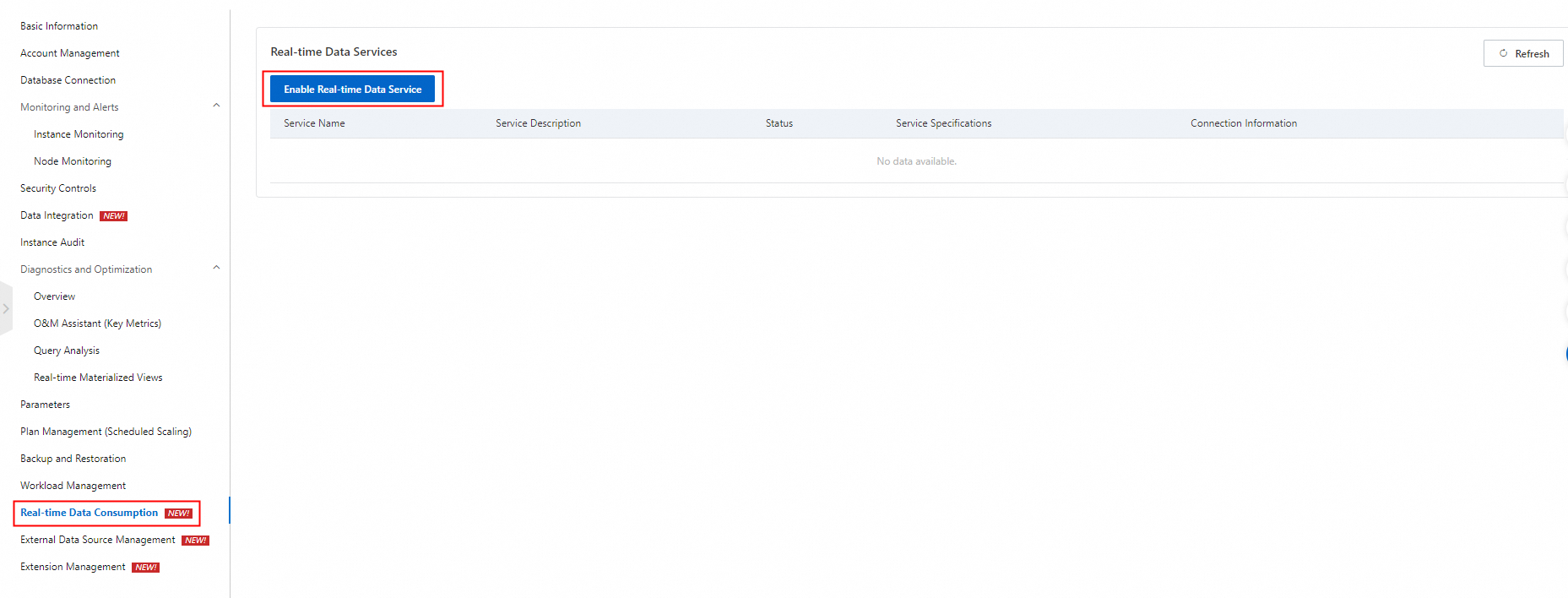

4. In the left-side navigation pane, click Real-time Data Consumption. In the upper-left corner of the page, click Enable Real-time Data Service.



5. In the panel that appears, configure the Name and Service Description parameters and click OK. After you enable the real-time data service feature, you can view the status and connection information of the real-time data service.

   Note

   The default service specifications are 8 compute units (CUs) and cannot be edited.

Step 2: Add a real-time data source

1. Log on to the AnalyticDB for PostgreSQL console.
2. In the upper-left corner of the console, select a region.
3. Find the instance that you want to manage and click the instance ID.

4. In the left-side navigation pane, click Real-time Data Consumption.

5. In the Real-time Data Sources section, click Add Data Source. In the panel that appears, configure the parameters that are described in the following table.

   Parameter	Description
   Associated Data Service	The real-time data service.
   Data Source Name	The name of the data source.
   Data Source Description	The description of the data source.
   Data Source Type	The type of the data source. Select Kafka.
   Brokers	The Kafka endpoint. If you use an ApsaraMQ for Kafka instance, log on to the ApsaraMQ for Kafka console to obtain the default endpoint. For more information, see View endpoints. If you use a self-managed Kafka instance, specify the endpoint in the Hostname:Port number or Broker IP address:Port number format.
   Topic	The name of the Kafka topic.
   Format	The format of the data source. The wizard mode supports the CSV and Delimited formats, and the professional mode supports the CSV, Delimited, and protobuf formats.
   Column Delimiter	The column delimiter that contains a single character.

6. Click OK.

Step 3: Create a real-time job

1. In the Real-time Jobs section, click Create Real-time Job. In the panel that appears, configure the parameters that are described in the following table.

   Select Wizard Mode or Professional Mode for the Configuration Mode parameter based on your business requirements.

   Wizard Mode: creates a real-time job based on the wizard guide on the Real-time Analysis page.

   Professional Mode: submits a real-time job to the Streaming Server by using YAML. The professional mode provides more features than the wizard mode.

   Wizard mode

   Parameter		Description
   Basic Information	Job Name	The name of the job. You must set this parameter to a unique value.
   	Job Description	The description of the job. You can leave this parameter empty.
   	Configuration Mode	The configuration mode of the job. Select Wizard Mode.
   Source Configuration	Data Source	The added real-time data source. Only Kafka data sources are supported.
   	Group Name	The name of the Kafka consumer group.
   	Fallback Offset	The consumer offset. Valid values: Earliest: Consumption starts from the earliest available offset. Latest: Consumption starts from the latest offset.
   	Delivery Guarantee	The exactly-once semantics for stream computing. Valid values: ATLEAST: Kafka data is written to AnalyticDB for PostgreSQL at least once. EXACTLY: Kafka data is written to AnalyticDB for PostgreSQL only once.
   Destination Configuration	Destination Database	The name of the AnalyticDB for PostgreSQL database to which you want to write data.
   	Schema	The name of the AnalyticDB for PostgreSQL schema.
   	Destination Table	The name of the AnalyticDB for PostgreSQL table to which you want to write data.
   	Account	The name of the AnalyticDB for PostgreSQL database account that is used by the job.
   	Password	The password of the database account.
   	Write Mode	The write mode of data. Valid values: INSERT: Data is directly written to the destination table. UPDATE: If the source column of the MatchColumns type matches the destination column, the destination columns of the UpdateColumns type are updated. MERGE: If the value of the source column is the same as the value of the destination column, the destination table columns are updated with the source data. If the value of the source column is different from the value of the destination column, the source data is directly written to the destination table. The MERGE mode is similar to the UPSERT statement (UPDATE and INSERT). For information about the write mode of the UPSERT statement, see Use INSERT ON CONFLICT to overwrite data. Note For information about the MatchColumns and UpdateColumns types, see the description of the Field Type parameter.
   	Error Limit Count	The tolerance threshold for data errors. If the number of written data errors reaches the value of this parameter, the Streaming Server stops writing data to AnalyticDB for PostgreSQL. A value of 0 specifies that the Streaming Server stops writing data upon the first data error. This parameter does not take effect. Set the value to 0.
   Field Mapping	Source Field	The name of the Value field in the Kafka message. Specify all source fields based on the order in which the source fields are displayed in the Value field.
   	Destination Field	The name of the field in the destination AnalyticDB for PostgreSQL table.
   	Field Type	The field type. Valid values: MatchColumns: specifies the update condition columns that are used to join the source data and the destination table. UpdateColumns: determines the columns to be updated if a row of data meets the update condition. Empty: does not update the fields if a row of data meets the update condition. If you set the write mode to UPDATE or MERGE, the Streaming Server writes data to a temporary table and then uses columns of the MatchColumns type as conditions to join the source data and the destination table. If data is matched, data in columns of the UpdateColumns type is updated. If no data is matched, the following write rules apply: In UPDATE mode, no data is written. In MERGE mode, data is written.

   Professional mode

   Parameter		Description
   Basic Information	Job Name	The name of the job. You must set this parameter to a unique value.
   	Job Description	The description of the job. You can leave this parameter empty.
   	Configuration Mode	The configuration mode of the job. Select Professional Mode.
   	Data Source	The added real-time data source. Only Kafka data sources are supported.
   YAML		The YAML code that allows you to configure complex write logic. In this example, the following YAML code is used. For more information, see the "Appendix: YAML configuration" section of this topic. DATABASE: liss_test USER: liss_test PASSWORD: lissTest**** HOST: gp-2ze517f9l7****-master.gpdb.rds-aliyun-pre.rds.aliyuncs.com PORT: 5432 KAFKA: INPUT: SOURCE: BROKERS: alikafka-post-cn-wwo3hflbo002-1-vpc.alikafka.aliyuncs.com:9092,alikafka-post-cn-wwo3hflbo002-2-vpc.alikafka.aliyuncs.com:9092,alikafka-post-cn-wwo3hflbo002-3-vpc.alikafka.aliyuncs.com:9092 TOPIC: test_topic FALLBACK_OFFSET: EARLIEST VALUE: COLUMNS: - NAME: column_1 TYPE: varchar(32) - NAME: column_2 TYPE: bigint - NAME: column_3 TYPE: numeric - NAME: column_4 TYPE: varchar(32) - NAME: column_5 TYPE: varchar(32) FORMAT: delimited DELIMITED_OPTION: DELIMITER: "|" ERROR_LIMIT: 20 OUTPUT: SCHEMA: liss_test TABLE: liss_test_plaintext MODE: MERGE MATCH_COLUMNS: - column_1 - column_2 UPDATE_COLUMNS: - column_3 - column_4 - column_5 MAPPING: - NAME: column_1 EXPRESSION: column_1 - NAME: column_2 EXPRESSION: column_2 - NAME: column_3 EXPRESSION: column_3 - NAME: column_4 EXPRESSION: column_4 - NAME: column_5 EXPRESSION: column_5 COMMIT: MAX_ROW: 1000 MINIMAL_INTERVAL: 1000 CONSISTENCY: ATLEAST POLL: BATCHSIZE: 1000 TIMEOUT: 1000 PROPERTIES: group.id: test_consumer_group

2. Click OK. When the status of the real-time job changes to Running, data is written from the data source to AnalyticDB for PostgreSQL.

After the real-time job is started, the following types of auxiliary tables are generated in the destination schema. In professional mode, the METADATA.SCHEMA parameter specifies the destination schema.

• lissext_$UID: the gpfdist foreign table that is defined by the job, which is used to write data to AnalyticDB for PostgreSQL.

• lisskafka_mission_info_$UID: the table that is used to store the current offset progress of the job to ensure data consistency. To ensure high availability of write jobs, four tasks are generated for each write job. Four tables are generated when each write job is started.

• UID is the unique ID of each write job.

Appendix: YAML configuration

The following code shows the syntax of a YAML configuration file:

DATABASE: <db_name>
USER: <user_name>
PASSWORD: <password>
HOST: <host>
PORT: <adbpg_port>
VERSION: 2
KAFKA:
   INPUT:
      SOURCE:
        BROKERS: <kafka_broker_host:broker_port> [, ... ]
        TOPIC: <kafka_topic>
        [PARTITIONS: (<partition_numbers>)]
        [FALLBACK_OFFSET: { earliest | latest }]
      [VALUE:
        COLUMNS:
           - NAME: { <column_name> }
             TYPE: <column_data_type>
           [ ... ]
         FORMAT: <value_data_format>
         [[DELIMITED_OPTION:
            DELIMITER: <delimiter_string>
            [QUOTE: <quote_char>]
            [ESCAPE: <escape_char>] ] |
         [CSV_OPTION:
            [DELIMITER: <delim_char>]
            [QUOTE: <quote_char>]
            [NULL_STRING: <nullstr_val>]
            [ESCAPE: <escape_char>]
      [KEY:
        COLUMNS:
           - NAME: { <column_name> }
             TYPE: <column_data_type>
           [ ... ]
         FORMAT: <key_data_format>
         [[DELIMITED_OPTION:
            DELIMITER: <delimiter_string> |
            [QUOTE: <quote_char>]
            [ESCAPE: <escape_char>] ] |
         [CSV_OPTION:
            [DELIMITER: <delim_char>]
            [QUOTE: <quote_char>]
            [NULL_STRING: <nullstr_val>]
            [ESCAPE: <escape_char>]
      [META:
         COLUMNS:
            - NAME: <meta_column_name>
              TYPE: { json | jsonb }
         FORMAT: json]
      [ERROR_LIMIT: { <num_errors> | <percentage_errors> }]
   { OUTPUT:
      [SCHEMA: <output_schema_name>]
      TABLE: <table_name>
      [MODE: <mode>]
      [MATCH_COLUMNS:
         - <match_column_name>
         [ ... ]]
      [ORDER_COLUMNS:
         - <order_column_name>
         [ ... ]]
      [UPDATE_COLUMNS:
         - <update_column_name>
         [ ... ]]
      [MAPPING:
         - NAME: <target_column_name>
           EXPRESSION: { <source_column_name> | <expression> }
         [ ... ]
           |
         <target_column_name> : { <source_column_name> | <expression> }
         [ ... ] ] }
   [METADATA:
      [SCHEMA: <metadata_schema_name>]]
   COMMIT:
      MAX_ROW: <num_rows>
      MINIMAL_INTERVAL: <wait_time>
      CONSISTENCY: { strong | at-least | at-most | none }
   [POLL:
      BATCHSIZE: <num_records>
      TIMEOUT: <poll_time>]
   [PROPERTIES:
      <kafka_property_name>: <kafka_property_value>
      [ ... ]]
[SCHEDULE:
   RETRY_INTERVAL: <retry_time>
   MAX_RETRIES: <num_retries> ]

Database-related parameters

KAFKA:INPUT configuration

KAFKA:INPUT:SOURCE

KAFKA:INPUT:KEY and KAFKA:INPUT:VALUE

KAFKA:INPUT:KEY specifies the names, data types, and data format of the Key field in the Kafka message.

KAFKA:INPUT:VALUE specifies the names, data types, and data format of the Value field in the Kafka message.

Specify all Kafka data elements based on the order of the elements in the Key and Value fields.

Specify at least one of KAFKA:INPUT:KEY and KAFKA:INPUT:VALUE. Otherwise, an error message is returned.

KAFKA:INPUT:META

KAFKA:INPUT:META is optional. You can configure the META settings to display the message metadata.

KAFKA:INPUT:ERROR_LIMIT

The tolerance threshold for data errors. If the number of written data errors reaches the value of the ERROR_LIMIT parameter, the Streaming Server quits the current job and stops writing data to AnalyticDB for PostgreSQL. The default value is 0, which specifies that the Streaming Server quits the current job and stops writing data upon the first data error. The value of the ERROR_LIMIT parameter must be greater than 1.

This parameter does not take effect. Ignore this parameter or set the value to 0.

KAFKA:OUTPUT configuration

Database-related parameters

The following table describes the parameters related to the destination AnalyticDB for PostgreSQL database, including the column updates and write modes.

KAFKA:OUTPUT:MAPPING

KAFKA:METADATA configuration

KAFKA:COMMIT configuration

KAFKA:COMMIT is used to manage the behavior of committing data to databases.

KAFKA:POLL configuration

KAFKA:POLL is used to manage the data consumption behavior of Kafka consumers.

KAFKA:PROPERTIES configuration

KAFKA:PROPERTIES is used to configure Kafka Connect. You can configure whitelists for the group.id, auto.offset.reset, and isolation.level parameters. For more information, see Kafka Connect Configs.
