This topic describes how to apply for a public endpoint for a sharded cluster instance when you want to connect to this instance over the Internet.

Background information

The following table describes the connections supported by ApsaraDB for MongoDB.

Connection type Description
Intranet Connection - VPC
  • A VPC is an isolated network with higher security and performance than a classic network.
  • By default, ApsaraDB for MongoDB provides endpoints on a VPC.
Intranet Connection - Classic Network Cloud services on a classic network are not isolated. Unauthorized access can only be blocked by using security groups or whitelists. You can switch the network type to VPC. For more information, see Switch the network type of an ApsaraDB for MongoDB instance.
Public IP Connection
  • Connecting to a replica set instance over the Internet is risky. Therefore, ApsaraDB for MongoDB does not provide public endpoints.
  • If you want to connect to a replica set instance from a device outside Alibaba Cloud (for example, a local client), you must apply for a public endpoint.

Procedure

  1. Log on to the ApsaraDB for MongoDB console.
  2. In the upper-left corner of the page, select the region where the target instance resides.
  3. In the left-side navigation pane, click Sharding Instances.
  4. Find the target instance and click its ID.
  5. In the left-side navigation pane, click Database Connection.
  6. In the upper-right corner of the Public IP Connection section, click Apply for Public Connection String.
    Apply for a public endpoint

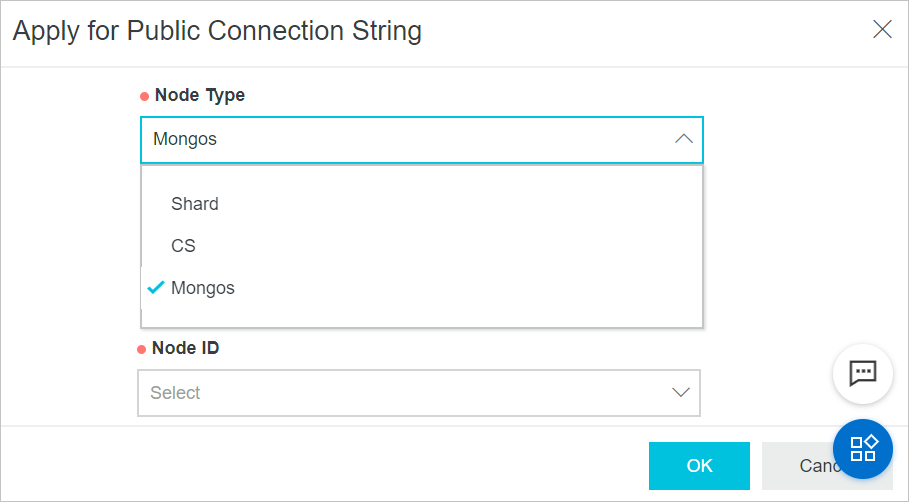

  7. In the dialog box that appears, specify Node Type and Node ID, and click OK.
    Select a node type
    Parameter Value Description
    Node Type shard A shard. Before you apply for a public endpoint for a shard, you must apply for an internal endpoint for it. For more information, see Apply for a connection string of a shard or Configserver node.

    If you want to read the oplog data of a shard over the Internet when you perform certain operations such as data synchronization between clusters, you must apply for a public endpoint for the shard.

    cs The config server. Before you apply for a public endpoint for the config server, you must apply for an internal endpoint for it. For more information, see Apply for a connection string of a shard or Configserver node.

    If you want to read the configuration information of the config server over the Internet when you perform certain operations such as data synchronization between clusters, you must apply for a public endpoint for the config server.

    mongos A mongos. This is the default option because your application is connected to a mongos in most cases.
    Node ID The ID of the component for which you want to apply for a public endpoint. None
    Note
    • For more information about component types, see Architecture of sharded cluster instances.
    • To apply for a public endpoint for other mongos, repeat this step. You can only apply for a new public endpoint after the current one is created.

Results

When the application is complete, the sharded cluster instance generates new endpoints for both the primary and secondary nodes and the corresponding connection string URI. For more information, see Overview of sharded cluster instance connections.

References

What to do next

Before you connect to the sharded cluster instance by using one of the obtained public endpoints, you must add the public IP address of your client to a whitelist of the instance. For more information, see Configure a whitelist for a sharded cluster instance.
