This topic describes how to view monitoring data of graphics processing units (GPUs) in the CloudMonitor console and query the data by calling an API operation.

Metrics

The metrics for GPU monitoring are based on three dimensions: GPU, instance, and group.

  • GPU-dimension metrics

    GPU-dimension metrics collect monitoring data of a single GPU. The following table lists the GPU-dimension metrics.

    Metric Unit Description Dimension
    gpu_memory_freespace Byte The idle memory of a GPU instanceId and gpuId
    gpu_memory_totalspace Byte The total memory of a GPU instanceId and gpuId
    gpu_memory_usedspace Byte The used memory of a GPU instanceId and gpuId
    gpu_gpu_usedutilization % The usage of a GPU instanceId and gpuId
    gpu_encoder_utilization % The encoder usage of a GPU instanceId and gpuId
    gpu_decoder_utilization % The decoder usage of a GPU instanceId and gpuId
    gpu_gpu_temperature °C The temperature of a GPU instanceId and gpuId
    gpu_power_readings_power_draw W The power of a GPU instanceId and gpuId
    gpu_memory_freeutilization % The memory idle rate of a GPU instanceId and gpuId
    gpu_memory_useutilization % The memory usage of a GPU instanceId and gpuId
  • Instance-dimension metrics

    Instance-dimension metrics collect monitoring data of all GPUs on a single Elastic Compute Service (ECS) instance, and calculate the maximum, minimum, and average values. In this way, you can view the overall GPU resource usage on the instance. The following table lists the instance-dimension metrics.

    Metric Unit Description Dimension
    instance_gpu_decoder_utilization % The decoder usage of GPUs on an instance instanceId
    instance_gpu_encoder_utilization % The encoder usage of GPUs on an instance instanceId
    instance_gpu_gpu_temperature °C The temperature of GPUs on an instance instanceId
    instance_gpu_gpu_usedutilization % The usage of GPUs on an instance instanceId
    instance_gpu_memory_freespace Byte The idle memory of GPUs on an instance instanceId
    instance_gpu_memory_freeutilization % The memory idle rate of GPUs on an instance instanceId
    instance_gpu_memory_totalspace Byte The total memory of GPUs on an instance instanceId
    instance_gpu_memory_usedspace Byte The used memory of GPUs on an instance instanceId
    instance_gpu_memory_usedutilization % The memory usage of GPUs on an instance instanceId
    instance_gpu_power_readings_power_draw W The power of GPUs on an instance instanceId
  • Group-dimension metrics

    Group-dimension metrics collect monitoring data of all GPUs on all ECS instances in an application group, and calculate the maximum, minimum, and average values. In this way, you can view the overall GPU resource usage in the application group. The following table lists the group-dimension metrics.

    Metric Unit Description Dimension
    group_gpu_decoder_utilization % The decoder usage of GPUs in an application group groupId
    group_gpu_encoder_utilization % The encoder usage of GPUs in an application group groupId
    group_gpu_gpu_temperature °C The temperature of GPUs in an application group groupId
    group_gpu_gpu_usedutilization % The usage of GPUs in an application group groupId
    group_gpu_memory_freespace Byte The idle memory of GPUs in an application group groupId
    group_gpu_memory_freeutilization % The memory idle rate of GPUs in an application group groupId
    group_gpu_memory_totalspace Byte The total memory of GPUs in an application group groupId
    group_gpu_memory_usedspace Byte The used memory of GPUs in an application group groupId
    group_gpu_memory_usedutilization % The memory usage of GPUs in an application group groupId
    group_gpu_power_readings_power_draw W The power of GPUs in an application group groupId

View GPU monitoring data in the CloudMonitor console

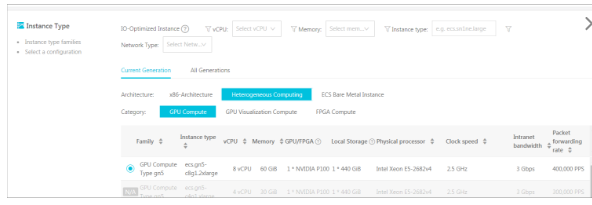

After purchasing an ECS compute optimized instance with GPU, you need to install the GPU driver and the CloudMonitor agent on the instance. Then, you can view and configure GPU monitoring charts and set alert rules for the instance in the CloudMonitor console.

View monitoring charts

  1. Log on to the CloudMonitor console.
  2. In the left-side navigation pane, click Host Monitoring. The Host Monitoring page appears.
  3. On the Instances tab, click the name of an instance to go to the Instance Info page. Click the GPUMonitor tab to view the GPU monitoring charts of the instance.

Configure monitoring charts

  1. Log on to the CloudMonitor console.
  2. In the left-side navigation pane, choose Dashboard > Custom Dashboard. The Dashboards page appears.
  3. In the upper-right corner, click Create Dashboard. In the Create Dashboard dialog box that appears, enter the dashboard name, and click Create.
  4. On the page that appears, click Add View in the upper-right corner. The Add View page appears.
  5. In the Chart Type section, select a chart type from the line chart, area chart, TopN table, heat map, and pie chart.
  6. In the Select Metrics section, select a GPU-related metric from the Metrics drop-down list. Then, click Save.

Set alert rules

You can set alert rules for GPU-related metrics. We recommend that you create an alert template and apply the template to an application group to set alert rules for multiple instances at a time. For more information, see Create an alarm template.

Query GPU monitoring data by calling an API operation

  • You can query GPU monitoring data by calling the DescribeMetricList operation.
  • Parameter description: Set the Namespace parameter to acs_ecs_dashboard. Set the MetricName and Dimensions parameters as required based on the preceding tables.
