This topic describes how to use SSL-VPN to access a VPC from a remote computer of the Windows operating system.



Prerequisites

Before deploying the VPN Gateway, make sure that the following conditions are met:

  • The IP address ranges of the VPC and the remote computer are not in conflict.
  • The client can access the Internet.

Step 1: Create a VPN Gateway

To create a customer gateway, follow these steps:

  1. Log on to the VPC console.
  2. In the left-side navigation pane, choose VPN > VPN Gateways.
  3. On the VPN Gateways page, click Create VPN Gateway.
  4. On the purchase page, configure the VPN Gateway according to the following information and click Buy Now.
    • Name: Enter the name of the VPN Gateway.
    • Region: Select the region to which the VPN Gateway belongs.
      Note Make sure that the VPC and the VPN Gateway are in the same region.
    • VPC: Select the VPC to be connected.
    • Peak Bandwidth: Select a bandwidth. The bandwidth is the Internet bandwidth of the VPN Gateway.
    • IPsec-VPN: Select whether to enable the IPsec-VPN feature.
    • SSL-VPN: Select whether to enable the SSL-VPN feature. The SSL-VPN feature allows you to connect to a VPC from a computer anywhere.
    • SSL connections: Select the maximum number of clients you want to connect to simultaneously.
      Note You can only configure this option after you enable the SSL-VPN feature.
    • Billing Cycle: Select the validity period of the purchase.
  5. Go back to the VPN Gateways page, select China (Hangzhou) region to view the created VPN Gateway.
    The initial status of a VPN Gateway is Preparing. It changes to Normal in about 2 minutes. When it changes to Normal, it indicates that the VPN Gateway is ready to use.
    Note It usually takes 1-5 minutes to create a VPN Gateway.

Step 2: Create an SSL server

Follow these steps to create an SSL server:

  1. In the left-side navigation pane, click VPN > SSL Servers.
  2. Select the target region.
  3. On the SSL Servers page, click Create SSL Server.
  4. On the Create SSL Server page, configure the SSL server according to the following information and click OK.
    • Name: Enter a name for the SSL server.
    • VPN Gateway: Select the created VPN Gateway.
    • Local Network: Enter the CIDR block of the network to be connected. Click Add Local Network to add multiple local networks. The local network can be the CIDR block of any VPC or VSwitch, or the CIDR block of the local network.
    • Client Subnet: Enter the IP addresses used by the client to connect the server in the form of CIDR block.
    • Advanced Configuration: Use the default advanced configuration.

Step 3: Create and download an SSL client certificate

  1. In the left-side navigation pane, click VPN > SSL Clients.
  2. Select the target region.
  3. On the SSL Clients page, click Create Client Certificate.
  4. On the Create Client Certificate page, enter a name, and then select the corresponding SSL server. Click OK.
  5. On the SSL Clients page, find the created SSL client certificate, and then click Download in the Actions column.

Step 4: Configure the Windows client

To configure a Linux client, follow these steps:

Notice You need to run the client as an administrator.
  1. Download and install the OpenVPN client.
  2. Extract the client certificate downloaded in step 3 and copy the extracted certificate to the /etc/openvpn/conf/ directory.
  3. Click Connect to initiate the connection.

Step 5: Verify the connection

On the client, ping the private IP address of an ECS instance in the connected VPC network to verify the connection.

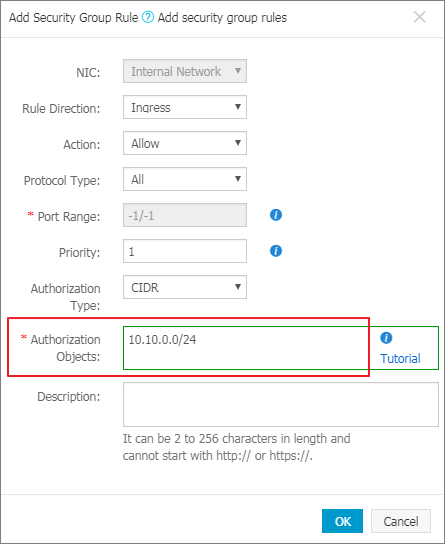

Note Make sure that the security group rules of the ECS instance allow remote access. For more information, see Scenarios.
