If you want to partition and format a data disk more than 2 TB (referred to as a large data disk in this article, and a disk smaller than 2 TB is a small data disk), you must use the GPT format. This document describes how to partition and format a large data disk in different operating systems.

Note
If you want to partition and format a data disk less than 2 TiB, please see Linux _ Format and mount a data disk and Windows _ Format a data disk.

Note

Before partition and formatting a large data disk, note the following:

  • Large data disks support the partition tool and file system shown in the following table.

    Operating system Partition tool File system
    Linux parted ext4 or xfs
    Windows Disk management NTFS
  • We do not recommend that you create a large data disk by using a snapshot of a small data disk.

    Theoretically, this can work. But we recommend that you do not try this practice. Instead, create an empty large data disk, or create large data disk by using snapshots of large data disks,  because of the following reasons:

    • While creating a large data disk by using a snapshot of a small data disk, the system completes expansion at the block device level disk only, but not automatic conversion between the partition format and file system.
    • If the MBR format is used in the snapshot of the small data disk, neither partition tool mentioned (partedon Linux and  Disk Management on Windows) can convert the MBR to GPT and retain the data.  Therefore, even if you create a large data disk by using a snapshot of a small data disk, while partitioning and initializing, you must delete the original data and partition with the GPT format.  If you have created large data disk by using a snapshot of a small data disk, see Use windows to partition and format a large data disk created by a snapshot of a small data disk .
      Note
      This is not the case if the snapshot of the small data disk is in GPT format, or if you have another powerful partitioning tool. You can select based on your own situation.
  • Effect of data disk snapshots

    Effect of Data Disk SnapshotsThe volume of data on a large data disk is huge, but the process for creating a snapshot of it is the same as for a small disk data, so the total time required for creating snapshots each day is proportional to the total data volume. Because the total time required to create snapshots is proportional to the total data volume, the more the dirty data is, the longer the snapshot creation time will be.

Windows _ Partition and format an empty large data disk

Consider Windows Server 2008 R2 64-bit system as example to describe how to partition and format a large data disk in Windows instance. Assume the data disk to be processed is a 4  TiB empty disk.

Prerequisites

The data disk has been attached to an instance. For detailed operation, see Attach a cloud disk.

Procedure

To partition and format a large data disk, follow these steps:

  1. Connect to a Windows instance.
  2. Click the icon in the task bar.
  3. In the left-side navigation pane of Server Manager, select Storage >  > Disk Management.
  4. Find the disk that is to be partitioned and formatted (in this example,  Disk 4). The disk status shows as Offline.
  5. Right click the blank area around Disk 4, and then click Online.

    After going online, Disk 4 is in the Not Initialized status.

  6. Right click the blank area around Disk 4, and then select Initialize Disk in the context menu.
  7. In the Initialize Disk   dialog box, select Disk 4 and select GPT as the disk partitioning method.
  8. In the Disk Management window, right click the Unallocated area of Disk 4, and then select  New Simple Volume to create a 4 TiB volume in the NTFS format.
  9. In the New Simple Volume Wizard, follow these steps:
    1. Click Next.
    2. Choose a volume size: designate size of simple volume. If you need to create a master area only, use the default value. Click Next. You can also partition  Disk 4  into several partitions.
      Note
      The maximum NTFS volume, in theory, is the maximum volume of NTFS containing 264-1 clusters. Actually, in WinXP  Pro, the maximum volume of NTFS is 232-1 clusters. For example, for a 64  KiB cluster, the maximum NTFS volume is approximately 256 TiB. If you select a 4 KiB cluster, the maximum NTFS volume is 16  TiB. NTFS selects the size of a cluster automatically based on the disk capacity.

    3. Distribute drive letter and path: select a drive letter, then select G in this instance. Click Next.
    4. Format Partition: Select the formatting settings, including file system, distributed unit size, and volume label, and then confirm whether to Perform a quick format  and Enable file and folder compression. Select  Perform a quick format here only.  Click Next.
    5. Start creating a new simple volume. After the wizard to create a new simple volume is completed, click Finish to close  New Simple Volume Wizard.

After the formatted partition is completed, in Disk Management , the status of Disk 4 is shown in the following screenshot.

Use windows to partition and format a large data disk created by a snapshot of a small data disk

If you created a large data disk by using snapshots of a small data disk, you first need to convert the partition format of data disk from MNR to GPT, and then format the data disk. Data of the original snapshots will not be saved, so we recommend you do not create large data disk by using a snapshot of a small data disk.

If you have already created large data disk like this, do the following to partition and format this data disk. The example operating system is Windows Server 2012 R2 64-bit, and we assume capacity of the data disk to be processed is 3  Tib.

Prerequisites

The data disk has been attached to an instance.

Procedure

To partition and format a large data disk, follow these steps:

  1. Connect to a Windows instance.
  2. On Windows Server desktop, right click the Start icon, and select Disk Management.

    The data disk (Disk 2 in this example) that has not been formatted or partitioned is in the  Offline status.

  3. Right click the blank area around Disk 2, and then select Offline in the context menu.
  4. Right click a simple volume, and then select  Delete Volume in the context menu.
  5. Right click the blank area around Disk 2, and then select Convert to GPT Disk in the context menu.
  6. In the  Disk Management window, right click  Unallocated area of Disk 2, and then select New Simple Volume to create a 3 TiB volume in the NTFS format.
  7. In the New Simple Volume Wizard, follow these steps:
    1. Click Next.
    2. Specify Volume Size: Specify the size of the simple volume.  If you need only one primary partition, use the default value,  and then click Next. You can also partition  Disk 2  into several partitions.
      Note
      The maximum NTFS volume, in theory, is the maximum volume of NTFS containing 264-1 clusters.  Actually, in WinXP Pro,  the maximum volume of NTFS is 232-1 clusters.  For example, for a 64 KiB cluster,  the maximum NTFS volume is approximately 256 TiB. If you select a 4 KiB cluster, the maximum NTFS volume is 16  TiB.  NTFS selects the size of a cluster automatically based on the disk capacity.
    3. Assign Drive Letter or Path: Select a drive letter. Click Next.
    4. Format Partition: Select the formatting settings, including file system, distributed unit size and volume label, and then confirm whether to  Perform a quick format and  Enable file and folder compression. Select   Perform a quick format here only.  Click Next.
    5. Start creating a new simple volume. After the wizard to create a new simple volume is completed, click Finish to close  New Simple Volume Wizard.

After the formatted partition is completed, in Disk Management , the status of Disk 4 is shown in the following screenshot.

Linux _ Partition and format a large data disk

To partition and format a large data disk that is attached to a Linux instance, use the GPT format.  In Linux system, large data disk normally uses xfs or ext4 file system.

The example operating system is CentOS 7.4 64-bit.This section describes how to use parted and  e2fsprogs tools to partition and format a large data disk on a Linux instance.  Assume the data disk to be processed is an empty 3 TiB new disk, and the device name is  /dev/vdd.

Prerequisites

Your Linux instance has installed parted. If not, run yum install -y parted.

Your Linux instance has installed e2fsprogs. If not, run yum install -y e2fsprogs.

The data disk has been attached to the instance. For more information, see Attach a cloud disk.

Procedure

To partition and format a large data disk and mount the file system, follow these steps:

  1. Run fdisk -l to check whether the data disk exists. The expected result is as follows. If you see different returned information, you haven't mounted data disk.

    Disk /dev/vdd: 3221.2 GB, 3221225472000 bytes, 6291456000 sectors
    Units = sectors of 1 * 512 = 512 bytes
    Sector size (logical/physical): 512 bytes / 512 bytes
    I/O size (minimum/optimal): 512 bytes / 512 bytes
  2. Run parted /dev/vdd to start partitioning:
    1. Run mklabel gpt, to convert partitioning format from MBR to GPT.
    2. Run  mkpart primary ext4 <StartSector> <EndSector> to partition a primary partition by using the ext4 file system, and specify a start sector and end sector for the partition.  If a data disk is partitioned into one partition only, run mkpart primary ext4 0 -1.
      Note
      You can also use xfs file system.
    3. Run  print to check partition table.

      (parted) mkpart primary ext4 0 -1
      Warning: The resulting partition is not properly aligned for best performance.
      Ignore/Cancel? ignore
      (parted) print
      Model: Virtio Block Device (virtblk)
      Disk /dev/vdd: 3221 GB
      Sector size (logical/physical): 512B/512B
      Partition Table: gpt
      Disk Flags:
      Number Start End Size File system Name Flags
      1 17.4kB 3221GB 3221GB primary
    4. Run quitto exit parted .
  3. Run partprobe to make system re-read the partition table.
  4. Run the following commands to create an ext4 file system, and make /dev/vdd1 partition use ext4.
    mke2fs -O 64bit,has_journal,extents,huge_file,flex_bg,uninit_bg,dir_nlink,extra_isize /dev/vdd1
    Note
    • If you want to disable the lazy init function of ext4 file system to avoid its effect on data disk I/O performance, see Appendix2: Disable lazy  init function..
    • If capacity of the data disk is 16 TiB, you have to format it by using e2fsprogs in the designated version. SeeAppendix1: update e2fsprogs.
    • If you want to create an xfs file system, run mkfs -t xfs /dev/vdd1.
  5. Run mkdir /test to create a mount point with the name /test.
  6. Run mount /dev/vdd1 /test to mount /dev/vdd1 to /test.
  7. Run df -h to check current disk space and usage.

    If it shows the new file system information in the returned result, the mount operation was successful and you can use the new file system. After mounting, do not need to restart the instance to use the new file system directly.


    [root@izXXXXz ~]# df -h
    Filesystem Size Used Avail Use% Mounted on
    /dev/vda1 40G 6.4G 31G 18% /
    devtmpfs 487M 0 487M 0% /dev
    tmpfs 497M 0 497M 0% /dev/shm
    tmpfs 497M 364K 496M 1% /run
    tmpfs 497M 0 497M 0% /sys/fs/cgroup
    tmpfs 100M 0 100M 0% /run/user/0
    /dev/vdd1 2.9T 89M 2.8T 1% /test
  8. (Optional) Write new partition information to /etc/fstab  to enable automatic mount partition while the instance is started.
    1. (Optional) Run cp /etc/fstab /etc/fstab.bak to back up  etc/fstab.
    2. Run  echo /dev/vdd1 /test ext4 defaults 0 0 >> /etc/fstab to write new partition information to /etc/fstab.
    3. Run cat /etc/fstab to check /etc/fstab  information.

      If the new partition information is in the returned result, the write operation was successful.

You have now successfully partitioned and formatted a 3 TiB data disk.

Appendix 1: Update e2fsprogs

If the disk capacity is 16  TiB, you must use e2fsprogs of version1.42 or later to format its partitions to ext4 file system.  If e2fsprogs version is too low (for example, e2fsprogs  1.41.11), the following error occurs.


mkfs.ext4: Size of device /dev/vdd too big to be expressed in 32 bits using a blocksize of 4096.

To install e2fsprogs of later version, such as 1.42.8 in this example, follow these steps:

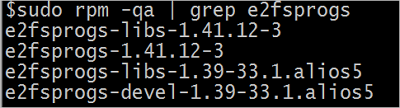

  1. Run rpm -qa | grep e2fsprogs to check the current version of e2fsprogs.

    If the current version is earlier than 1.42, update the software by following these steps.

  2. Run the following command to download e2fsprogs in version1.42.8. You can go to e2fsprogs to find the latest software package.

    wget https://www.kernel.org/pub/linux/kernel/people/tytso/e2fsprogs/v1.42.8/e2fsprogs-1.42.8.tar.gz

  3. Run the following commands in turn to compile tools in later versions.

    tar xvzf e2fsprogs-1.42.8.tar.gz
    cd e2fsprogs-1.42.8
    ./configure
    make
    make install
  4. Run rpm -qa | grep e2fsprogs to check whether the software of the later version has been installed successfully.
Appendix 2: Disable lazy init function

The lazy init function of ext4 file system  is enabled by default.  While the function is enabled, in the system background, it will initiate a thread to initialize metadata of ext4 file system continuously to delay metadata initialization. Therefore, right after formatting a data disk, IOPS can be affected. For example, IOPS performance testing data in data disk will obviously be lower.

If you need to test performance of data disk right after formatting, you need to run the following commands to disable lazy init function while formatting the file system.

mke2fs -O 64bit,has_journal,extents,huge_file,flex_bg,uninit_bg,dir_nlink,extra_isize -E lazy_itable_init=0,lazy_journal_init=0   /dev/vdd1

If the lazy init is disabled, it may take longer time to format a partition. For example, it may take 10−30 minutes to format a 32 TiB data disk.

You can use the lazy init function according to your needs.
