A security group functions as a virtual firewall to control network access of Elastic Compute Service (ECS) instances. Each instance must belong to at least one security group. This topic describes how to create a security group and configure security group rules in the ECS console.

Prerequisites

A virtual private cloud (VPC) and a vSwitch are created if you want to create a VPC-type security group. For more information, see Work with VPCs.

Background information

If no security groups have been created when you create an ECS instance, a default security group is created. The default security group has the following default rules:
  • A default rule that supports the ICMP protocol for operations such as pinging the ECS instance.
  • A default inbound rule that allows traffic on SSH port 22 and RDP port 3389 to access the ECS instance.
  • An optional inbound rule that allows traffic on HTTP port 80 and HTTPS port 443. If you want to build websites by using ECS instances, you must enable HTTP port 80 and HTTPS port 443.

If you want the ECS instance to be added to a custom security group, you can perform the following operations to create a security group. For more information, see Overview.

Procedure

  1. Go to the Security Groups page.
    1. Log on to the ECS console.
    2. In the left-side navigation pane, choose Network & Security > Security Groups.
    3. In the top navigation bar, select a region.
  2. Click Create Security Group.
  3. In the Basic Information section, set the parameters for the security group.
    Parameter Description
    Security Group Name Specify a security group name.
    Description Enter a brief description of the security group for future management.
    Network Set the network type of the security group.
    • To create a VPC-type security group, select an existing VPC.
    • To create a classic network-type security group, select Classic Network.
    Security Group Type Select a security group type.
    • Basic Security Group: applicable to scenarios with small-scale clusters and moderate network connections.
    • Advanced Security Group: applicable to scenarios with large-scale clusters that require highly efficient O&M.

    For other functional differences between basic and advanced security groups, see Overview.

    Resource Group Select a resource group to which to assign the security group to facilitate subsequent O&M.
    Tags Configure tags for the security group to facilitate subsequent O&M.
  4. Optional: In the Access Rule section, configure the security group rule.
    The system configures a default security group rule that has the basic configurations. If you want to make custom configurations, you can perform the following operations. For more information, see Add security group rules.
    1. Click the Inbound or Outbound tab to select the security group rule direction.
      Network type Rule direction
      VPC
      • Inbound: controls inbound traffic from both the Internet and internal network.

        By default, the inbound rules are configured for the ICMP protocol, SSH port 22, RDP port 3389, HTTP port 80, and HTTPS port 443.

      • Outbound: controls outbound traffic to both the Internet and internal network.

        By default, all ports are enabled to allow outbound access of basic security groups, and all ports are disabled to deny outbound access of advanced security groups.

      Classic network
      • Internet Ingress: By default, the inbound rules are configured for the ICMP protocol, SSH port 22, RDP port 3389, HTTP port 80, and HTTPS port 443.
      • Internet Egress: By default, all ports are enabled.
      • Inbound: By default, all ports are disabled to deny inbound access over the internal network.
      • Outbound: By default, all ports are enabled to allow outbound access over the internal network.
    2. Click Add Rule.
    3. Configure custom security group rules.
      Parameter Description
      Action
      • Allow: allows access requests on the specified port.
      • Forbid: discards data packets and returns no messages.

      If two security group rules differ only in their actions, the Forbid rule is used but the Allow rule is ignored.

      Priority A smaller value indicates a higher priority. Valid values: 1 to 100.
      Protocol Type The protocol type of the security group rule. Valid values:
      • All
      • Custom TCP
      • Customized UDP
      • All ICMP (IPv4)
      • All GRE
      For more information about the Protocol Type and Port Range parameters, see Add security group rules and Common ports used by applications.
      Port Range You can specify a custom port range when Protocol Type is set to Custom TCP or Customized UDP. Enter one or more port ranges. Separate multiple port ranges with commas (,). Example: 22/23,443/443.
      Authorization Object You can set the following authorization objects:
      • IP addresses

        You can enter a single IP address. Example: 192.168.0.100.

      • CIDR blocks

        You can enter a CIDR block. Example: 192.168.0.0/24. For more information about the CIDR format, see What is CIDR?

      • Security groups
        This authorization type is valid only for the internal network. You can specify a security group within the current account or a different account as the authorization object to control access to or from the instances in that security group for the instances in the current security group.
        Note For advanced security group rules, you cannot select a security group for Authorization Object.
        • Authorize a security group within the current account: Enter the ID of the security group that you want to authorize within the current account. If the current security group is of the VPC type, the security group that you want to authorize must reside in the same VPC as the current security group.
        • Authorize a security group within a different account: Enter the ID of the different Alibaba Cloud account and the ID of the security group that you want to authorize in the ID of the Alibaba Cloud account/ID of the security group format. You can choose Account Management > Security Settings to view your account ID.
      Take note of the following items:
      • You can enter up to 10 authorization objects at a time. Separate multiple objects with commas (,).
      • If you enter 0.0.0.0/0 as an authorization object, all IP addresses are allowed or denied based on the Action parameter. Evaluate the network risks before you specify 0.0.0.0/0.
      • For security reasons, we recommend that you select a security group for Authorization Object when you add an internal inbound rule to a security group of the classic network type. If you want to authorize IP addresses, you can enter only a single IP address. You cannot enter CIDR blocks.
      Description The description of the security group rule.
  5. Click Create Security Group.

Result

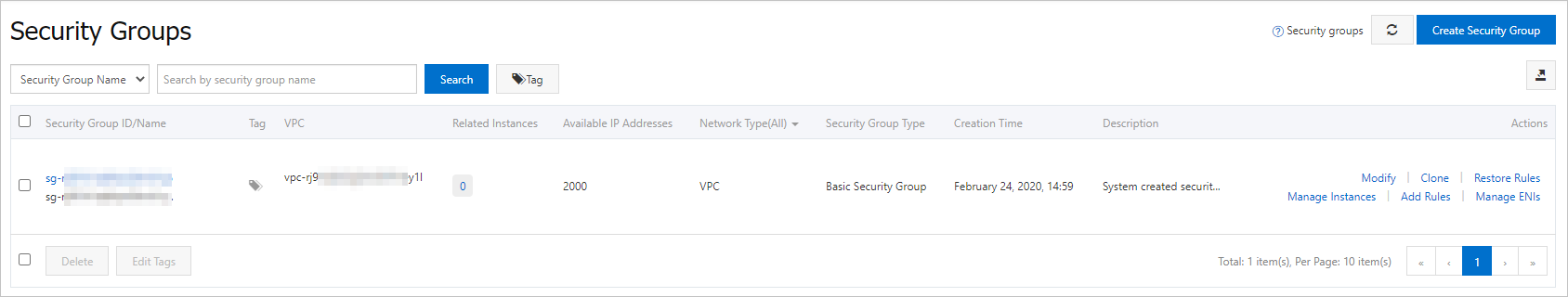

After the security group is created, it is displayed in the security group list. Creation result

What to do next

  • You can configure security group rules to allow or deny access to or from the Internet or internal network for ECS instances in a security group. For more information, see Add security group rules.
  • Each ECS instance must belong to at least one security group. You can add an instance to one or more security groups. For more information, see Add an ECS instance to a security group.
