Purchase, renew, and upgrade an Alibaba Cloud DNS instance by calling API operations

Last Updated: Mar 12, 2021

This topic describes how to use API operations to purchase, renew, upgrade, and enable auto-renewal for an Alibaba Cloud DNS instance. Specific parameter values in the sample code are for reference only. In actual calls, specify values as needed for such parameters, for example, Domain and InstanceId.

SDK

  • Maven dependencies:

<dependencies>
    <dependency>
        <groupId>com.aliyun</groupId>
        <artifactId>aliyun-java-sdk-bssopenapi</artifactId>
        <version>1.6.6</version>
    </dependency>

    <dependency>
        <groupId>com.aliyun</groupId>
        <artifactId>aliyun-java-sdk-core</artifactId>
        <version>4.4.6</version>
    </dependency>
</dependencies>

For more information about SDKs in other languages, see SDK list.

Notice

If you are a user on the China site (aliyun.com), set the RegionId parameter to cn-hangzhou. If you are a user on the International site (alibabacloud.com), set the RegionId parameter to ap-southeast-1.

1. Create a paid Alibaba Cloud DNS instance

Description: You can call the CreateInstance operation to create a paid Alibaba Cloud DNS instance.

Operation: CreateInstance

References: CreateInstance

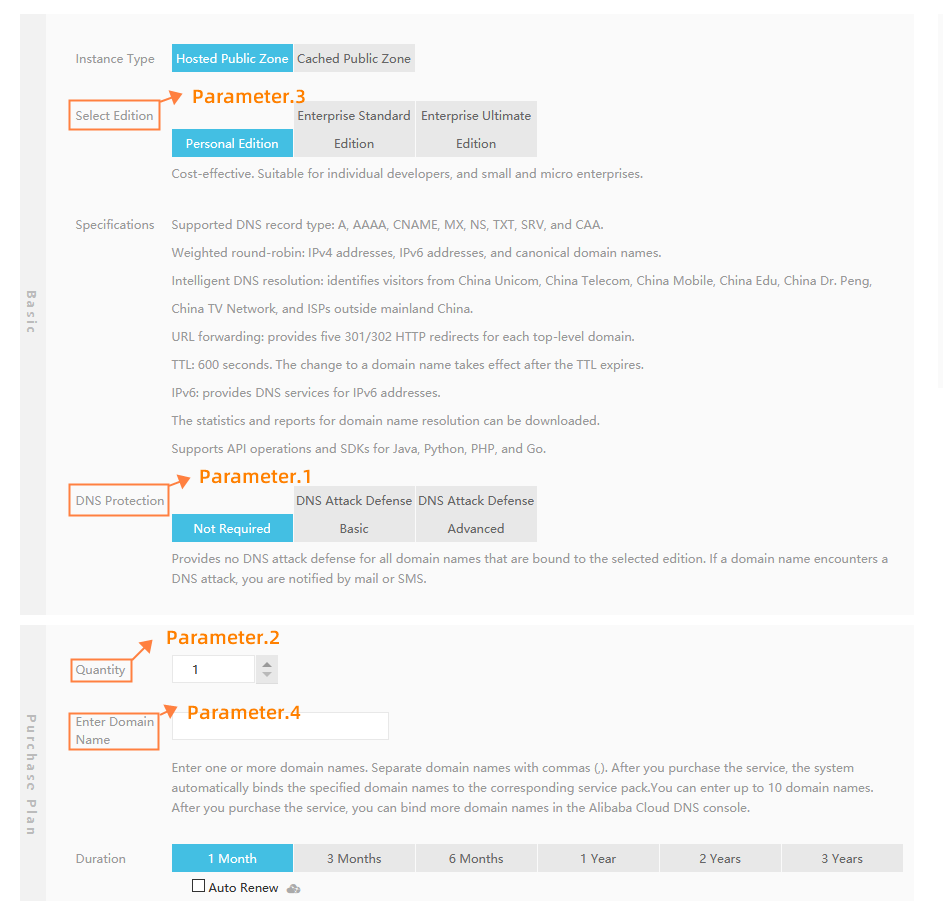

Description of request parameters:

1

Parameter

Sample parameter name

Valid value

Corresponding module on the buy page

Parameter.1.Code

parameters1.setCode

DNSSecurity

DNS Protection

Parameter.1.Value

parameters1.setValue

no, basic, and advenced

Not Required, DNS Attack Defense Basic, and DNS Attack Defense Advanced

Parameter.2.Code

parameters2.setCode

DomainNumbers

Quantity

Parameter.2.Value

parameters2.setValue

1-100

Specify the number of domain names.

Parameter.3.Code

parameters3.setCode

Version

Select Edition

Parameter.3.Value

parameters3.setValue

version_personal, version_enterprise_basic, and version_enterprise_advanced

Personal Edition, Enterprise Standard Edition, and Enterprise Ultimate Edition

Parameter.4.Code

parameters4.setCode

Domain

Enter Domain Name

Parameter.4.Value

parameters4.setValue

example.com

Specify one or more domain names that are bound to the instance. Separate multiple domain names with commas (,)

FAQ:

(1) When you set the parameters4.setCode parameter, the first letter of the domain name must be capitalized. Otherwise, the instance cannot be bound to the domain name.

(2) The bound domain name must exist under the account that purchases the instance. If you want to bind a domain name that is not provided by HiChina, you must add the domain name in advance in the Alibaba Cloud DNS console or by calling the AddDomain operation. For more information, see Adding a domain name.

Sample code:

package AlidnsTest.DomainManager;

import com.alibaba.fastjson.JSON;
import com.aliyuncs.bssopenapi.model.v20171214.CreateInstanceRequest;
import com.aliyuncs.bssopenapi.model.v20171214.CreateInstanceResponse;
import com.aliyuncs.exceptions.ClientException;
import org.testng.annotations.Test;
import org.testng.collections.Lists;
import utils.AlidnsTestBase;

public class InstanceCreateRenewUpgrade extends AlidnsTestBase {

    @Test
    public void createInstanceTest() {
        CreateInstanceRequest request = new CreateInstanceRequest();
        request.setProductCode("dns");
        request.setProductType("alidns_pre");
        request.setSubscriptionType("Subscription");
        request.setPeriod(1);
        CreateInstanceRequest.Parameter parameters1 = new CreateInstanceRequest.Parameter();
        parameters1.setCode("DNSSecurity");
        parameters1.setValue("no");

        CreateInstanceRequest.Parameter parameters2 = new CreateInstanceRequest.Parameter();
        parameters2.setCode("DomainNumbers");
        parameters2.setValue("1");

        CreateInstanceRequest.Parameter parameters3 = new CreateInstanceRequest.Parameter();
        parameters3.setCode("Version");
        parameters3.setValue("version_personal");

        CreateInstanceRequest.Parameter parameters4 = new CreateInstanceRequest.Parameter();
        parameters4.setCode("Domain");
        parameters4.setValue("example.taobao");

        request.setParameters(Lists.newArrayList(parameters1,parameters2,parameters3,parameters4));
        try {
            CreateInstanceResponse response = client.getAcsResponse(request);
            System.out.println(JSON.toJSON(response));
        } catch (ClientException e) {
            e.printStackTrace();
        }
    }
}

2. Renew a paid Alibaba Cloud DNS instance

Description: You can call the RenewInstance operation to renew a paid Alibaba Cloud DNS instance.

Operation: RenewInstance

References: RenewInstance.

Sample code:

package AlidnsTest.DomainManager;

import com.alibaba.fastjson.JSON;
import com.aliyuncs.bssopenapi.model.v20171214.CreateInstanceRequest;
import com.aliyuncs.bssopenapi.model.v20171214.CreateInstanceResponse;
import com.aliyuncs.bssopenapi.model.v20171214.RenewInstanceRequest;
import com.aliyuncs.bssopenapi.model.v20171214.RenewInstanceResponse;
import com.aliyuncs.exceptions.ClientException;
import org.testng.annotations.Test;
import org.testng.collections.Lists;
import utils.AlidnsTestBase;

public class OrderCreateRenewUpgrade extends AlidnsTestBase {

    /**
     * Renew an Alibaba Cloud DNS instance.
     */
    @Test
    public void renewInstanceTest() {
        RenewInstanceRequest request = new RenewInstanceRequest();
        request.setInstanceId("dns-cn-oew21y7bh50"); // The ID of the created instance.
        request.setProductCode("dns");
        request.setRenewPeriod(3);
        try {
            RenewInstanceResponse response = client.getAcsResponse(request);
            System.out.println(JSON.toJSON(response));
        } catch (ClientException e) {
            e.printStackTrace();
        }
    }
}

3. Enable auto-renewal for an Alibaba Cloud DNS instance

Description: You can call the SetRenewal operation to enable auto-renewal for a paid Alibaba Cloud DNS instance. The following renewal methods are supported: manual renewal, auto-renewal, and non-renewal.

Operation: SetRenewal

References: SetRenewal.

The following table describes the parameters related to the auto-renewal period.

Parameter

Valid value

Description

RenewalPeriodUnit

M: month. Y: year.

The unit of the auto-renewal period.

RenewalPeriod

If the RenewalPeriodUnit parameter is set to Y, you can set the RenewalPeriod parameter to 1, 2, or 3. If the RenewalPeriodUnit parameter is set to M, you can set the RenewalPeriod parameter to 1, 2, 3, or 6.

The auto-renewal period.

FAQ:

(1) The ProductCode parameter is required.

(2) If you set the RenewalStatus parameter to AutoRenewal, the RenewalPeriodUnit and RenewalPeriod parameters are required.

Sample code:

package AlidnsTest.DomainManager;

import com.alibaba.fastjson.JSON;
import com.aliyuncs.bssopenapi.model.v20171214.*;
import com.aliyuncs.exceptions.ClientException;
import org.testng.annotations.Test;
import org.testng.collections.Lists;
import utils.AlidnsTestBase;

public class OrderCreateRenewUpgrade extends AlidnsTestBase {

    /**
     * Enable auto-renewal for an Alibaba Cloud DNS instance.
     */
    @Test
    public void setRenewalTest() {
        SetRenewalRequest request = new SetRenewalRequest();
        request.setInstanceIDs("dns-cn-oew21y7bh50"); // The ID of the created instance.
        request.setRenewalStatus("AutoRenewal");
        request.setProductCode("dns");
        request.setRenewalPeriodUnit("M");
        request.setRenewalPeriod(1);
        try {
            SetRenewalResponse response = client.getAcsResponse(request);
            System.out.println(JSON.toJSON(response));
        } catch (ClientException e){
            e.printStackTrace();
        }
    }
}

4. Upgrade an Alibaba Cloud DNS instance

Description: You can call the ModifyInstance operation to upgrade a paid Alibaba Cloud instance. Alibaba Cloud DNS does not support downgrading paid instances.

Operation: ModifyInstance

References: ModifyInstance.

Note

Valid values of the Parameter.N.Code and Parameter.N.Value parameters:

Set the Parameter.N.Code parameter to Version.

You can set the Parameter.N.Value parameter for a paid Alibaba Cloud DNS instance to the following values:

  • version_personal

  • version_enterprise_basic

  • version_enterprise_advanced

FAQ:

(1) Paid Alibaba Cloud DNS instances cannot be downgraded.

(2) The InstanceId and ProductType parameters are required.

Sample code:

package AlidnsTest.DomainManager;

import com.alibaba.fastjson.JSON;
import com.aliyuncs.bssopenapi.model.v20171214.*;
import com.aliyuncs.exceptions.ClientException;
import org.testng.annotations.Test;
import org.testng.collections.Lists;
import utils.AlidnsTestBase;

public class OrderCreateRenewUpgrade extends AlidnsTestBase {

    /**
     * Upgrade an Alibaba Cloud DNS instance.
     */
    @Test
    public void modifyInstanceTest() {
        ModifyInstanceRequest request = new ModifyInstanceRequest();
        request.setModifyType("Upgrade");
        ModifyInstanceRequest.Parameter parameters = new ModifyInstanceRequest.Parameter();
        parameters.setCode("Version");
        parameters.setValue("version_enterprise_basic");
        request.setParameters(Lists.newArrayList(parameters));
        request.setProductCode("dns");
        request.setProductType("alidns_pre");
        request.setSubscriptionType("Subscription");
        request.setInstanceId("dns-cn-oew21y7bh50"); // The ID of the created instance.
        try {
            ModifyInstanceResponse response = client.getAcsResponse(request);
            System.out.println(JSON.toJSON(response));
        } catch (ClientException e) {
            e.printStackTrace();
        }
    }
}

5. Query the details about a paid Alibaba Cloud DNS instance

You can call the DescribeDnsProductInstance operation to query the details about the paid Alibaba Cloud DNS instance based on the instance ID.

Sample code:

package AlidnsTest.DomainManager;

import com.alibaba.fastjson.JSON;
import com.aliyuncs.alidns.model.v20150109.DescribeDnsProductInstanceRequest;
import com.aliyuncs.alidns.model.v20150109.DescribeDnsProductInstanceResponse;
import com.aliyuncs.bssopenapi.model.v20171214.*;
import com.aliyuncs.exceptions.ClientException;
import org.testng.annotations.Test;
import org.testng.collections.Lists;
import utils.AlidnsTestBase;

public class OrderCreateRenewUpgrade extends AlidnsTestBase {

    /**
     * Query the details about a paid Alibaba Cloud DNS instance.
     */

    @Test
    public void describeDnsProductInstanceTest() {
        DescribeDnsProductInstanceRequest request = new DescribeDnsProductInstanceRequest();
        request.setInstanceId("dns-cn-oew21y7bh50"); // The ID of the created instance.
        try {
            DescribeDnsProductInstanceResponse response = client.getAcsResponse(request);
            System.out.println(JSON.toJSON(response));
        } catch (ClientException e) {
            e.printStackTrace();
        }
    }
}
