Use YurtAppSets to manage distributed applications in ACK Edge clusters - Container Service for Kubernetes

YurtAppSet lets you deploy and manage applications across multiple node pools in an ACK Edge cluster from a single configuration. It watches for changes in node pool labels and automatically keeps workloads synchronized—so you can update a version or scale an application cluster-wide without touching each node pool individually.

Prerequisites

Before you begin, ensure that you have:

An ACK Edge cluster
kubectl configured to connect to the cluster
Permissions to create and manage custom resources in the cluster

Choose your approach

Cluster version	Recommended resource
1.26 or later	YurtAppSet (`apps.openyurt.io/v1beta1`)
Earlier than 1.26	UnitedDeployment (`apps.kruise.io/v1alpha1`)

Background

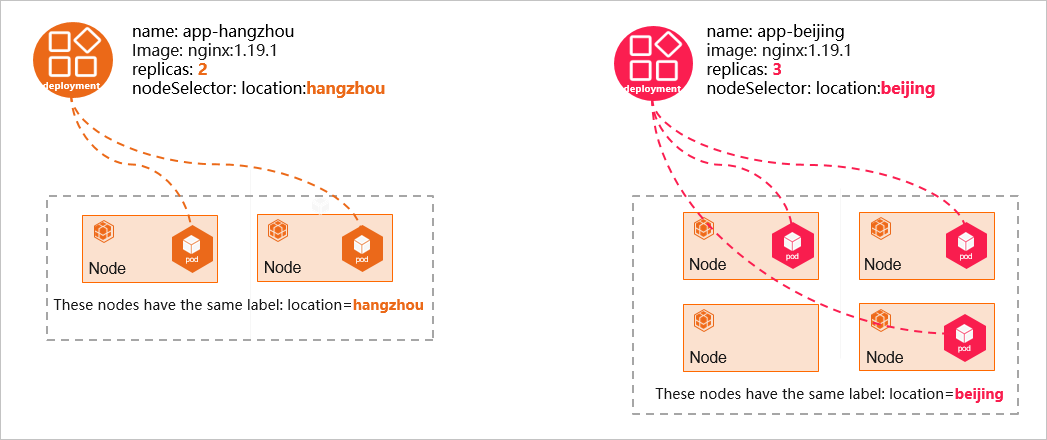

In edge computing, the same application typically runs across nodes in multiple regions. The traditional approach—assigning labels to nodes in each region and creating a separate Deployment per region—becomes unmanageable as the number of regions grows:

Tedious updates: Each version change requires manually updating every Deployment.
Complex management: As regions multiply, tracking and maintaining separate Deployments becomes error-prone.
Redundant configuration: Deployments across regions share nearly identical specs, making changes cumbersome.

YurtAppSet solves these problems with three core mechanisms:

Mechanism	Purpose
`workloadTemplate`	Defines a single workload template applied across all target node pools
`nodepoolSelector`	Selects target node pools by label; automatically picks up newly created or removed node pools
`workloadTweaks`	Overrides specific fields (replicas, container image, arbitrary patches) for individual node pools without creating separate workloads

YurtAppSet (cluster version 1.26 or later)

Create a YurtAppSet instance

The following YAML creates a YurtAppSet that deploys an nginx workload to two node pools. The np1xxxxxx node pool uses 2 replicas of nginx:1.19.1; the np2xxxxxx node pool overrides the defaults with 3 replicas of nginx:1.20.1.

apiVersion: apps.openyurt.io/v1beta1
kind: YurtAppSet
metadata:
  name: example
  namespace: default
spec:
  revisionHistoryLimit: 5
  pools:
  - np1xxxxxx
  - np2xxxxxx
  nodepoolSelector:
    matchLabels:
      yurtappset.openyurt.io/type: "nginx"
  workload:
    workloadTemplate:
      deploymentTemplate:
        metadata:
          labels:
            app: example
        spec:
          replicas: 2
          selector:
            matchLabels:
              app: example
          template:
            metadata:
              labels:
                app: example
            spec:
              containers:
              - image: nginx:1.19.1
                imagePullPolicy: Always
                name: nginx
    workloadTweaks:
    - pools:
      - np2xxxxxx
      tweaks:
        replicas: 3
        containerImages:
        - name: nginx
          targetImage: nginx:1.20.1
        patches:
        - path: /metadata/labels/test
          operation: add
          value: test

YAML field reference

Spec fields

Field	Description	Required
`spec.pools`	List of node pool names to deploy to. If both `pools` and `nodepoolSelector` are set, the union is used.	No
`spec.nodepoolSelector`	Selects node pools by matching their labels (`metadata.labels` on the NodePool resource). Automatically includes new node pools that match and excludes removed ones.	No
`spec.workload.workloadTemplate`	The workload template to deploy. Supports `deploymentTemplate` and `statefulSetTemplate`.	Yes
`spec.workload.workloadTweaks`	Per-node-pool overrides applied on top of `workloadTemplate`.	No

Prefer nodepoolSelector over pools for most deployments. Label-based selection automatically handles newly added or removed node pools without requiring changes to the YurtAppSet configuration. To modify NodePool labels, edit the YAML of the corresponding NodePool on the Custom Resources page in the cluster console.

workloadTweaks fields

Field	Description	Required
`workloadTweaks[*].pools`	Node pools (by name) that this override applies to.	No
`workloadTweaks[*].nodepoolSelector`	Node pools (by label) that this override applies to.	No
`workloadTweaks[*].tweaks.replicas`	Override the replica count for the selected node pools.	No
`workloadTweaks[*].tweaks.containerImages`	Override the container image for the selected node pools.	No
`workloadTweaks[*].tweaks.patches`	Apply arbitrary field patches to `workloadTemplate` for the selected node pools.	No
`tweaks.patches[*].path`	JSON path of the field to modify within `workloadTemplate`.	No
`tweaks.patches[*].operation`	Patch operation: `add`, `remove`, or `replace`.	No
`tweaks.patches[*].value`	Value to set. Applies only to `add` and `replace` operations.	No

Status fields

Field	Description
`status.conditions`	Current status of the YurtAppSet, including node pool selection status and workload status.
`status.readyWorkloads`	Number of managed workloads where all replicas are ready.
`status.updatedWorkloads`	Number of managed workloads where all replicas are updated to the latest version.
`status.totalWorkloads`	Total number of workloads managed by this YurtAppSet.

UnitedDeployment (cluster version earlier than 1.26)

Create a UnitedDeployment instance

apiVersion: apps.kruise.io/v1alpha1
kind: UnitedDeployment
metadata:
  name: example
  namespace: default
spec:
  revisionHistoryLimit: 5
  selector:
    matchLabels:
      app: example
  template:
    deploymentTemplate:
      metadata:
        creationTimestamp: null
        labels:
          app: example
      spec:
        selector:
          matchLabels:
            app: example
        template:
          metadata:
            creationTimestamp: null
            labels:
              app: example
          spec:
            containers:
            - image: nginx:1.19.3
              imagePullPolicy: Always
              name: nginx
            dnsPolicy: ClusterFirst
            restartPolicy: Always
  topology:
    subsets:
    - name: cloud
      nodeSelectorTerm:
        matchExpressions:
        - key: alibabacloud.com/nodepool-id
          operator: In
          values:
          - np4b9781c40f0e46c581b2cf2b6160****
      replicas: 2
    - name: edge
      nodeSelectorTerm:
        matchExpressions:
        - key: alibabacloud.com/nodepool-id
          operator: In
          values:
          - np47832359db2e4843aa13e8b76f83****
      replicas: 2
      tolerations:
      - effect: NoSchedule
        key: apps.openyurt.io/taints
        operator: Exists

YAML field reference

Field	Description
`spec.workloadTemplate`	Workload template to deploy. Supports `deploymentTemplate` and `statefulSetTemplate`.
`spec.topology.subsets`	List of node pools to deploy to.
`spec.topology.subsets[*].name`	Name of the node pool.
`spec.topology.subsets[*].nodeSelectorTerm`	Node affinity configuration. Use `alibabacloud.com/nodepool-id` as the key and the node pool ID as the value. To find the node pool ID, go to the Node Pools page and look under the Name column.
`spec.topology.subsets[*].tolerations`	Toleration configuration for the node pool.
`spec.topology.subsets[*].replicas`	Number of Pod replicas in the node pool.

Manage edge applications

Once a YurtAppSet is running, all lifecycle operations work by modifying its spec. The YurtAppSet controller propagates changes to each node pool's workload automatically.

Upgrade the application version

Update spec.workload.workloadTemplate with the new container image or other template changes. The controller applies the updated template to all managed workloads, triggering a rolling update in each node pool.

Run a grayscale update in a specific region

Update spec.workload.workloadTweaks[*].containerImages for the target node pool. Only the Pods in that node pool receive the new image; other node pools are unaffected.

Scale an application in a specific region

Update spec.workload.workloadTweaks[*].tweaks.replicas for the target node pool. This overrides the replica count defined in workloadTemplate for that node pool only.

Deploy to a new region

Create a new node pool with a label that matches spec.nodepoolSelector. YurtAppSet detects the new NodePool resource and automatically creates a workload for it. Then add nodes from that region to the node pool.

No changes to the YurtAppSet configuration are required when using nodepoolSelector.

Take an application offline in a region

Delete the node pool for the target region. YurtAppSet detects the deletion and automatically removes the workload associated with that node pool.
