ROS Cloud Development Toolkit (CDK) is a code development tool available with Resource Orchestration Service (ROS). It allows you to perform complex orchestration operations on Alibaba Cloud resources by using a small amount of code.

Background information

  • ROS CDK is open-sourced on GitHub.
  • ROS CDK supports 276 resource types of 60 Alibaba Cloud services.
  • ROS CDK supports the JavaScript, TypeScript, and Java programming languages.

Install Alibaba Cloud CLI

Alibaba Cloud command-line interface (CLI) provides easy access to ROS CDK capabilities. In the following example, Alibaba Cloud CLI is installed on CentOS 8.2 64-bit.

  1. Run the following commands to install Alibaba Cloud CLI:
    # ROS CDK is developed by using TypeScript, which requires you to install relevant packages in advance.
    # Install Node.js, npm, tsc, and Lerna.
    yum install -y nodejs
    npm install typescript -g
    npm install lerna -g
    # Install ros-cdk-cli.
    npm install @alicloud/ros-cdk-cli -g
  2. Run the following command to query a list of operations that you can perform by using ROS CDK:
    ros-cdk

    The following content is returned after you run the command:

    Usage: ros-cdk COMMAND

    Commands:
      ros-cdk init [TEMPLATE]         Create a new, empty CDK project from a
                                      template. Invoked without TEMPLATE, the app
                                      template will be used.
      ros-cdk list [STACKS..]         Lists all stacks in the app      [aliases: ls]
      ros-cdk synthesize [STACKS..]   Synthesizes and prints the ROS template for
                                      this stack                    [aliases: synth]
      ros-cdk deploy [STACKS..]       Deploys the stack(s) named STACKS to ROS into
                                      your alicloud account
      ros-cdk diff [STACKS..]         Compares the specified stack with the deployed
                                      stack or a local template file, and returns
                                      with status 1 if any difference is found
      ros-cdk destroy [STACKS..]      Destroy the stack(s) named STACKS
      ros-cdk event [STACK..]         Get resource events within the resource STACK
      ros-cdk resource [STACKS..]     Get resources in the resource STACKS
      ros-cdk list-stacks [STACKS..]  Get resources in the resource STACKS
      ros-cdk load-config             Load Aliyun CLI config to CDK.
      ros-cdk config                  Set your alicloud account configuration.

    Options:
      --json, -j       Use JSON output instead of YAML when templates are printed to
                       STDOUT                             [boolean] [default: false]
      --ignore-errors  Ignores synthesis errors, which will likely produce an
                       invalid output                     [boolean] [default: false]
      --trace          Print trace for stack warnings                      [boolean]
      --strict         Do not construct stacks with warnings               [boolean]
      --version        Show version number                                 [boolean]
      -h, --help       Show help                                           [boolean]

    If your app has a single stack, there is no need to specify the stack name

    If one of cdk.json or ~/.cdk.json exists, options specified there will be used
    as defaults. Settings in cdk.json take precedence.

    The following table describes the commands in the query result.

    Command Description
    init Initializes an ROS CDK project.
    list (ls) Lists all the stacks in the project.
    synthesize (synth) Uses code to create a stack template.
    deploy Deploys a stack by using ROS.
    diff Compares templates.
    destroy Deletes a stack by using ROS.
    event Queries stack events by using ROS.
    resource Queries a list of resources in a stack by using ROS.
    list-stacks Queries a list of stacks by using ROS.
    load-config Queries information of the Alibaba Cloud account by using Alibaba Cloud CLI.
    config Configures the Alibaba Cloud account.

Usage examples

The following section describes how to add a VPC to a stack by using ROS CDK. TypeScript is used in the example.

  1. Initialize a project.
    1. Run the following command to create a project directory and initialize the project.
      # Create a project directory whose name is the same as the project name.
      mkdir demo
      cd demo
      # Initialize the project by using TypeScript.
      ros-cdk init --language=typescript --generate-only=true
    2. Run the following command to install dependencies for the project:
      # Install the dependencies required by the project.
      npm install
    3. Run the following command to view the project structure:
      tree -I "node_modules"

      The following content is returned after you run the command:

      .
      ├── bin
      │   └── demo.ts
      ├── cdk.json
      ├── jest.config.js
      ├── lib
      │   └── demo-stack.ts
      ├── package.json
      ├── package-lock.json
      ├── README.md
      ├── test
      │   └── demo.test.ts
      └── tsconfig.json

      3 directories, 9 files

      The following section describes the project structure:

      • bin/demo.ts: the launch file of the project.

        In the example, an application of the ros.App type and a DemoStack-typed stack named DemoStack are created. The stack is added to the application. The demo.ts file contains the following content.

        Note A project contains only a single application.
        #! /usr/bin/env node
        import * as ros from '@alicloud/ros-cdk-core';
        import { DemoStack } from '../lib/demo-stack';
        const app = new ros.App({outdir: './cdk.out'});
        new DemoStack(app, 'DemoStack');
      • ib/demo-stack.ts: the definition of DemoStack.

        You can add resources to the stack to dynamically create the stack. The code generated when the stack is created contains information only about the stack. demo-stack.ts contains the following content:

        import * as ros from '@alicloud/ros-cdk-core';
        export class DemoStack extends ros.Stack {
          constructor(scope: ros.Construct, id: string, props?: ros.StackProps) {
            super(scope, id, props);
            new ros.RosInfo(this, ros.RosInfo.description, "This is the simple ros cdk app example.") ;
            // The code that defines your stack goes here
          }
        }
      • test/demo.test.ts: the unit test.

        The test is used to check whether the created stack follows the expected logic. demo.test.ts contains the following content:

        import { expect as expectCDK, matchTemplate, MatchStyle } from '@alicloud/ros-cdk-assert';
        import * as ros from '@alicloud/ros-cdk-core';
        import * as Demo from '../lib/demo-stack';
        test('Stack with version.', () => {
          const app = new ros.App();
          // WHEN
          const stack = new Demo.DemoStack(app, 'MyTestStack');
          // THEN
          expectCDK(stack).to(
            matchTemplate(
              {
                ROSTemplateFormatVersion: '2015-09-01',
                Description: "This is the simple ros cdk app example."
              },
              MatchStyle.EXACT,
            ),
          );
        });
  2. Add a VPC to the stack.
    1. Modify the package.json file to add @alicloud/ros-cdk-ecs to dependencies.
      {
        "name": "demo",
        "version": "0.1.0",
        "bin": {
          "demo": "bin/demo.js"
        },
        "scripts": {
          "build": "tsc",
          "test": "jest"
        },
        "devDependencies": {
          "@types/jest": "^25.2.1",
          "@types/node": "10.17.5",
          "typescript": "^3.9.7",
          "jest": "^25.5.0",
          "ts-jest": "^25.3.1",
          "ts-node": "^8.1.0",
          "babel-jest": "^26.6.3",
          "@babel/core": "^7.12.9",
          "@babel/preset-env": "7.12.7",
          "@babel/preset-typescript": "^7.12.7",
          "@alicloud/ros-cdk-assert": "^1.0.0"
        },
        "dependencies": {
          "@alicloud/ros-cdk-core": "^1.0.0",
          "@alicloud/ros-cdk-ecs": "^1.0.0"
        }
      }
    2. Run the following command to install a new dependency for the project:
      # Install the dependencies required by the project.
      npm install
    3. Modify lib/demo-stack.ts to add a VPC.
      import * as ros from '@alicloud/ros-cdk-core';
      import * as ecs from '@alicloud/ros-cdk-ecs';
      export class DemoStack extends ros.Stack {
        constructor(scope: ros.Construct, id: string, props?: ros.StackProps) {
          super(scope, id, props);
          new ros.RosInfo(this, ros.RosInfo.description, "This is the simple ros cdk app example.") ;
          // The code that defines your stack goes here
          new ecs.Vpc(this, 'vpc-from-ros-cdk', {
            vpcName: 'test-ros-cdk',
            cidrBlock: '10.0.0.0/8',
            description: 'This is ros cdk test'
         });
        }
      }
    4. Run the following command to view the template:
      ros-cdk synth --json

      The following content is returned after you run the command:

      {
        "Description": "This is the simple ros cdk app example.",
        "ROSTemplateFormatVersion": "2015-09-01",
        "Resources": {
          "vpc-from-ros-cdk": {
            "Type": "ALIYUN::ECS::VPC",
            "Properties": {
              "CidrBlock": "10.0.0.0/8",
              "Description": "This is ros cdk test",
              "EnableIpv6": false,
              "VpcName": "test-ros-cdk"
            }
          }
        }
      }
    5. Modify test/demo.test.ts to ensure the consistency between the unit test and the code.
      import { expect as expectCDK, matchTemplate, MatchStyle } from '@alicloud/ros-cdk-assert';
      import * as ros from '@alicloud/ros-cdk-core';
      import * as Demo from '../lib/demo-stack';
      test('Stack with version.', () => {
        const app = new ros.App();
        // WHEN
        const stack = new Demo.DemoStack(app, 'MyTestStack');
        // THEN
        expectCDK(stack).to(
          matchTemplate(
            {
              "Description": "This is the simple ros cdk app example.",
              "ROSTemplateFormatVersion": "2015-09-01",
              "Resources": {
                "vpc-from-ros-cdk": {
                  "Type": "ALIYUN::ECS::VPC",
                  "Properties": {
                    "CidrBlock": "10.0.0.0/8",
                    "Description": "This is ros cdk test",
                    "EnableIpv6": false,
                    "VpcName": "test-ros-cdk"
                  }
                }
              }
            },
            MatchStyle.EXACT,
          ),
        );
      });
    6. Run the following command to perform the unit test:
      npm test

      The following content is returned after you run the command:

      > demo@0.1.0 test /root/demo
      > jest
       PASS  test/demo.test.ts
        ✓ Stack with version. (136ms)
      Test Suites: 1 passed, 1 total
      Tests:       1 passed, 1 total
      Snapshots:   0 total
      Time:        2.988s, estimated 3s
      Ran all test suites.
  3. Deploy the stack by using ROS.
    1. Configure the Alibaba Cloud account.
      1. Run the following command:
        ros-cdk config
      2. Enter the configuration information as prompted.
        endpoint(optional, default:https://ros.aliyuncs.com):
        defaultRegionId(optional, default:cn-hangzhou):

        [1] AK
        [2] StsToken
        [3] RamRoleArn
        [4] EcsRamRole
        [0] CANCEL

        Authenticate mode [1...4 / 0]: 1
        accessKeyId:****************
        accessKeySecret:******************************

         ✅ Your cdk configuration has been saved successfully!

        Parameter description:

        • endpoint: the endpoint of ROS. Default value: https://ros.aliyuncs.com.
        • defaultRegionId: the ID of the region where the stack is deployed. Default value: cn-hangzhou.
        • Authenticate mode: the authentication method. In this example, the AccessKey pair is used for authentication. You must specify the accessKeyId and accessKeySecret parameters.
    2. Run the following command to deploy the stack by using ROS:
      ros-cdk deploy

      The following content is returned after you run the command:

       ✅ The deployment(create stack) has completed!
      RequestedId: BC963C80-054D-41A0-87E7-001E0AB7B1BA
      StackId: 0714be3a-0713-4b7d-b7aa-************

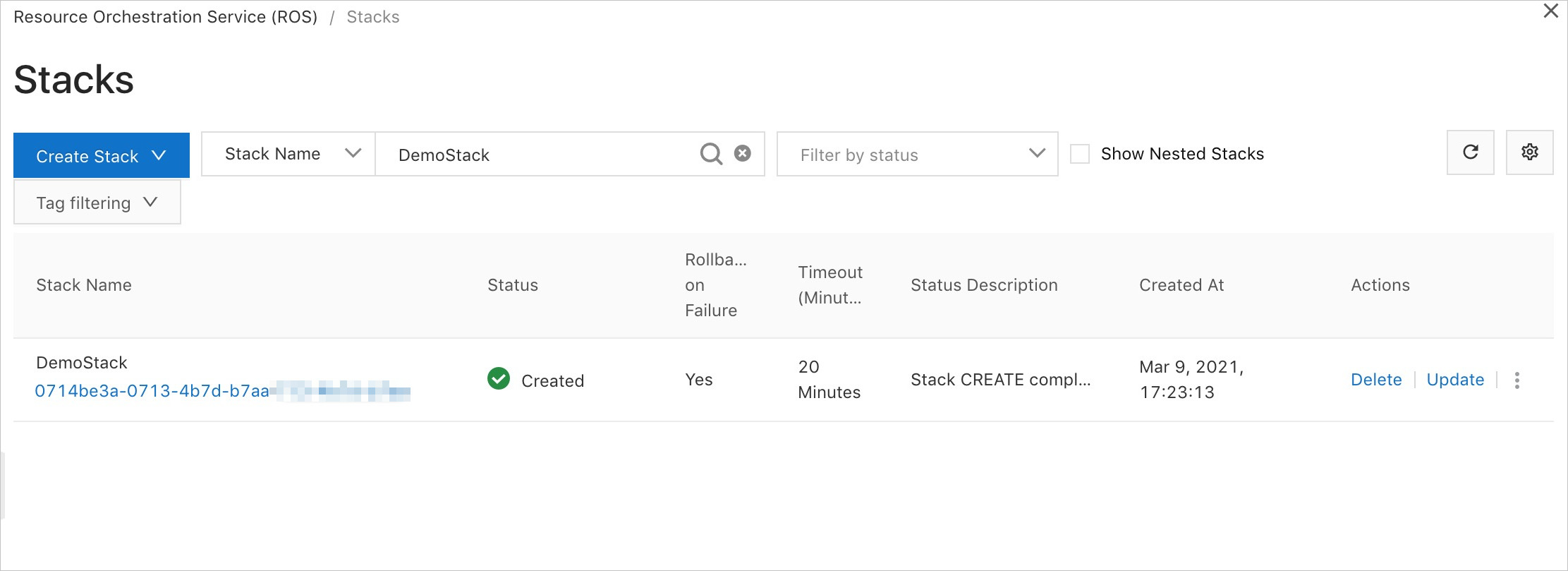

    3. Log on to the ROS console. In the left-side navigation pane, click Stacks. Then, view the stack status.
      If Created is displayed in the Status column, the stack named DemoStack is created.1
  4. (Optional) Modify the name of the VPC and create vSwitches in the VPC.
    You can use ROS CDK to perform operations that are more complex. The following operations are performed in the example:
    • Change the name of the VPC from test-ros-cdk to test-ros-cdk-vpc.
    • Create three vSwitches in the VPC that have different names and belong to different zones and CIDR blocks.
    1. Modify lib/demo-stack.ts.
      import * as ros from '@alicloud/ros-cdk-core';
      import * as ecs from '@alicloud/ros-cdk-ecs';
      export class DemoStack extends ros.Stack {
        constructor(scope: ros.Construct, id: string, props?: ros.StackProps) {
          super(scope, id, props);
          new ros.RosInfo(this, ros.RosInfo.description, "This is the simple ros cdk app example.") ;
          // The code that defines your stack goes here
         const vpc = new ecs.Vpc(this, 'vpc-from-ros-cdk', {
            vpcName: 'test-ros-cdk-vpc',
            cidrBlock: '10.0.0.0/8',
            description: 'This is ros cdk test'
          });
          for (let i = 0; i < 3; i++) {
            new ecs.VSwitch(this, `vsw-from-ros-cdk-${i}`, {
              vpcId: vpc.attrVpcId,
              zoneId: ros.Fn.select(`${i}`, ros.Fn.getAzs(ros.RosPseudo.region)),
              vSwitchName: `test-ros-cdk-vsw-${i}`,
              cidrBlock: `10.0.${i}.0/24`,
            });
          }
        }
      }

      Description:

      • vpcName indicates the name of the VPC.
      • The for loop is used to create the vSwitches. This is a highly concise method.
      • vpc.attrVpcId is used to obtain the ID of the VPC.
      • Fn.getAzs is used with the RosPseudo.region psudo parameter to obtain the zone list.
    2. Modify test/demo.test.ts to ensure the consistency between the unit test and the code. Then, run the npm test command to perform the unit test.
      For more information, see Step 2.
    3. Run the ros-cdk diff command to view the modified content.
      ros-cdk diff

      The following content is returned after you run the command:

      Stack DemoStack
      Resources
      [+] ALIYUN::ECS::VSwitch vsw-from-ros-cdk-0/vsw-from-ros-cdk-0 vsw-from-ros-cdk-0
      [+] ALIYUN::ECS::VSwitch vsw-from-ros-cdk-1/vsw-from-ros-cdk-1 vsw-from-ros-cdk-1
      [+] ALIYUN::ECS::VSwitch vsw-from-ros-cdk-2/vsw-from-ros-cdk-2 vsw-from-ros-cdk-2
      [~] ALIYUN::ECS::VPC vpc-from-ros-cdk/vpc-from-ros-cdk vpc-from-ros-cdk
       └─ [~] VpcName
           ├─ [-] test-ros-cdk
           └─ [+] test-ros-cdk-vpc
    4. Run the following command to deploy the stack by using ROS:
      ros-cdk deploy

      The following content is returned after you run the command:

       ✅ The deployment(update stack) has completed!
      RequestedId: 15E99FD6-968E-47AA-9CD2-82FA6E87C08E
      StackId: 0714be3a-0713-4b7d-b7aa-************

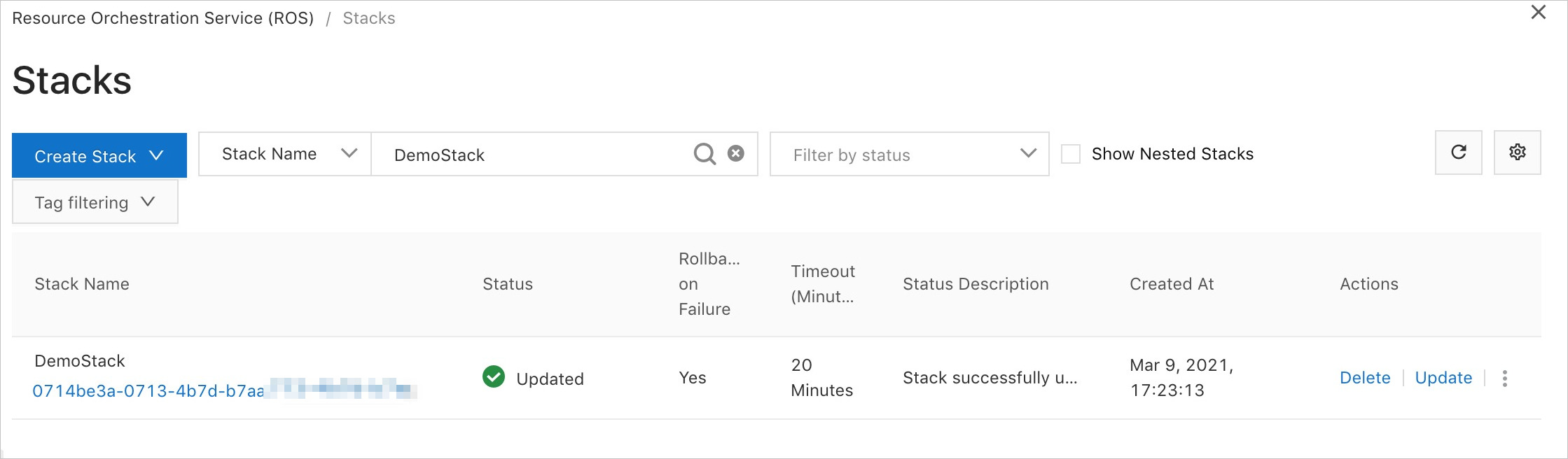

    5. Log on to the ROS console. In the left-side navigation pane, click Stacks. Then, view the stack status.
      If Updated is displayed in the Status column, the stack named DemoStack is updated.2

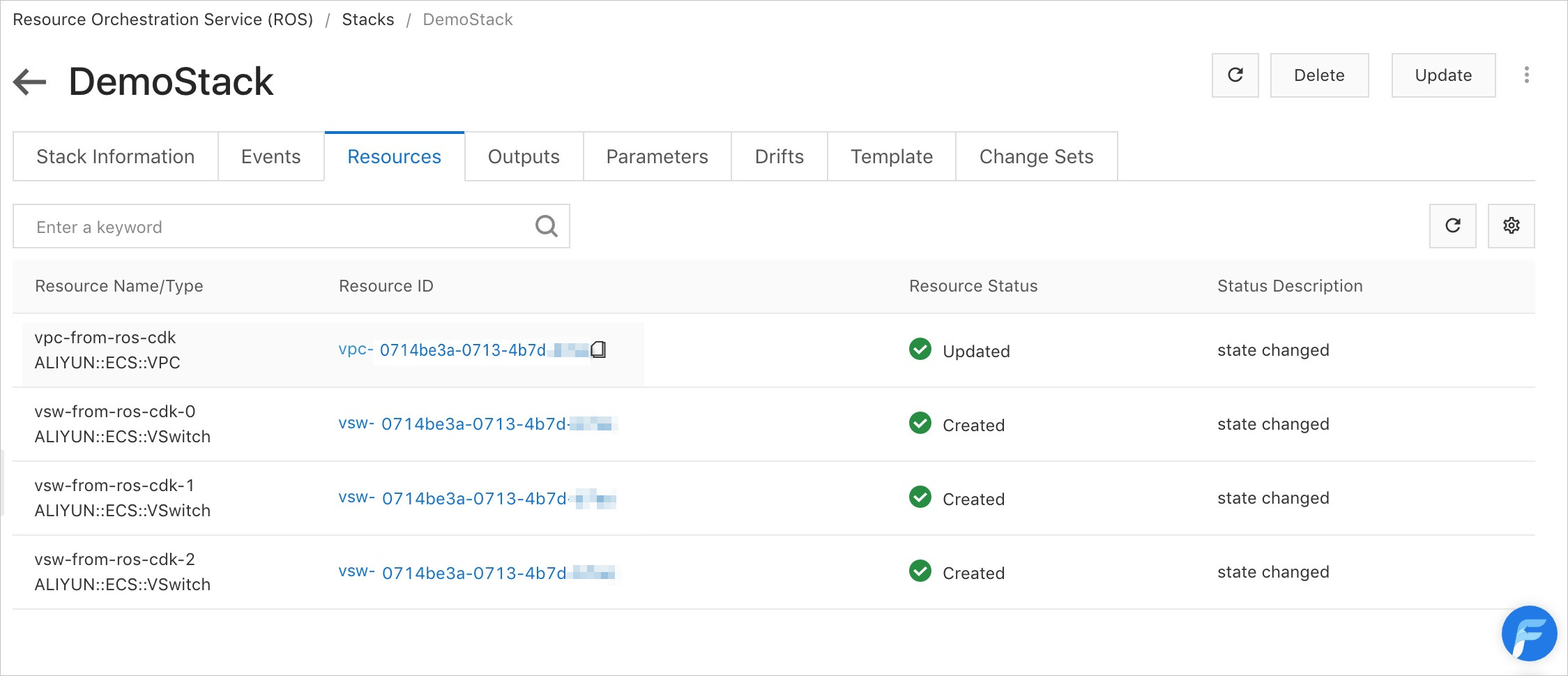

      Click the stack ID. On the stack management page, click the Resources tab to view the resource list. In this example, a VPC and three vSwitches are displayed in the resource list.

      3
  5. (Optional) Delete the stack.
    1. Run the following command to query a list of stacks in the project:
      ros-cdk list

      The following content is returned after you run the command:

      DemoStack deploy
    2. Run the following command to delete the stack:
      ros-cdk destroy

      The following content is returned after you run the command:

      The following stack(s) will be destroyed(Only deployed stacks will be displayed).
      DemoStack
      Please confirm.( Y/N)
      Y
       ✅ Deleted
      RequestedId: 1BF864E1-7965-4148-A302-E6ABFF806641

npm packages related to Alibaba Cloud resources

The following section lists the npm packages related to Alibaba Cloud resources. For example, @alicloud/ros-cdk-ecs indicates ECS resources. Each npm package contains all the resource types of a specific service supported by ROS.

You can log on to the ROS console and click Resource Types in the left-side navigation pane to view the resource types supported by all services.

@alicloud/ros-cdk-acm
@alicloud/ros-cdk-actiontrail
@alicloud/ros-cdk-apigateway
@alicloud/ros-cdk-arms
@alicloud/ros-cdk-bss
@alicloud/ros-cdk-cas
@alicloud/ros-cdk-cdn
@alicloud/ros-cdk-cen
@alicloud/ros-cdk-cloudfw
@alicloud/ros-cdk-cms
@alicloud/ros-cdk-cr
@alicloud/ros-cdk-cs
@alicloud/ros-cdk-datahub
@alicloud/ros-cdk-dbs
@alicloud/ros-cdk-dms
@alicloud/ros-cdk-dns
@alicloud/ros-cdk-drds
@alicloud/ros-cdk-dts
@alicloud/ros-cdk-eci
@alicloud/ros-cdk-ecs
@alicloud/ros-cdk-edas
@alicloud/ros-cdk-ehpc
@alicloud/ros-cdk-elasticsearch
@alicloud/ros-cdk-emr
@alicloud/ros-cdk-ens
@alicloud/ros-cdk-ess
@alicloud/ros-cdk-fc
@alicloud/ros-cdk-fnf
@alicloud/ros-cdk-foas
@alicloud/ros-cdk-ga
@alicloud/ros-cdk-gws
@alicloud/ros-cdk-hbr
@alicloud/ros-cdk-iot
@alicloud/ros-cdk-kafka
@alicloud/ros-cdk-kms
@alicloud/ros-cdk-marketplace
@alicloud/ros-cdk-memcache
@alicloud/ros-cdk-mns
@alicloud/ros-cdk-mongodb
@alicloud/ros-cdk-mse
@alicloud/ros-cdk-nas
@alicloud/ros-cdk-oos
@alicloud/ros-cdk-oss
@alicloud/ros-cdk-ots
@alicloud/ros-cdk-polardb
@alicloud/ros-cdk-pvtz
@alicloud/ros-cdk-ram
@alicloud/ros-cdk-rds
@alicloud/ros-cdk-redis
@alicloud/ros-cdk-resourcemanager
@alicloud/ros-cdk-rocketmq
@alicloud/ros-cdk-ros
@alicloud/ros-cdk-sae
@alicloud/ros-cdk-sag
@alicloud/ros-cdk-slb
@alicloud/ros-cdk-sls
@alicloud/ros-cdk-uis
@alicloud/ros-cdk-vpc
@alicloud/ros-cdk-vs
@alicloud/ros-cdk-waf
