This topic describes how to configure Source Network Address Translation (SNAT) for a NAT gateway. SNAT enables Elastic Compute Service (ECS) instances to access the Internet when the ECS instances are not assigned static public IP addresses or elastic IP addresses (EIPs).

Scenario

The following scenario is used as an example. For example, a company creates a virtual private cloud (VPC) and a VSwitch on Alibaba Cloud. Multiple ECS instances are attached to the VSwitch. The ECS instances are not assigned static public IP addresses or EIPs. To meet business requirements, all ECS instances must have access to the Internet.

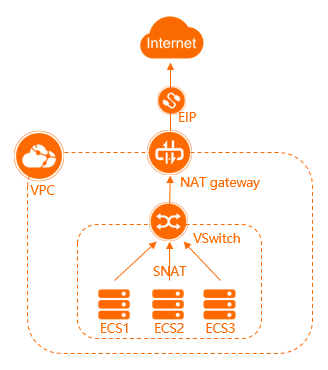

You can configure SNAT for a NAT gateway to allow all ECS instances in a VPC to access the Internet when the ECS instances are not assigned static public IP addresses or EIPs.Scenario

Prerequisites

Before you start, make sure the following requirements are met:
  • An Alibaba Cloud account is created. If you do not have an Alibaba Cloud account,create an Alibaba Cloud account.
  • A VPC and a VSwitch are created. For more information, see Create a VPC.
  • An EIP is created in the region where the NAT gateway to be associated with the EIP is deployed. For more information, see Apply for new EIPs.

Procedure

Procedure

Step 1: Create a NAT gateway

NAT gateways are enterprise-class gateways that provide address translation services for Internet access. You must create a NAT gateway before you can create SNAT entries.

Perform the following steps to create a NAT gateway:

  1. Log on to the NAT Gateway console.
  2. On the NAT Gateway page, click Create NAT Gateway.
  3. On the NAT Gateway page, set the following parameters, click Buy Now, and complete the payment.
    • Region and Zone: Select the region and zone where you want to deploy the NAT gateway.
      Note Enhanced NAT gateways are available in all regions except Australia (Sydney).
    • VPC ID: Select the VPC in which the NAT gateway is created. After the NAT gateway is created, you cannot change the VPC in which the NAT gateway is deployed.
      Note If you cannot find the VPC that you want to manage in the list, perform the following operations:
      • Check whether the VPC is already associated with a NAT gateway. Each VPC can be associated with only one standard NAT gateway.
      • Check whether the VPC has a custom route entry with the destination CIDR block set to 0.0.0.0/0. If such a custom route entry exists, delete it.
      • If your account is a Resource Access Management (RAM) user, check whether the RAM user is authorized to access the VPC. If the RAM user is unauthorized, contact the owner of the Alibaba Cloud account that created the RAM user to grant permissions.
    • Zone: Select the zone to which the NAT gateway belongs.
    • VSwitch ID: Select the VSwitch to which the NAT gateway is attached.
      Note This parameter is available only when you create an enhanced NAT gateway.
    • NAT Type: Select the type of the NAT gateway that you want to create.
      • Standard
      • Enhanced

      Enhanced NAT gateways support all features of standard NAT gateways. Enhanced NAT gateways are upgraded from the technical architecture of standard NAT gateways. Compared with standard NAT gateways, enhanced NAT gateways offer higher elasticity and stability. This enables you to manage data transfer in a more efficient way. Enhanced is selected in this topic.

    • Specification: Specify the size of the NAT gateway.
      • Small
      • Medium
      • Large
      • Super Large-1

      The size of a NAT gateway determines its SNAT performance, including the maximum number of concurrent connections and the number of new connections per second. However, the size does not affect the DNAT performance. For more information, see Sizes of NAT gateways.

      Small is selected in this topic.

    • Billing Method: Select a billing method.

      Only pay-by-specification is supported. For more information, see Pay-by-specification.

    • Billing Cycle:displays the billing cycle of the NAT gateway.
After you create a NAT gateway, you can view the NAT gateway on the NAT Gateway page.Create a NAT gateway

Step 2: Associate the NAT gateway with an EIP

A NAT gateway functions as expected only after it is associated with an EIP. After you create a NAT gateway, you can associate it with an EIP.

Perform the following steps to associate the NAT gateway with an EIP:

  1. On the NAT Gateway page, find the NAT gateway created in Step 1, and choose More > Bind Elastic IP Address in the Actions column.
  2. In the Bind Elastic IP Address dialog box, set the following parameters, and click OK.
    • Usable EIP List: Select the EIP that you want to associate with the NAT gateway.
    • VSwitch: Select the VSwitch for which you want to add SNAT entries.

      The system automatically adds SNAT entries for the VSwitch so that Alibaba Cloud services attached to the VSwitch can access the Internet. You can also skip this step and manually add SNAT entries after you associate an EIP with the NAT gateway.

      No VSwitch is selected in this topic.

      Note This parameter is available only for NAT gateways that are not associated with EIPs.

Step 3: Create a SNAT entry

SNAT enables ECS instances in a VPC to access the Internet through a NAT gateway when these ECS instances are not assigned static public IP addresses or EIPs.

Perform the following steps to create a SNAT entry:

  1. On the NAT Gateway page, find the NAT gateway created in Step 1, and click Configure SNAT in the Actions column.
  2. In the Used in SNAT Entry section, click Create SNAT Entry.
  3. In the Create SNAT Entry dialog box, set the following parameters:
    VSwitch Granularity is used as an example to describe how to create a SNAT entry for a VSwitch.
    • VSwitch: Select a VSwitch in a VPC. All ECS instances attached to the VSwitch can access the Internet through SNAT.
    • VSwitch CIDR Block: displays the CIDR block of the VSwitch.
    • Public IP Address: the EIP that is used to access the Internet.
      Note
      • For standard NAT gateways, you cannot specify a public IP address in both SNAT and DNAT entries.
      • For enhanced NAT gateways, you can specify a public IP address in both SNAT and DNAT entries. If you want to use enhanced NAT gateways,submit a ticket.
    • Entry Name: Enter a name for the SNAT entry.

      The name must be 2 to 128 characters in length, and can contain letters, Chinese characters, digits, underscores (_), and hyphens (-). It must start with a letter or Chinese character.

  4. Click OK.

Step 4: Test the network connectivity

After you create a SNAT entry, you can test the network connectivity between the ECS instance and the Internet.
Note Make sure that the security group rules of the ECS instance allow the ECS instance to access the Internet.

In this example, an ECS instance that runs a Linux operating system is used to test the network connectivity.

  1. Log on to the ECS instance that is attached to the VSwitch.
  2. Run the ping command to test the network connectivity.

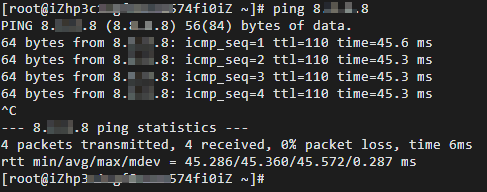

    The test result shows that the ECS instance can access the Internet.Test the network connectivity
