In the Enterprise Distributed Application Service (EDAS) console, you can use an image, a JAR package, or a WAR package to deploy an application to a Kubernetes cluster. If you are proficient in Docker and JVM and want to set the startup parameters based on your business needs, you can configure your container startup and runtime commands.

Background information

When you create an image, the container startup configurations you have specified by using the ENTRYPOINT or CMD command in your Dockerfile are preferentially used.

Notice
  • If you are not familiar with the CMD or ENTRYPOINT content of the original Dockerfile image, we recommend that you do not customize the startup command and parameters. Invalid custom commands cause failures of creating applications.
  • In the Docker runtime, only one ENTRYPOINT command can take effect. Therefore, the startup command configured in the EDAS console overwrites the ENTRYPOINT and CMD commands that were configured when you created the Docker container image.
For example, if you configure the ENTRYPOINT: [nginx, '-g', 'daemon off;'] command in your Dockerfile, this command is the first command to be run upon the container startup.
FROM ubuntu
ENTRYPOINT [nginx, '-g', 'daemon off;']
You can configure a startup command when you create or deploy your application, or after your application is deployed. This topic describes how to configure a startup command in different scenarios.

Configure a startup command when you create your application

  1. Log on to the EDAS console.
  2. In the left-side navigation pane, click Applications. In the top navigation bar, select a region. On the Applications page, select a namespace in the upper part and click Create Application in the upper-left corner.
  3. In the Basic Information step, specify Cluster Type and Application Runtime Environment, and click Next.
    Parameter Description
    Cluster Type Select Kubernetes Clusters.
    Application Runtime Environment Select an application runtime environment based on the type of the hosted application.
    • Java
      • Custom: Select this option if you want to use a custom image to deploy the application in a Kubernetes cluster.
      • Java: Select this option if you want to use a universal JAR package to deploy the application as a Dubbo or a Spring Boot application. You can specify the Java Environment parameter after you select this option.
      • Tomcat: Select this option if you want to use a universal WAR package to deploy the application as a Dubbo or a Spring application. You can specify the Java Environment and Container Version parameters after you select this option.
      • EDAS-Container (HSF): Select this option if you want to use a WAR or FatJar package to deploy the application as a High-Speed Service Framework (HSF) application. You can specify the Java Environment, Pandora Version, and Ali-Tomcat Version parameters after you select this option.
    • PHP: Select this option if you want to run this application as a PHP application on Apache HTTP Server.
    • Node.js, C ++, Go, and Other Languages: Select this option if you want to use a custom image to deploy the application in a Kubernetes cluster. The configuration process for multi-language applications is not described in this topic. For more information, see Use custom images to deploy applications of different programming languages in Kubernetes clusters.
  4. In the Configurations step, configure the environment information, basic information, deployment method, and resource parameters for the application, and click Next.
  5. In the Advanced Settings step, click Startup Command and configure a startup command based on your business needs.

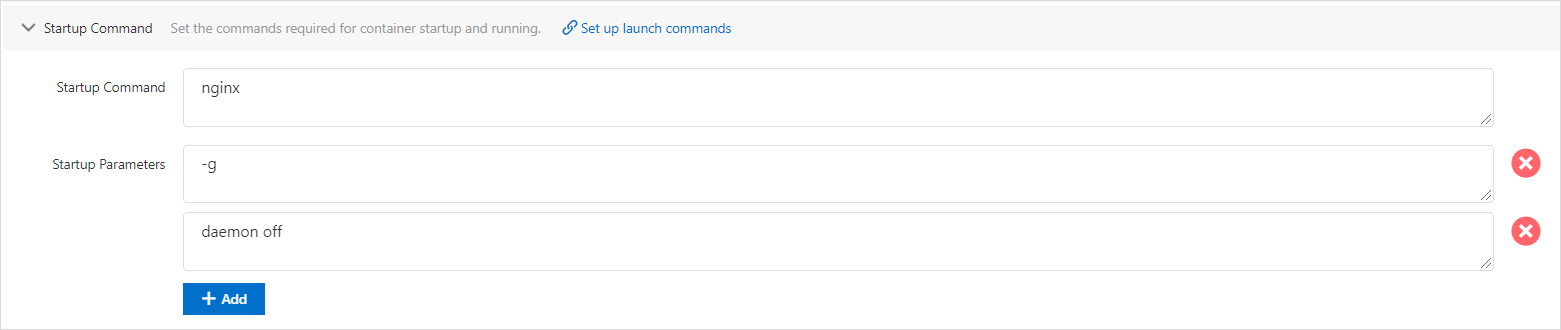

    Startup command

    The ENTRYPOINT: [nginx, '-g', 'daemon off;'] command is used as an example.

    Parameter Description
    Startup Command Enter a startup command, such as nginx.
    Startup Parameters Specify only one parameter in each row. For example, enter -g in the field and click Add to specify the -g parameter in a row. Then, specify the daemon off parameter in another row.
  6. Click Create Application.
  7. In the Creation Completed step, confirm the settings in Basic Information, Configurations, and Advanced Settings, and click Create Application.
    In the upper part of the Application Overview page, click View Details. On the Change List page, you can view the change process. Wait a few minutes until the application is deployed. After the change process is complete, view the running status of the instances in the Basic Information section of the Application Overview page. If the pod that runs the application is in the running state, the application is deployed.

Configure a startup command when you update your application

You can configure a startup command when you create your application. You can also configure or update your startup command when you deploy your application.

  1. Log on to the EDAS console.
  2. In the left-side navigation pane, click Applications. In the top navigation bar, select a region. On the Applications page, select a namespace in the upper part, and select Container Service or Serverless Kubernetes Cluster from the Cluster Type drop-down list. Then, find the application that you want to deploy, and click the application name.
  3. On the Application Overview or Basic Information page, choose Deploy > Deploy in the upper-right corner.
  4. On the Select Deployment Mode page, select a deployment mode and click Start Deployment in the upper-right corner of the specified deployment mode section.
  5. Specify the environment and the deployment package that you want to use for your application, click Startup Command, complete the configuration based on your business needs, and then click OK.
    Startup command

    The ENTRYPOINT: [nginx, '-g', 'daemon off;'] command is used as an example.

    Parameter Description
    Startup Command Enter a startup command, such as nginx.
    Startup Parameters Specify only one parameter in each row. For example, enter -g in the field and click Add to specify the -g parameter in a row. Then, specify the daemon off parameter in another row.
    Notice The application is restarted after you click OK. We recommend that you perform this operation during off-peak hours.

Verify the result

  • Method 1

    In the left-side navigation pane of the application details page, click Change List to view the application change details. If the value in the Change Status column is Succeeded, the application is deployed and the configuration takes effect.

  • Method 2

    On the Application Overview page, click Running Pods (Click View) next to Running Status. In the Pod section of the panel that appears, check the Status column of the pod. If a green dot appears, the application is in the running state. This means that the application is deployed as expected and the configuration takes effect.
