Export all data from an HBase table to MaxCompute using Lindorm Tunnel Service (LTS). The export runs as a batch job and supports filtering by rowkey range, time range, and specific columns. Use this approach when you need a one-time or periodic full snapshot of an HBase table in MaxCompute for offline analytics.
This feature is not available for LTS instances purchased after June 16, 2023. If your LTS instance was purchased before June 16, 2023, this feature remains available.
Prerequisites
Before you begin, ensure that you have:
LTS activated, with a username and password configured for the LTS web UI
An HBase data source added in LTS
A MaxCompute data source added in LTS
Supported versions
The following HBase deployment types are supported:
Self-managed HBase V1.x and HBase V2.x
Elastic MapReduce (EMR) HBase
ApsaraDB for HBase Standard Edition
ApsaraDB for HBase Performance-enhanced Edition (cluster mode)
Lindorm
Choose an export mode
LTS supports two export modes. Choose based on how you want the data structured in MaxCompute.
| KV mode | Wide table mode | |
|---|---|---|
| Output structure | Each row in MaxCompute represents one KV pair in HBase (rowkey, version, op, family, qualifier, value) | Each row in MaxCompute represents one HBase row, with selected columns mapped to MaxCompute columns |
| Column selection | Not required — all columns are exported automatically | Required — specify the columns to export using "cols" |
| Data types | Values are always stored as HexString | Defaults to HexString; supports explicit type mapping (string, int, long, short, decimal, double, float, boolean) |
| Use when | You need raw cell-level data, including delete markers | You need a structured table for analytics |
Create an export task
Log on to the LTS web UI. In the left-side navigation pane, choose Data Export > Archive Full Data to MaxCompute.
On the Lindorm/HBase archive to MaxCompute page, click create new job.
Select the source cluster and the destination cluster, specify the table to export, and then click create.
Click the task name to monitor the export progress.
After the export completes, log on to the MaxCompute console to query the data.
Configure export parameters
When creating a task, specify the export configuration as a JSON string after the table name. The general format is:
hbaseTable {"tableMode": "KVTable"}
hbaseTable {"tableMode": "wideTable", "cols": ["f1:a", "f1:b", "f1:c"]}
hbaseTable {"tableMode": "wideTable", "cols": ["f1:a|string", "f1:b|boolean"], "startTs": "20190101000000", "endTs": "20200101000000", "startKey": "a", "endKey": "z"}To export to a MaxCompute table with a different name, use hbaseTable/odpsTable format:
hbaseTable/odpsTable {"tableMode": "KVTable"}By default, the MaxCompute table name matches the HBase table name. Hyphens (-) and periods (.) in HBase table names are replaced with underscores (_).
Parameter reference
| Parameter | Description | Default | Applies to |
|---|---|---|---|
tableMode | Export mode. Valid values: KVTable, wideTable. | — | Both modes |
cols | Columns to export, in family:qualifier format. Append |type to specify the data type, for example, f1:a|string. | — | Wide table mode only (required) |
startKey | Start rowkey for the export range. | Beginning of table | Both modes |
endKey | End rowkey for the export range. | End of table | Both modes |
startTs | Start timestamp for the time range, in yyyyMMddHHmmss format, for example, 20191001153000. | — | Both modes |
endTs | End timestamp for the time range, in yyyyMMddHHmmss format. | — | Both modes |
Supported data types for `cols`: string, int, long, short, decimal, double, float, boolean. If no type is specified, values are exported as HexString (default: hex).
KV mode output
Input:

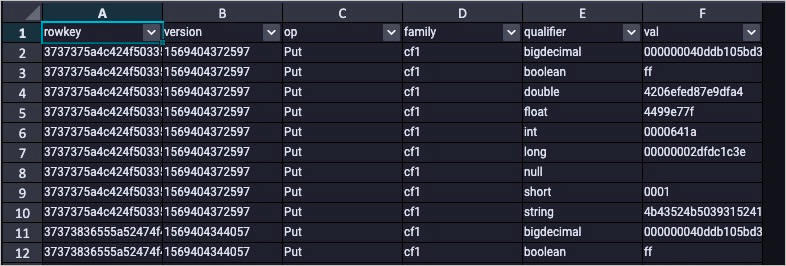

tablexxx {"tableMode": "KVTable"}Response:
Each row in the MaxCompute table represents one KV pair in HBase:
| Field | Description |
|---|---|
rowkey | The rowkey of the HBase row |
version | The version of the KV pair |
op | The operation type. Valid values: Put, DeleteFamily, DeleteColumn |
family | The column family |
qualifier | The column name |
value | The cell value, encoded as HexString |
Wide table mode output
Input:
hbaseTable/odpsTable {"tableMode": "wideTable", "cols": ["cf1:string|string", "cf1:int|int", "cf1:double|double"]}Specify the columns to export using "cols". Each entry maps an HBase column to a MaxCompute column. Append |type to specify the data type; omit it to use the default HexString format.

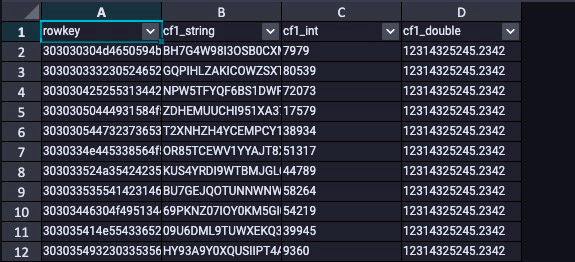

Response:
