When you create a transformation rule, you can configure an AccessKey pair of an Alibaba Cloud account or RAM user to read data from the source Logstore and write the transformed data to one or more destination Logstores. This topic describes how to configure AccessKey pairs for RAM users to perform read and write operations on Logstores.

Background information

A data transformation task is performed based on the following steps. In step 1 and step 3, permissions are required to access Logstores. If you use an Alibaba Cloud account to access the source and destination Logstores, you do not need to separately configure relevant read and write permissions for the account. For account security and fine-grained access control, we recommend that you use your Alibaba Cloud account to grant permissions to RAM users and then use the RAM users to access Logstores.
  1. Read data from the source Logstore.
  2. Transform source data.
  3. Write transformed data to the destination Logstore.

Create an AccessKey pair for a RAM user to access the source Logstore

  1. Log on to the RAM console by using an Alibaba Cloud account.
  2. Create a RAM user. For more information, see Create a RAM user.
    When you create a RAM user, select Programmatic Access for Access Mode, and save the AccessKey pair of the RAM user.
    Note
    • You can create a maximum of two AccessKey pairs for a RAM user.
    • After you create an AccessKey pair, you cannot view the AccessKey secret of the AccessKey pair by using the console. We recommend that you copy the AccessKey secret when you create an AccessKey pair and keep the AccessKey secret confidential to prevent information leakage.
  3. Create a permission policy for the RAM user to read data from the source Logstore.
    1. In the left-side navigation pane, choose Permissions > Policies.
    2. On the Policies page, click Create Policy.
    3. On the Create Custom Policy page, set the parameters, and then click OK. The following table describes the parameters.
      Parameter Description
      Policy Name The name of the policy. In this example, set the value to log-etl-source-reader-1-policy.
      Configuration Mode Select Script.
      Policy Document The content of the policy. Replace the content in the editor with one of the following scripts based on your business requirements.
      • Authorization policy that uses exact match
        The source project name is log-project-prod. The source Logstore name is access_log. Replace the regular expressions for exact match based on your business scenarios.
        {
          "Version": "1",
          "Statement": [
            {
              "Action": [
                "log:ListShards",
                "log:GetCursorOrData",
                "log:GetConsumerGroupCheckPoint",
                "log:UpdateConsumerGroup",
                "log:ConsumerGroupHeartBeat",
                "log:ConsumerGroupUpdateCheckPoint",
                "log:ListConsumerGroup",
                "log:CreateConsumerGroup"
              ],
              "Resource": [
                "acs:log:*:*:project/log-project-prod/Logstore/access_log",
                "acs:log:*:*:project/log-project-prod/Logstore/access_log/*"
              ],
              "Effect": "Allow"
            }
          ]
        }
      • Authorization policy that uses fuzzy match
        The source project names are log-project-dev-a, log-project-dev-b, and log-project-dev-c. The source Logstore names are app_a_log, app_b_log, and app_c_log. Replace the regular expressions for fuzzy match based on your business scenarios.
        {
          "Version": "1",
          "Statement": [
            {
              "Action": [
                "log:ListShards",
                "log:GetCursorOrData",
                "log:GetConsumerGroupCheckPoint",
                "log:UpdateConsumerGroup",
                "log:ConsumerGroupHeartBeat",
                "log:ConsumerGroupUpdateCheckPoint",
                "log:ListConsumerGroup",
                "log:CreateConsumerGroup"
              ],
              "Resource": [
                "acs:log:*:*:project/log-project-dev-*/Logstore/app_*_log",
            "acs:log:*:*:project/log-project-dev-*/Logstore/app_*_log/*"
              ],
              "Effect": "Allow"
            }
          ]
        }
        For more information, see Use custom policies to grant permissions to a RAM user.
  4. Attach the policy to the RAM user.
    1. In the left-side navigation pane, choose Identities > Users.
    2. On the Users page, find the RAM user, and click Add Permissions in the Actions column.
    3. In the Select Policy section, select Custom Policy. In the Authorization Policy Name list, select the policy that you created in step 3, and then click OK. In this example, the policy is log-etl-source-reader-1-policy.Add permissions

Create an AccessKey pair for a RAM user to access the destination Logstore

  1. Log on to the RAM console by using an Alibaba Cloud account.
  2. Create a RAM user. For more information, see Create a RAM user.
    When you create a RAM user, select Programmatic Access for Access Mode, and save the AccessKey pair of the RAM user.
    Note
    • You can create a maximum of two AccessKey pairs for a RAM user.
    • After you create an AccessKey pair, you cannot view the AccessKey secret of the AccessKey pair by using the console. We recommend that you copy the AccessKey secret when you create an AccessKey pair and keep the AccessKey secret confidential to prevent information leakage.
  3. Create a permission policy for the RAM user to write data to the destination Logstore.
    1. In the left-side navigation pane, choose Permissions > Policies.
    2. On the Policies page, click Create Policy.
    3. On the Create Custom Policy page, set the parameters, and then click OK. The following table describes the parameters.
      Parameter Description
      Policy Name The name of the policy. In this example, set the value to log-etl-target-writer-1-policy.
      Configuration Mode Select Script.
      Policy Document The content of the policy. Replace the content in the editor with one of the following scripts based on your business requirements.
      • Authorization policy that uses exact match
        The source project name is log-project-prod. The source Logstore name is access_log_output. Replace the regular expressions for exact match based on your business scenarios.
        {
          "Version": "1",
          "Statement": [
            {
              "Action": [
                "log:Post*"
              ],
               "Resource": "acs:log:*:*:project/log-project-prod/logstore/access_log_output",
              "Effect": "Allow"
            }
          ]
        }
      • Authorization policy that uses fuzzy match
        The source project names are log-project-dev-a, log-project-dev-b, and log-project-dev-c. The source Logstore names are app_a_log_output, app_b_log_output, and app_c_log_output. Replace the regular expressions for fuzzy match based on your business scenarios.
        {
          "Version": "1",
          "Statement": [
            {
              "Action": [
                "log:Post*"
              ],
               "Resource": "acs:log:*:*:project/log-project-dev-*/logstore/app_*_log_output",
              "Effect": "Allow"
            }
          ]
        }
        For more information, see Use custom policies to grant permissions to a RAM user.
  4. Attach the policy to the RAM user.
    1. In the left-side navigation pane, choose Identities > Users.
    2. On the Users page, find the RAM user, and click Add Permissions in the Actions column.
    3. In the Select Policy section, select Custom Policy. In the Authorization Policy Name list, select the policy that you created in step 3, and then click OK. In this example, the policy is log-etl-source-reader-1-policy.
      Write permissions

What to do next

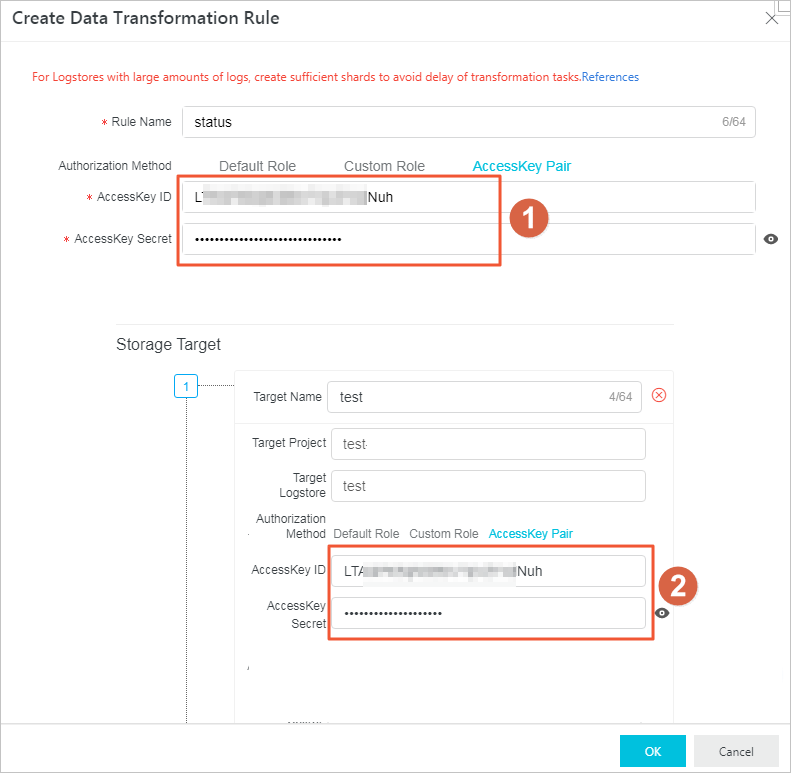

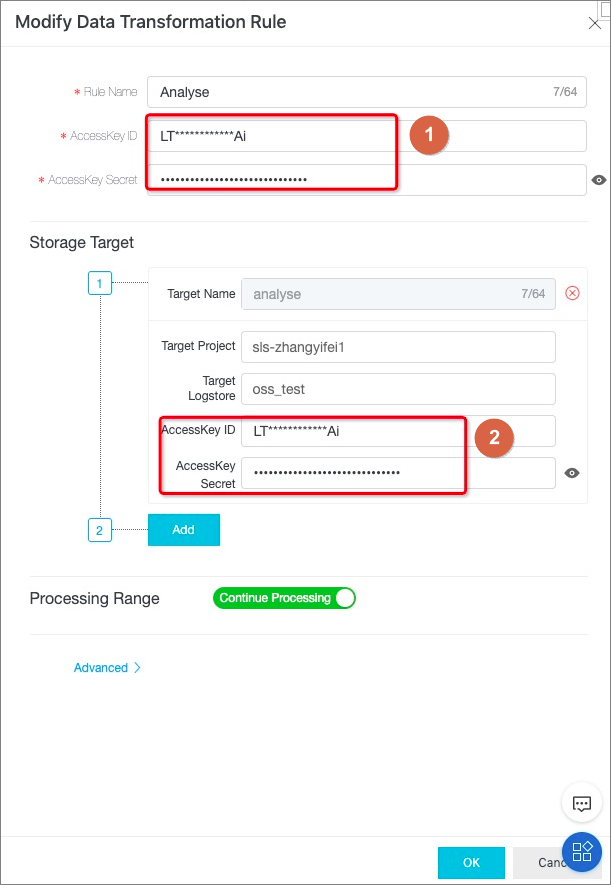

You must configure an AccessKey pair for a RAM user when you create a data transformation rule. For more information, see Create a data transformation task. Enter the AccessKey pair that you create for the RAM user to access the source Logstore in the first red box. For more information, see Create an AccessKey pair for a RAM user to access the source Logstore. Enter the AccessKey pair that you create for the RAM user to access the destination Logstore in the second red box. For more information, see Create an AccessKey pair for a RAM user to access the destination Logstore. Modify the transformation rule
